Marvel Vs. Capcom 2: New Age of Heroes (USA, Rev A)
From Citylan
Jump to navigationJump to search
| dumper | MetalliC |
| date | 17/06/2016 |
| emulator | MAME 0.175 |
| dev | MetalliC |
| name | mvsc2u on ProgettoEMMA mvsc2u on Arcade Database |
| description | Marvel Vs. Capcom 2: New Age of Heroes (USA, Rev A) |
| year | 2000.02.11 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27322 | EPR-23062A.ic22 | not dumped |
| 14x | M27W064 | 23048.ic1 - 23061.ic14s | not dumped |
| 1x | X76F100 | ic37 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 841-0007C-01
Protection IC: SEGA 315-5881 (317-5053-COM)
Key: 0xc18b6e7c
PCB s/n is 840-0007B
Files
-

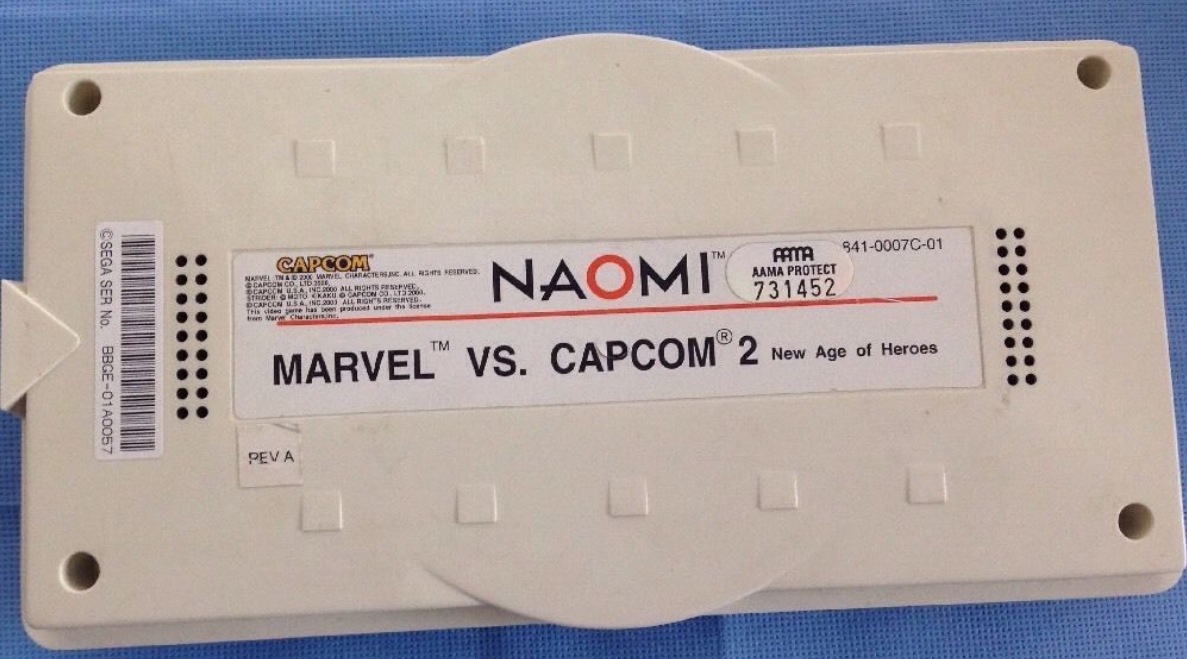

Cart 1
-

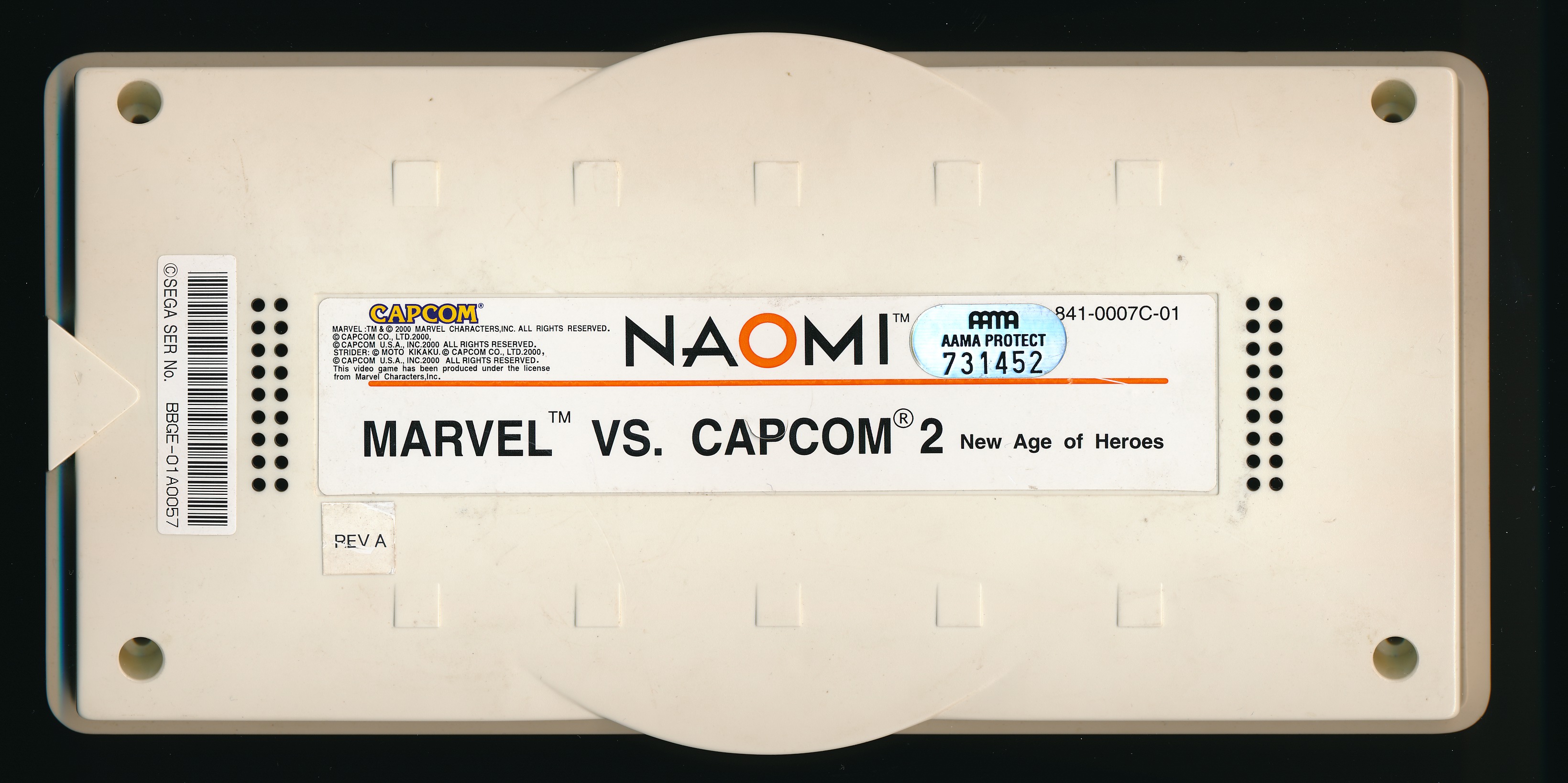

Cart 2
-

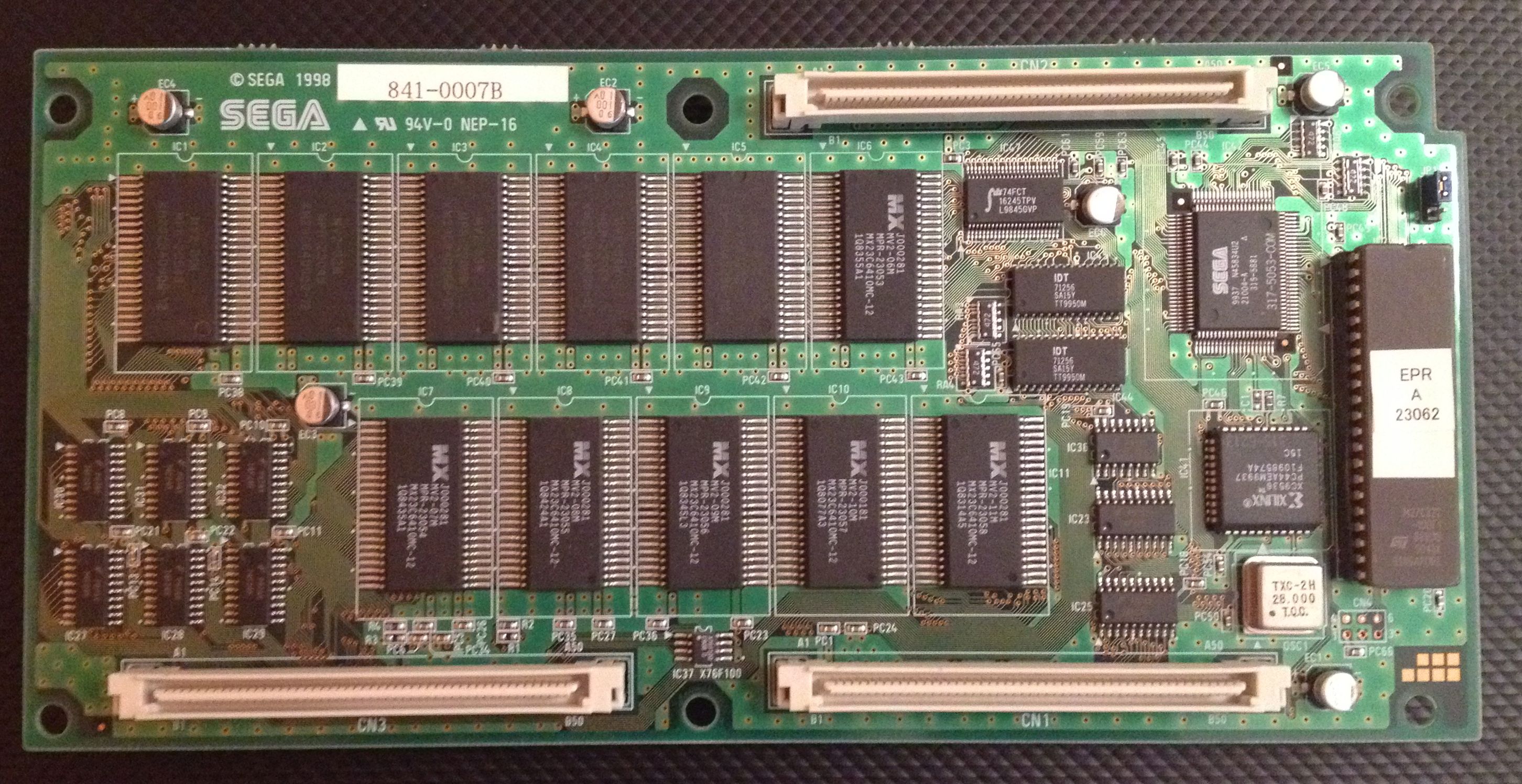

PCB component side 1
-

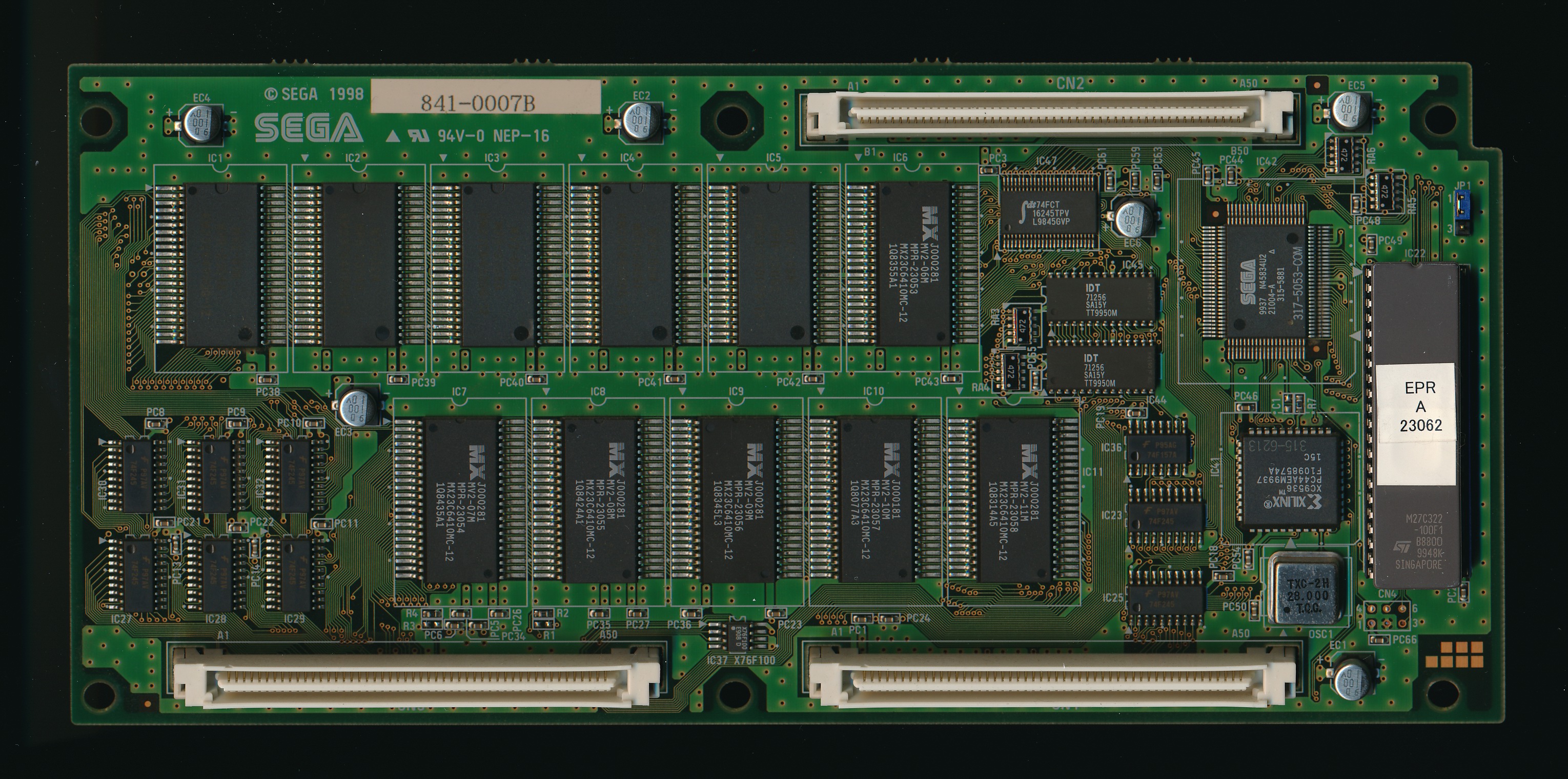

PCB component side 2
-

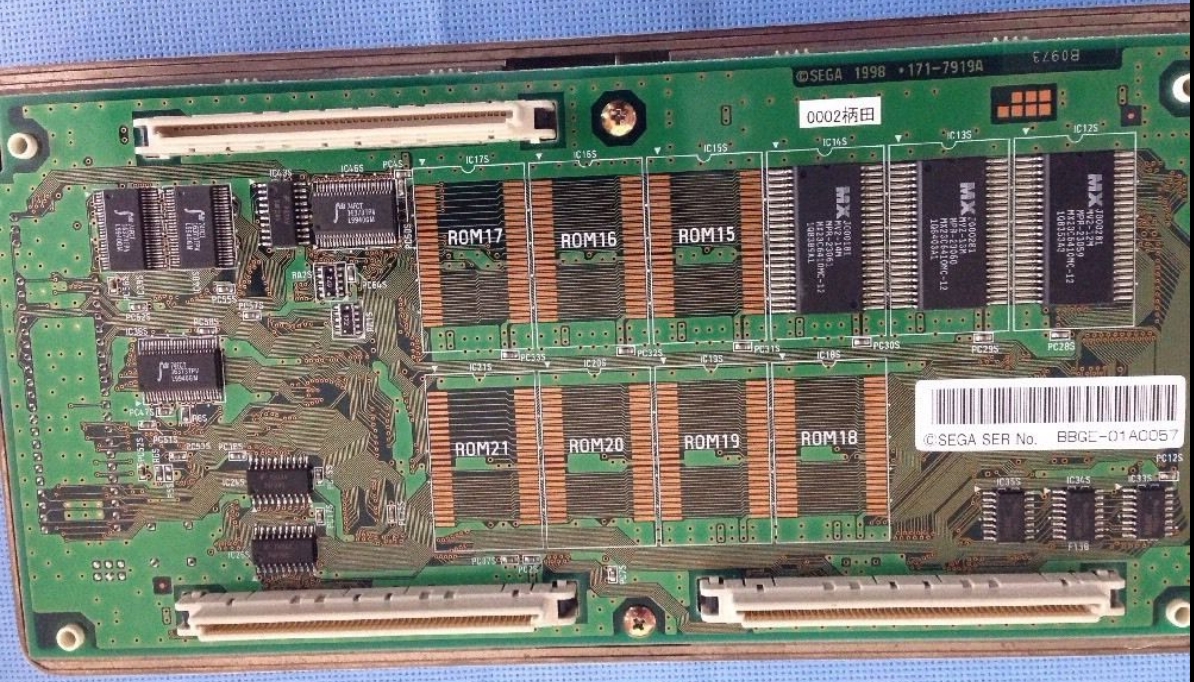

PCB solder side 1
-

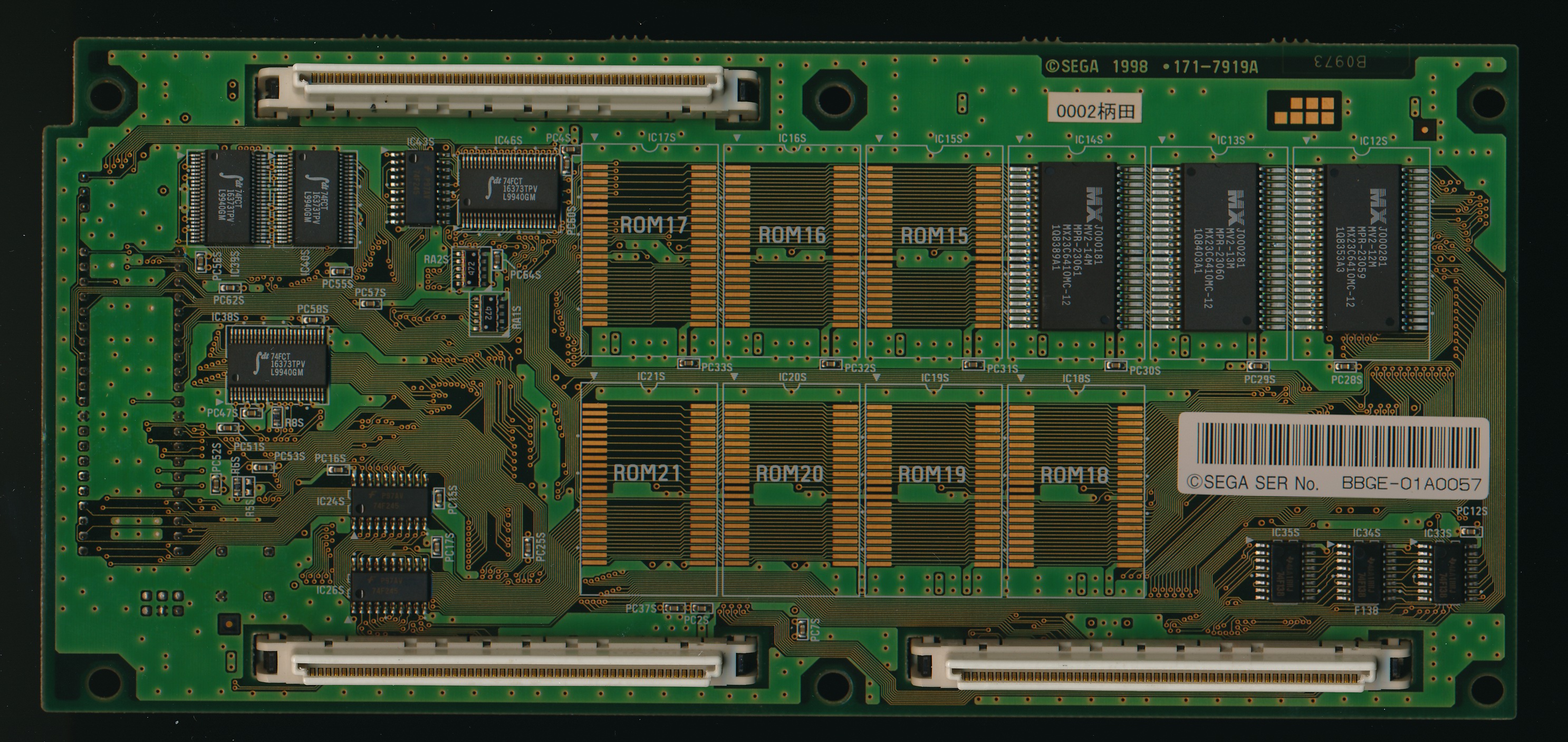

PCB solder side 2
-

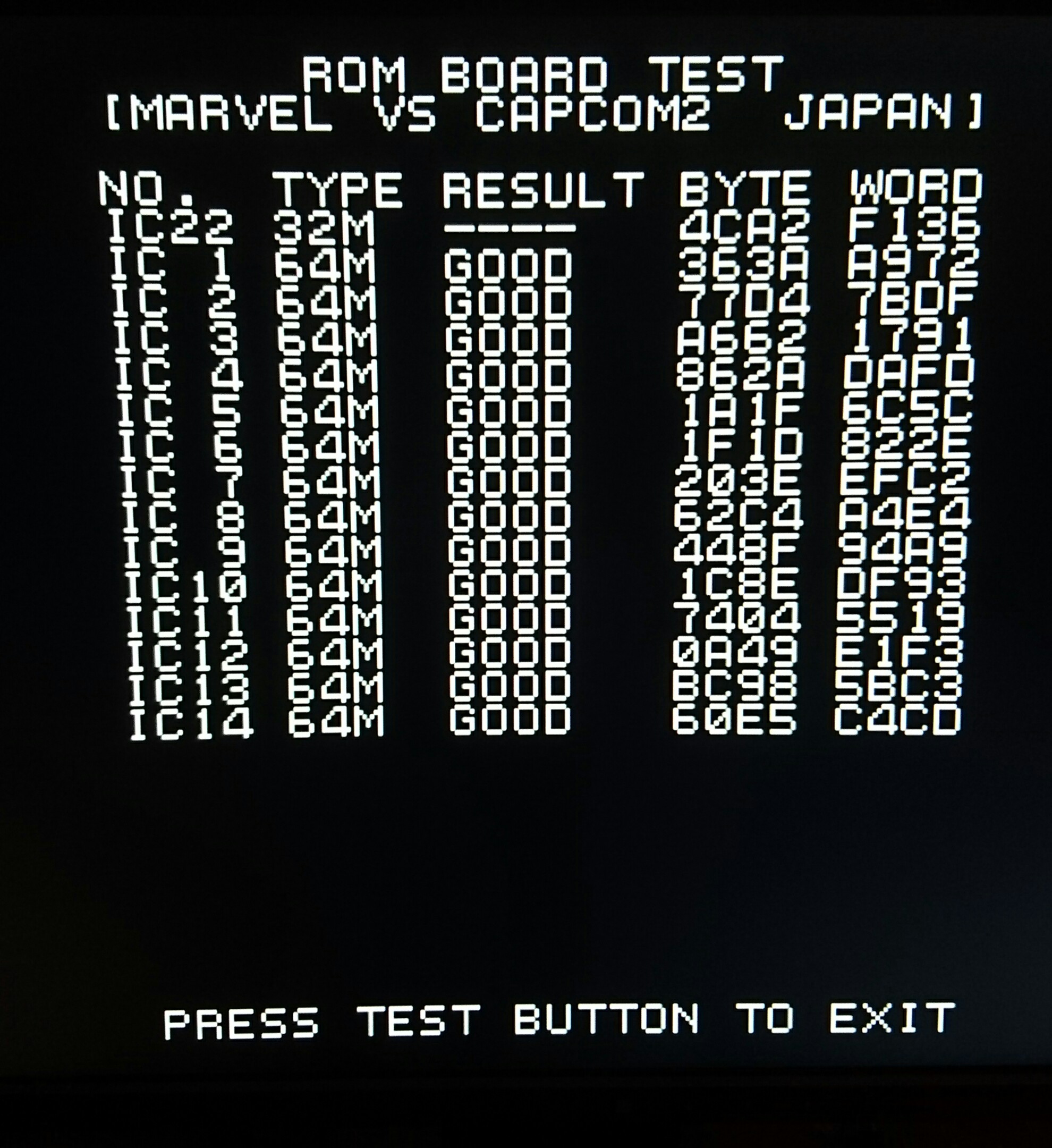

ROM BOARD TEST
-
Readme
