Mario Kart Arcade Grand Prix (Japan, MKA1 Ver.A1)
From Citylan
Jump to navigationJump to search
| dumper | Guru |
| date | 08/09/2008 |
| emulator | MAME 0.146u3 |
| dev | R. Belmont |
| name | mkartagp on Arcade Database |
| description | Mario Kart Arcade Grand Prix (Japan, MKA1 Ver.A1) |
| year | 2005.12 |
| manufacturer | Nintendo - Namco |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | PIC16C621A-20/P | (317-5109-COM)(253-5509-5109) | 8bit CMOS Microcontroller (internal ROM extracted) | |
| 1x | oscillator | 50.000MHz | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | MX29LV400TTC-70 | ic9 | dumped |
| 4x | TC58DVG02A1FT00 | ic1,ic2,ic3s,ic4s | bad dump |
RAMs
| QTY | Type | position |
|---|---|---|
| 0x |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | APA075 315-6213 | ic11s | read protected |
Others
1x 60x2 female connector (CN1S)
1x 10 legs JTAG connector (unpopulated, CN2)
Notes
PCB is marked: "(C) SEGA 2002 MADE IN JAPAN MDK332V-0" and "(C) SEGA 2002 171-8228D"
PCB is labeled: "837-14343-4T1"
Its a Triforce cart.
Cart type: 171-8228D
Cart N°: 837-14343-4T1
Cart label: MKA1 Ver.A1
Cart ID (equivalent to disk ID): BKP
Key: F767A7B0019E6751
requires “V257 STR PCB” steering wheel board
Files
-

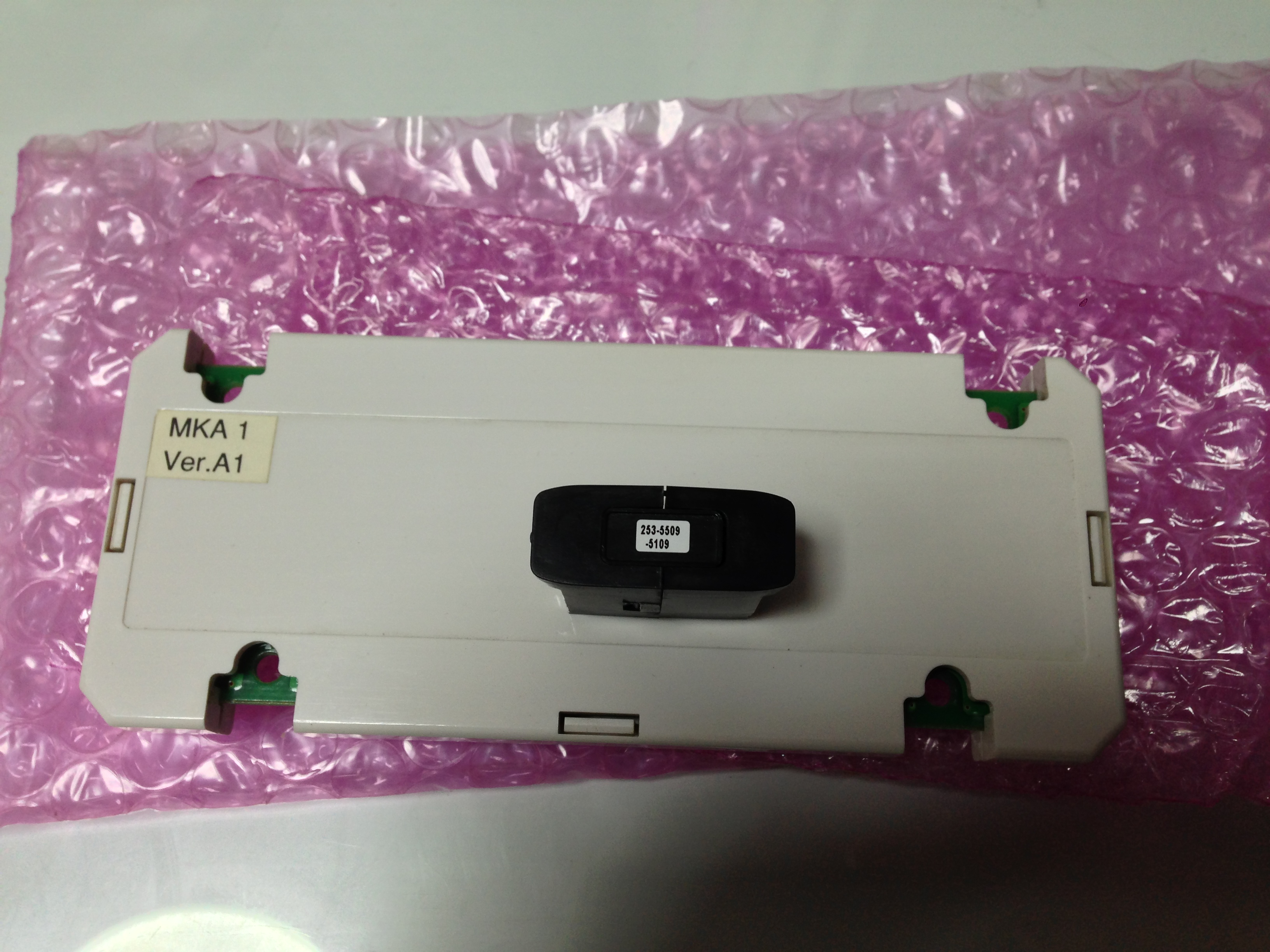

cart & security chip
-

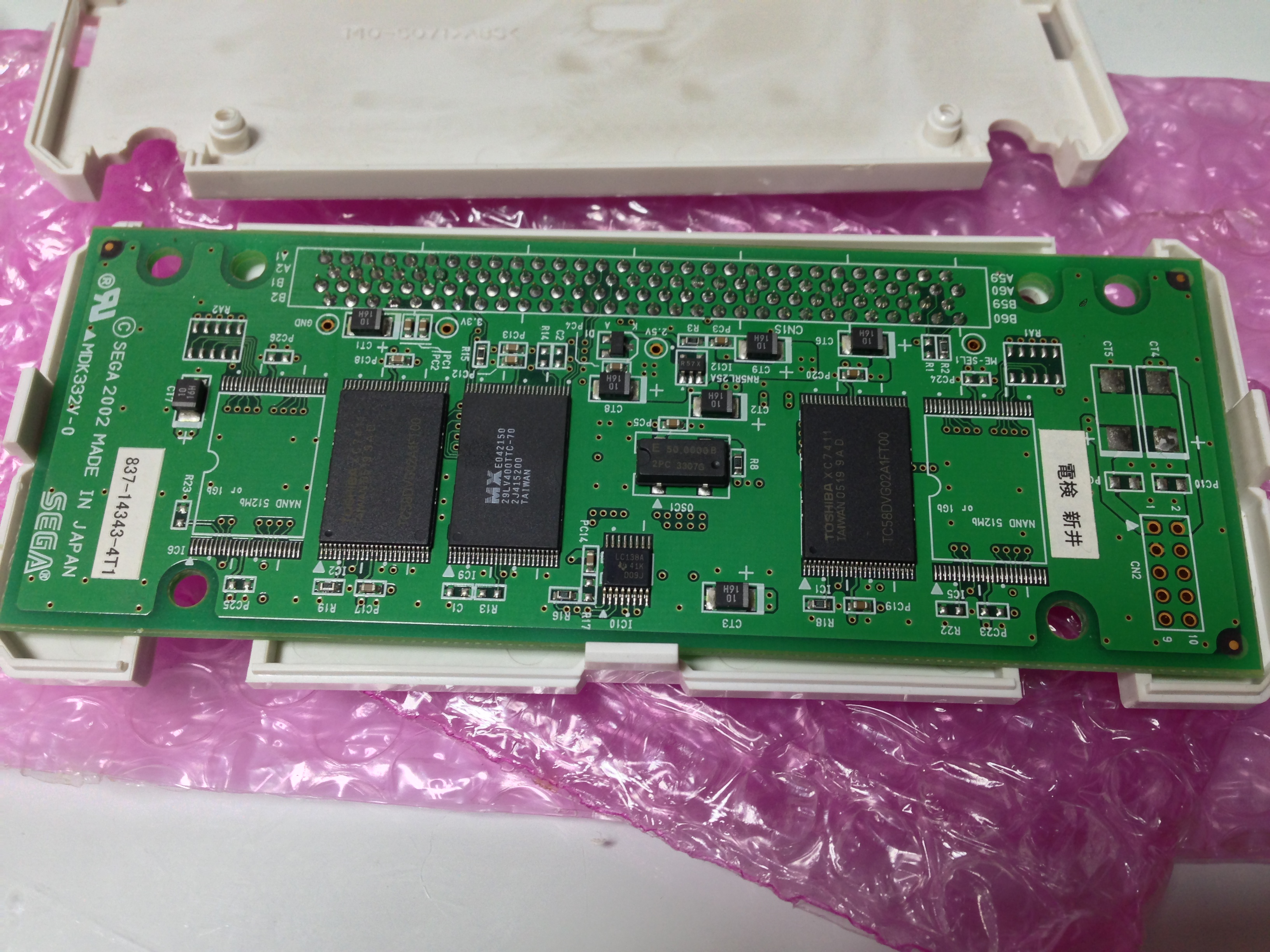

PCB component side
-

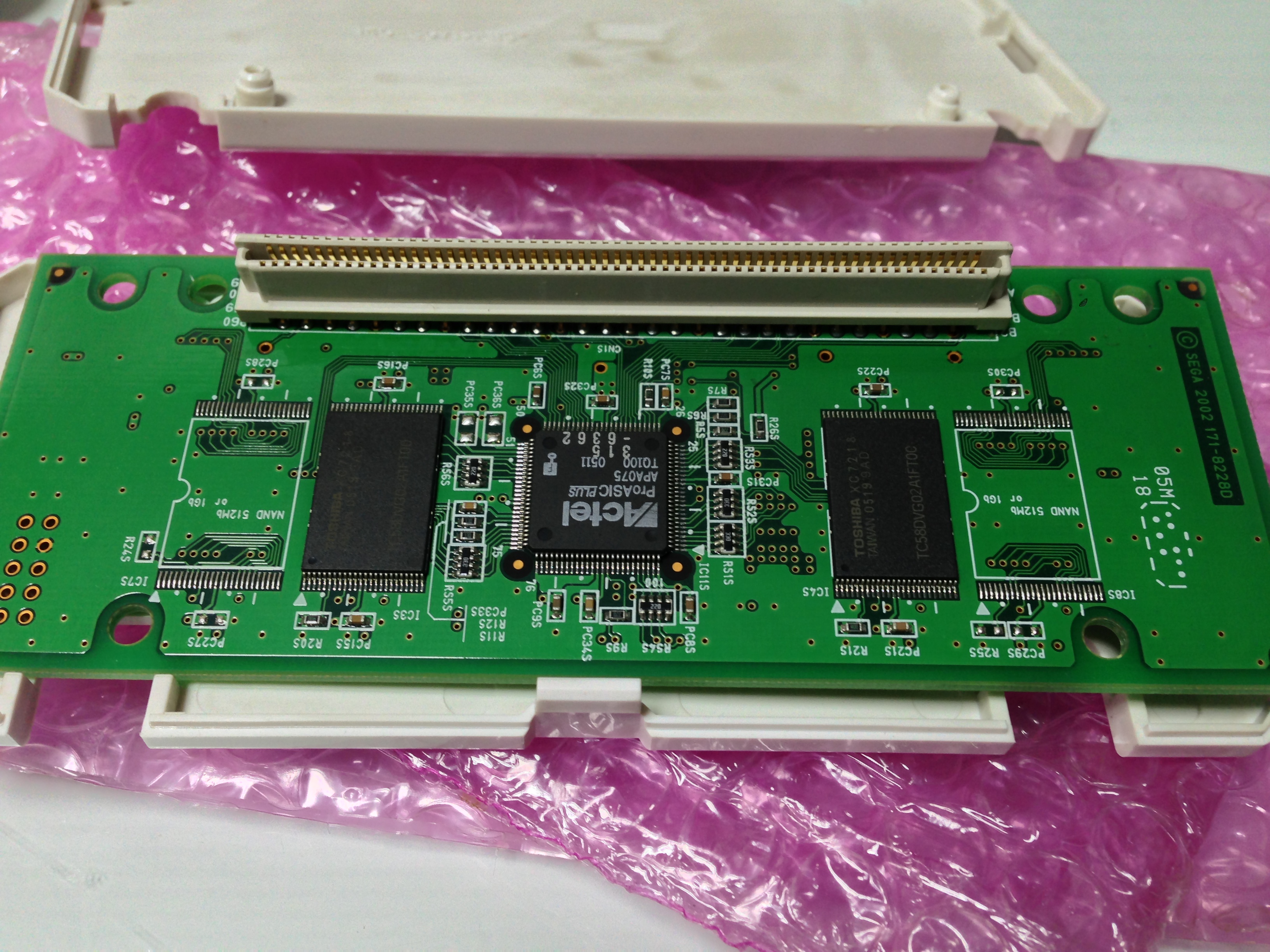

PCB solder side
-

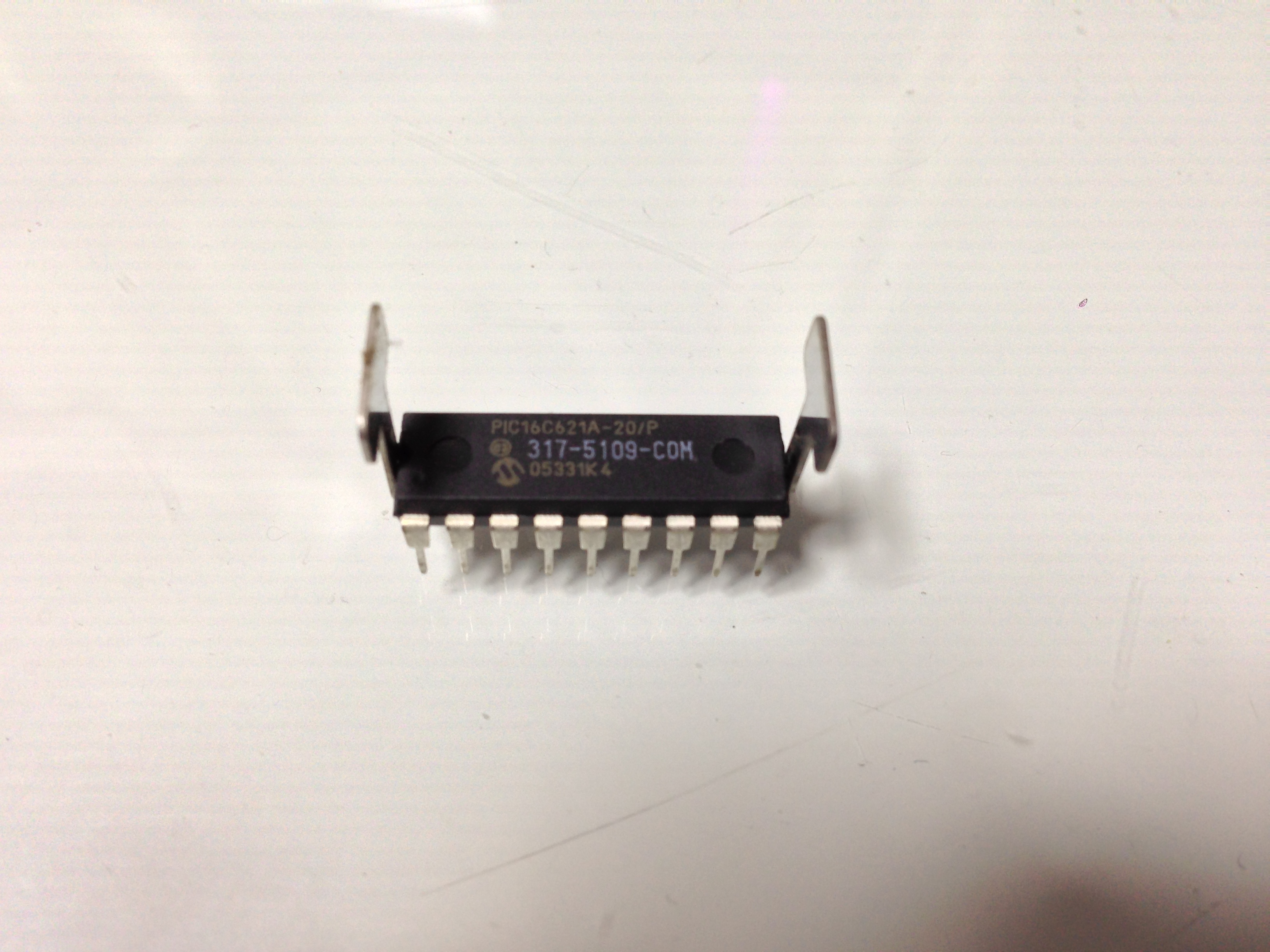

security chip
-

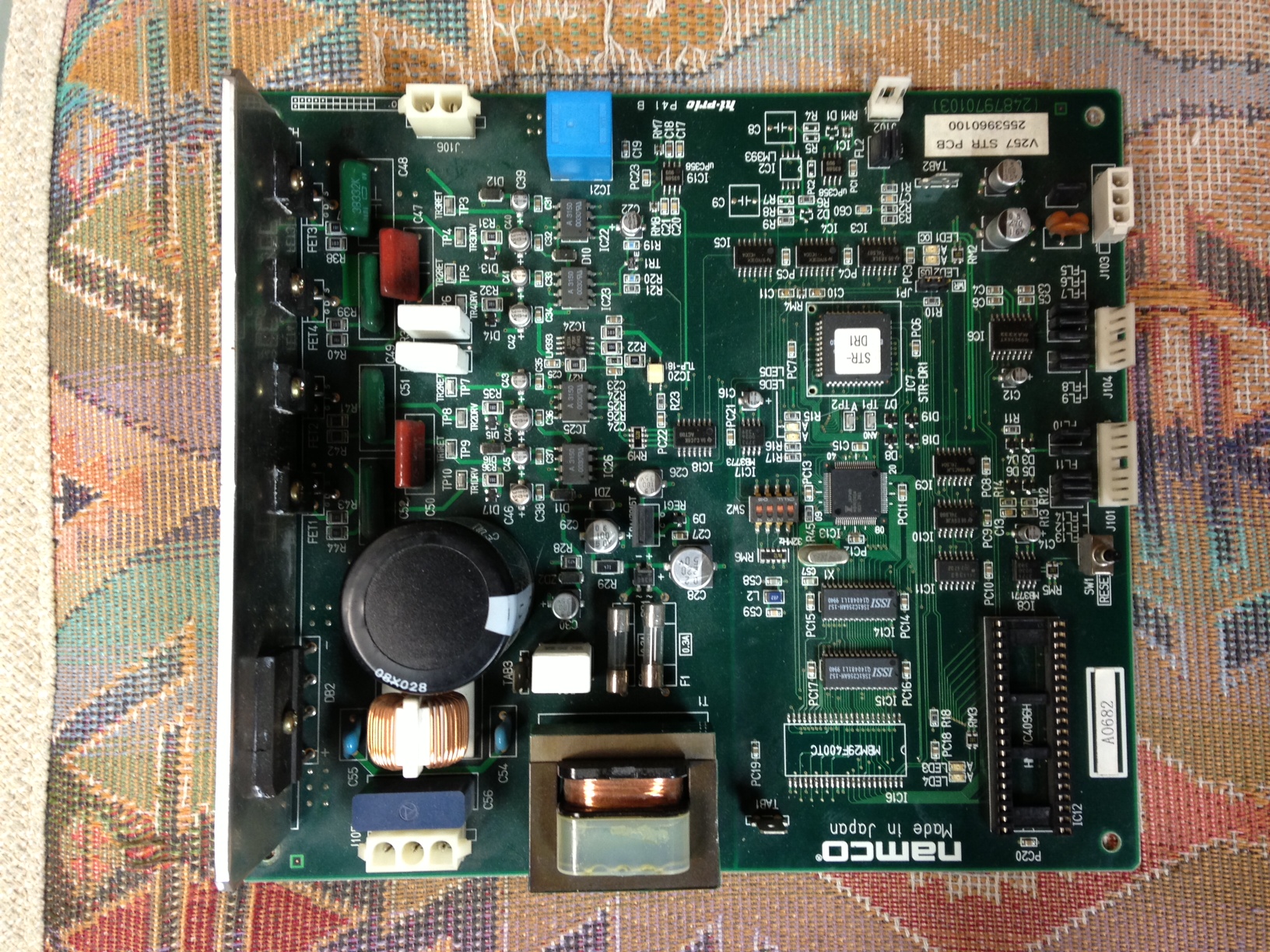

steering PCB component side
-
