Mamoru-kun wa Norowarete Shimatta! (Japan)
From Citylan
Jump to navigationJump to search
| dumper | Rtw |
| date | 29/09/2011 |
| emulator | MAME 0.153 |
| dev | R. Belmont |
| name | mamonoro on ProgettoEMMA mamonoro on Arcade Database |
| description | Mamoru-kun wa Norowarete Shimatta! (Japan) |
| year | 2001.05.31 |
| manufacturer | G.Rev |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | PIC16C621A | 317-5132-JPN.ic3 | EPROM-Based 8-Bit CMOS Microcontroller (extracted) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XCF01SVG | ic4 | not dumped |
| 4x | S29GL512N10T | ic8 - ic11 (ic11 populated, empty) | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XC3S50 | ic2 | not dumped |
Others
Notes
It's a NAOMI cart.
Cart type: 171-8346C
Cart N°: 841-0060C
EPR.ic7: not present
IC2# is marked "VER.2"
Files
-
Cart
-
PCB component side 1
-
PCB component side 2
-
PCB component side detail 1
-
PCB component side detail 2
-
PCB solder side 1
-
PCB solder side 2
-
PCB solder side detail
-

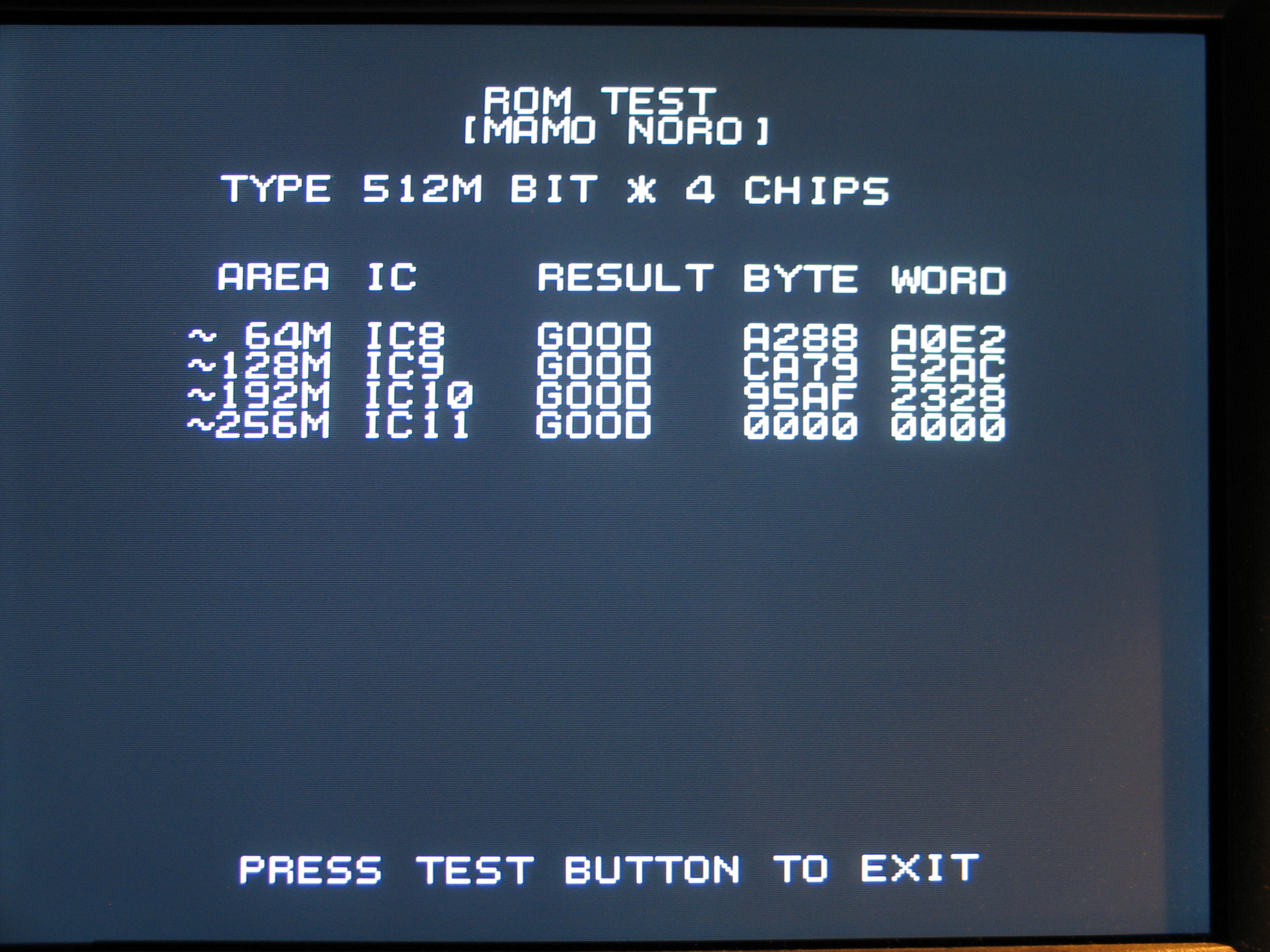

ROM BOARD TEST
-
Readme
