Magic Joker (v1.25.10.2000)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 28/08/2008 |
| emulator | MAME 0.127u2 |
| dev | Roberto Fresca |
| name | magjoker on ProgettoEMMA magjoker on Arcade Database |
| description | Magic Joker (v1.25.10.2000) |
| year | 2000.10.25 |
| manufacturer | B.R.L. |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P10 | u1 | 16/32-bit Microprocessor - main | |
| 1x | AD-65 | u9 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | MC1458 | u10 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | u8 | Audio Amplifier - sound | |
| 1x | oscillator | 10.000000MHz | QZ1 | |
| 1x | oscillator | 16.000MHz | QZ2 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | AF49F010 | 24,25 | dumped |
| 1x | M27C2001 | 21 | dumped |
| 2x | M27C4001 | 22,23 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | KT76C28K-10 | u16,u17 |
| 2x | HT6264-70 | u26,u27 |
| 2x | M48Z35 | u4,u5 not dumped |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A40MX04-PL84 | u29 | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
Notes
Files
-

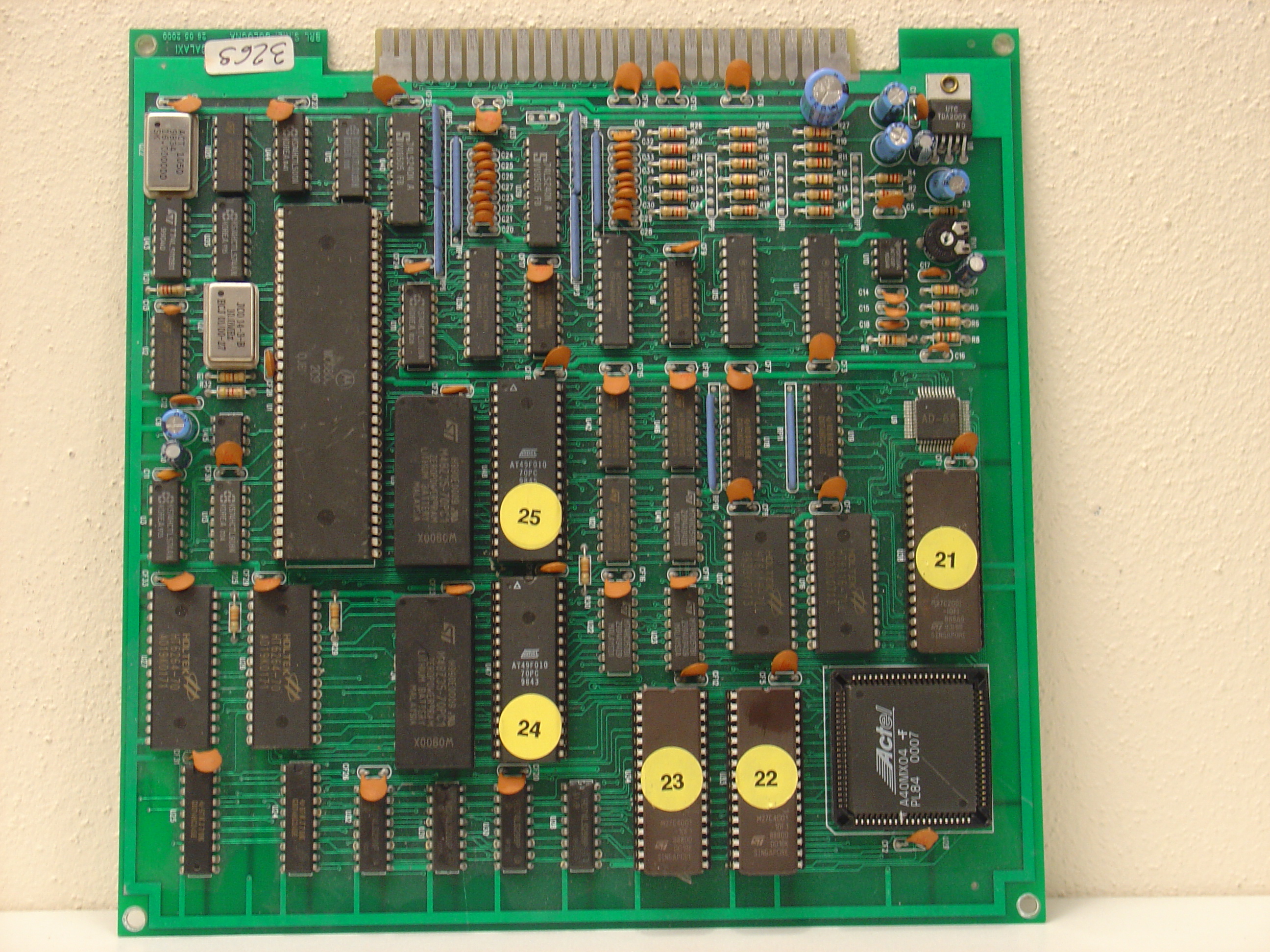

PCB component side
-

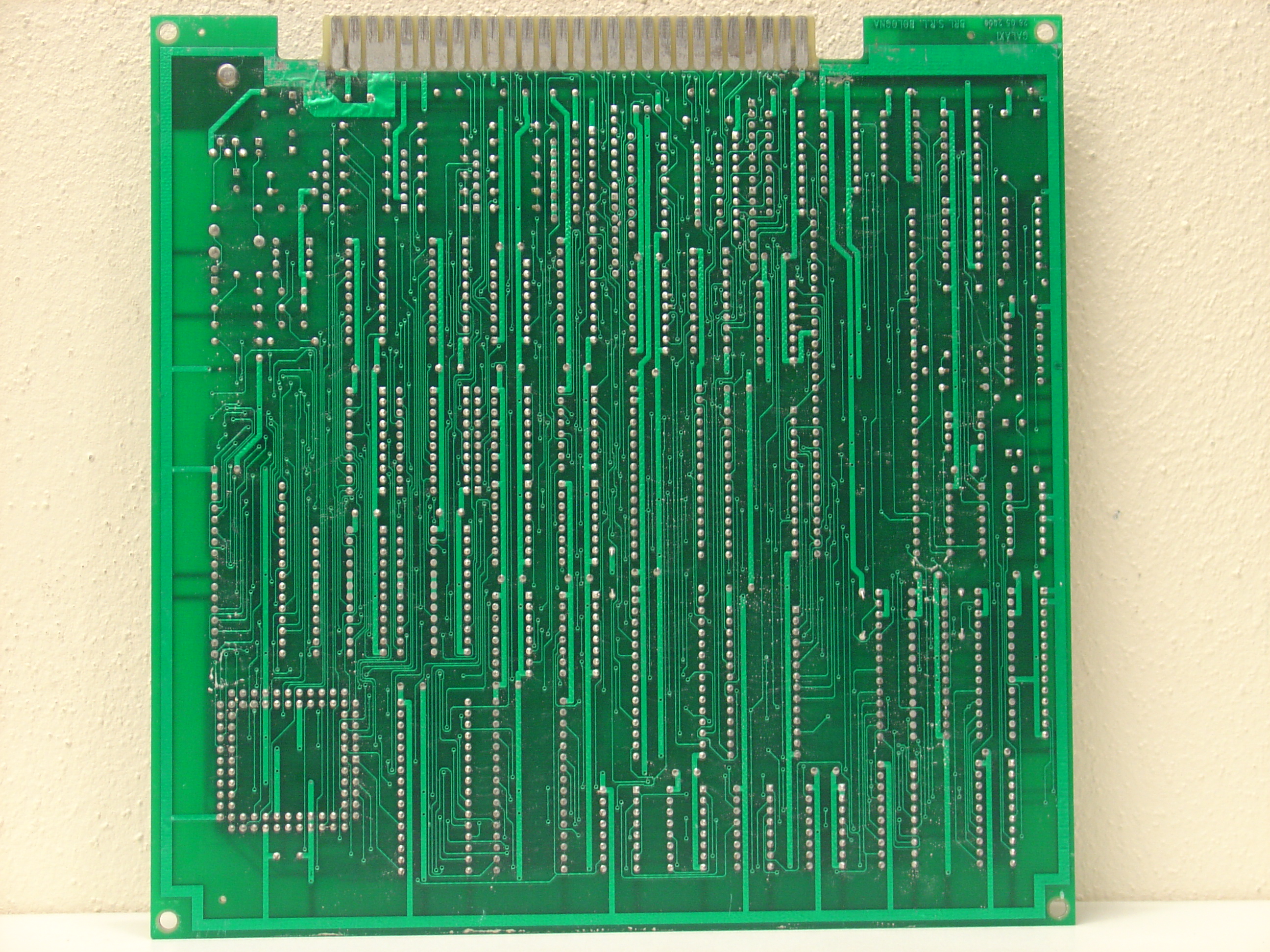

PCB solder side
-

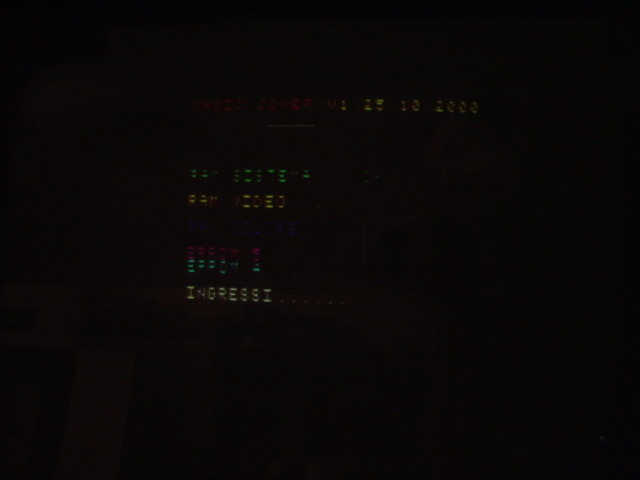

Boot screen
-

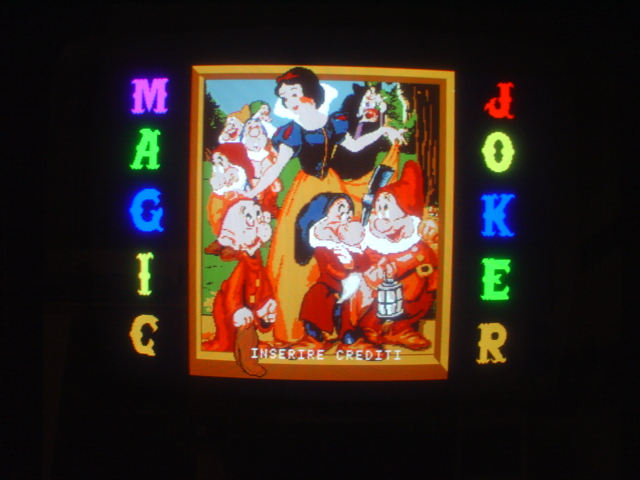

Title
-

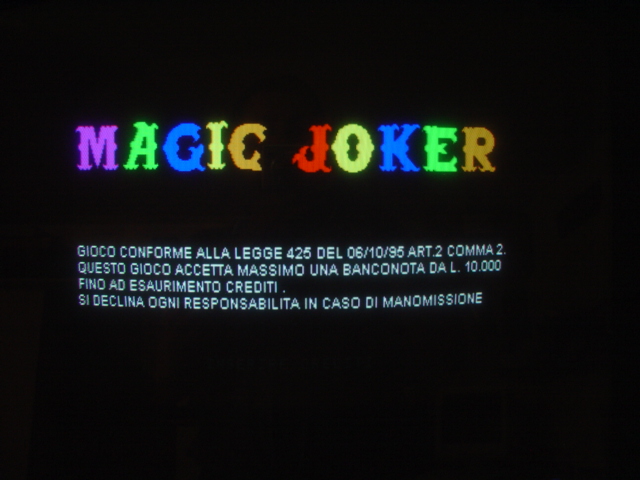

Disclaimer
-

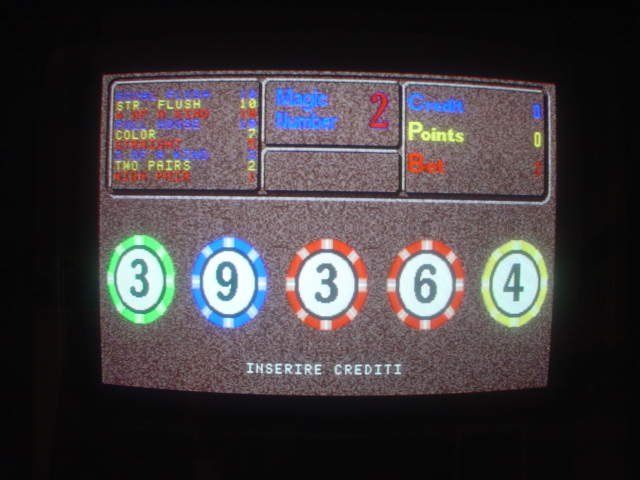

In game
