Magic Drink (Ver 1.2)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 13/01/2008 |
| emulator | MAME 0.125u4 |
| dev | Roberto Fresca |
| name | mdrink on ProgettoEMMA mdrink on Arcade Database |
| description | Magic Drink (Ver 1.2) |
| year | 2001 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | H8/3337-1A3-HD64F3337CP16 | 32-bit Single-Chip Microcomputer - main (internal 60KB ROM not dumped) | ||
| 1x | NEC D7759GC | ADPCM Speech Synthesizer LSIs - sound | ||
| 1x | TDA2003 | - | Audio Amplifier - sound | |
| 1x | oscillator | 14.318180MHz | ||
| 1x | oscillator | 16.000 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27C2000 | s | dumped |
| 3x | M27C4001 | 1,2,3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | HY628100B-LLG-70 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | ispLSI1032E-70LJ | read protected |
Others
1x 28x2 edge connector (not JAMMA)
1x RS232 connector
1x 14 legs connector
2x 8 DIP switches banks
1x red LED
1x battery
1x trimmer (volume)
1x trimmer (unknown)
Notes
PCB is marked: "L.C." on component side ("L.C." is the Italian for "Lato Componenti" which translates to "Components Side")
PCB is marked: "L.S." on solder side ("L.S." is the Italian for "Lato Saldature" which translates to "Solders Side")
PCB is labelled: "TEST OK - 01/36 - VER.1.2" on component side
Files
-

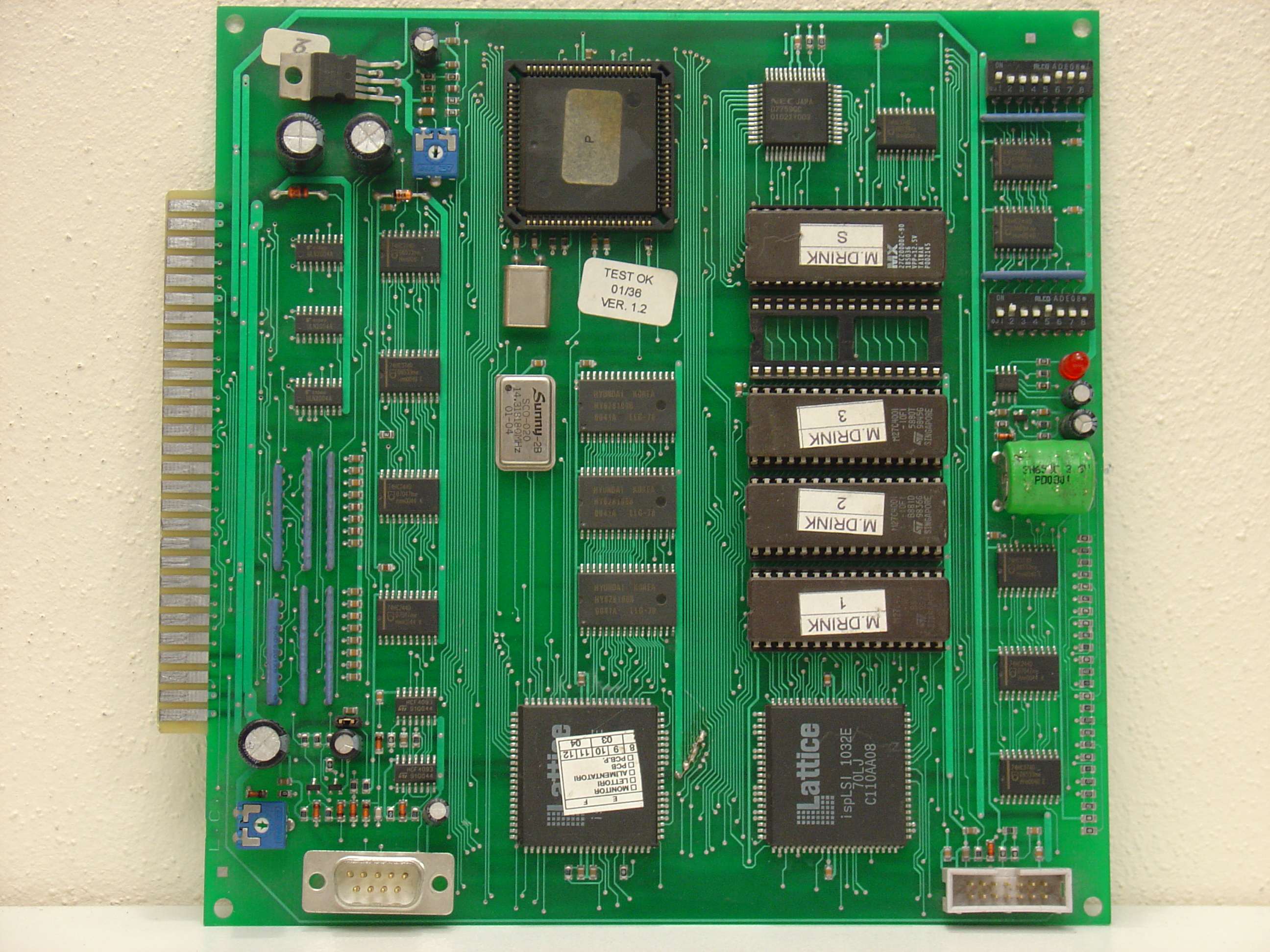

PCB component side
-

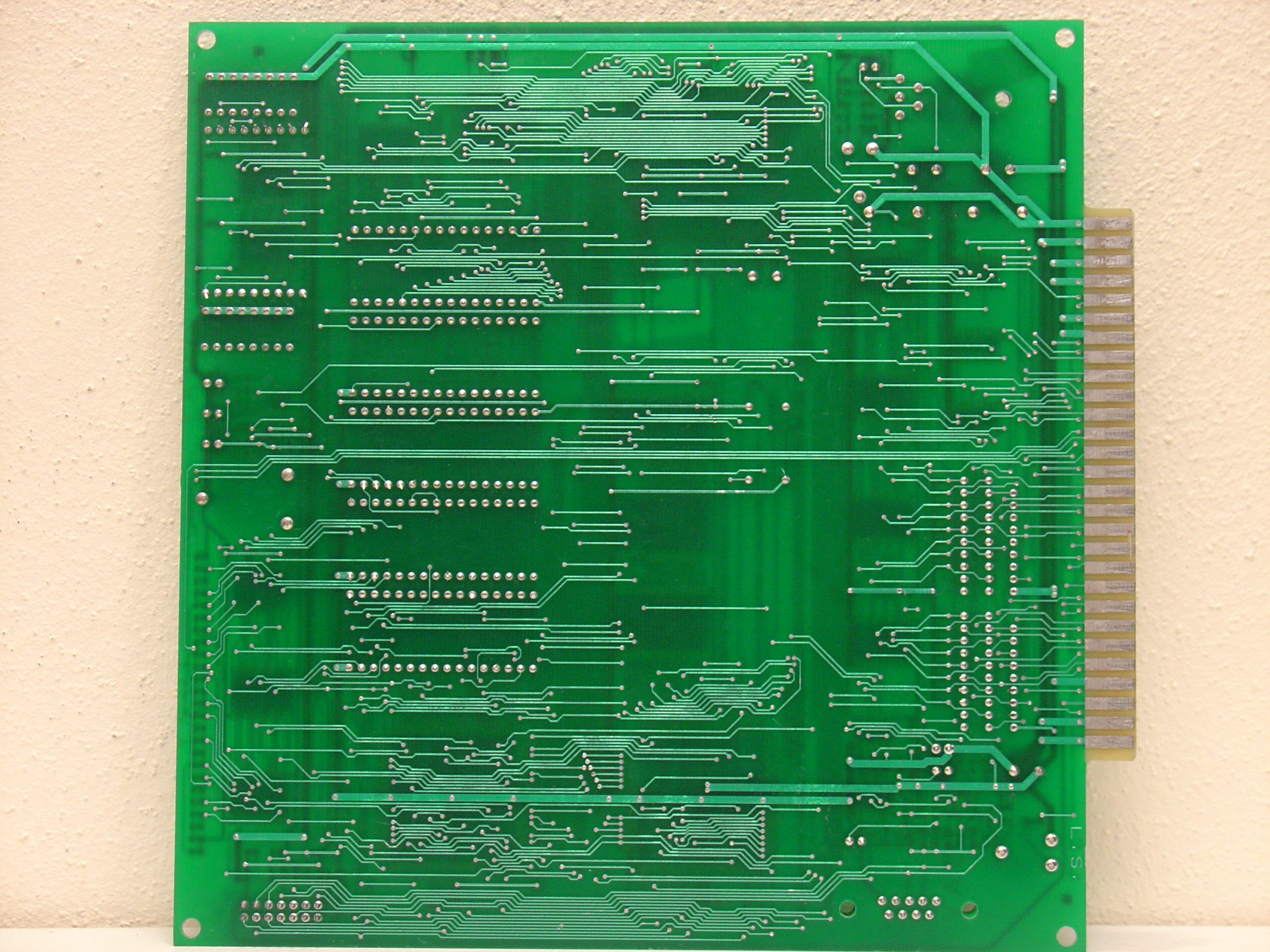

PCB solder side
-

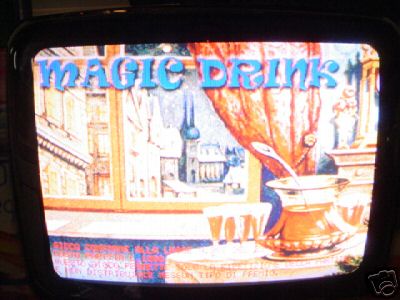

Title
-

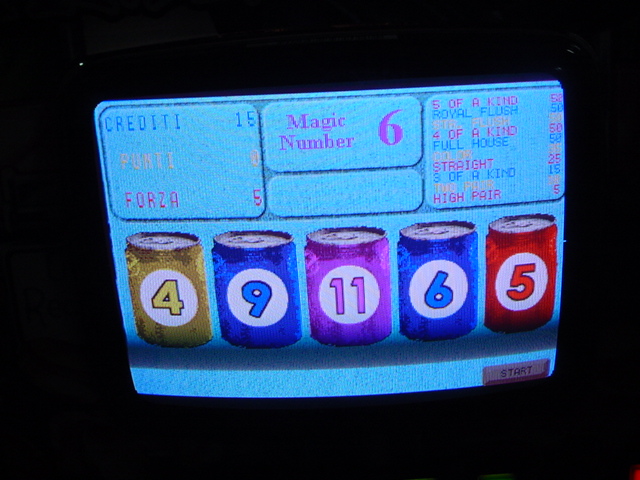

In game
