Magic Colors (ver. 1.7a)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 04/02/2009 |
| emulator | MAME 0.127 |
| dev | Roberto Fresca |
| name | mcolors on ProgettoEMMA mcolors on Arcade Database |
| description | Magic Colors (ver. 1.7a) |
| year | 1999.04.01 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | LLCC68 | u1 | 16/32-bit Microprocessor - main (missing) | |
| 1x | HD6473308CP10 | u24 | 16-bit Single-Chip Microcomputer - main | |
| 1x | M6295 | u31 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | KA358 | u33 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | u34 | Audio Amplifier - sound | |
| 1x | oscillator | 20.000MHz | osc1 | |
| 1x | oscillator | 30.000MHz | osc2 | |
| 1x | blue resonator | 1000J | xtal1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | 27C010 | 2,3,4,5,6,7 | dumped |
| 1x | 27C020 | 1 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | U6216ADC-08L | u6 |
| 4x | LP6264D-70LL | u4,u5,u43,u44 |
| 2x | HM3-65728H-5 | u61,u62 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A40MX04-PL84 | u50 | read protected |
| 1x | GAL16V8D | read protected | |
| 1x | PAL22V10 | missing |
Others
1x 28x2 JAMMA edge connector
1x 12 legs connector (J1)
1x trimmer (volume)(P1)
1x 8 DIP switches bank (DIP1)
1x battery 3V
Notes
PCB is marked: "OC Rev. 03", "0/088066-L0" and "lc" on component side ("LC" is the Italian for "Lato Componenti" which translates to "Components Side")
PCB is marked: "ls" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")
PCB is labeled: "Non rimuovere M.Colors 2.0 68000" and "Passed 01/04/99" on component side
update 20090204 - I can confirm the main processor is a 68000 in LLCC68 configuration
Files
-

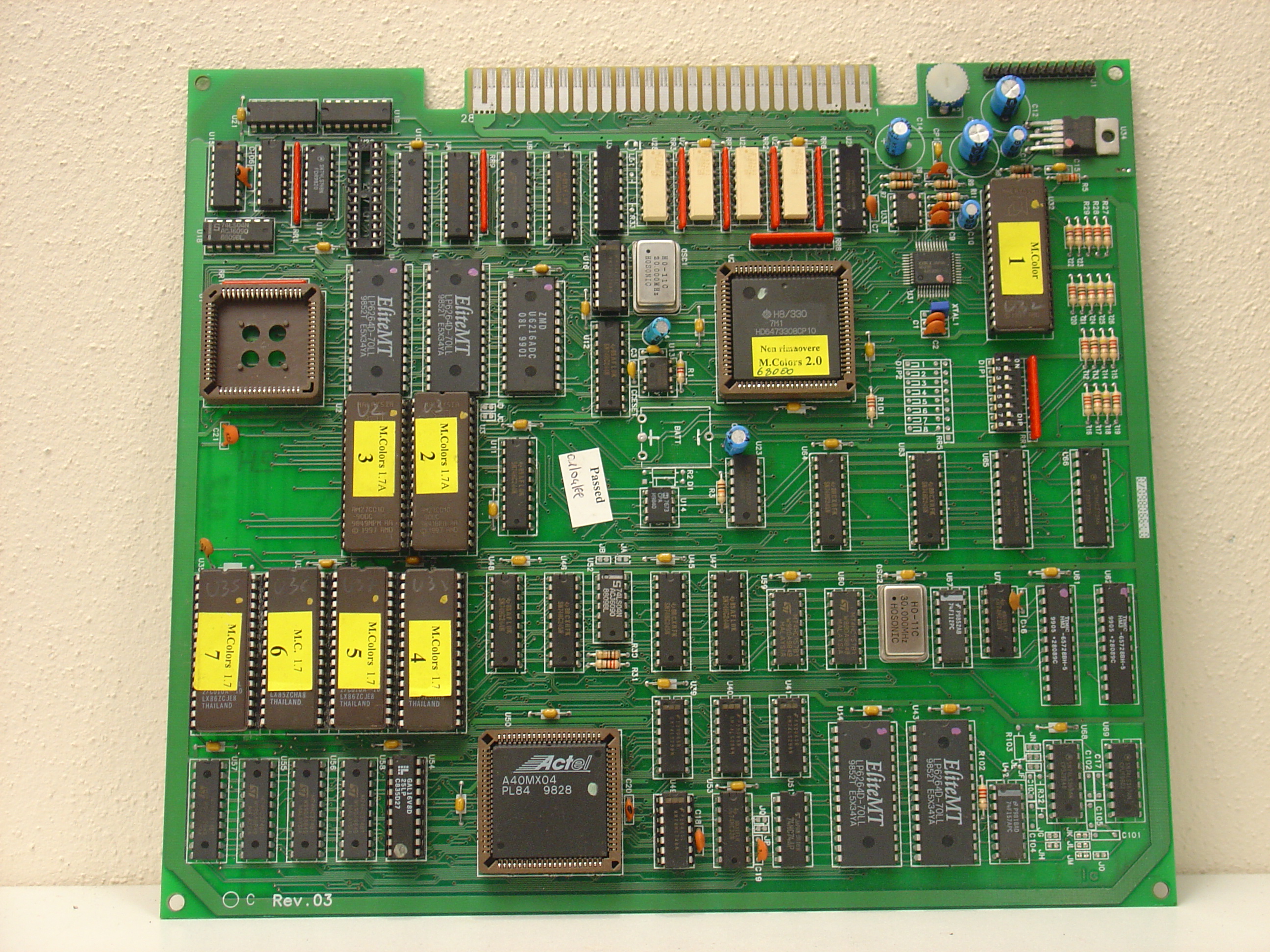

PCB component side
-

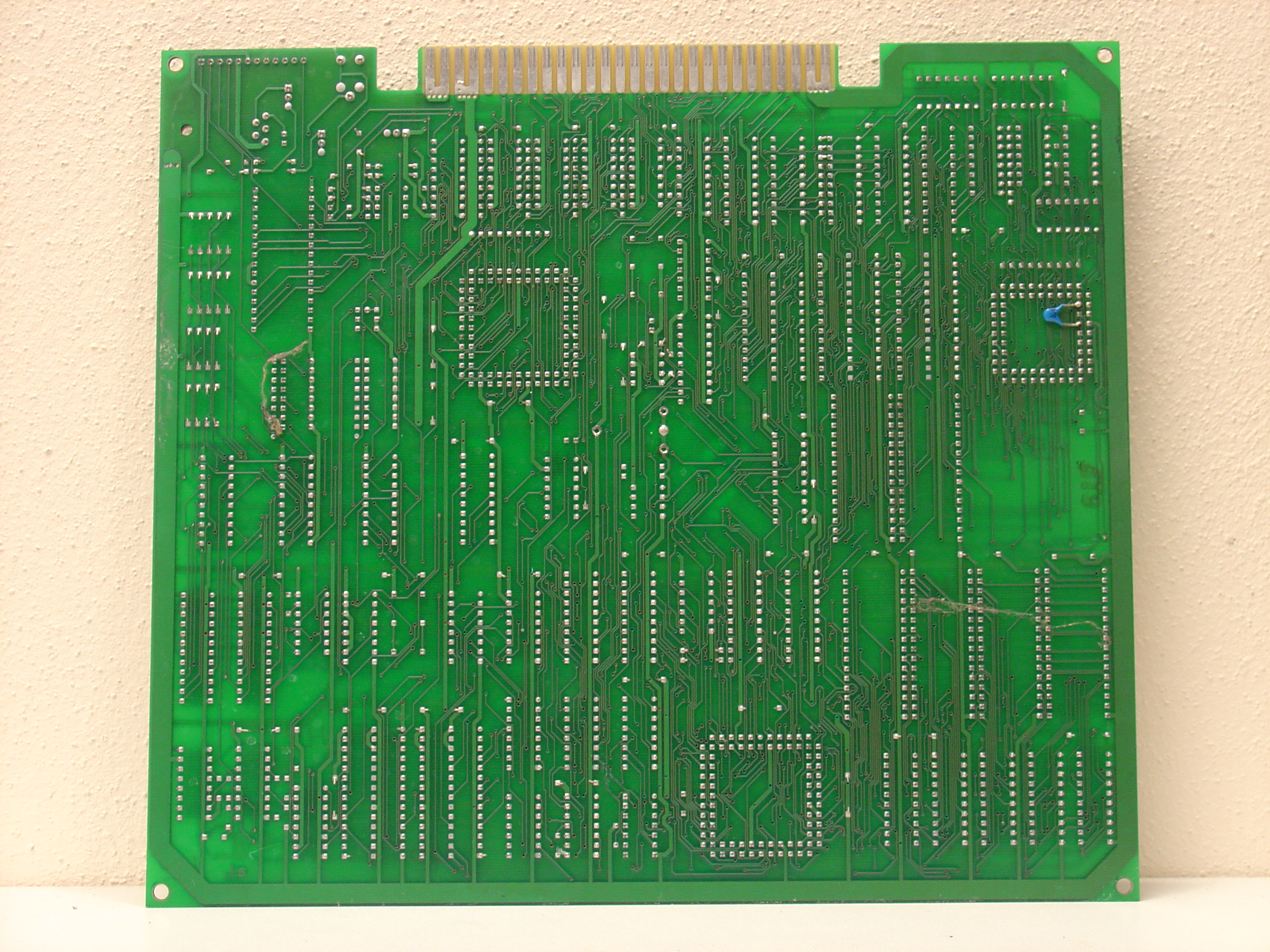

PCB solder side
-

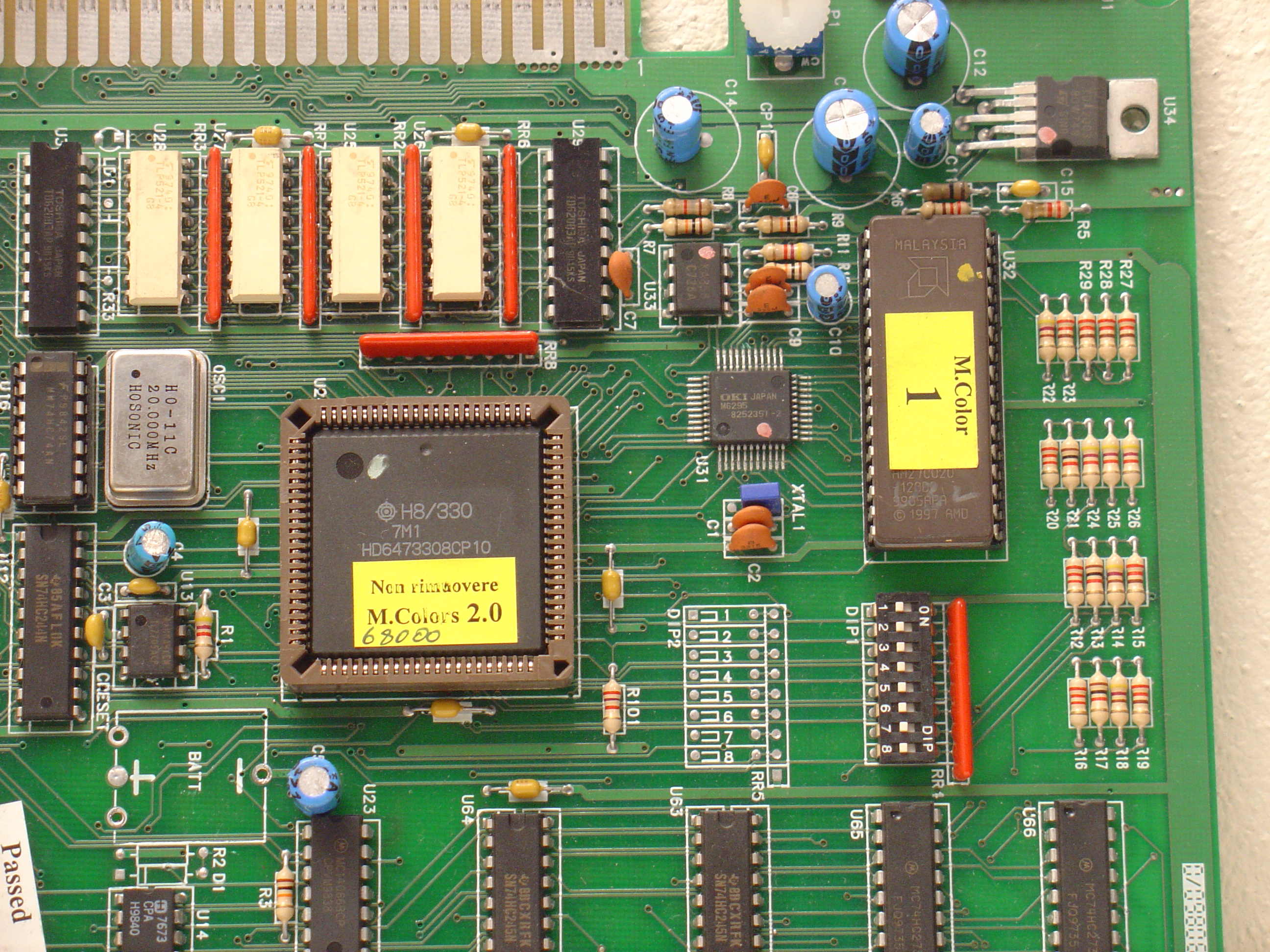

Resistors detail
