Magic Colors (ver. 1.6)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 04/11/2018 |
| emulator | MAME 0.204 |
| dev | Osso |
| name | mcolorsa on ProgettoEMMA mcolorsa on Arcade Database |
| description | Magic Colors (ver. 1.6) |
| year | 1999.03.02 |
| manufacturer | ABM Games |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P12 | u1 | 16/32-bit Microprocessor - main | |
| 1x | HD6473308CP10 | u24 label: 2a | 16-bit Single-Chip Microcomputer - main - NOT DUMPED | |
| 1x | M6295 | u31 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | u33 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | u34 | Audio Amplifier - sound | |
| 1x | oscillator | 20.000MHz | osc1 | |
| 1x | oscillator | 30.000MHz | osc2 | |
| 1x | blu resonator | 1000J | xtal1 close to sound |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | AM27C010 | 2,3,4,5,6,7 | dumped |
| 1x | M27C2001 | 1 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | UM6264D-70LL | u4,u5,u43,u44 |
| 1x | LH6116-10 | u6 |
| 2x | HM3-65728BK-5 | u61,u62 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ACTEL A1020B-PL84C | u50 | read protected |
| 1x | AMPAL22V10APC | u22 | read protected |
| 1x | PALCE16V8H-25PC/4 | u54 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 12 legs connector (J1)
1x trimmer (volume)(P1)
1x 8 DIP switches bank (DIP1)
1x battery 3V
Notes
PCB is marked: "OC ABM - 9743 Rev.01" and "lc" on component side ("LC" is the Italian for "Lato Componenti" which translates to "Components Side")
PCB is marked: "ls" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")
PCB is labelled: "Non rimuovere 2a" and "Passed 02/03/99" on component side
PCB is labelled: "1.99" on solder side
Files
-

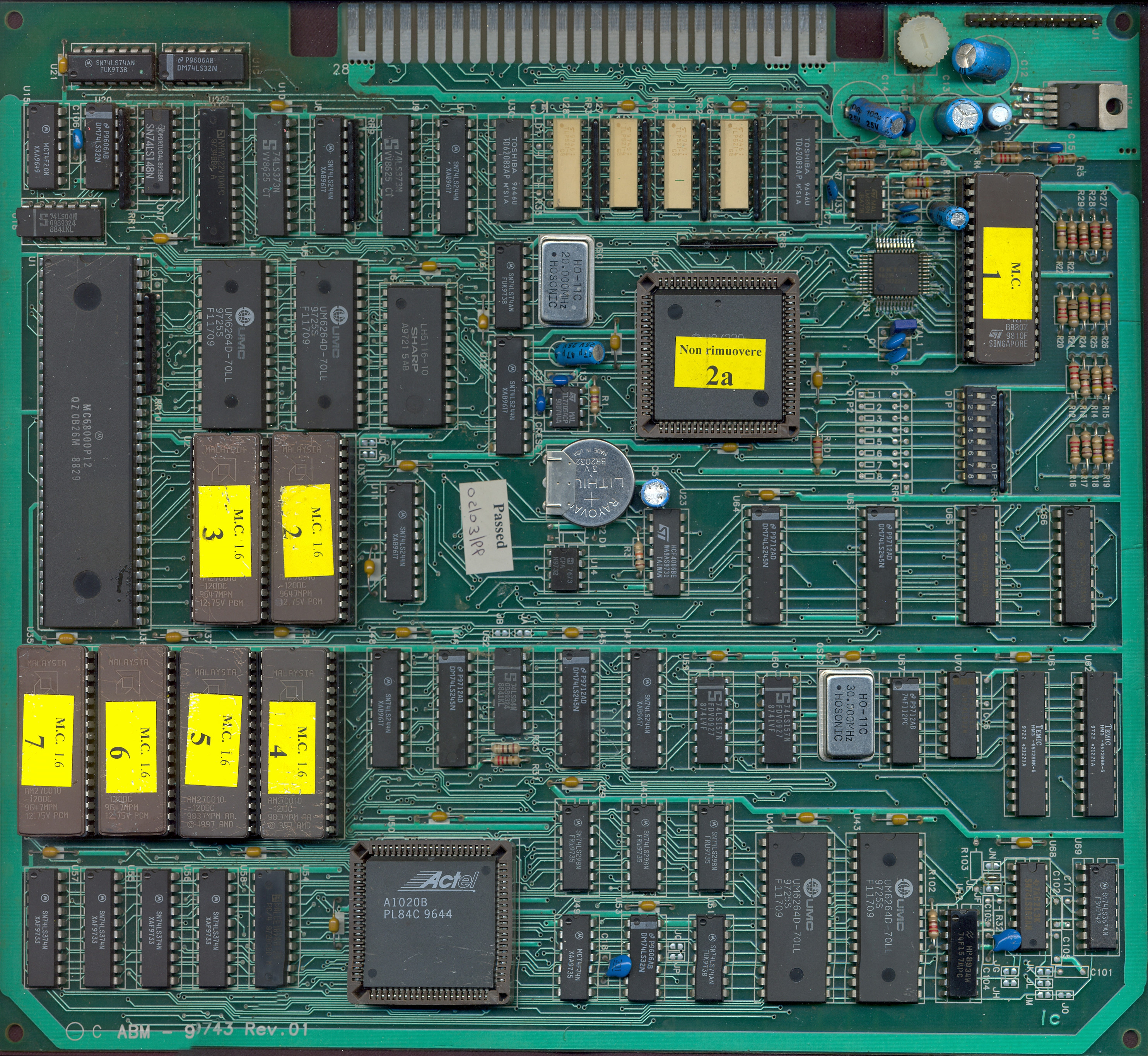

PCB component side
-

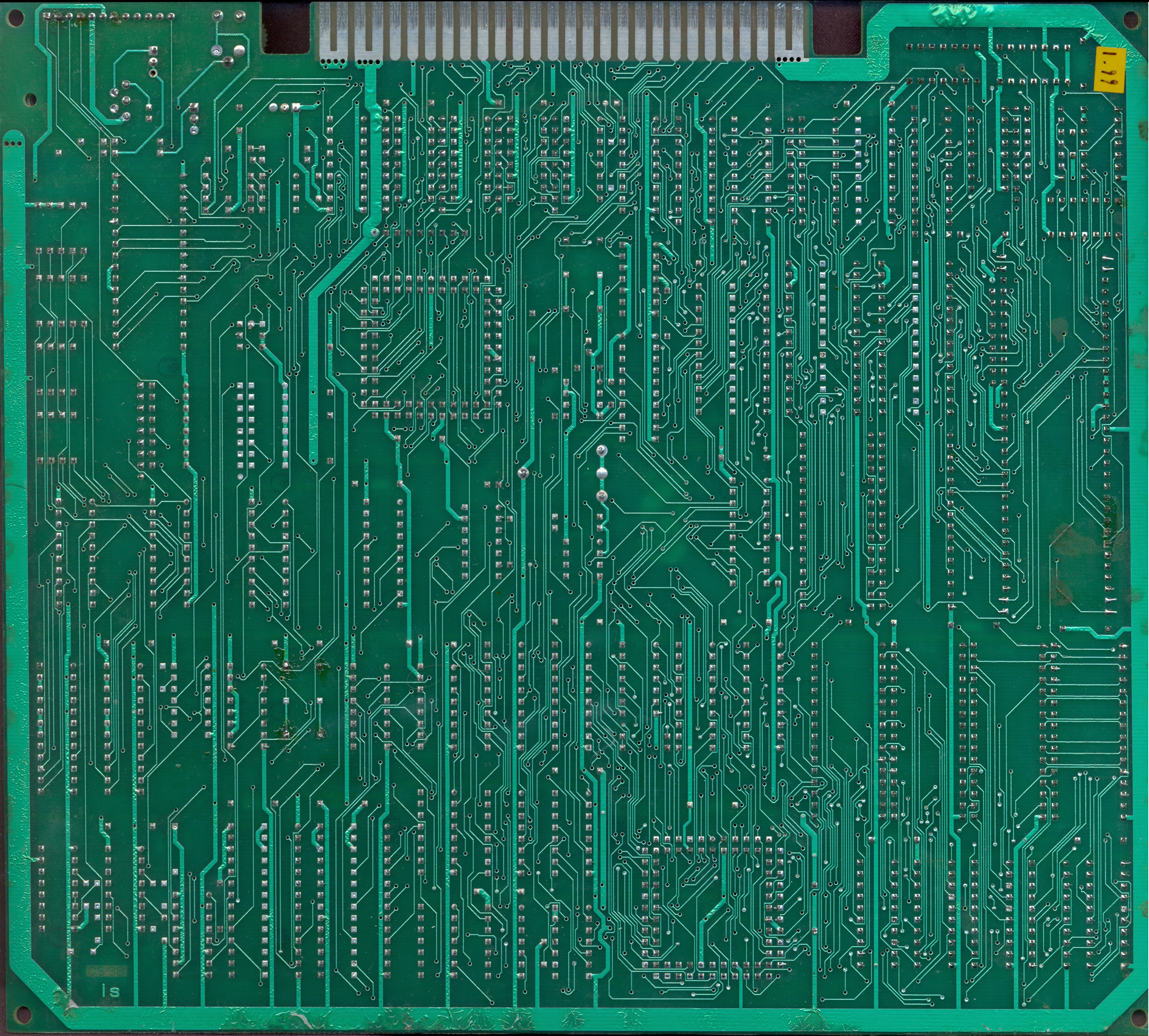

PCB solder side
