Magic Class (Ver 2.2)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 09/05/2010 |
| emulator | MAME 0.138u1 |
| dev | f205v |
| name | mclass on ProgettoEMMA mclass on Arcade Database |
| description | Magic Class (Ver 2.2) |
| year | 200x |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | H8/3337 | 32-bit Single-Chip Microcomputer - main (internal ROM not dumped) | ||
| 1x | D7759 | ADPCM Speech Synthesizer LSIs - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 14.31818MHz | ||
| 1x | oscillator | 16.000 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | M27C4001 | 1,2,3 | dumped |
| 1x | M27C1001 | SND | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | MX66C1024MC-70 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | ispLSI1032E-70LJ | not dumped |
Others
1x 28x2 edge connector
1x 17x2 legs ISP connector
1x 7x2 legs ISP connector
1x 10 legs connector
1x 4 legs connector
1x RS232 connector
2x trimmer (unknown)
2x 8x2 switches DIP
1x jumper
1x battery 3.6V
Notes
Files
-

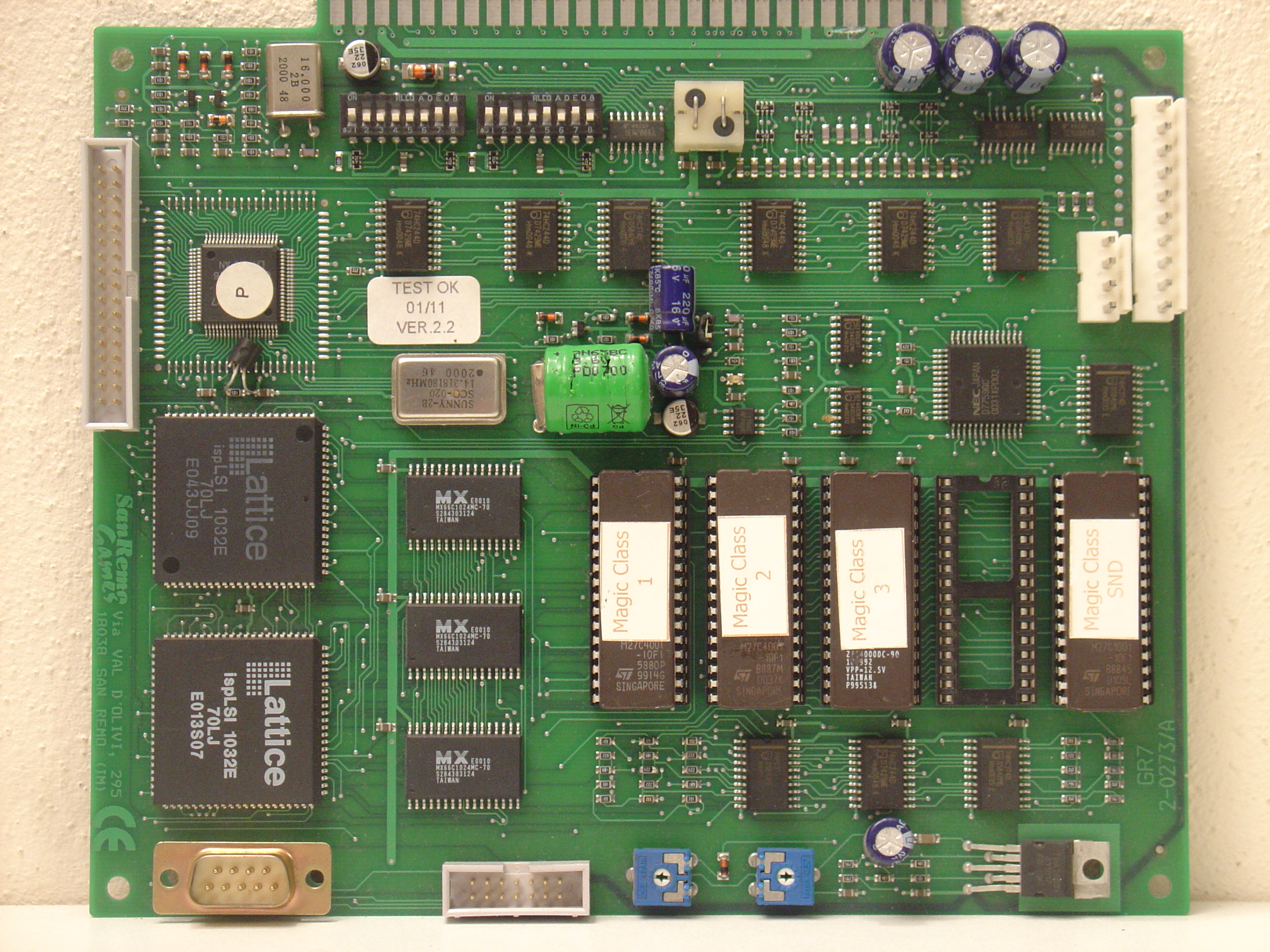

PCB component side 1
-

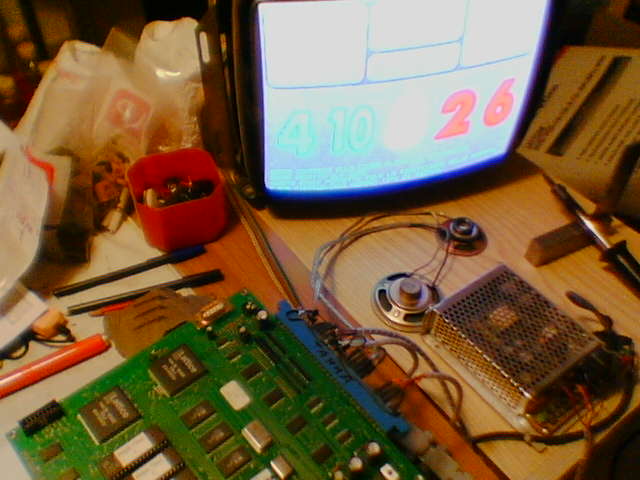

PCB component side 2
-

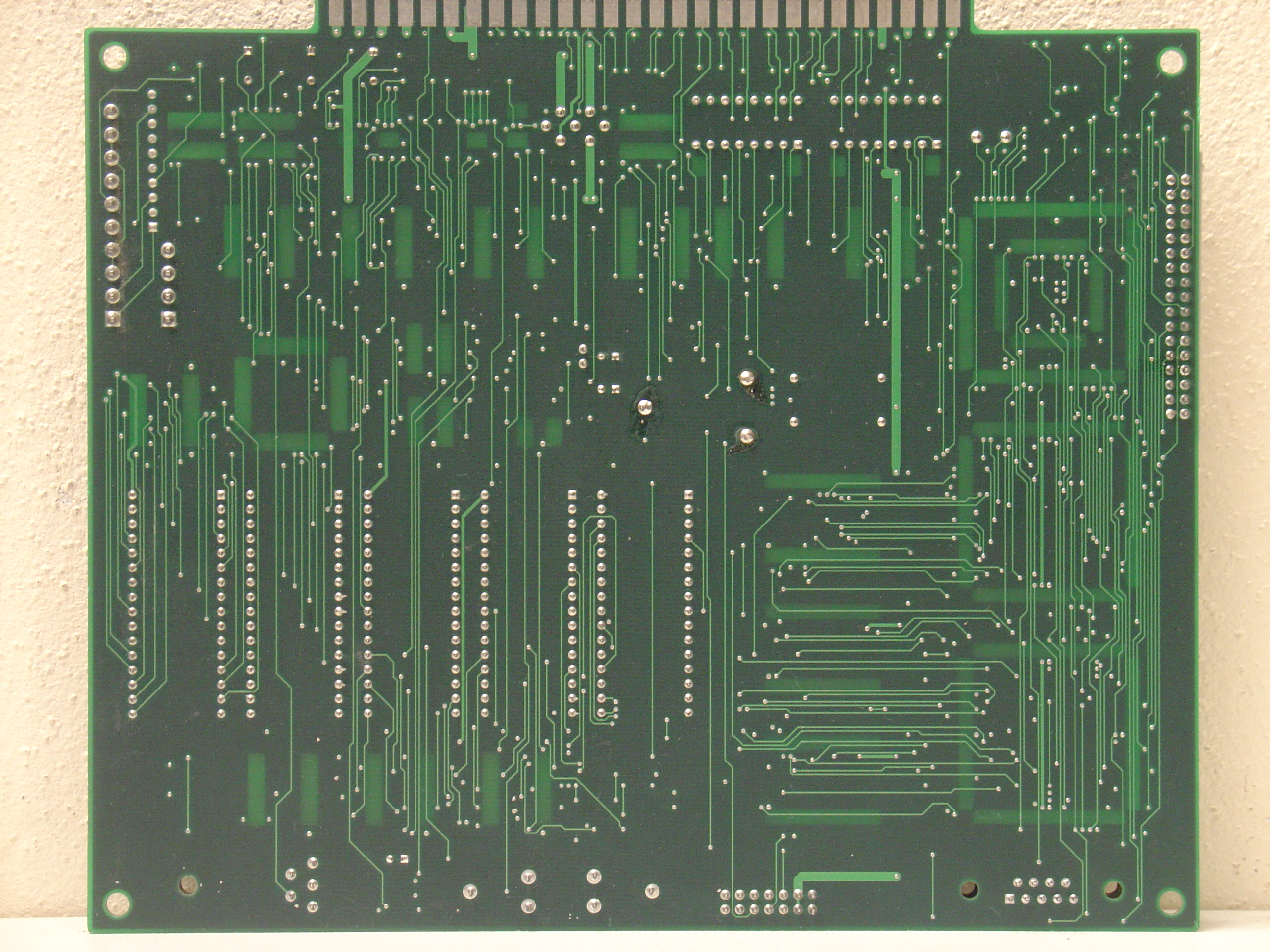

PCB solder side
