Magic Bubble (Adult version, YS1302 PCB, set 1)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Corrado Tomaselli, Gnoppi |
| date | 08/09/2005 |
| emulator | MAME 0.99u9 |
| dev | David Haywood |
| name | magicbuba on ProgettoEMMA magicbuba on Arcade Database |
| description | Magic Bubble (Adult version, YS1302 PCB, set 1) |
| year | 199x |
| manufacturer | Yun Sung |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68HC000FN16 | u25 | 16/32-bit Microprocessor - main | |
| 1x | Z84C0006FEC | u154 | 8-bit Microprocessor - sound | |
| 1x | AD-65 | u130 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | KS8002 | u151 | D/A Converter (DAC) - sound | |
| 1x | KS8001 | u145 | FM Operator Type-L II (OPL II) - sound | |
| 1x | oscillator | 16.000000MHz | os1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TMS27C020 | u32-u33 | main dumped |
| 1x | M27C512 | u143 | sound dumped |
| 1x | 27C010 | u131 | sound dumped |
| 4x | 27C010 | u20->u23 | gfx? dumped |
| 8x | 27C040 | u67->u74 | gfx dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 9x | HT6116-70 | u6->u9, u102->u105, u150 |
| 4x | KM62256BLG-10 | u59-u60-u127-u128 |
| 2x | HY62256BA | u34-u35 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | GAL22V10-25 | u14 | read protected |
| 10x | PALCE16V8 | u15-u65-u66-u94-u106-u107-u111-u113-uxxx-u114 | read protected |
| 2x | PALCE20V8 | u112-u115 | read protected |
| 1x | FPGA ACTEL A1020B | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8x2 switches DIP
Notes
Revision: YS-1302
update 20141105: better description
Files
-

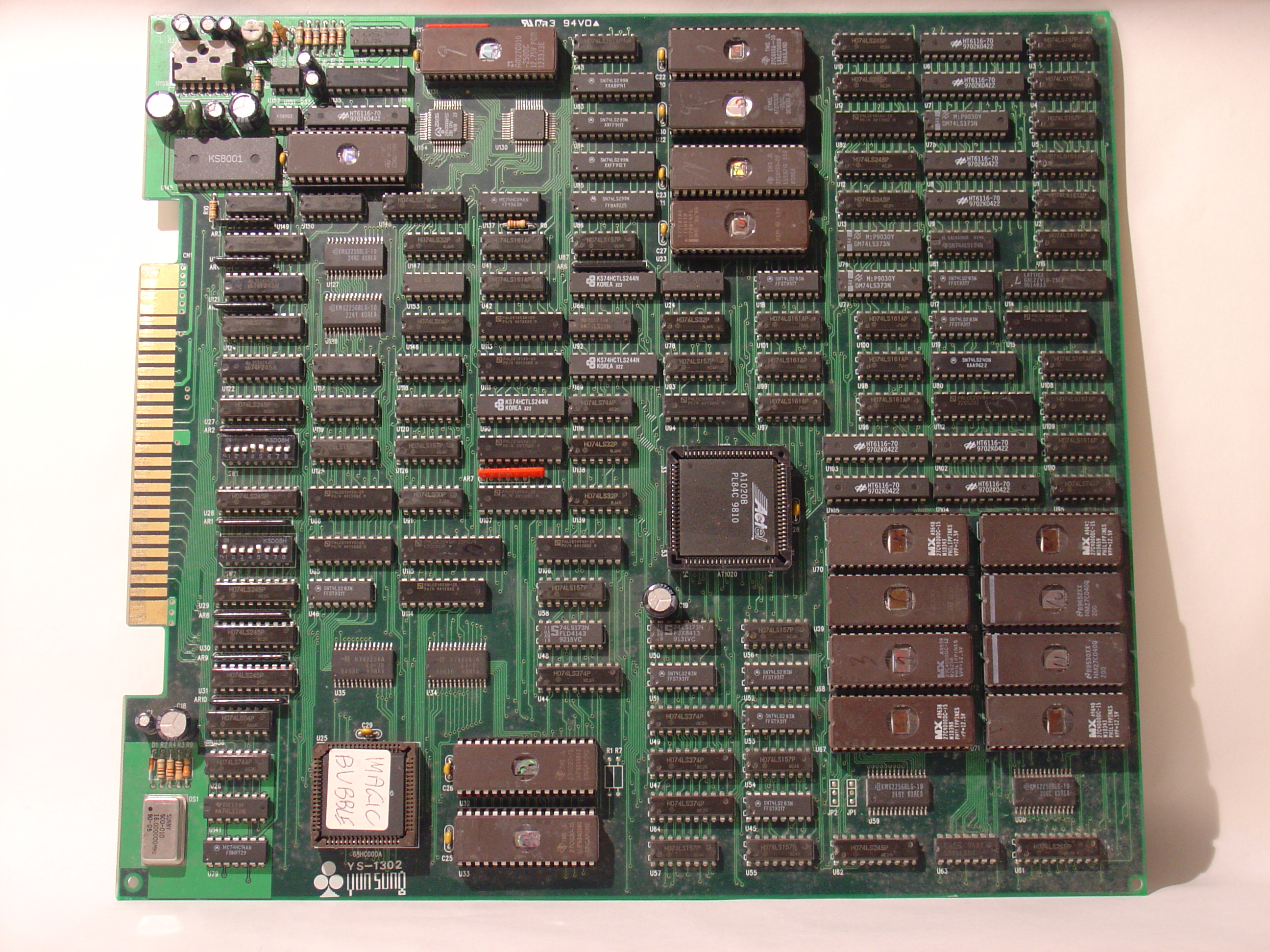

PCB component side
-

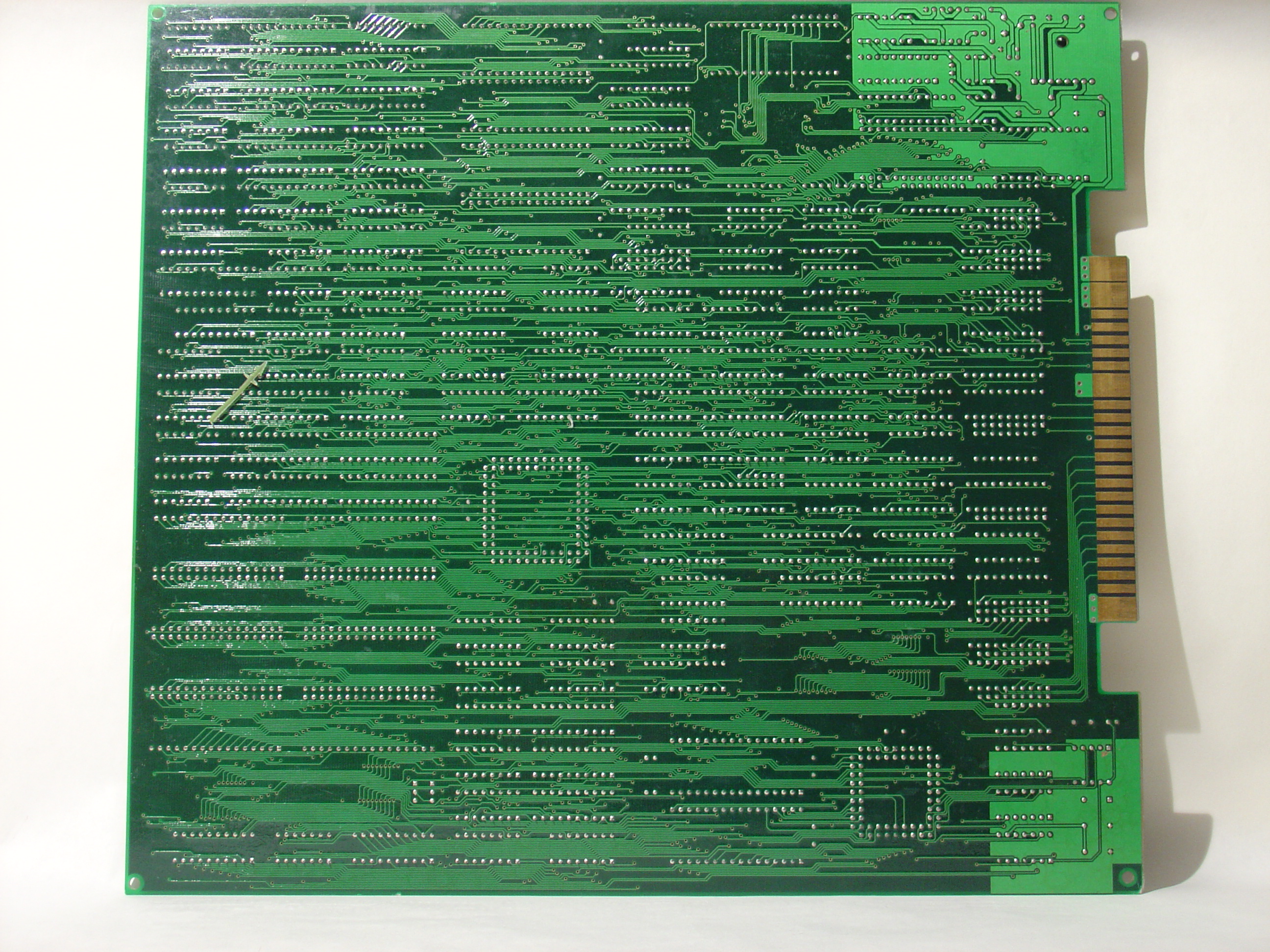

PCB solder side
-

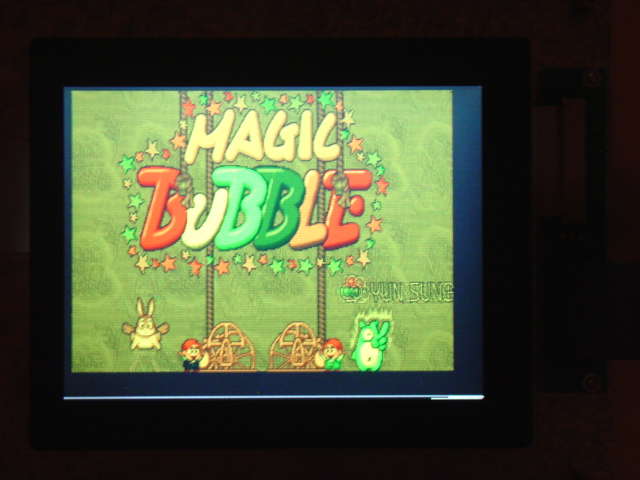

Title 1
-

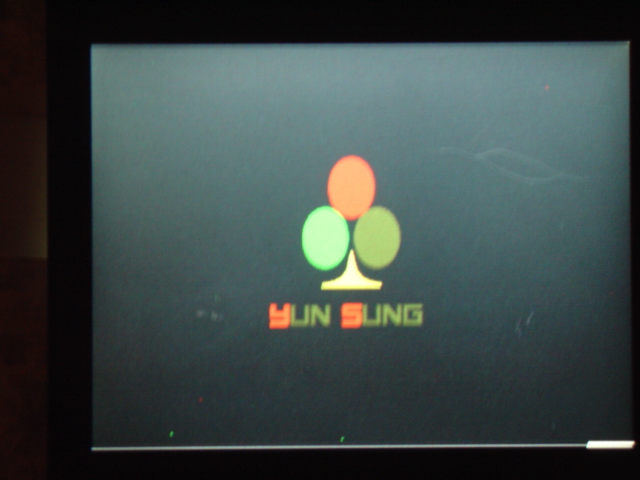

Title 2
-

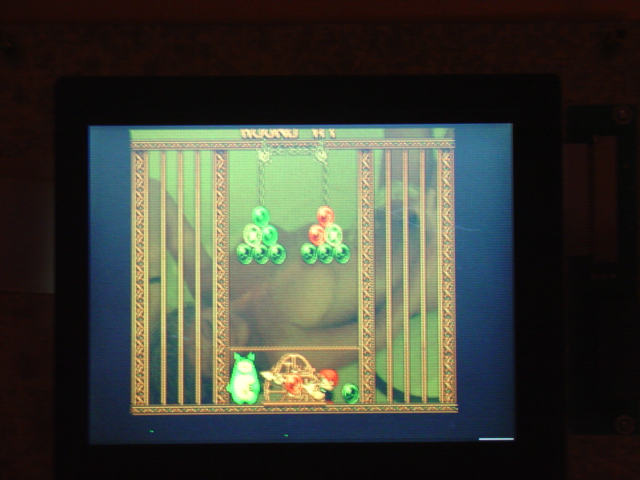

In game
-

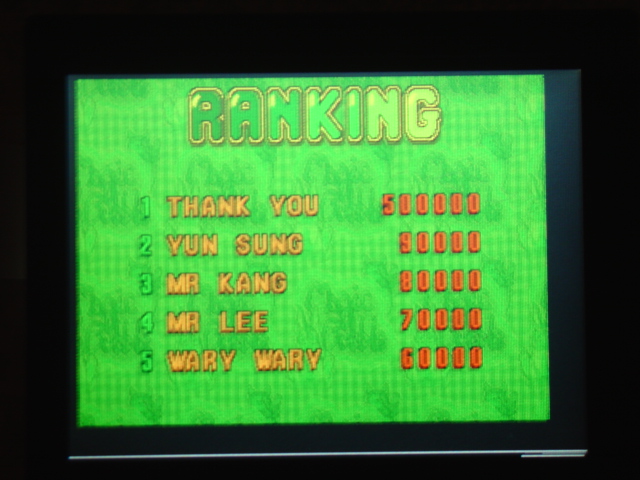

Hiscore
