Magic's 10 2 (ver. BETA3)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 27/10/2020 |
| emulator | MAME 0.227 |
| dev | Osso |
| name | magic102a on ProgettoEMMA magic102a on Arcade Database |
| description | Magic's 10 2 (ver. BETA3) |
| year | 1997.04.30 |
| manufacturer | ABM Games |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P10 | 9.995MHz | u1 | 16/32-bit Microprocessor - main |
| 1x | HD6473308CP10 | u24 | 16-bit Single-Chip Microcomputer - main - NOT DUMPED | |
| 1x | M6295 | u31 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | u33 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | u34 | Audio Amplifier - sound | |
| 1x | oscillator | 20.000000MHz | osc1 | |
| 1x | oscillator | 30.000MHz | osc2 | |
| 1x | blu resonator | 1000J | xtal1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | TMS27C010A | 2-7 | dumped |
| 1x | AM27C020 | 1 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | GM76C28A-10 | u6 |
| 2x | KM6264BL-7 | u4,u5 |
| 2x | HY6264ALP-70 | u43,u44 |
| 2x | HM3-65728BK-5 | u61,u62 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A1020B-PL84C | u50 | read protected |
| 1x | PALCE16V8H-25PC/4 | u54 | read protected |
| 1x | GAL22CV10-25LNC | u22 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 12 legs connector (JP1)
1x trimmer (volume)(P1)
1x 8x2 switches DIP(DIP1)
1x battery 3V
Notes
Not Working
PCB is marked: "(O) ABM - 9605 Rev.02" and "lc" on component side ("LC" is the Italian for "Lato Componenti" which translates to "Components Side")
PCB is marked: "ls" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")
PCB is labeled: "PL" and "APPROVED BY:____ DATE:30/04/97" on component side
Files
-

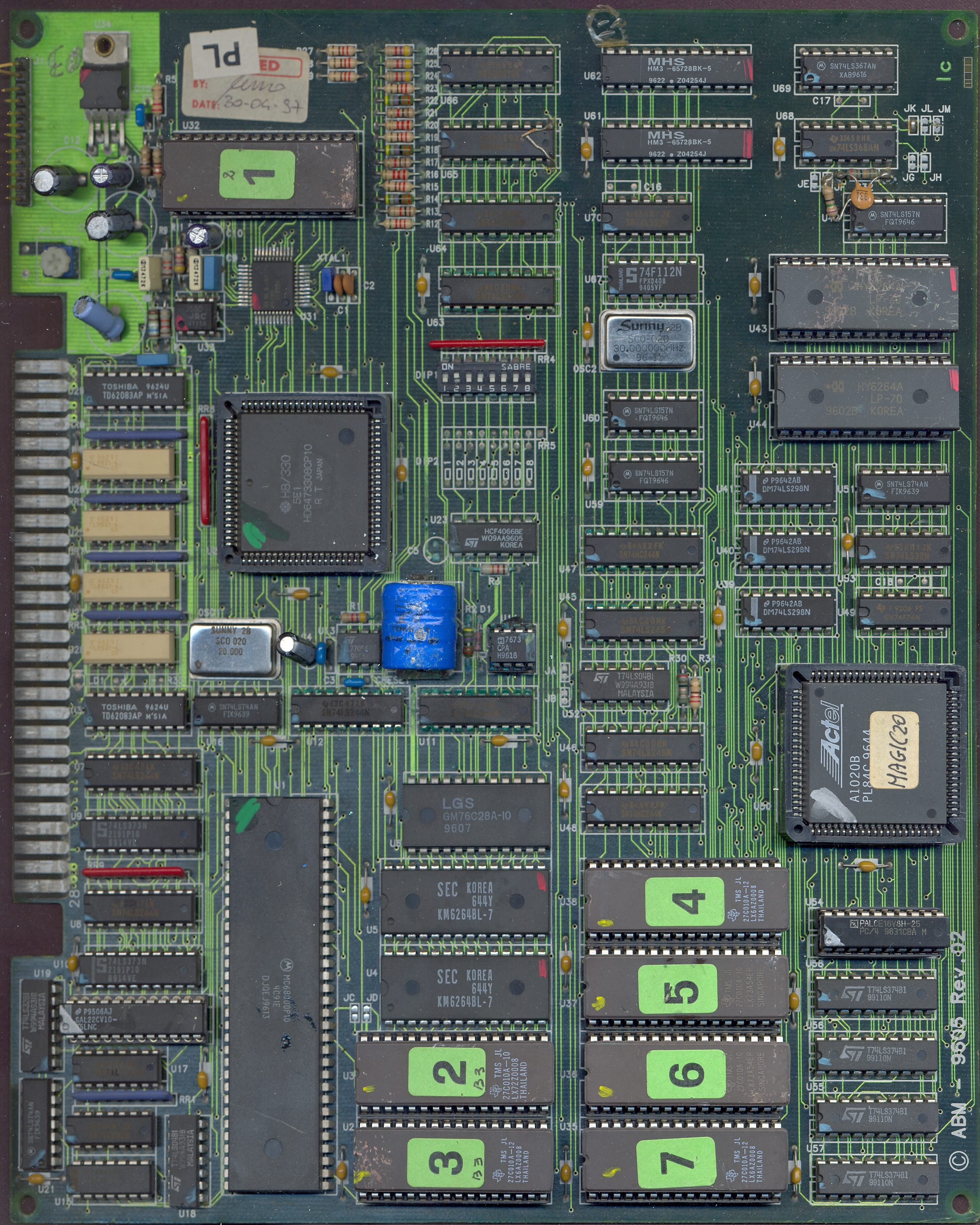

PCB component side
-

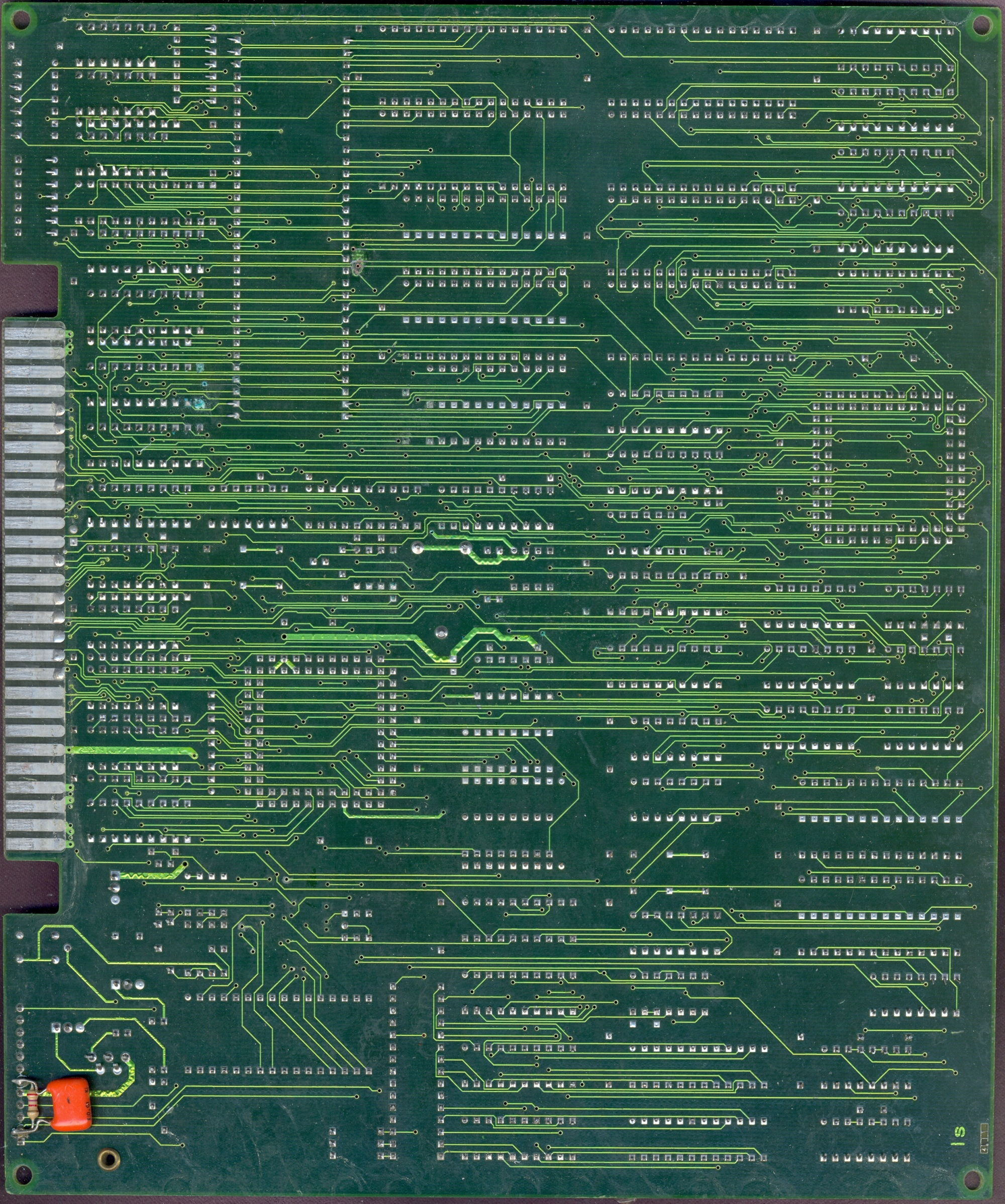

PCB solder side
