Magic's 10 (ver. 16.15)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 27/08/2008 |
| emulator | MAME 0.127u1 |
| dev | Roberto Fresca |
| name | magic10c on ProgettoEMMA magic10c on Arcade Database |
| description | Magic's 10 (ver. 16.15) |
| year | 1995.12.26 |
| manufacturer | A.W.P. Games |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TS68000P12 | u1 | 16/32-bit Microprocessor - main | |
| 1x | OKI M6295 | u21 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | Dual Operational Amplifier - sound | ||
| 1x | TDA2003 | u24 | Audio Amplifier - sound | |
| 1x | oscillator | 20.000MHz | OSC1 close to main | |
| 1x | oscillator | 30.000MHz | OSC2 close to sound | |
| 1x | orange resonator | 1000J | XTAL1 close to sound |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 5x | M27C1001 | 2,3,5,6,7 | dumped |
| 1x | TMS27C010A | 4 | dumped |
| 1x | M27C2001 | 1 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | W2465-70LL | u4,u59 |
| 2x | HY6264ALP-10 | u34,u35 |
| 2x | HM3-65728BK-5 | u50,u51 |
| 1x | UM6116-3L | u5 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TPC1020AFN-084C | u41,u60 | read protected |
| 1x | PALCE16V8H-25 | u42 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 12 legs connector (J1)
1x trimmer (volume)(P1)
1x 8 DIP switches bank (DIP1)
1x battery 3V
Notes
PCB is marked: "039" and "lc" on component side ("LC" is the Italian for "Lato Componenti" which translates to "Components Side")
PCB is labelled: "PASSED BY:_&_ DATE:_26.12.95_" on component side
Files
-

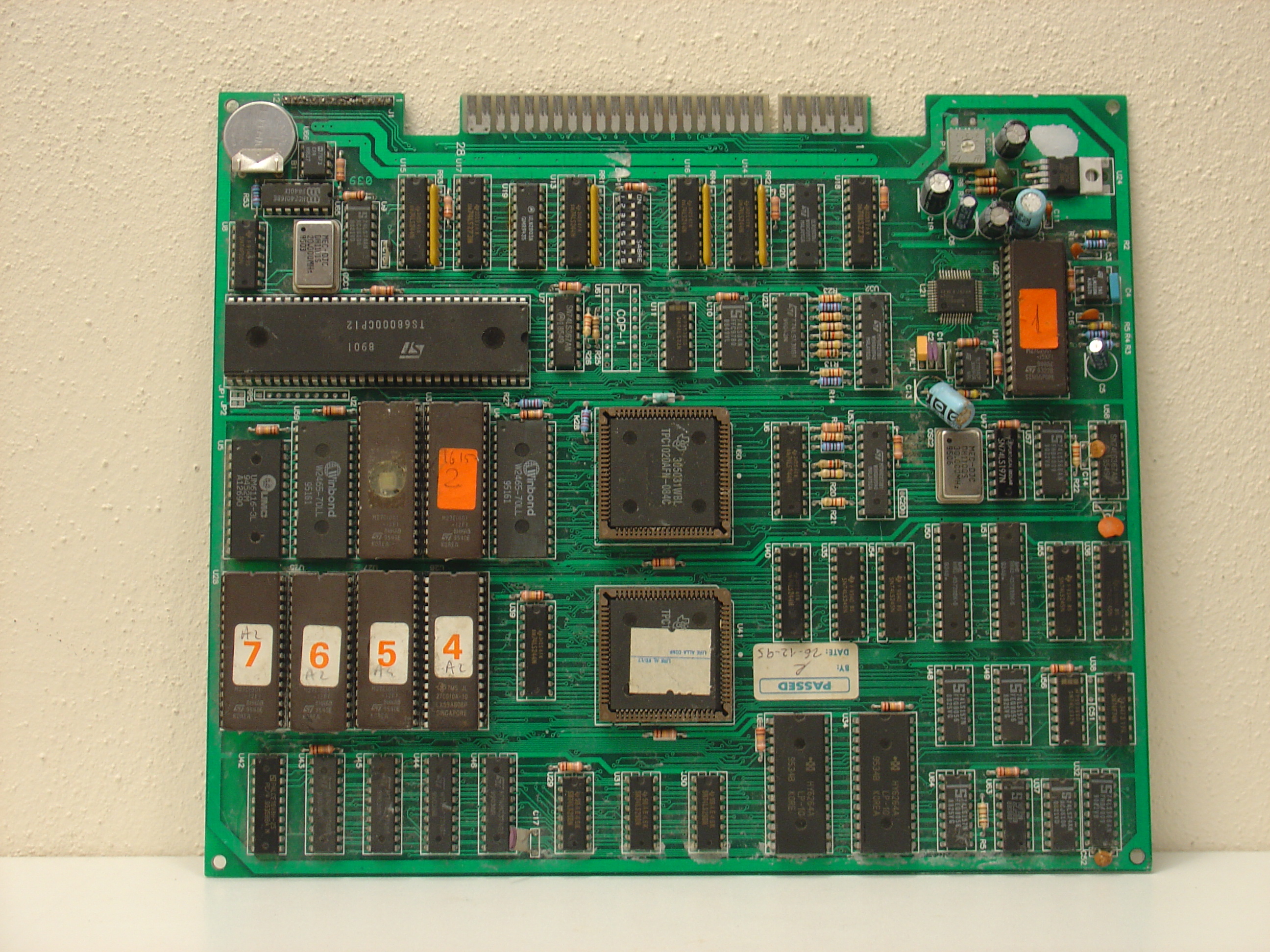

PCB component side
-

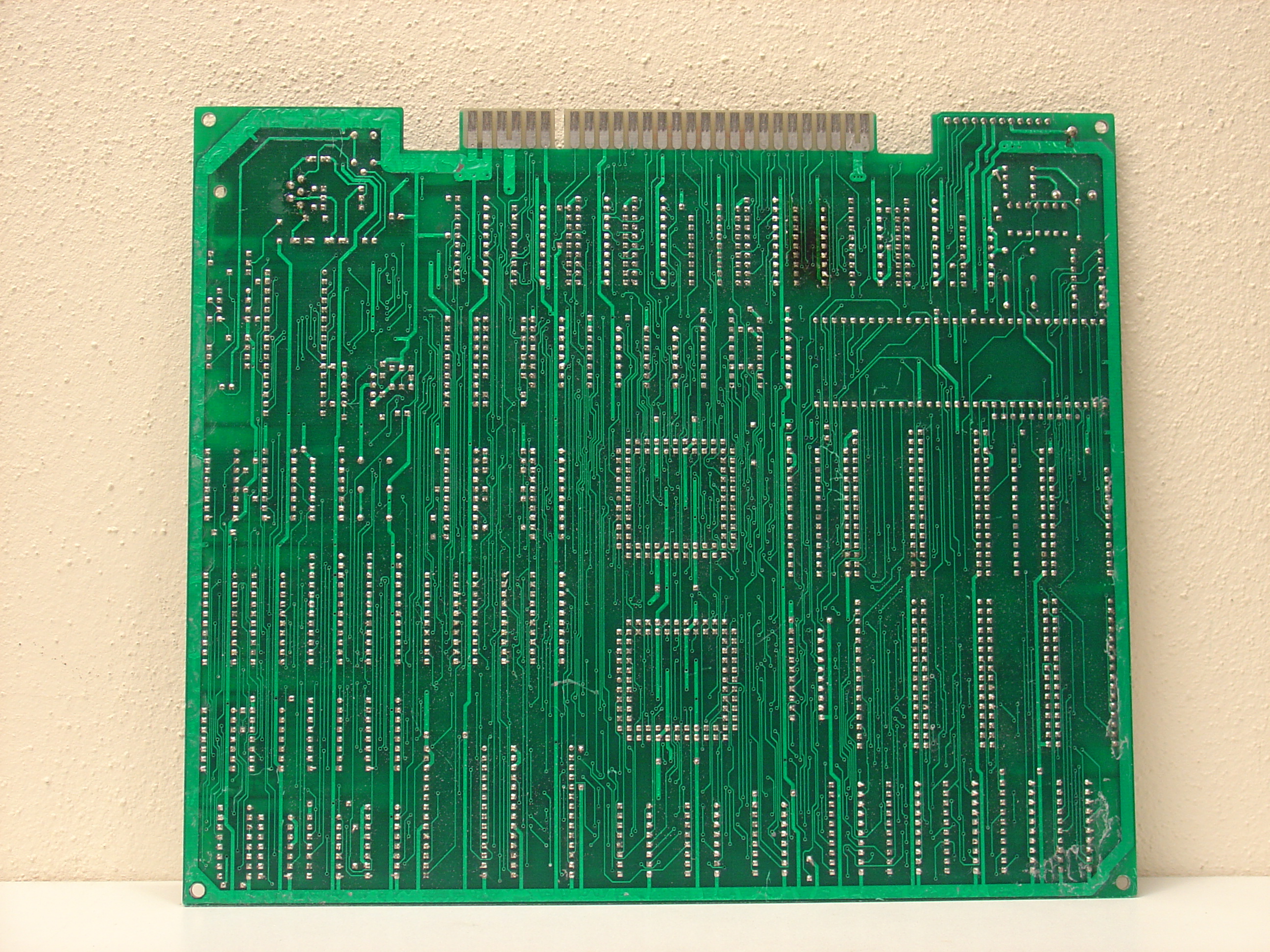

PCB solder side
-

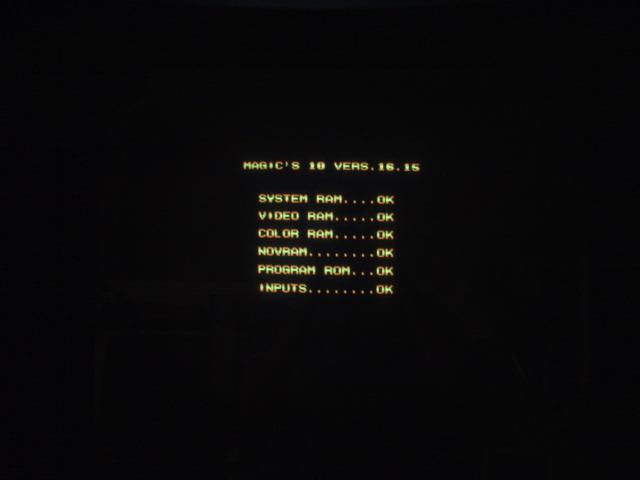

Boot screen
-

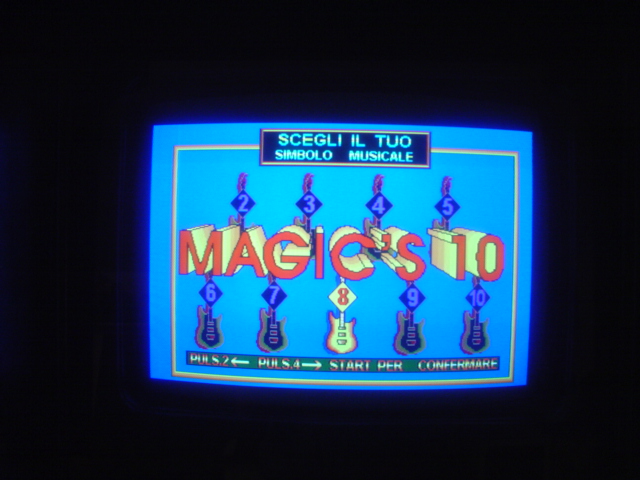

Title
-

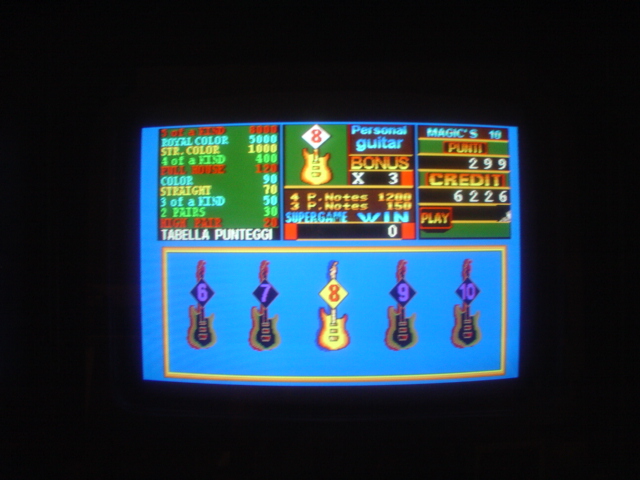

In game 1
-

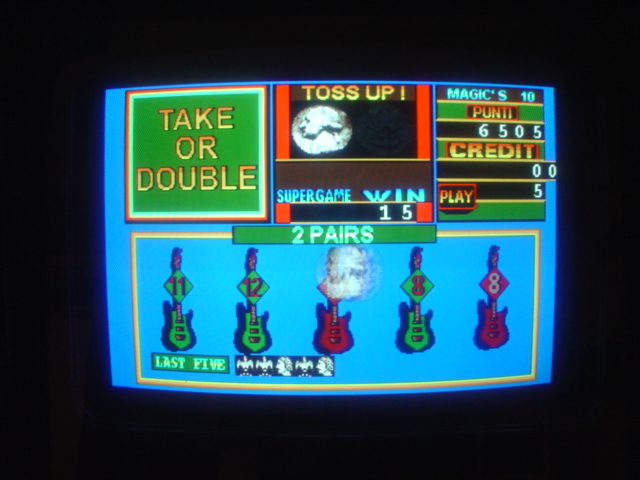

In game 2
