Mad Ball V2.0 (With Nudity)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 11/09/2006 |
| emulator | MAME 0.108u4 |
| dev | f205v |
| name | madballn on ProgettoEMMA madballn on Arcade Database |
| description | Mad Ball V2.0 (With Nudity) |
| year | 1997 |
| manufacturer | Yun Sung |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | LH0080B-Z80B-CPU | 8-bit Microprocessor - main | ||
| 1x | AD-65 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | LM324 | - | Quad Operational Amplifier - sound | |
| 1x | uPC1241 | - | Audio Amplifier - sound | |
| 1x | oscillator | 12.000MHz | cry1 | |
| 1x | oscillator | 4.000000MHz | cry2 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TMS27C010A | 13 | dumped |
| 2x | M27C2001 | 5,6 | dumped |
| 5x | TMS27C040 | 1,2,3,4,15 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | TMM2015BP-80 | |
| 1x | T6116S70L | |
| 4x | UM6116K-2 | |
| 4x | D43256AC-10L |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8 DIP switches banks
Notes
PCB is marked: "YS-0402" and "YUN SUNG" on component side
PCB is labelled: "4720" on component side
update 20231127: better description
Files
-

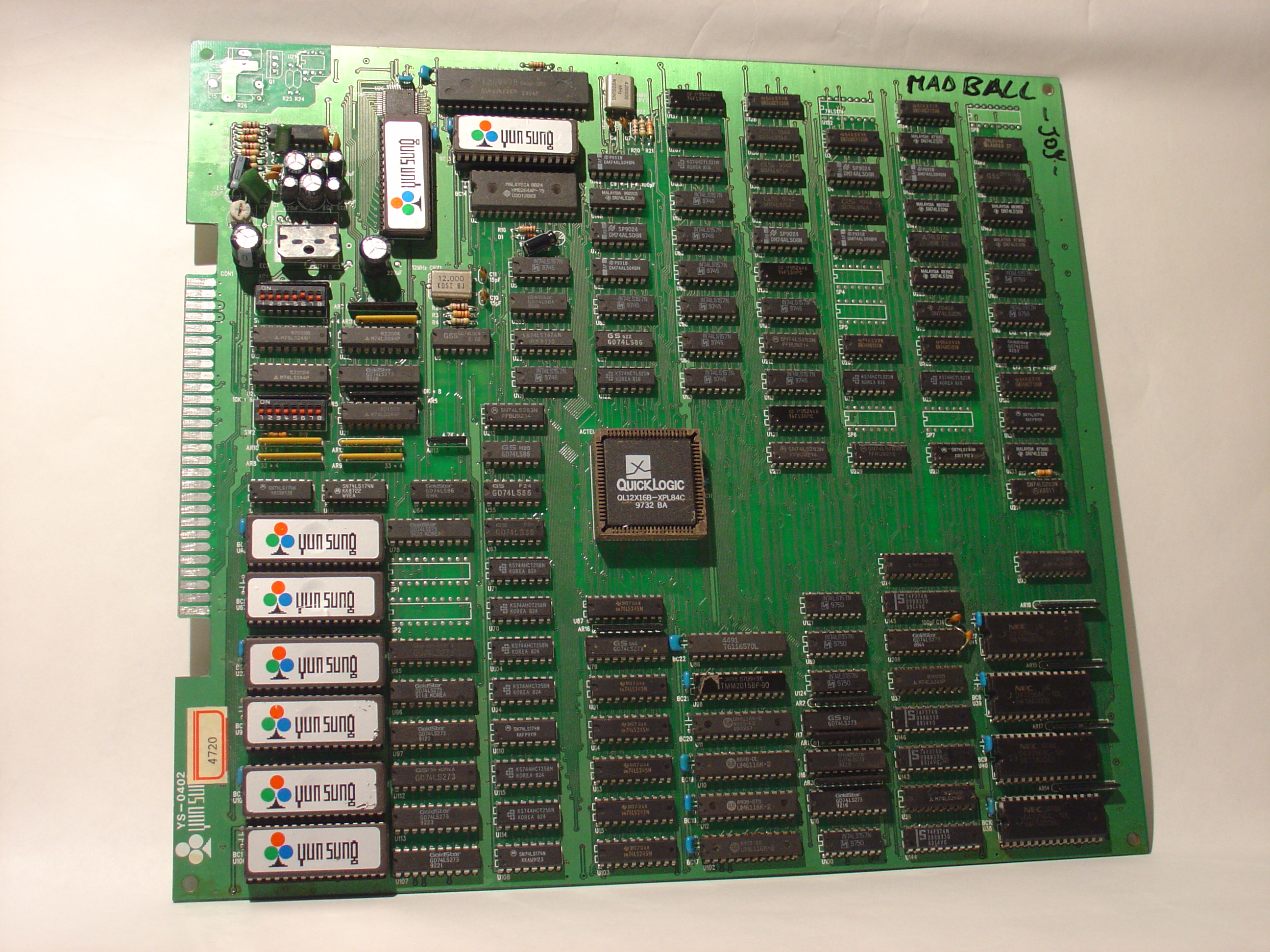

PCB component side
-

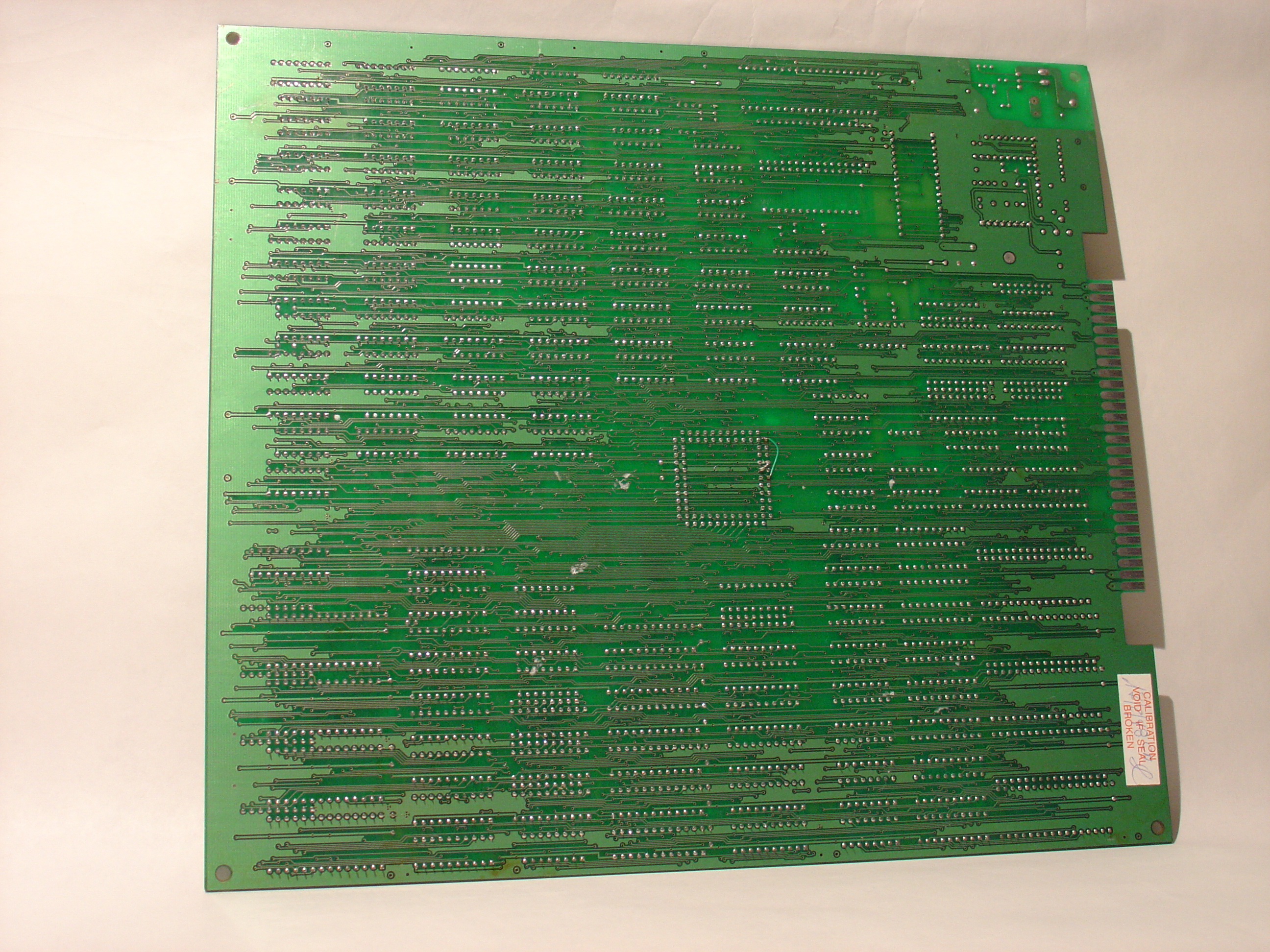

PCB solder side
