M.A.C.H. 3 (set 3)

EMU Infos

dumper	f205v
date	24/09/2017
emulator	MAME 0.172
dev	Matt Ownby

PCB Infos

name	mach3b on ProgettoEMMA mach3b on Arcade Database
description	M.A.C.H. 3 (set 3)
year	1983
manufacturer	Mylstar

Technical references

CPUs

QTY	Type	clock	position	function

ROMs

QTY	Type	position	status
4x	M5L2764K	fg0,fg1,fg2,fg3	dumped
2x	ID2732A	bg0,yrom1	dumped
1x	HN482764G	rom0	dumped

RAMs

QTY	Type	position

PLDs

QTY	Type	position	status

Notes

Blister only, no PCB

---

label format is:
---
--------------------------
|GV-109               FG3| -> game number and ROM number
|(C) 1983                | -> copyright
|Mylstar Electronic, Inc.| -> copyright
|   ALL RIGHTS RSV'D.    | -> copyright
--------------------------

Files

•

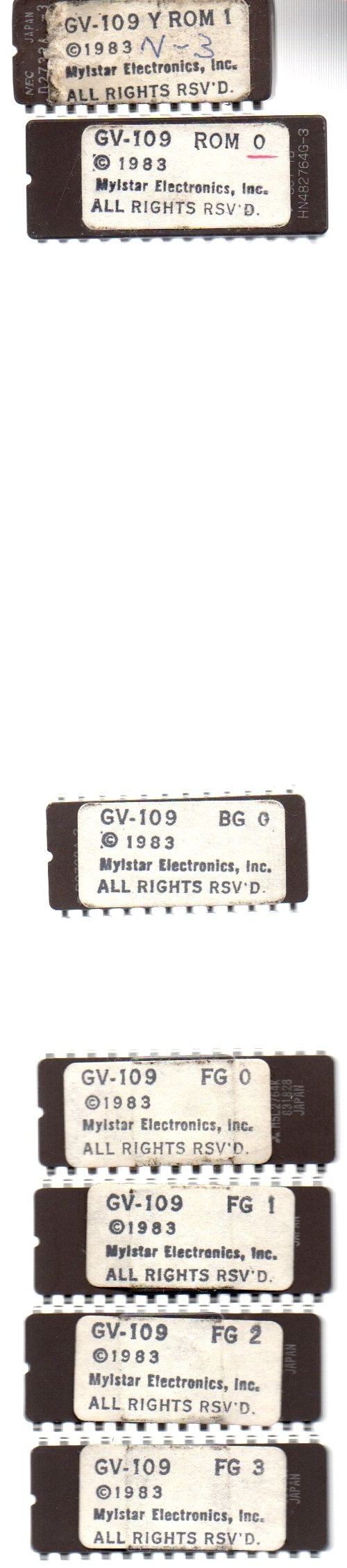

  EPROMs

1566
