M.A.C.H. 3 (set 1)
From Citylan
Jump to navigationJump to search
dumper | f205v |
date | 24/09/2017 |
emulator | MAME 0.33b3 |
dev | Fabrice Frances |
name | mach3 on ProgettoEMMA mach3 on Arcade Database |
description | M.A.C.H. 3 (set 1) |
year | 1983 |
manufacturer | Mylstar |
Technical references
CPUs
QTY | Type | clock | position | function |
---|
ROMs
QTY | Type | position | status |
---|---|---|---|
1x | uPD2764 | 1st set fg3 | dumped |
6x | HN482764G | 1st set fg2,rom0,rom1,rom2,rom3,rom4 | dumped |
2x | M5L2764K | 1st set fg0,fg1 | dumped |
3x | ID2732A | 1st set bg0,bg1,yrom1 | dumped |
6x | ID2764 | 2nd set fg0,fg3,rom0,rom1,rom3,rom4 | dumped |
3x | M5L2764K | 2nd set fg1,fg2,rom2 | dumped |
2x | ID2732A | 2nd set bg0,bg1 | dumped |
1x | HN482732AG | 2nd set yrom1 | dumped |
1x | ID2764 | 3rd set fg3 | dumped |
6x | M5L2764K | 3rd set fg2,rom0,rom1,rom2,rom3,rom4 | dumped |
2x | HN482764G | 3rd set fg1,fg0 | dumped |
2x | ID2732A | 3rd set bg1,yrom1 | dumped |
1x | HN482732AG | 3rd set bg0 | dumped |
RAMs
QTY | Type | position |
---|
PLDs
QTY | Type | position | status |
---|
Others
Notes
Blister only, no PCB
label format is: --- -------------------------- |GV-109 FG3| -> game number and ROM number |(C) 1983 | -> copyright |Mylstar Electronic, Inc.| -> copyright | ALL RIGHTS RSV'D. | -> copyright --------------------------
Files
-

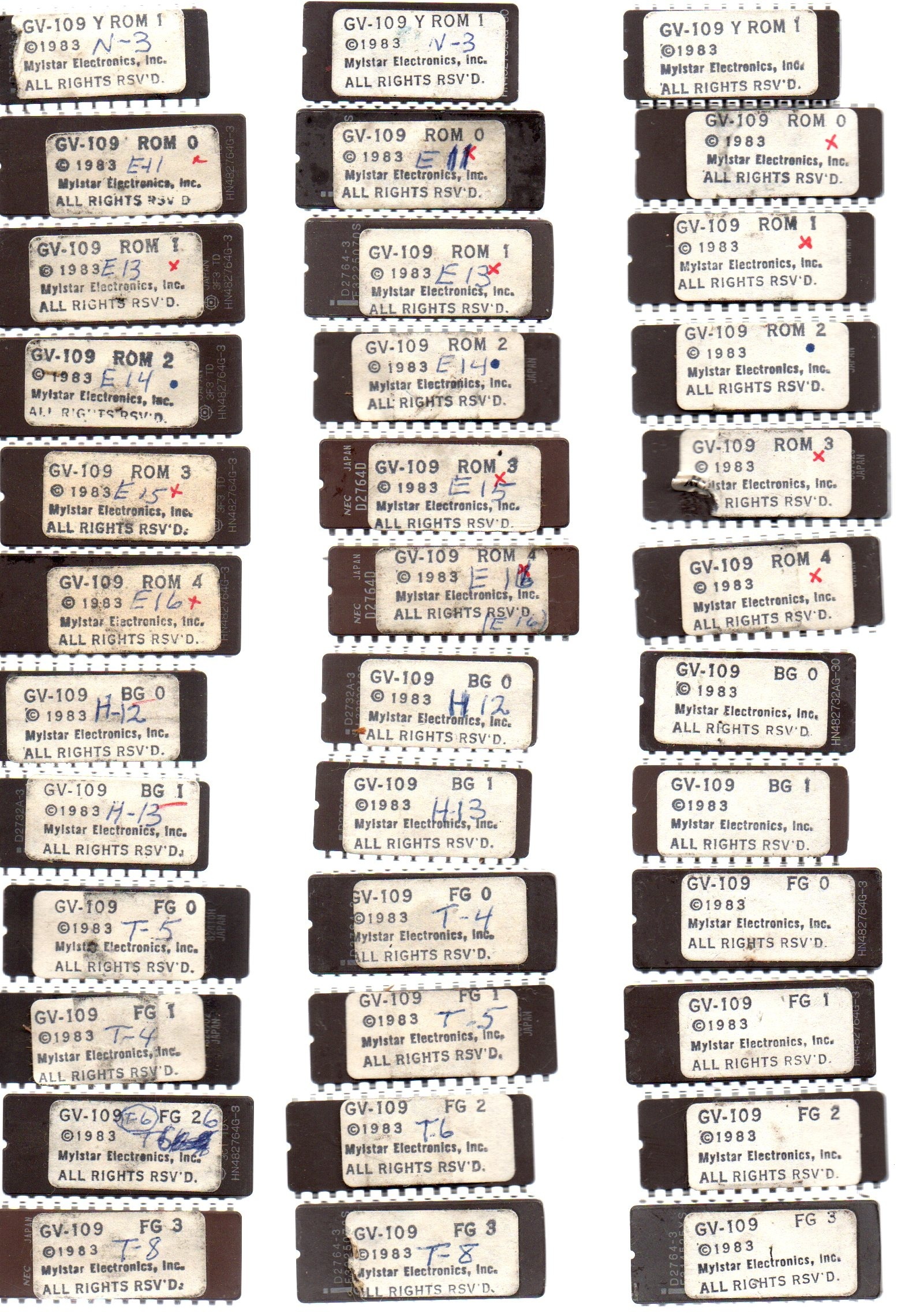

EPROMs
-
readme
