Lup Lup Puzzle / Zhuan Zhuan Puzzle (version 3.0 / 990128)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 28/03/2005 |
| emulator | MAME 0.95u1 |
| dev | Mame Italia Forum |
| name | luplup on ProgettoEMMA luplup on Arcade Database |
| description | Lup Lup Puzzle / Zhuan Zhuan Puzzle (version 3.0 / 990128) |
| year | 1999.01.28 |
| manufacturer | Omega System |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Hyperstone E1-16T | CPU | 32-bit Microprocessor - main | |
| 1x | MSM6295 | ic11 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | BS901 | ic12 | FM Operator Type-M (OPM) - sound | |
| 1x | BS9022 | ic13 | D/A Converter (DAC) - sound | |
| 2x | IL324N | ic14,ic15 | Quad Operational Amplifier - sound | |
| 1x | uPC1242H | ic16 | Audio Amplifier - sound | |
| 1x | oscillator | 50.000MHz | OSC.50MHZ close to main | |
| 1x | oscillator | 14.31818MHz | OSC.14MHZ |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | M27C4001 | rom1,rom2 | dumped |
| 1x | AM27C020 | vrom1 | dumped |
| 4x | MX29F1610MC | l00,l01,u00,u01 | dumped |
| 1x | 93C46CB1 | ic3 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | GM71C18163CJ6 | dram1 |
| 12x | N341256SJ-15 | cram1,cram2,mem1u,mem1l,mem2,mem3,mem4,mem5,mem6,mem7,mem8,mem9 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | QuickLogic QL2003-XPL84C | quic1 quic2 | FPGA not dumped |
| 1x | GALP22V10B-25LP | gal1 | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)(VR1)
3x pushbutton (TESTA,TESTB,RESET)
1x red LED (LED)
Notes
PCB is marked: "F-E1-16-001" on component side
update 20180408: better description
Files
-

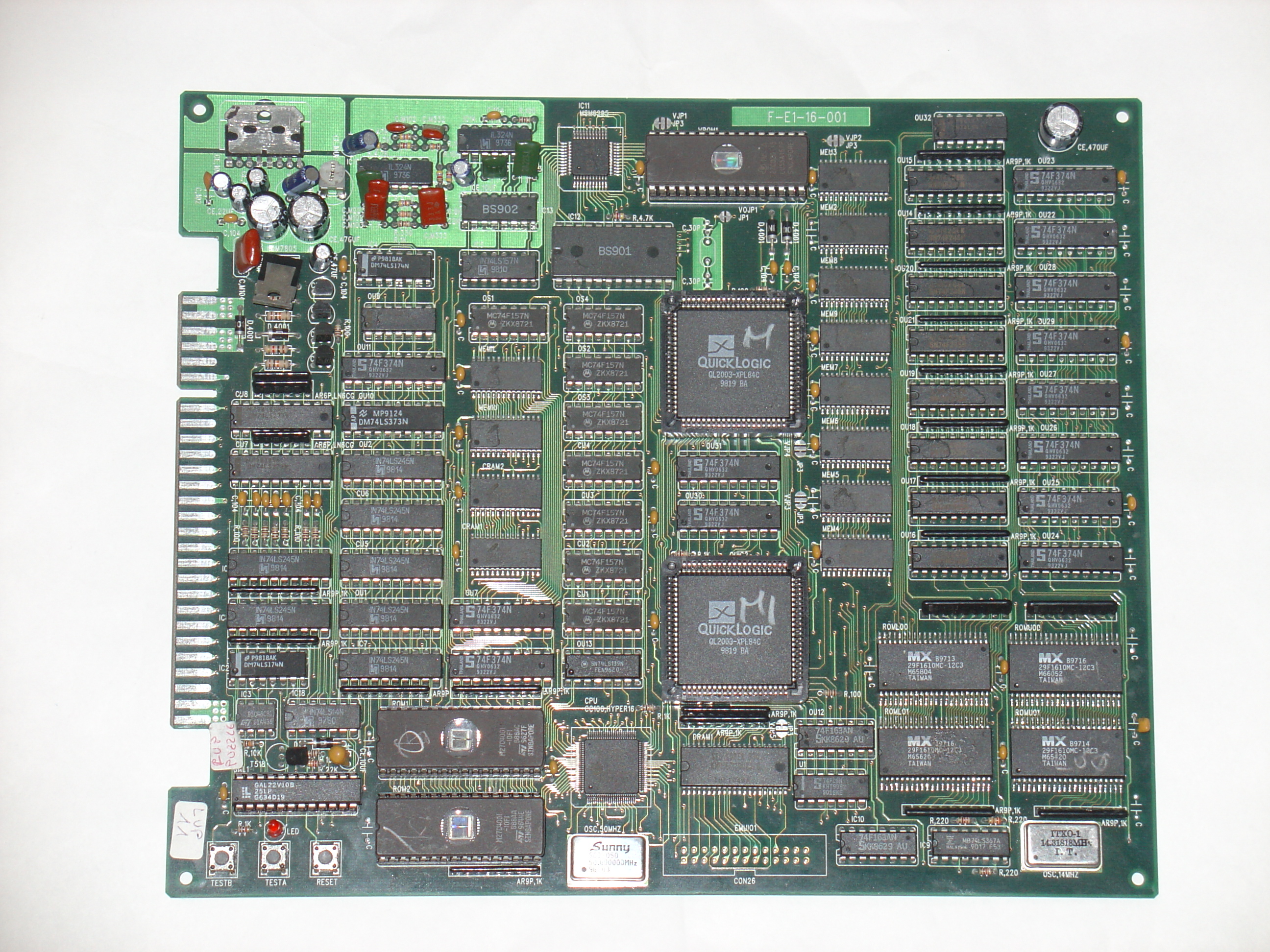

PCB component side
-

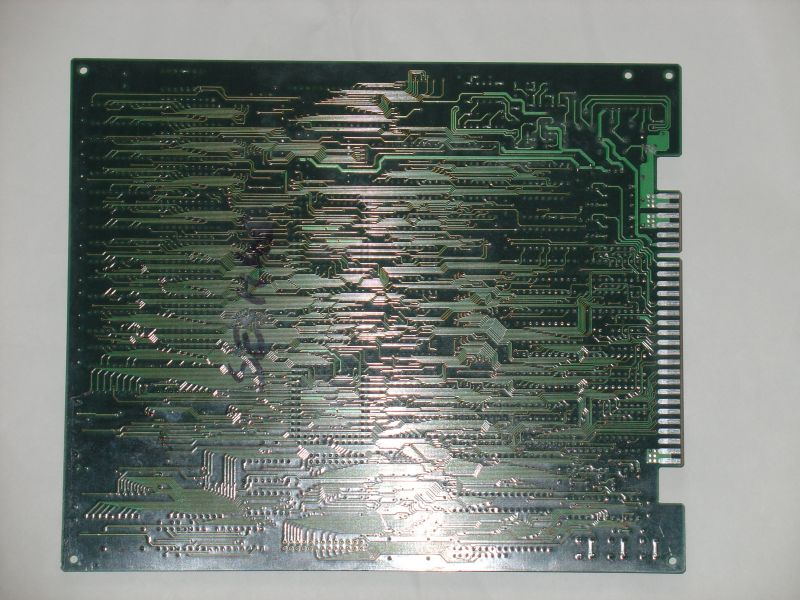

PCB solder side
-

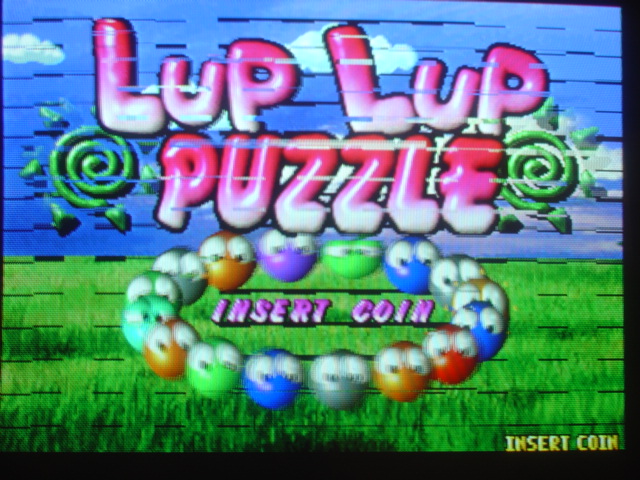

Title 1
-

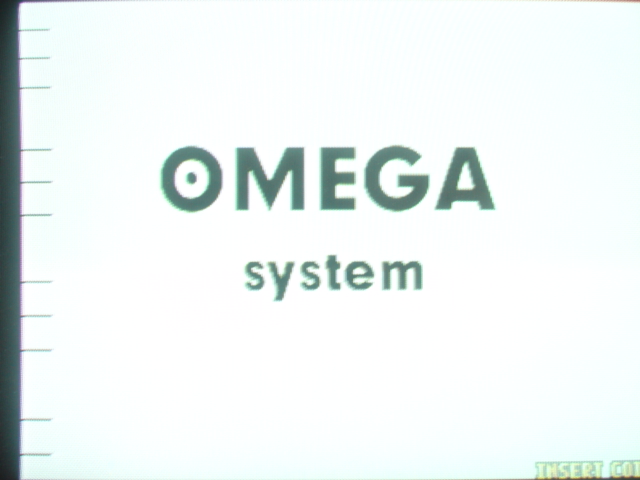

Title 2
-

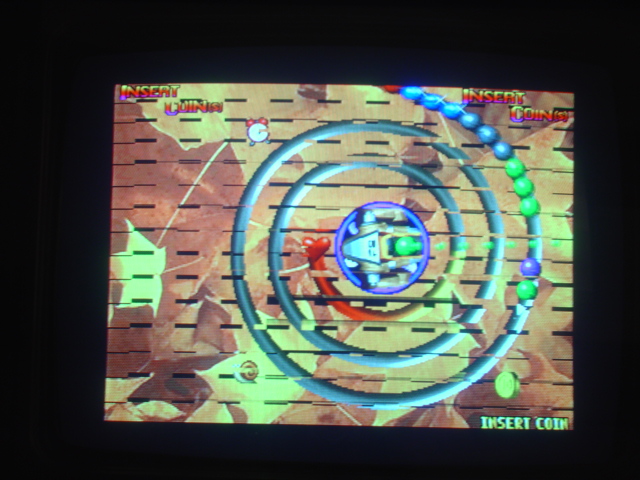

In game
-
Readme
