Little Robin
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 24/09/2008 |
| emulator | MAME 0.102u5 |
| dev | David Haywood, Piepaolo Prazzoli |
| name | littlerb on ProgettoEMMA littlerb on Arcade Database |
| description | Little Robin |
| year | 1994 |
| manufacturer | TCH |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P10 | 16/32-bit Microprocessor - main | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 16.000000MHz | X1 | |
| 1x | oscillator | 40.000000MHz | X2 | |
| 1x | oscillator | 6.000 | X3 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TMS27C020 | u26, u32 | dumped |
| 2x | ZR040P | u29, u53 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | HY62256A-LP-10 | |
| 4x | KM44C256CP-10 | |
| 1x | BT478KPJ66 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | unknown (LCC68) | label is 4107-855 | |
| 1x | unknown (LCC68) | label is 4107-871 | |
| 1x | PALCE20V8H-25PC/4 | read protected | |
| 2x | GAL22V10B-25LP | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8 DIP switches banks (S1,S2)
Notes
PCB is marked: "TCH S.A. MURCIA (SPAIN)"
Files
-

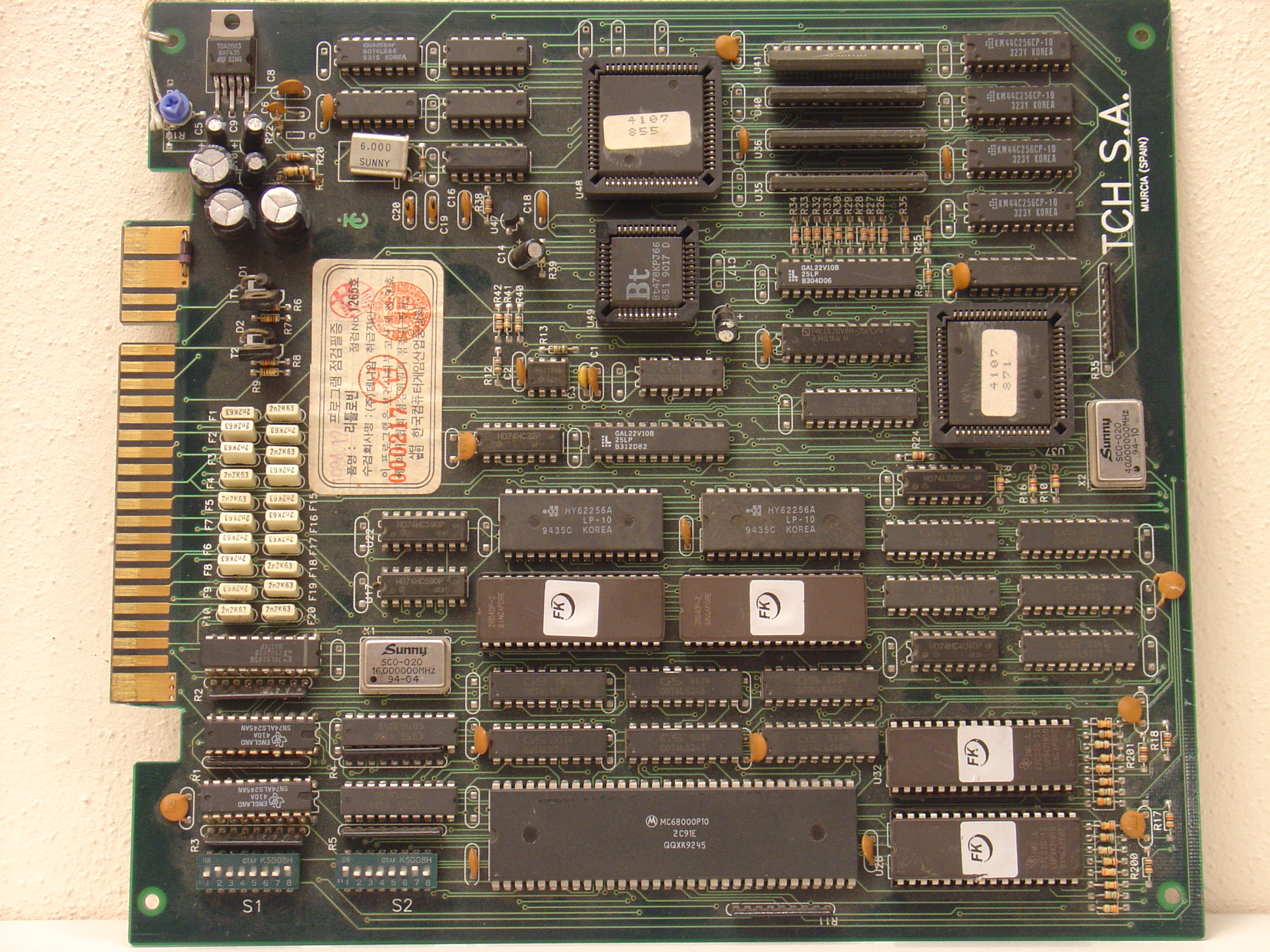

PCB component side
-

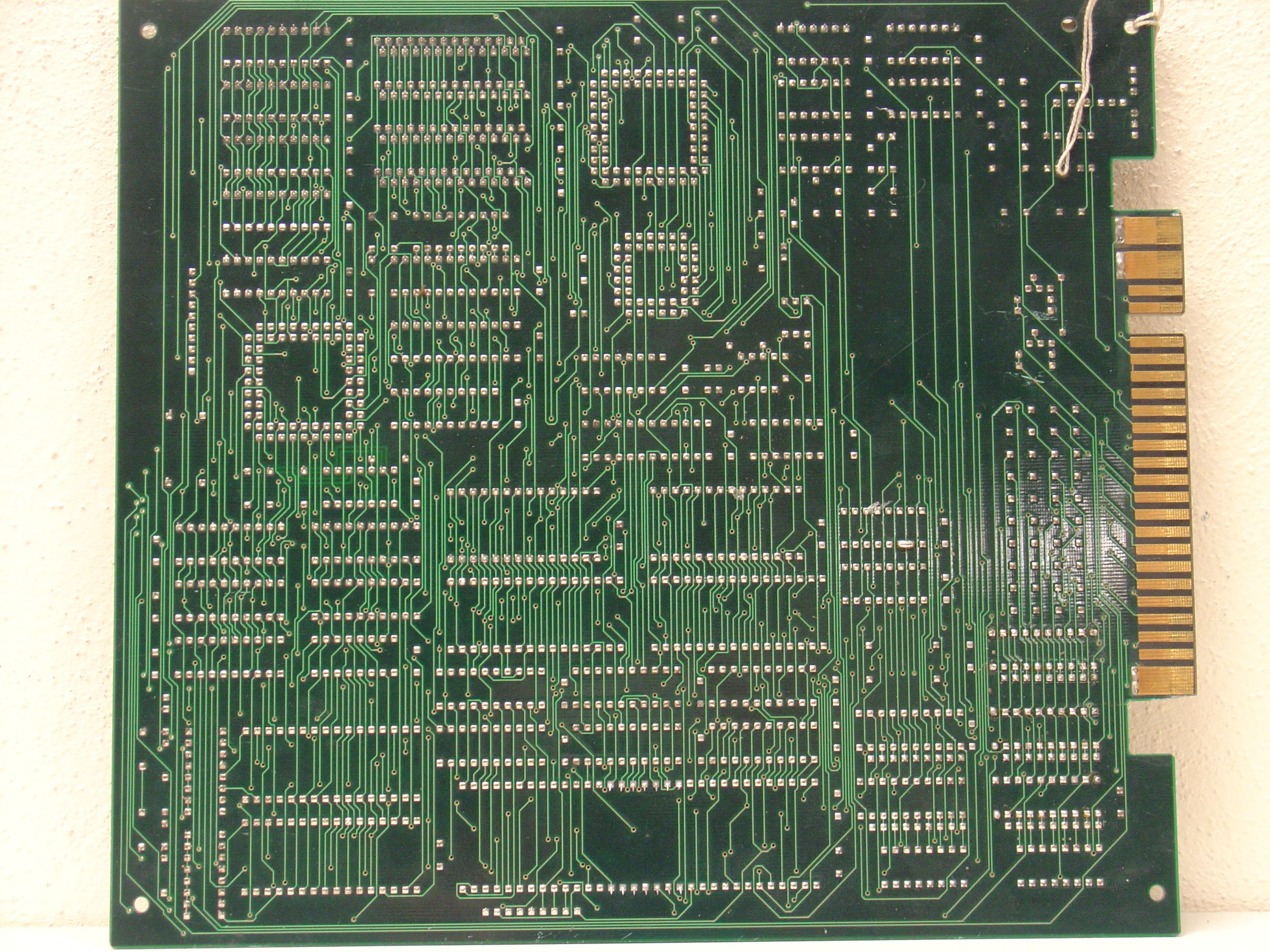

PCB solder side
