| dumper | f205v |
| date | 31/03/2008 |
| emulator | MAME 0.205 |
| dev | Osso |
| name | fiches12 on ProgettoEMMA fiches12 on Arcade Database |
| description | Les Fiches (ver 1.2) |
| year | 1995? |
| manufacturer | Minivideo |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | HD6473258P10 | u14 | 16-bit Single-Chip Microcomputer (internal ROM not dumped) - main | |
| 1x | oscillator | 20.000MHz | xt1 | |
| 1x | oscillator | 8.000MHz | xt2 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | M27C4001 | 1,2,3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | M48Z08-100PC1 | u37 dumped |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 28x2 non-JAMMA edge connector + JAMMA adapter
1x trimmer (volume)(R34)
1x 2 legs jumpers (JP3)
2x 3 legs jumpers (JP1,JP2)
Notes
PCB is marked: "MINIVIDEO 1.2" on component side
PCB is marked: "MINIVIDEO 1.2" and "LS" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")
Files
-

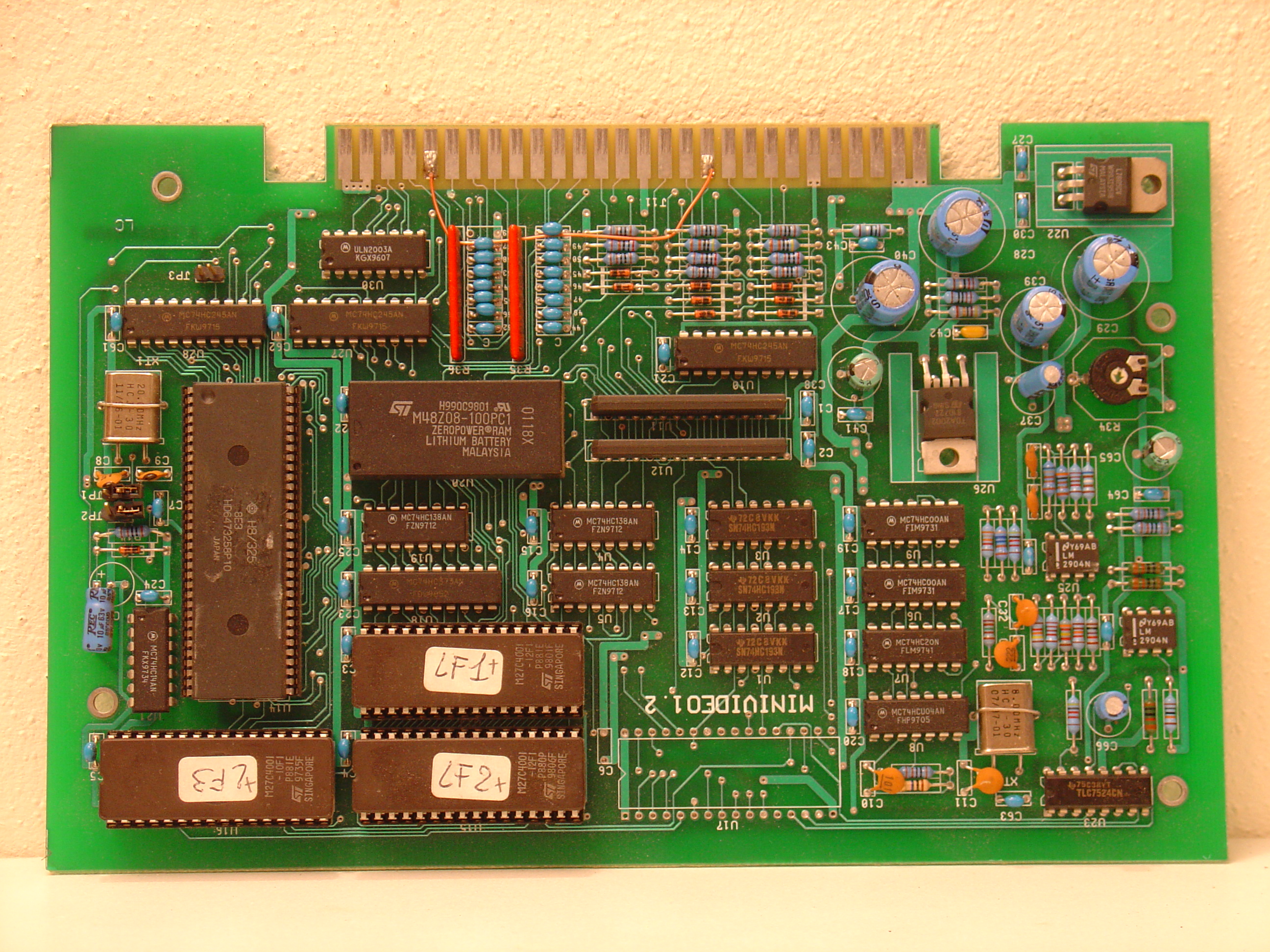

PCB component side
-

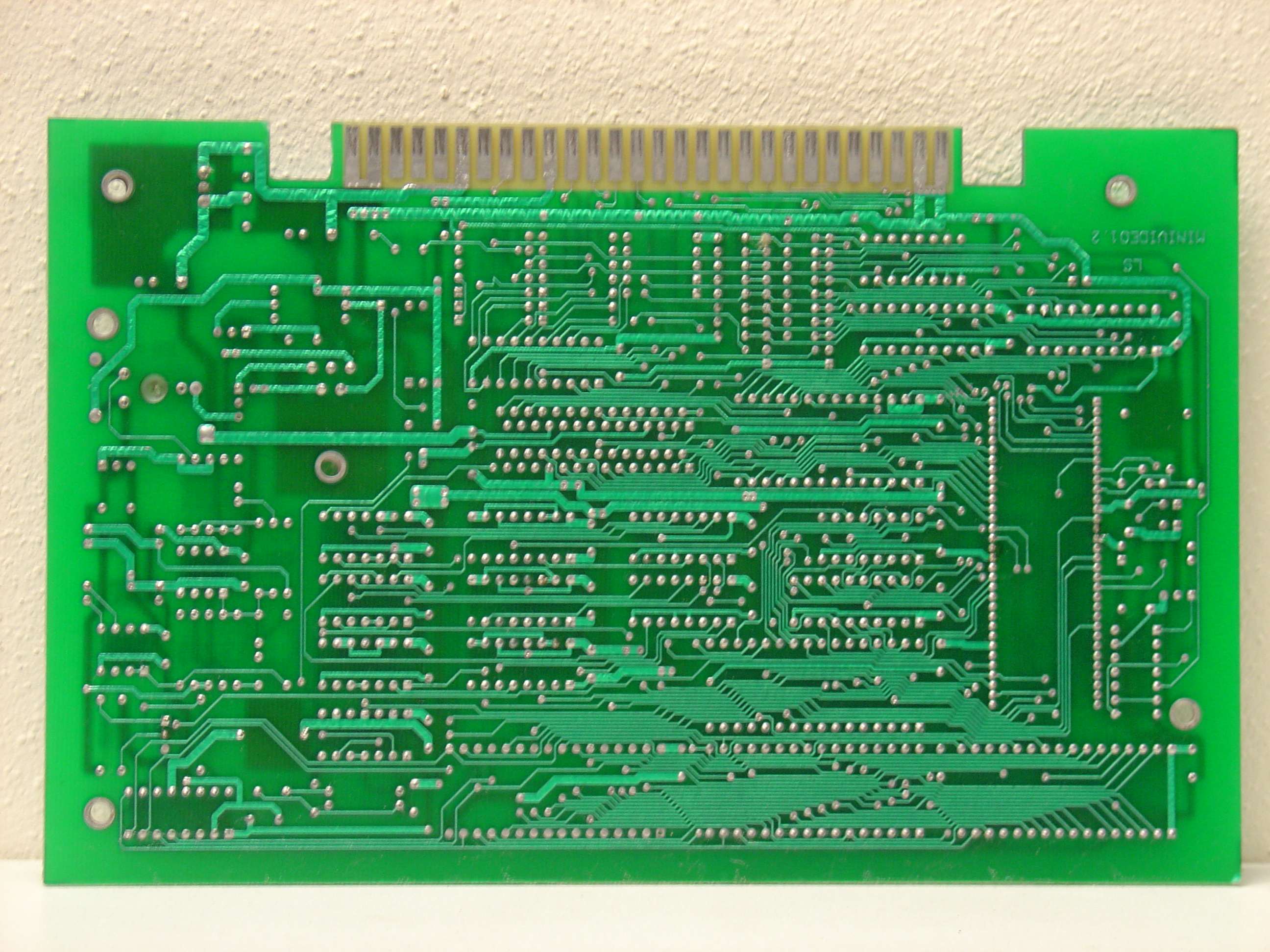

PCB solder side
-

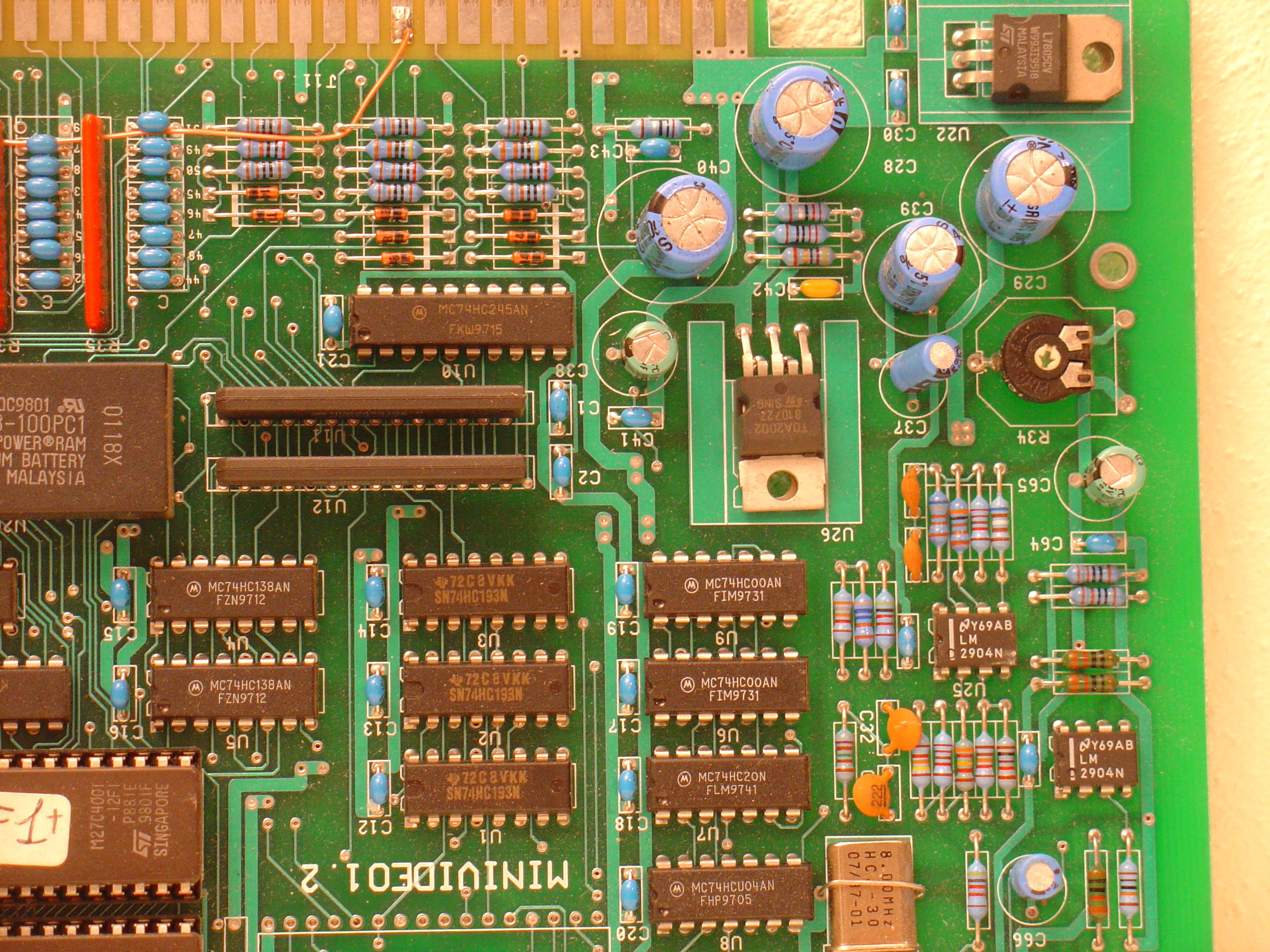

Resistor detail
