Laser 2001 (Ver 1.2)
From Citylan
Jump to navigationJump to search
dumper | f205v |
date | 15/04/2008 |
emulator | MAME 0.125u4 |
dev | Roberto Fresca |
name | laser2k1 on ProgettoEMMA laser2k1 on Arcade Database |
description | Laser 2001 (Ver 1.2) |
year | 2001 |
manufacturer |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | H8/3337-1A3-HD64F3337CP16 | 32-bit Single-Chip Microcomputer - main (internal 60KB ROM not dumped) | ||
1x | NEC D7759GC | ADPCM Speech Synthesizer LSIs - sound | ||
1x | TDA2003 | - | Audio Amplifier - sound | |
1x | oscillator | 14.318180MHz | ||
1x | oscillator | 16.000 |
ROMs
QTY | Type | position | status |
---|---|---|---|
1x | M27C1001 | 0 | dumped |
4x | M27C4001 | 1,2,3,4 | dumped |
RAMs
QTY | Type | position |
---|---|---|
3x | HY628100B-LLG-70 |
PLDs
QTY | Type | position | status |
---|---|---|---|
2x | ispLSI1032E-70LJ | read protected |
Others
1x 28x2 edge connector (not JAMMA)
1x RS232 connector
1x 14 legs connector
2x 8 DIP switches banks
1x red LED
1x trimmer (volume)
1x trimmer (unknown)
Notes
PCB is marked: "L.C." on component side ("L.C." is the Italian for "Lato Componenti" which translates to "Components Side")
PCB is marked: "L.S." on solder side ("L.S." is the Italian for "Lato Saldature" which translates to "Solders Side")
PCB is labelled: "VER.1.2" and "R 3 1019 - 13/06/01 - Rip[] RiProg[X]" on component side
PCB is labelled: "LASER CENTER GAMES S.R.L. - CE - Via Proventa, 152/B - Faenza (Ra) - LASER 2001 - Serie N° 911" on solder side
Files
-

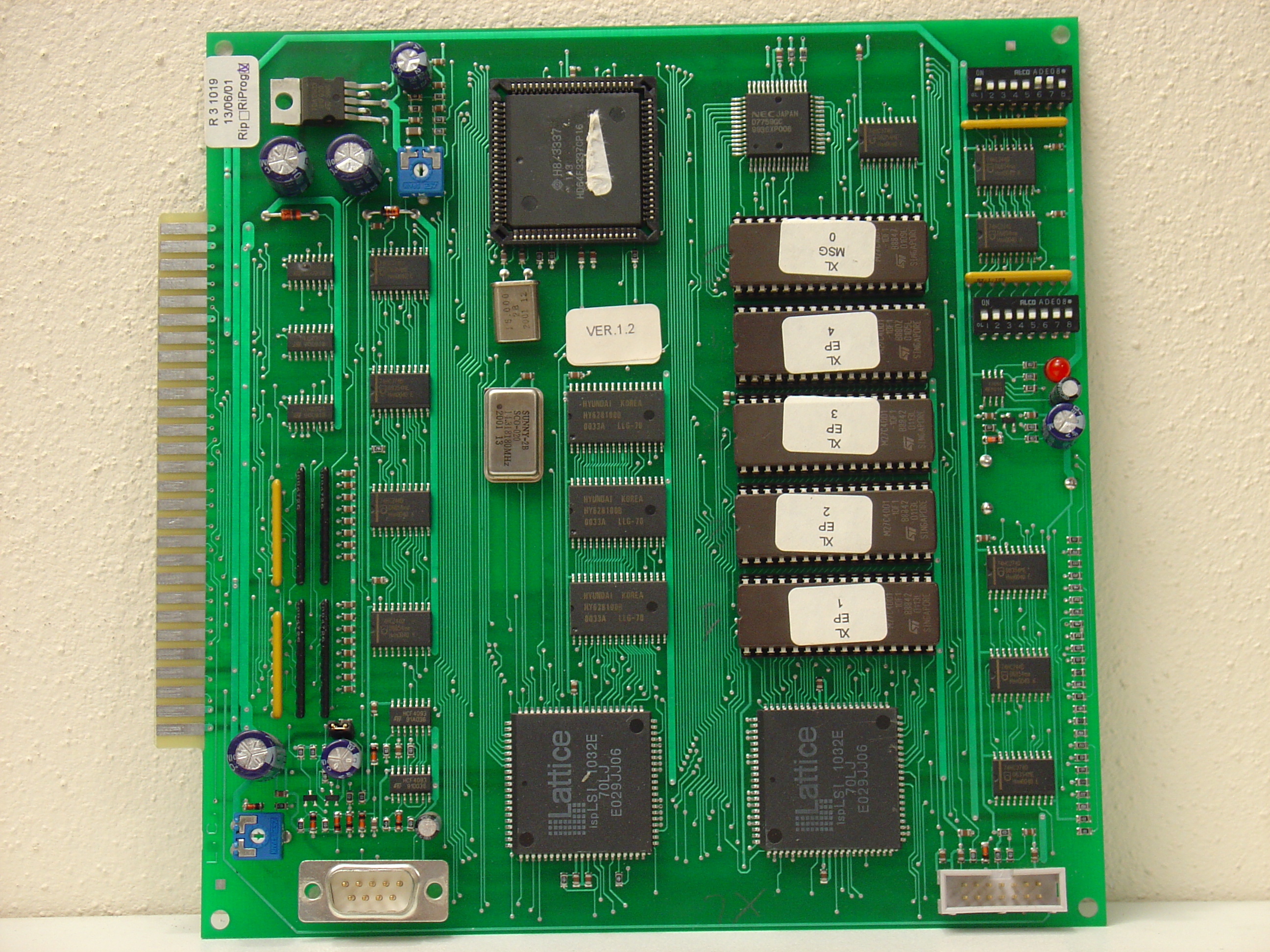

PCB component side
-

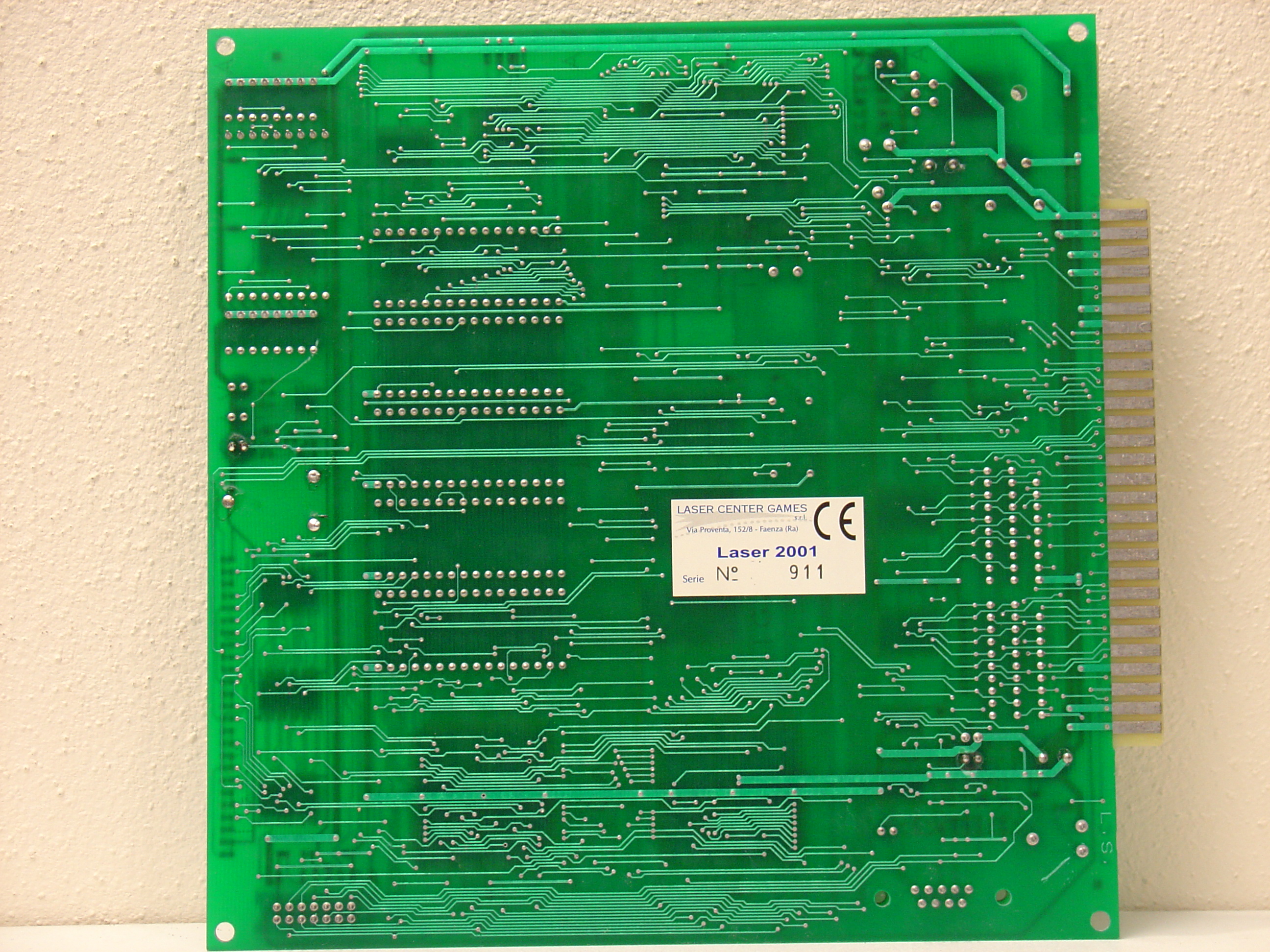

PCB solder side
-

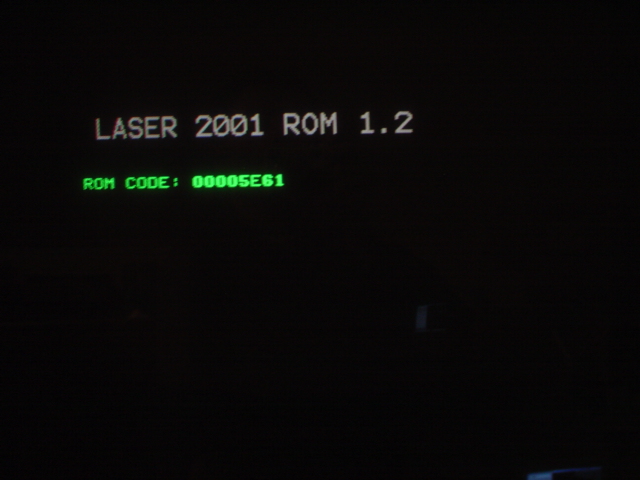

Boot screen
-

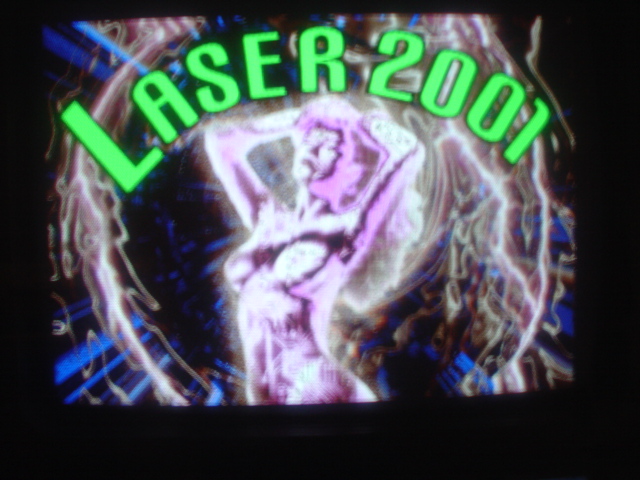

Title
-
Disclaimer
-

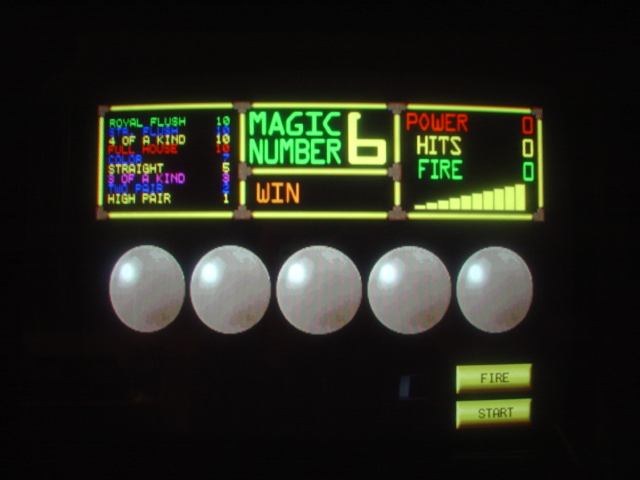

In game
-
