Labyrinth (Versione 1.5) (new hardware)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 30/09/2018 |
| emulator | |
| dev |
| name | 1638 |
| description | Labyrinth (Versione 1.5) (new hardware) |
| year | 2001.08 |
| manufacturer | Nazionale Elettronica |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | HD64F3048F16 | ic1 | 16-bit Single-Chip Microcomputer - main (internal ROM not dumped) | |
| 1x | AD-65 | ic24 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | ic27 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | ic26 | Audio Amplifier - sound | |
| 1x | oscillator | 30.000MHz | osc1 | |
| 1x | blu resonator 1000J | x1 | ||
| 1x | oscillator | x2 (close to DS1302) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27C020 | 1 | not dumped, missing |
| 2x | M27C4001 | 2,3 | not dumped, missing |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | MB8464C-10L | ic13,ic14 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI2064-80LJ | ic12 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 12 legs connector (CN1)
1x 12 DIP switches bank (CN2,CN3)
1x 50 pins flat cable connector (CN4)
1x trimmer (P1 VOLUME)
1x trimmer (P2 SPARK)
1x battery 3.6V (BAT1)
Notes
PCB is marked: "CE H83048" on component side
PCB is marked: "bottom" and "H83048 Rev. 1.1" on solder side
PCB is labeled: "LABYRINTH Versione 1.5" and "PASSED 08/2001" on component side
Files
-

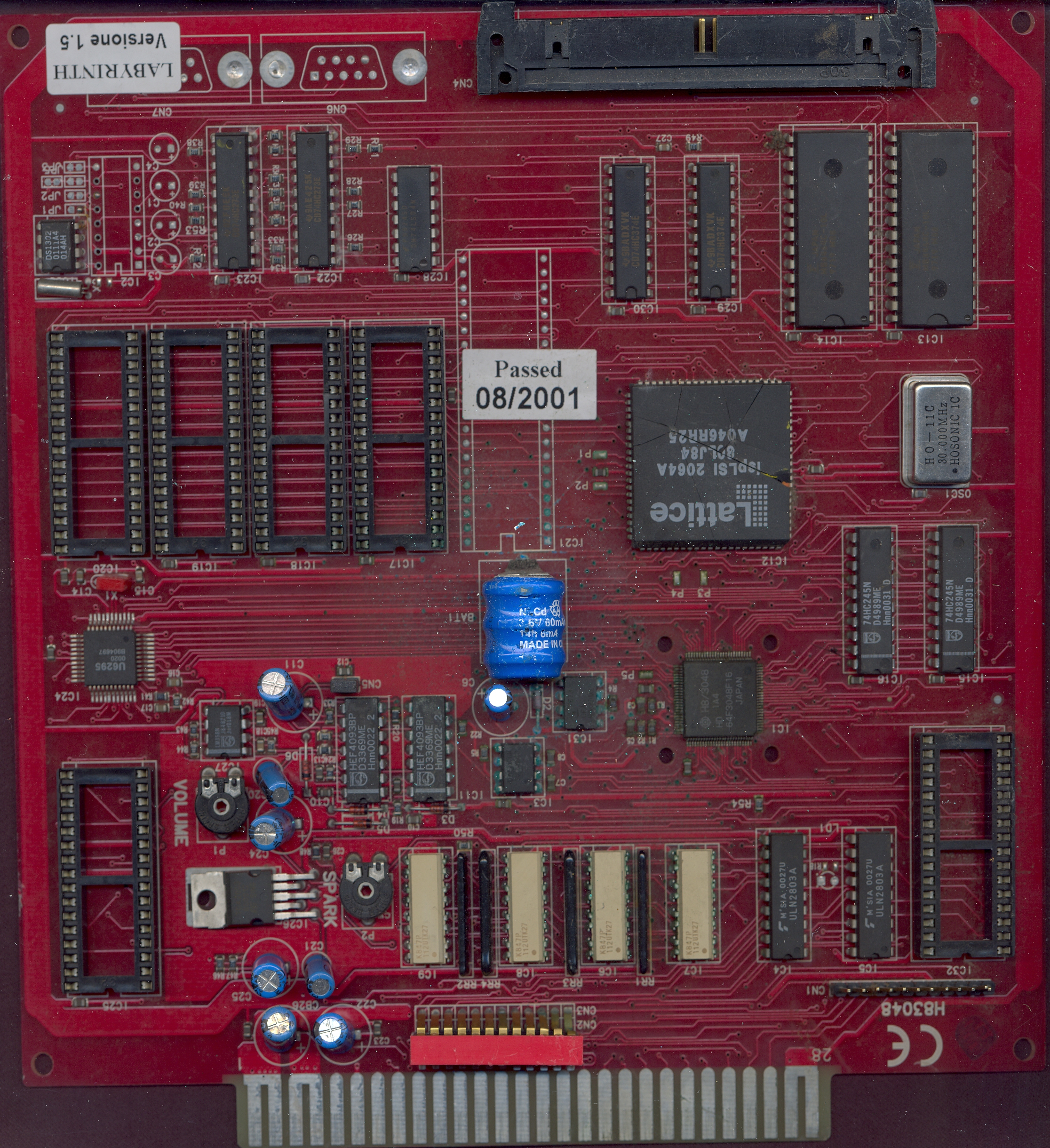

PCB component side
-

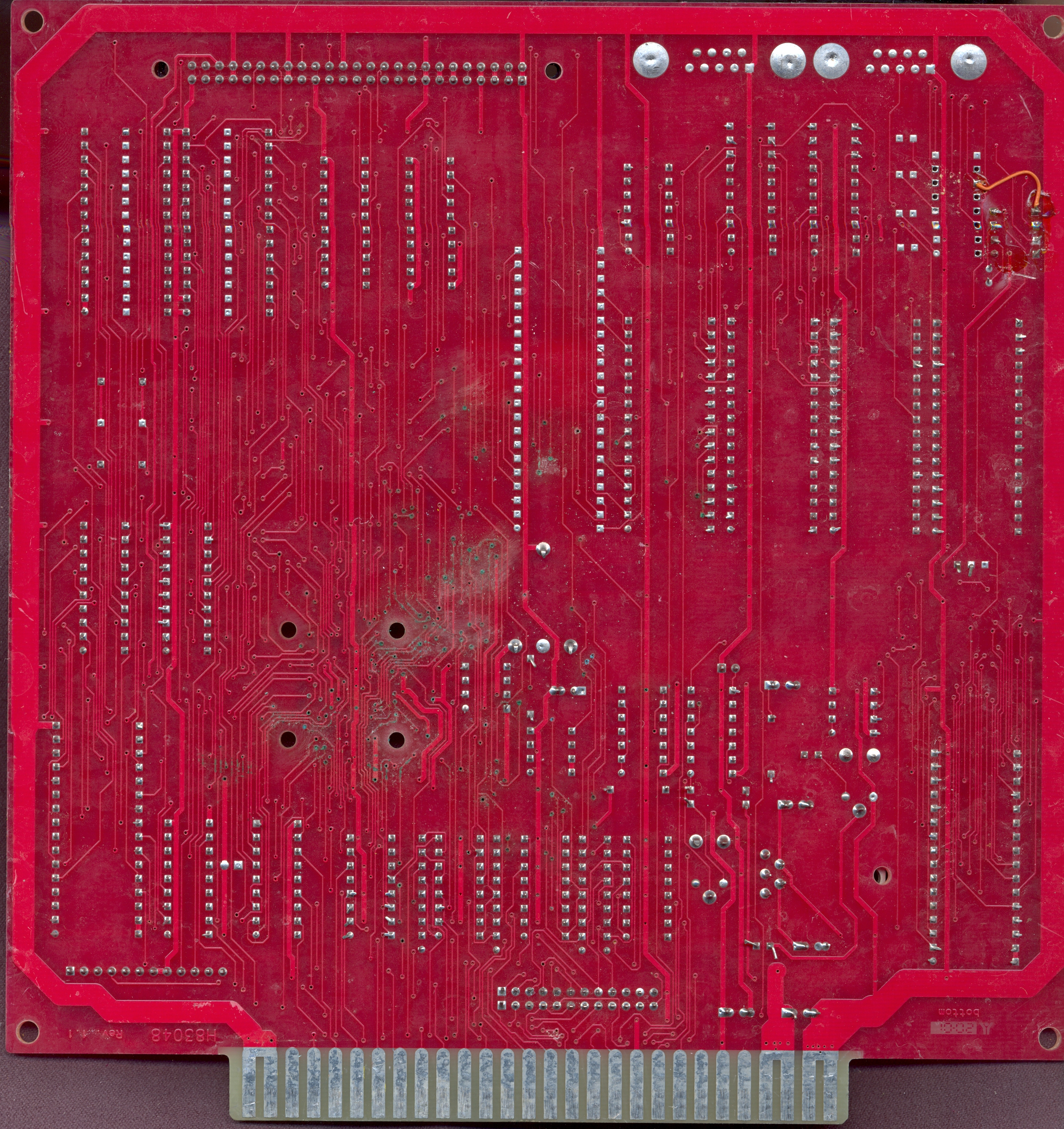

PCB solder side
