La Perla Nera Gold (Ver 2.0)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 02/09/2005 |
| emulator | MAME 0.125u4 |
| dev | Roberto Fresca |
| name | laperlag on ProgettoEMMA laperlag on Arcade Database |
| description | La Perla Nera Gold (Ver 2.0) |
| year | 2001.11 |
| manufacturer | Nazionale Elettronica |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | HD64F3048F16 | ic1 | 16-bit Single-Chip Microcomputer - main (internal ROM not dumped) | |
| 1x | U6295 | ic24 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | ic27 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | ic26 | Audio Amplifier - sound | |
| 1x | oscillator | 30.000MHz | osc1 | |
| 1x | yellow resonator ZTB1000J | x1 | ||
| 1x | oscillator | 32.768 | small piggyback (close to DS1302) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C1001 | 1 | dumped |
| 1x | 27E040-12 | 2 | dumped |
| 1x | M27C4001 | 3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | LST62832I-70LL | ic13,ic14 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI2064-80LJ | ic12 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 12 legs connector (CN1)
1x 12 DIP switches bank (CN2,CN3)
1x 50 pins flat cable connector (CN4)
1x trimmer (P1 VOLUME)
1x trimmer (P2 SPARK)
1x battery 3.6V (BAT1)
Notes
PCB is marked: "CE H83048" on component side
PCB is marked: "H83048 bottom" on solder side
PCB is labeled: "LA PERLA NERA GOLD Versione 2.0" and "Non Rimuovere PASSED 11/2001 garanzia 6 MESI" on component side
Files
-

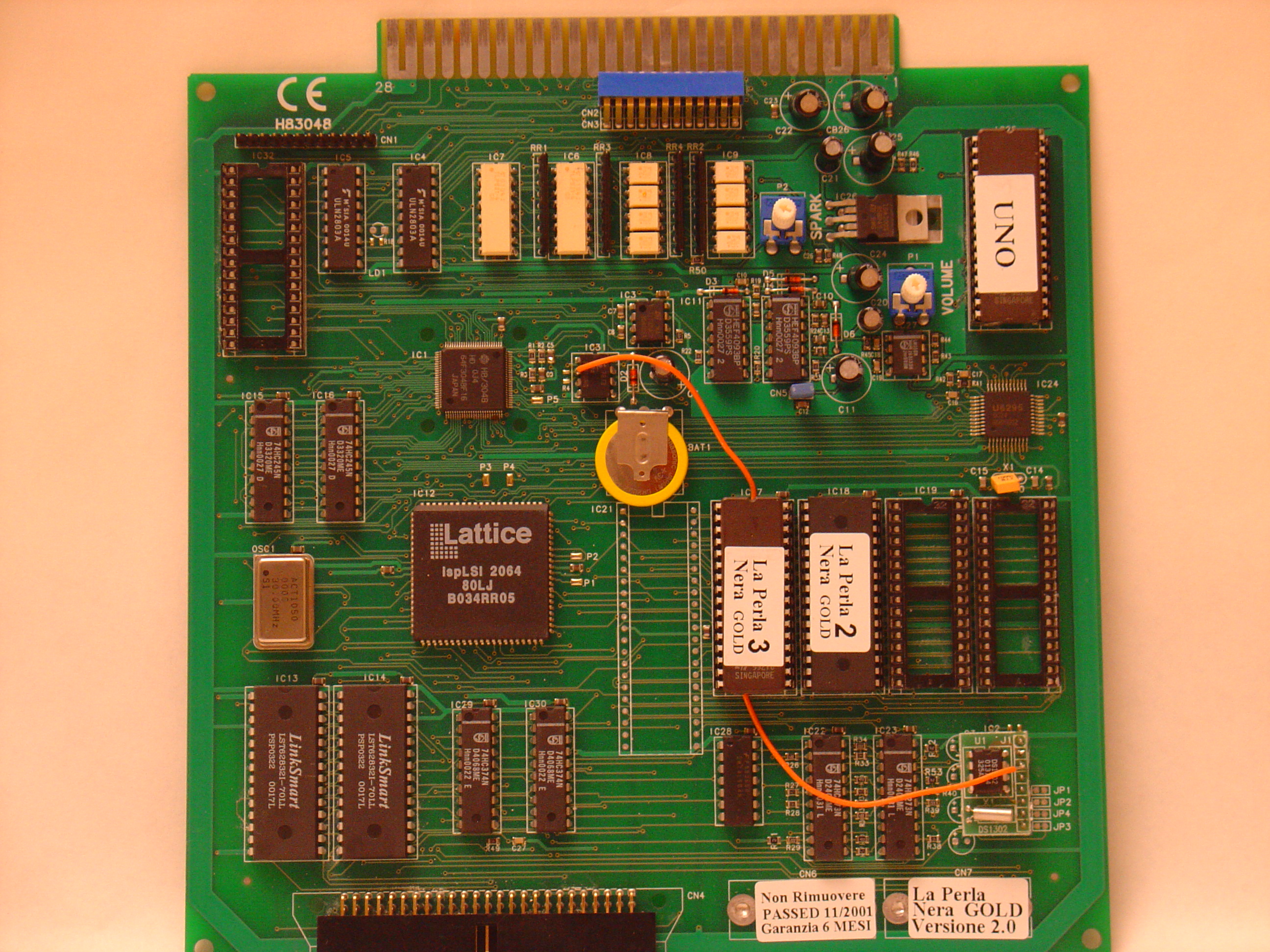

PCB component side
-

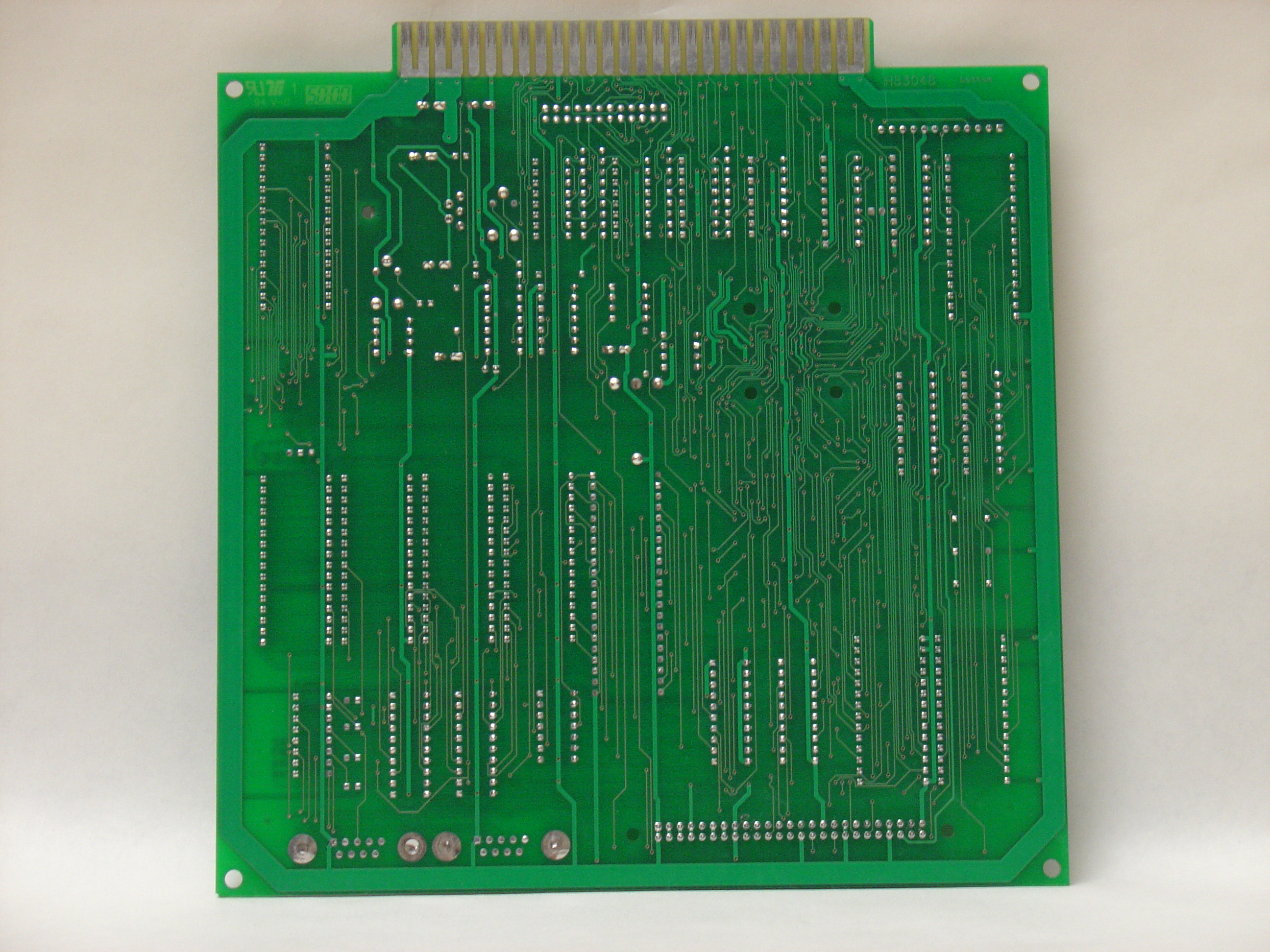

PCB solder side
-

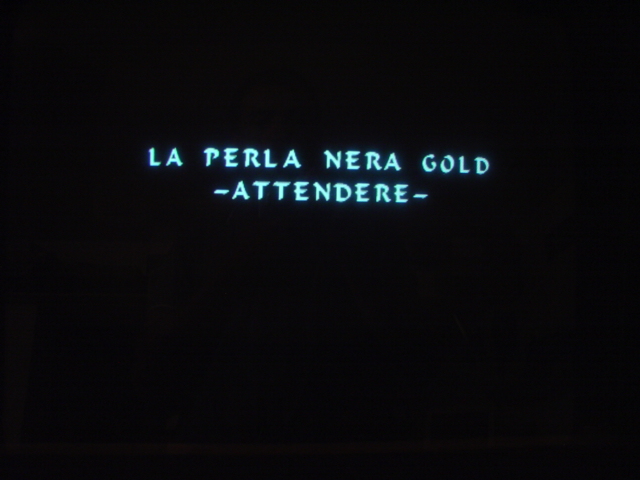

Title
-

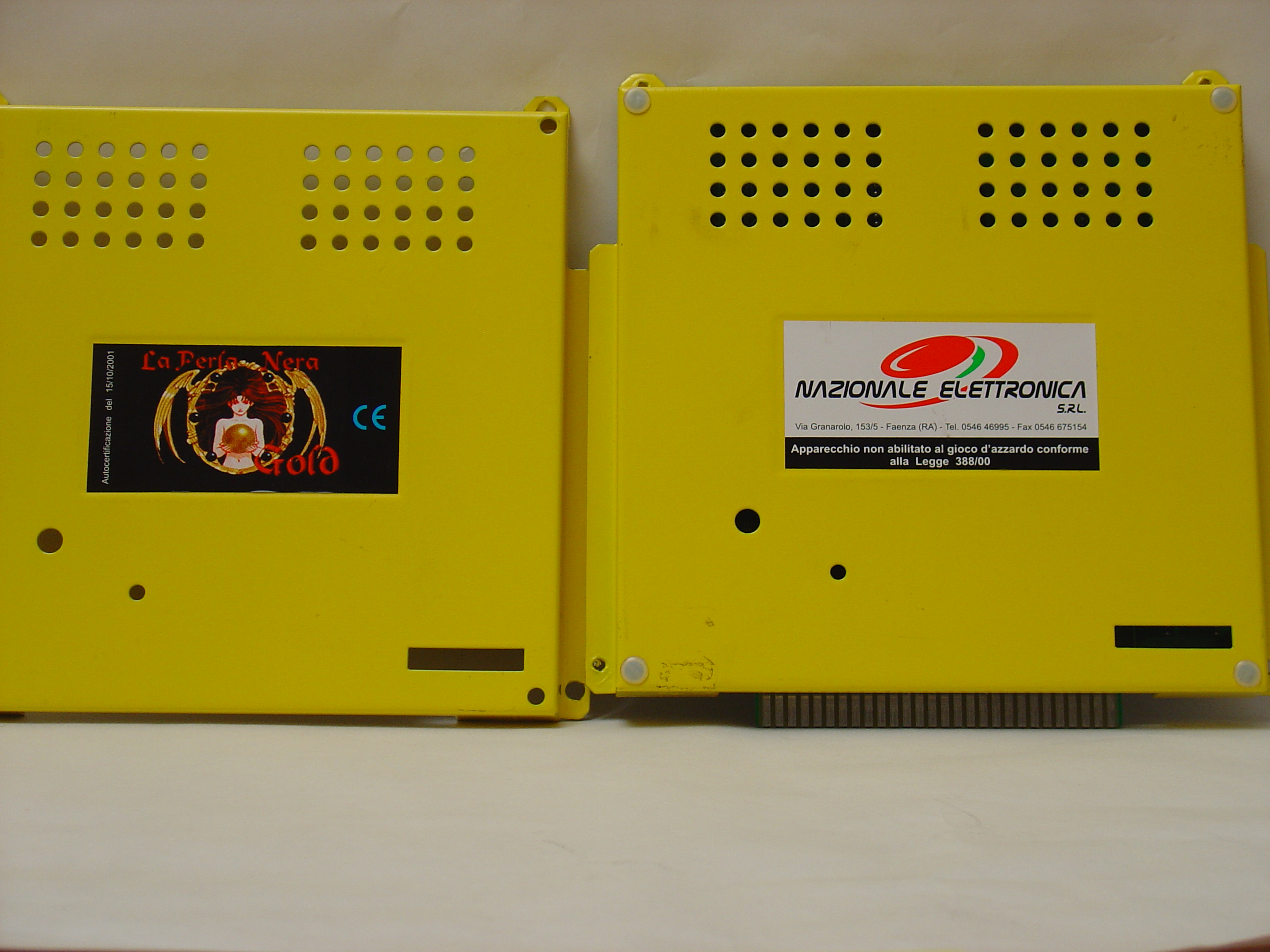

metal cage
-

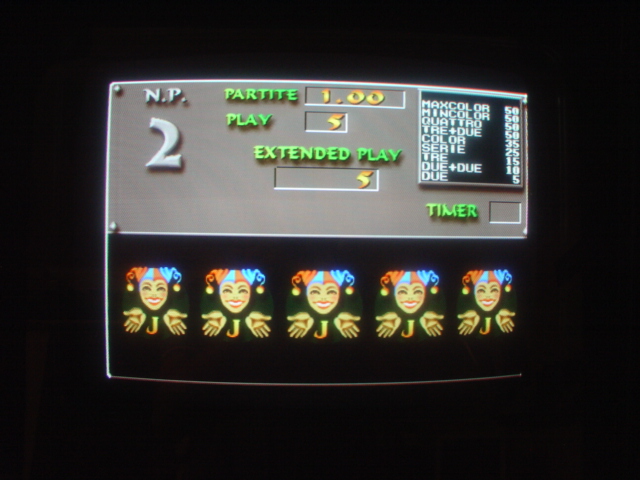

In game
