Kuri Kinton (World)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 30/10/2020 |
| emulator | MAME 0.37b6 |
| dev | Nicola Salmoria |
| name | kurikint on ProgettoEMMA kurikint on Arcade Database |
| description | Kuri Kinton (World) |
| year | 1988 |
| manufacturer | Taito |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | custom Taito TC0090LVC (QFP144-(36x36)-28X28mm) | ic12 | main | |
| 1x | custom Taito TC0040IOC (SDIP64-750mil) | ic7 | I/O Controller | |
| 1x | Z0840006PSC | u16 | 8-bit Microprocessor - sound | |
| 1x | YM2203C | ic23 | FM Operator Type-N (OPM) - sound | |
| 1x | YM3014B | ic24 | D/A Converter (DAC) - sound | |
| 1x | uPC4556 | - | ic25 | Dual Operational Amplifier - sound |
| 1x | MB3735 | - | ic20 | Audio Amplifier - sound |
| 1x | oscillator | 13.33056MHz | tbm1 | |
| 1x | oscillator | 12.000MHz | tbm2 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27512 | b42-07 | dumped |
| 2x | D27C1001 | b42-06, b42-09 | dumped |
| 1x | TC574200 | b42-01, b42-02 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | MB4221-12LP | ic1 |
| 2x | CXK5864ASP-10L | ic3, ic17 |
| 4x | CXK58256PM-10 | ic8, ic9, ic10, ic11 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TIBPAL16L8-15CN | ic4 | dumped |
| 1x | AMPAL16L8BPC | ic21 | dumped |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume) (VR1)
2x 8 DIP switches banks (DSA, DSB)
Notes
PCB is marked: "TAITO MADE IN JAPAN J1100147A" and "821311057" on component side
PCB is labelled: "K1100337A" and "KURIKINTON" on component side
Not working
PLDs are unprotected, finally we have a real dump for them!
label format is: ------- | B42 | -> game code | 06 | -> rom number -------
Files
-

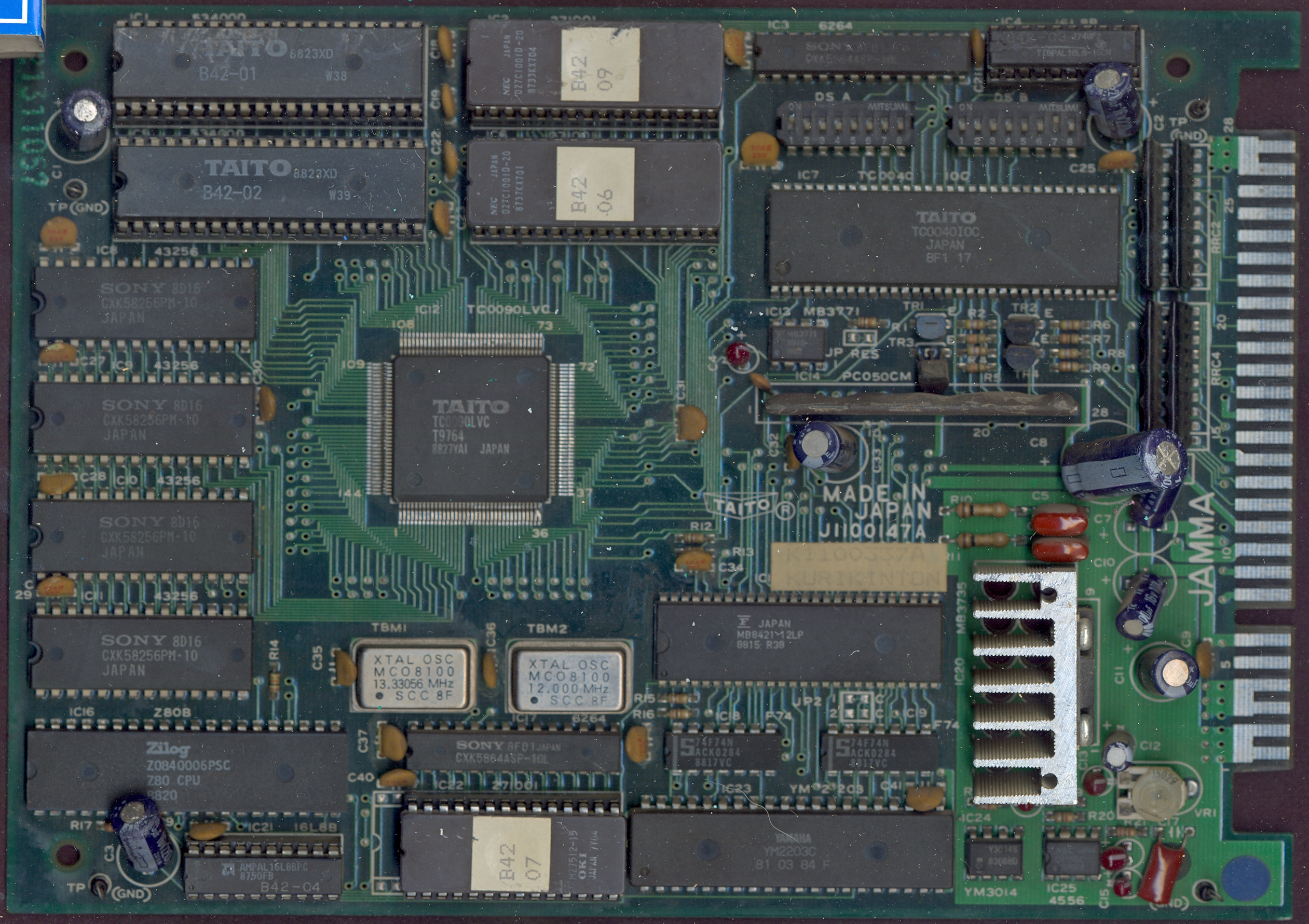

PCB component side
-

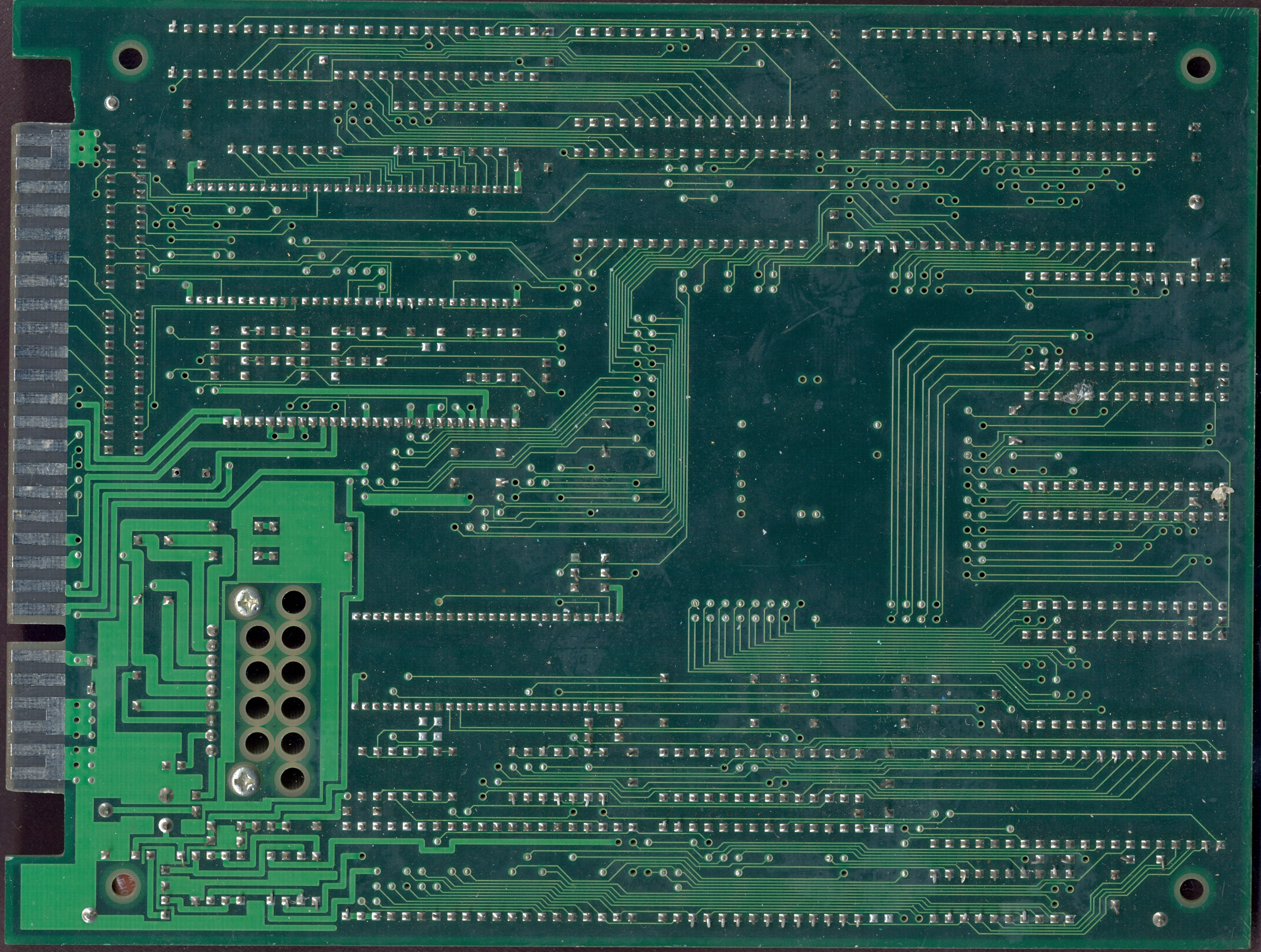

PCB solder side
-
