Klax (version 5, bootleg set 3)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 06/01/2020 |
| emulator | MAME 0.218 |
| dev | Osso |
| name | klax5bl3 on ProgettoEMMA klax5bl3 on Arcade Database |
| description | Klax (version 5, bootleg set 3) |
| year | 1990.06.20 14:47:06 |
| manufacturer | Playmark |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 68000 | 9.993MHz(@15) | ic14 | 16/32-bit Microprocessor - main |
| 1x | Z80 | 4.996MHz(@6) | ic21 | 8-bit Microprocessor - sound |
| 2x | M5205 | 400.5kHz(@16) - 400.6kHz(@17) | ic18, ic19 | ADPCM Speech Syntesis IC - sound |
| 1x | LM324 | - | ic16 | Quad Operational Amplifier - sound |
| 1x | TDA2003 | - | ic1 | Audio Amplifier - sound |
| 1x | oscillator | 20.0000 | xl3 | |
| 1x | oscillator | 28.0 | xl2 | |
| 1x | blu resonator | POE400B | xl1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 28C16A | ic11 | dumped |
| 12x | AM27C512 | 1-12 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 5x | MCM2018AN45 | ic41, ic106, ic107, ic142, ic143 |
| 2x | CDM6264E3 | ic114, ic115 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | GAL16V8-25LNC | ic24, ic29, ic67, ic91 | read protected |
Others
1x 28x2 JAMMA edge connector (JP1)
1x trimmer (volume) (P1)
2x 1 DIP switch for service mode (SW1)
Notes
PCB is marked: "KL/1" and "COMP" on component side
PCB is marked: "0/90" and "SOLD" on solder side
EEPROM @ ic11 has been dumped after performing a factory reset from service mode
Files
-

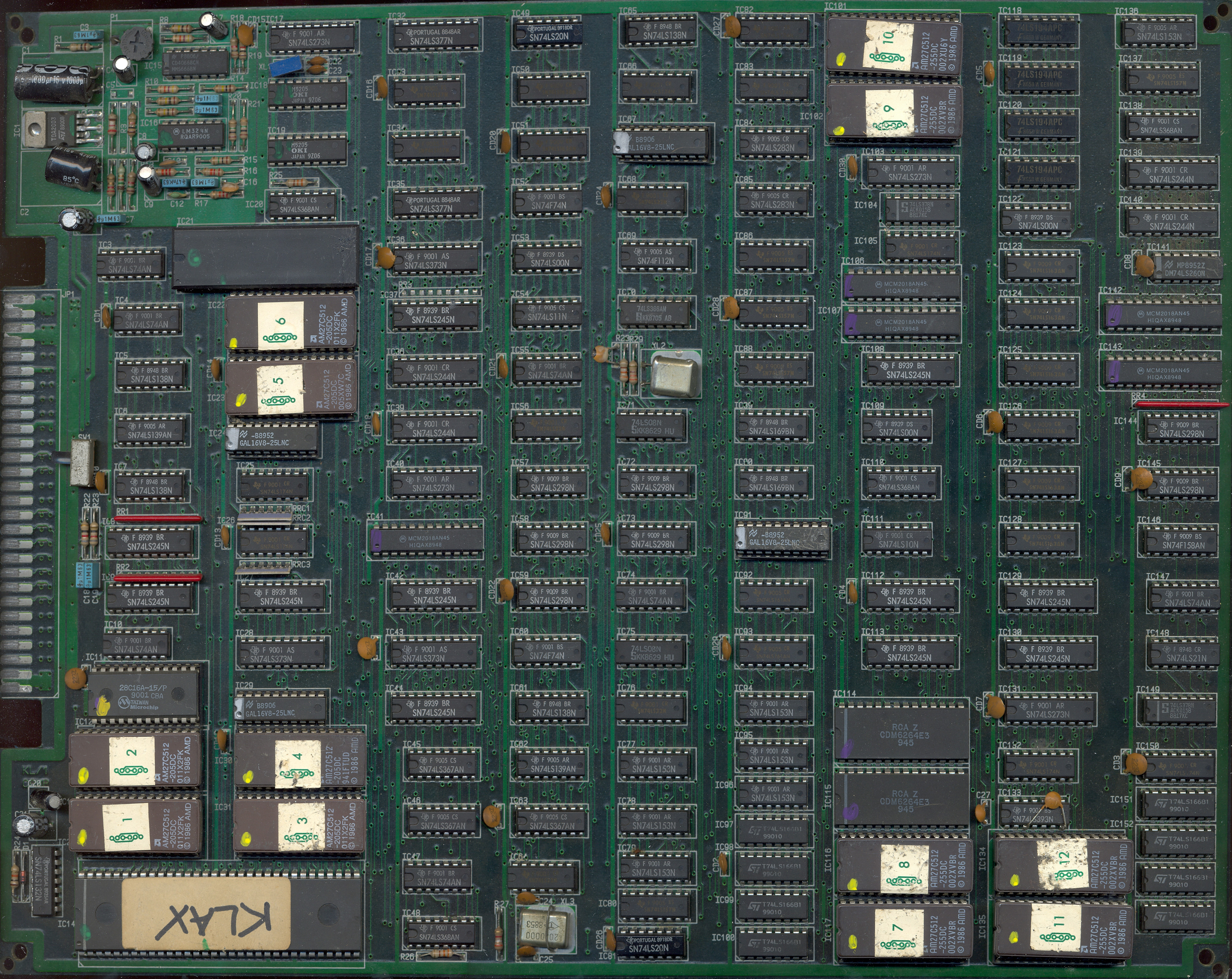

PCB component side
-

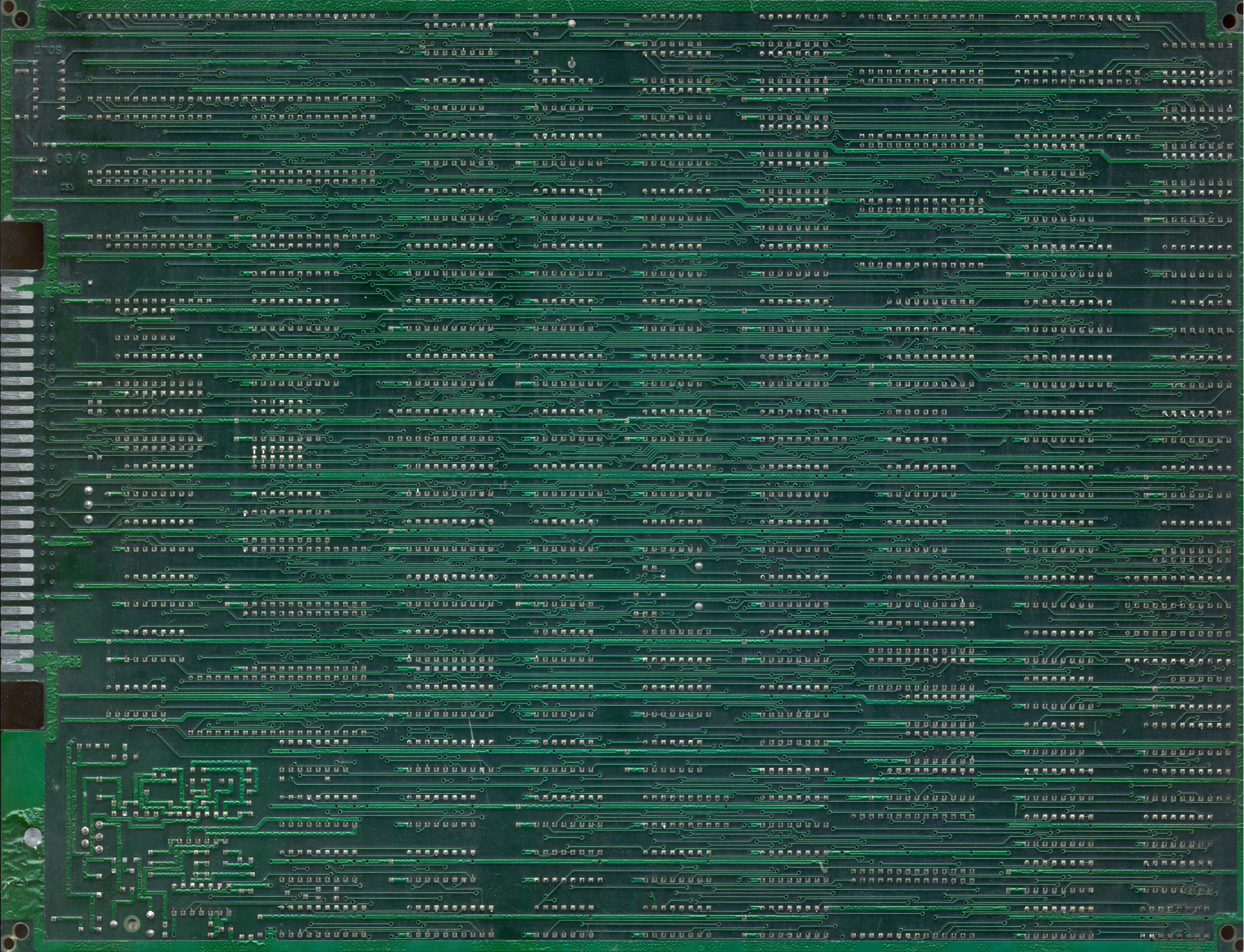

PCB solder side
-

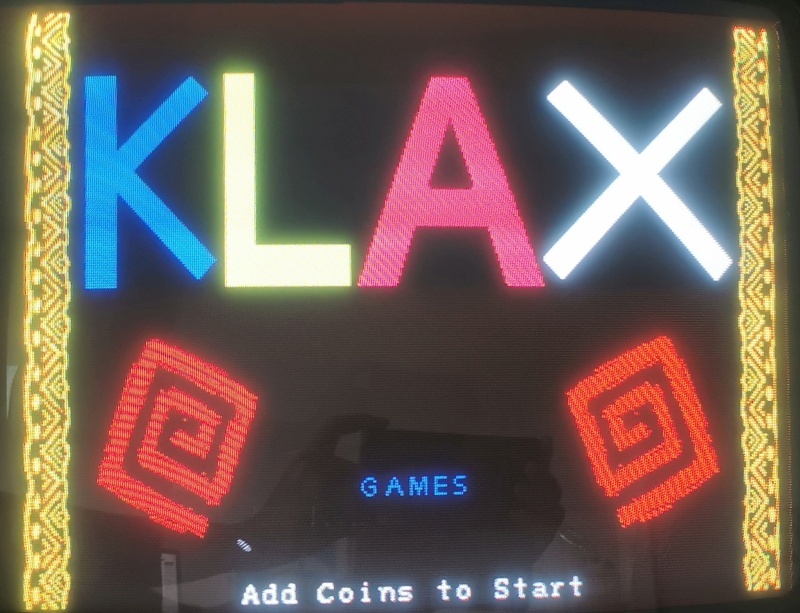

Title
-

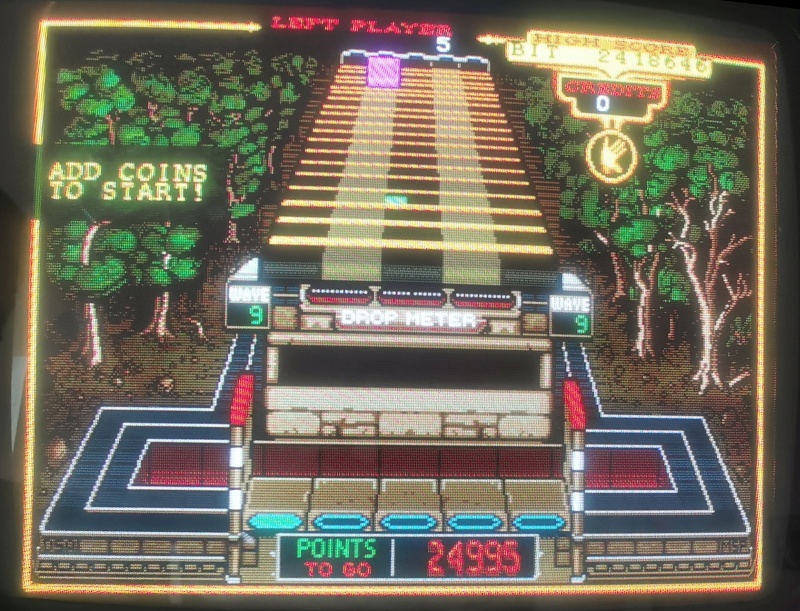

Attract mode
-

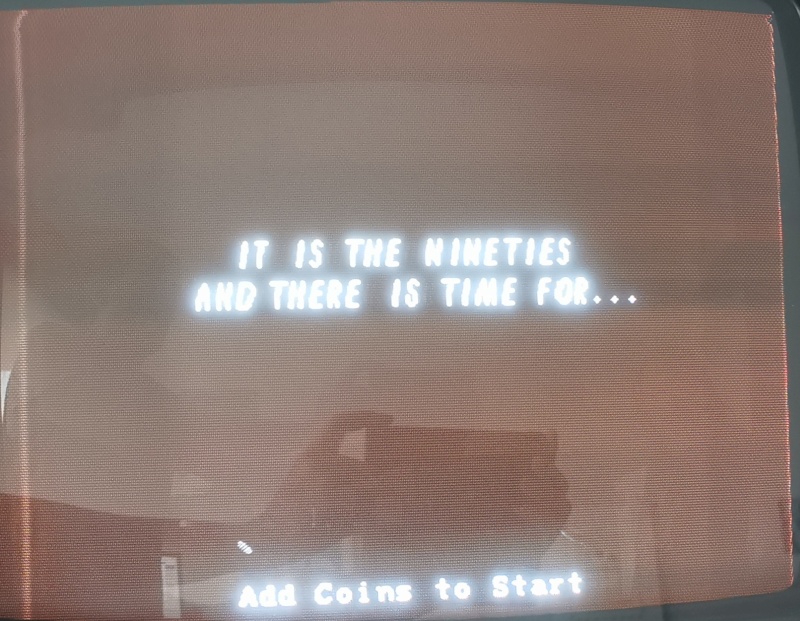

Intro
-

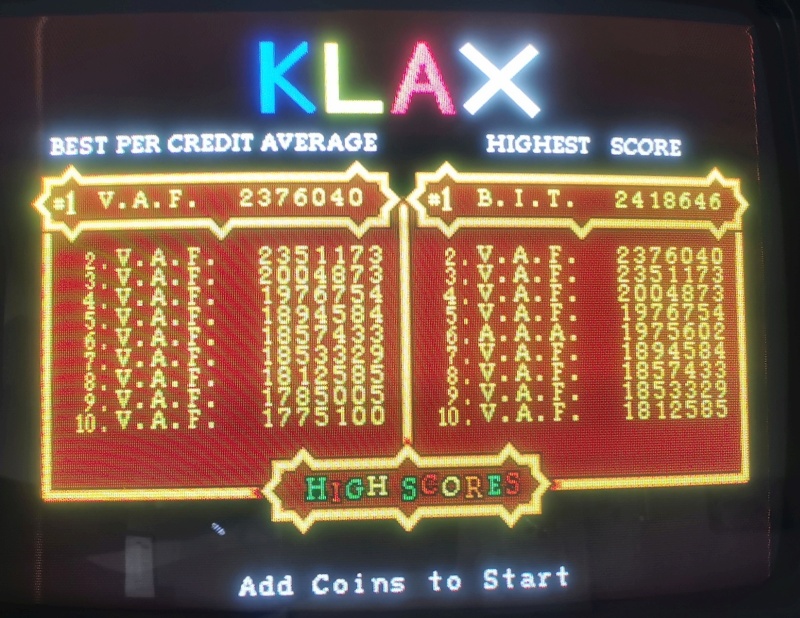

Hiscore
