King of Dynast Gear (version 1.8)
From Citylan
Jump to navigationJump to search
| dumper | Guru |
| date | 15/04/2005 |
| emulator | MAME 0.103u3 |
| dev | Pierpaolo Prazzoli, Guru |
| name | kdynastg on ProgettoEMMA kdynastg on Arcade Database |
| description | King of Dynast Gear (version 1.8) |
| year | 1999 |
| manufacturer | EZ Graphics |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Hyperstone E1-32XT | main board | 32-bit Microprocessor - main | |
| 1x | dgPIX-PR1 | ROMs board | 8-bit CMOS Microcontroller - main (internal ROM not dumped) | |
| 1x | SEC 749B KS0164 | main board | 32-voice Wavetable Synthesizer - sound | |
| 1x | HA17358 | - | main board | Dual Operational Amplifier - sound |
| 1x | TDA1515A | - | main board | Audio Amplifier - sound |
| 1x | oscillator | 20.000MHz | main board | |
| 1x | oscillator | 14.31818MHz | main board | |
| 1x | oscillator | 169NDK19 | main board |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 5x | DA28F320J5-120 | ROMs board | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | KM416C1204AJ-6 | main PCB |
| 4x | KM6161002J-15 | main PCB |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XCS05 | main PCB | not dumped |
Others
1x JAMMA edge connector
1x 60 pins connector from main board to ROMs board
2x 28 pins connector from main board to ROMs board
3x pushbutton (TEST SERVICE RESET)
2x trimmer (volume)
1x green LED
Notes
main PCB is marked: "dgPIX Entertainment Inc. 1999, VRenderOMinus Rev3" on component side
ROMs PCB is marked: "Flash Module Type-A REV2 dgPIX Entertainment Inc. 1999" on solder side
update 20051107: Guru dump
Files
-

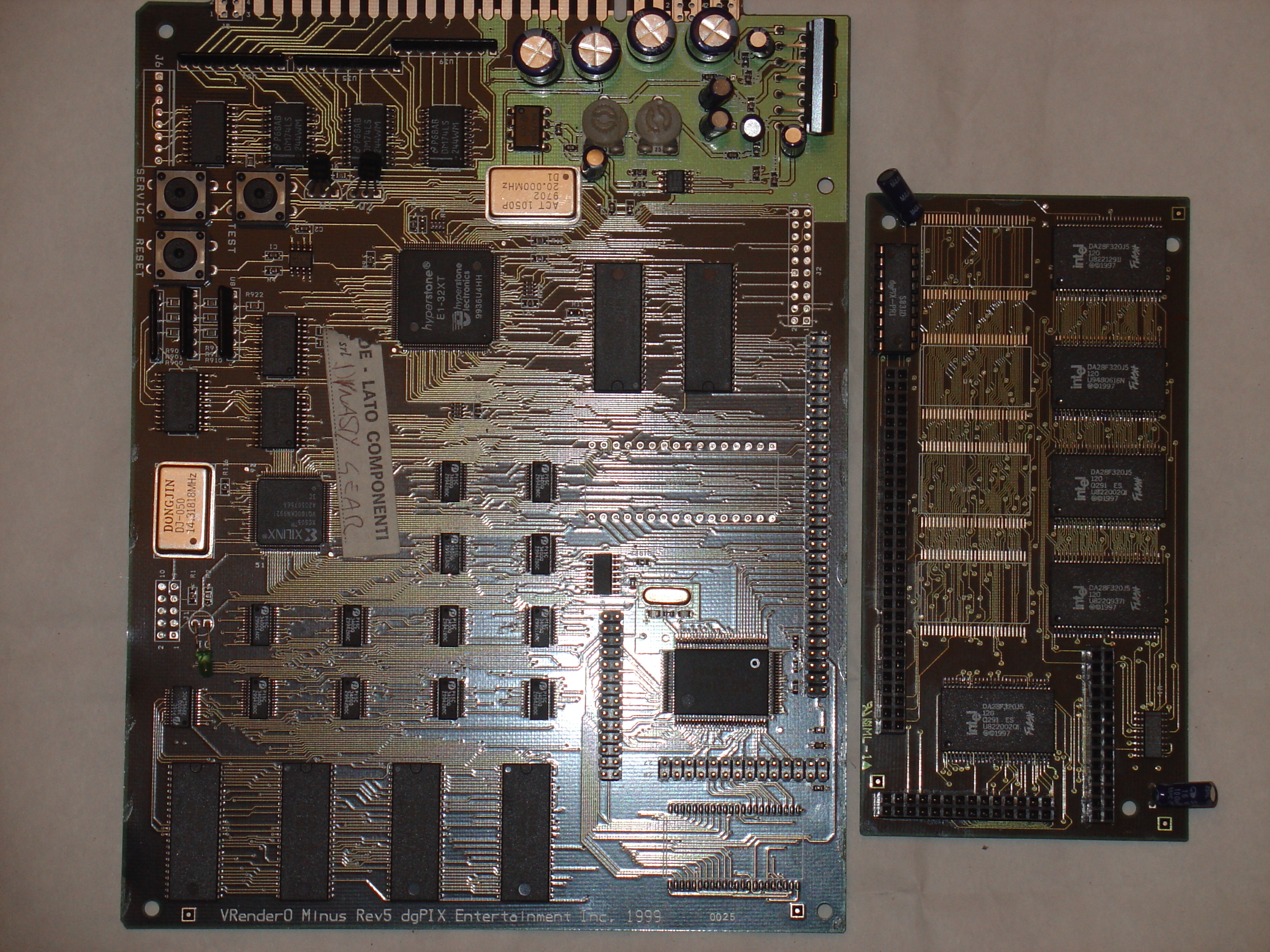

PCB component side
-

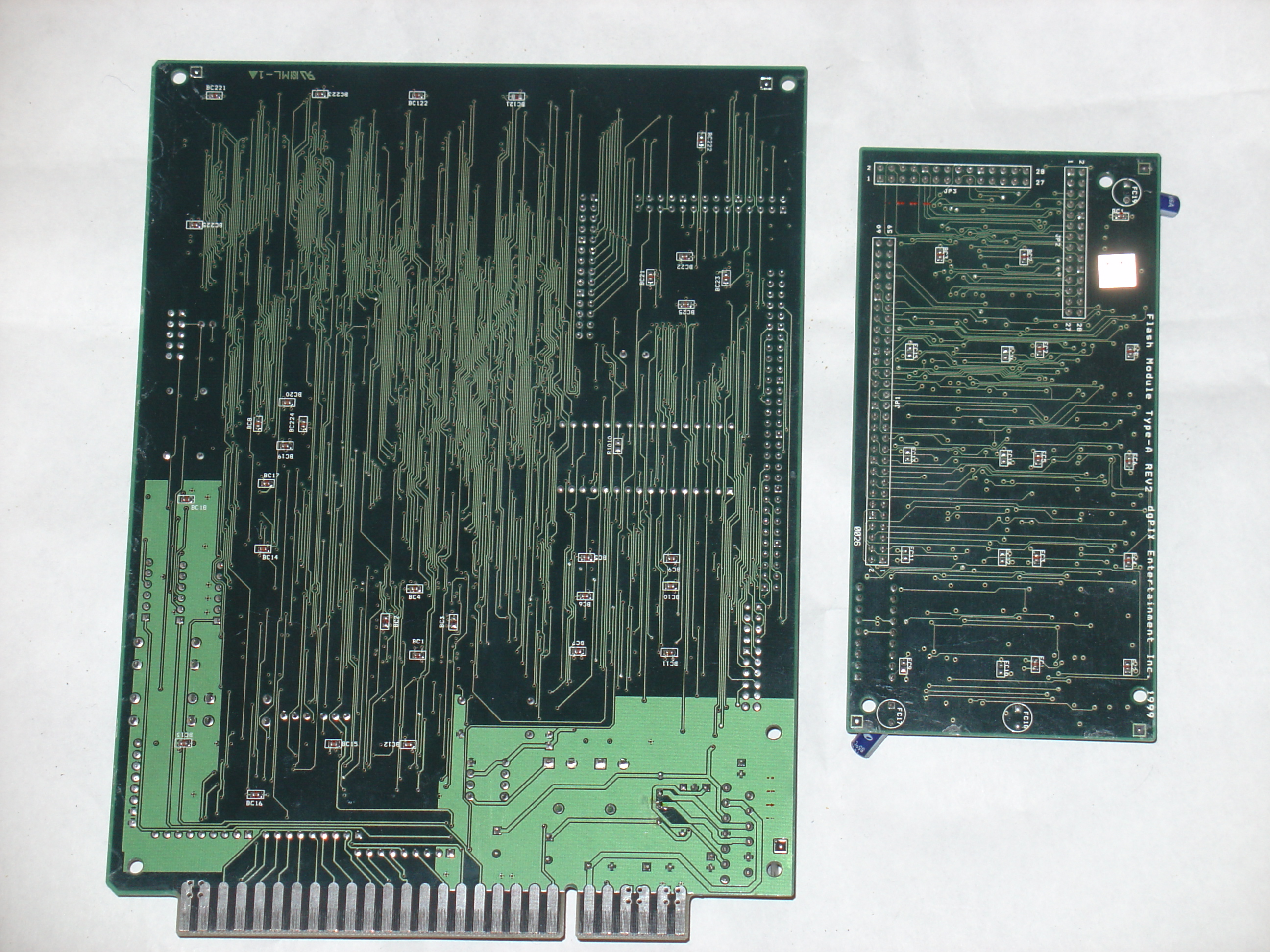

PCB solder side
-

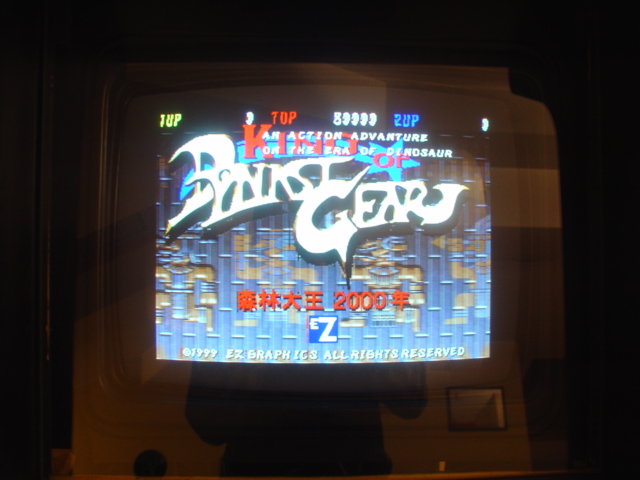

Title
-

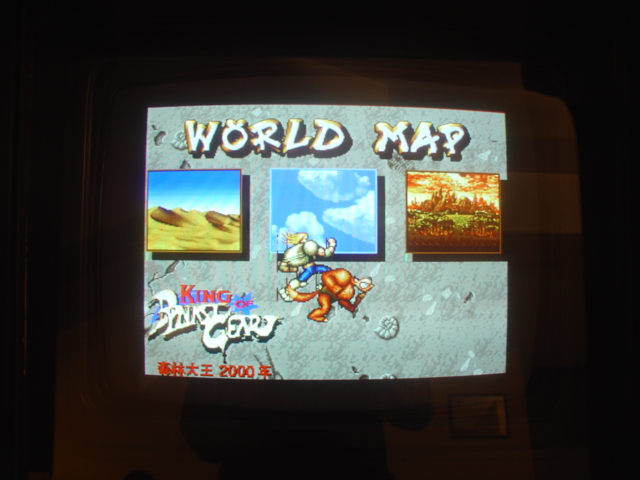

Select
-

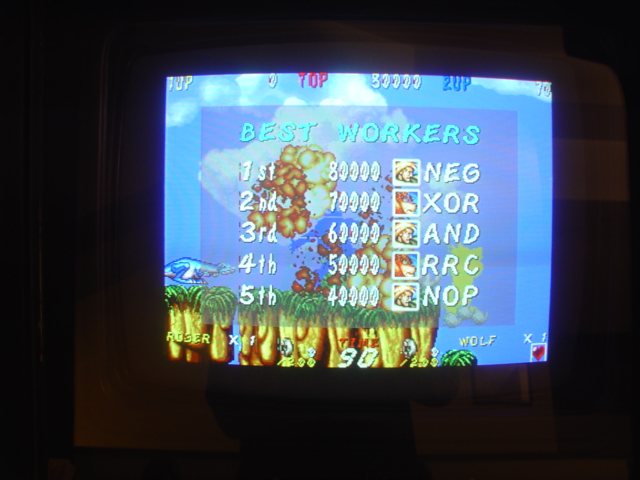

Hiscore
