Juno First

EMU Infos
dumper	f205v, Corrado Tomaselli, Gnoppi
date	18/09/2007
emulator	MAME 0.33b3
dev	Chris Hardy, David Dahl, Rob Jarret, Mirko Buffoni

PCB Infos
name	junofrst on ProgettoEMMA junofrst on Arcade Database
description	Juno First
year	1983
manufacturer	Konami

Technical references

CPUs

QTY	Type	clock	position	function
1x	D8039LC		3R top board	8-bit Microcontroller - main
1x	Z8400A		1N top board	8-bit Microprocessor - sound
1x	AY-3-8910		1J top board	Programmable Sound Generator - sound
1x	HA17902		1P top board	Quad Operational Amplifier - sound
1x	HD68A09EP		lower board	8-bit Microprocessor - main
1x	oscillator	8.000MHz	3Q X2 top board
1x	oscillator	14.31818MHz	1K X1 top board
1x	oscillator	18.432	lower board

ROMs

QTY	Type	position	status
1x	MB8532	s1 top board	dumped
1x	2732	s2 top board	dumped
3x	HN482764G	d1,d2,d3 top board	dumped
8x	HN482764G	1,2,3,4,5,6,8,9 lower board	dumped
1x	M5L2764K	7 lower board	dumped

RAMs

QTY	Type	position
16x	MCM4116BP-15	lower board
2x	MSM2128-15RS	lower board

PLDs

QTY	Type	position	status
3x	DMPAL16L8JC	lower board 1	dumped
3x	PAL16L8CN	lower board 2	read protected

Others

1x 18x2 edge connector top board
1x trimmer (volume) top board
2x 8x2 switches DIP top board
1x 50 pins flat cable connector from top board to lower board

Notes

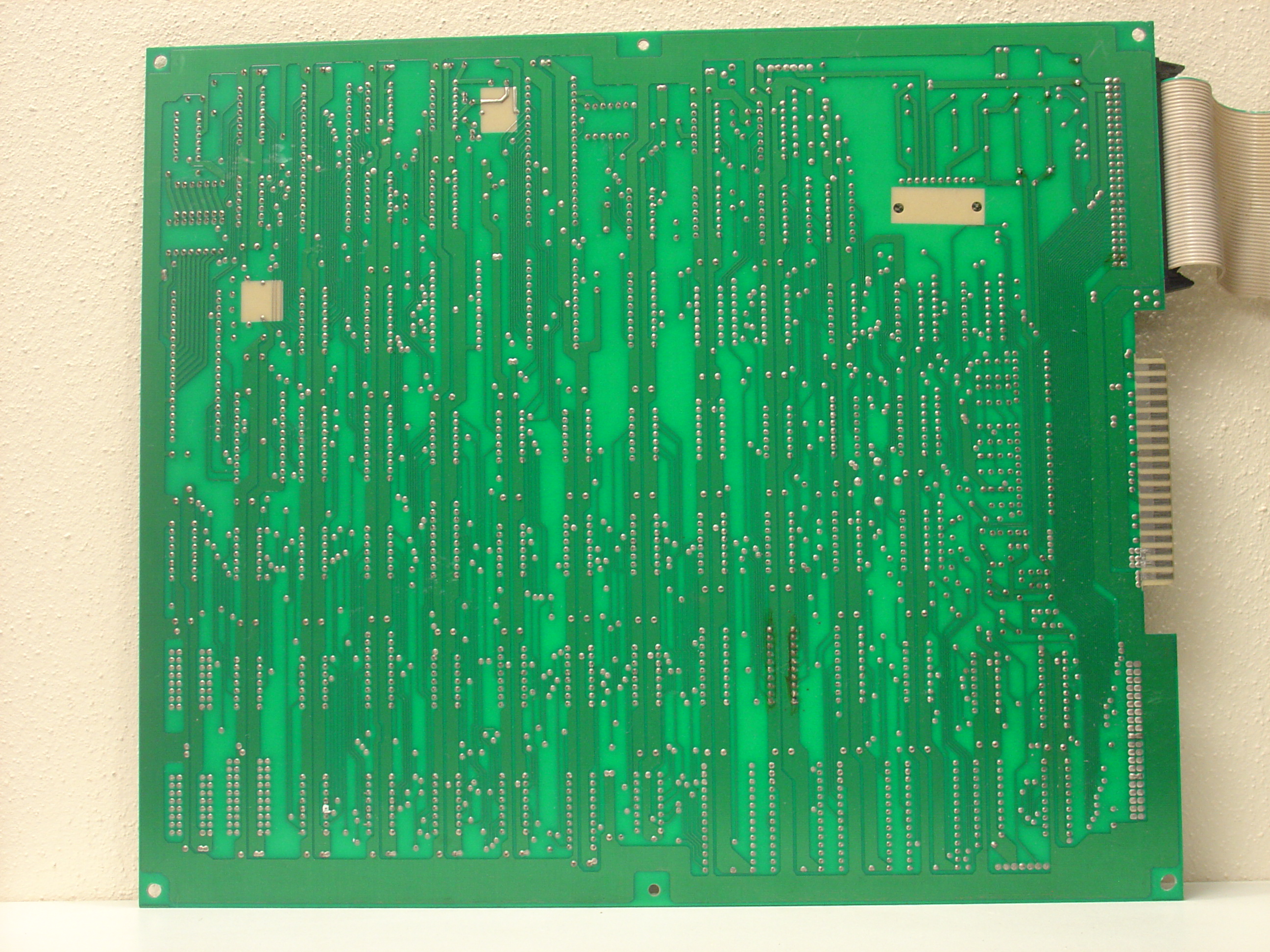

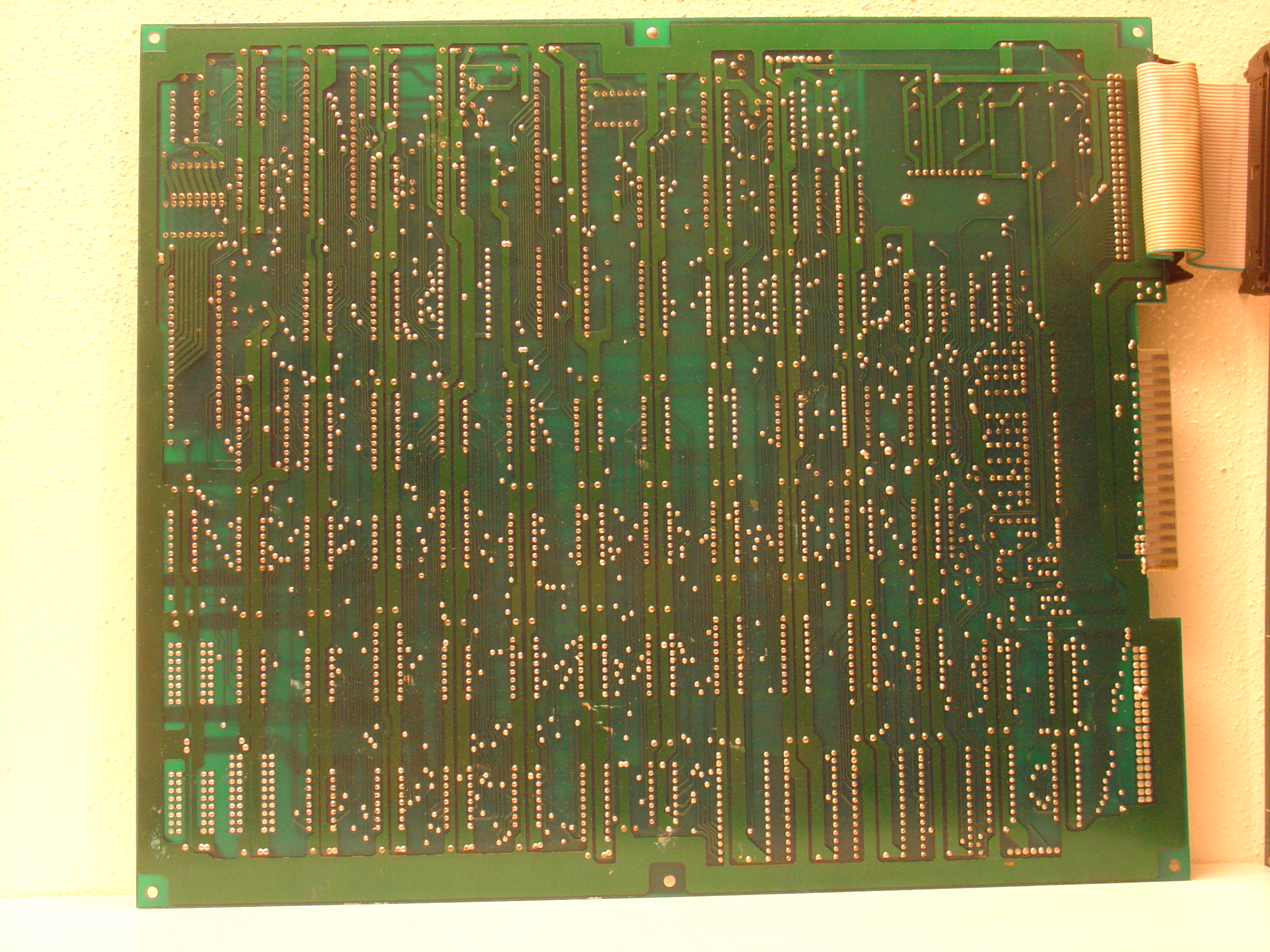

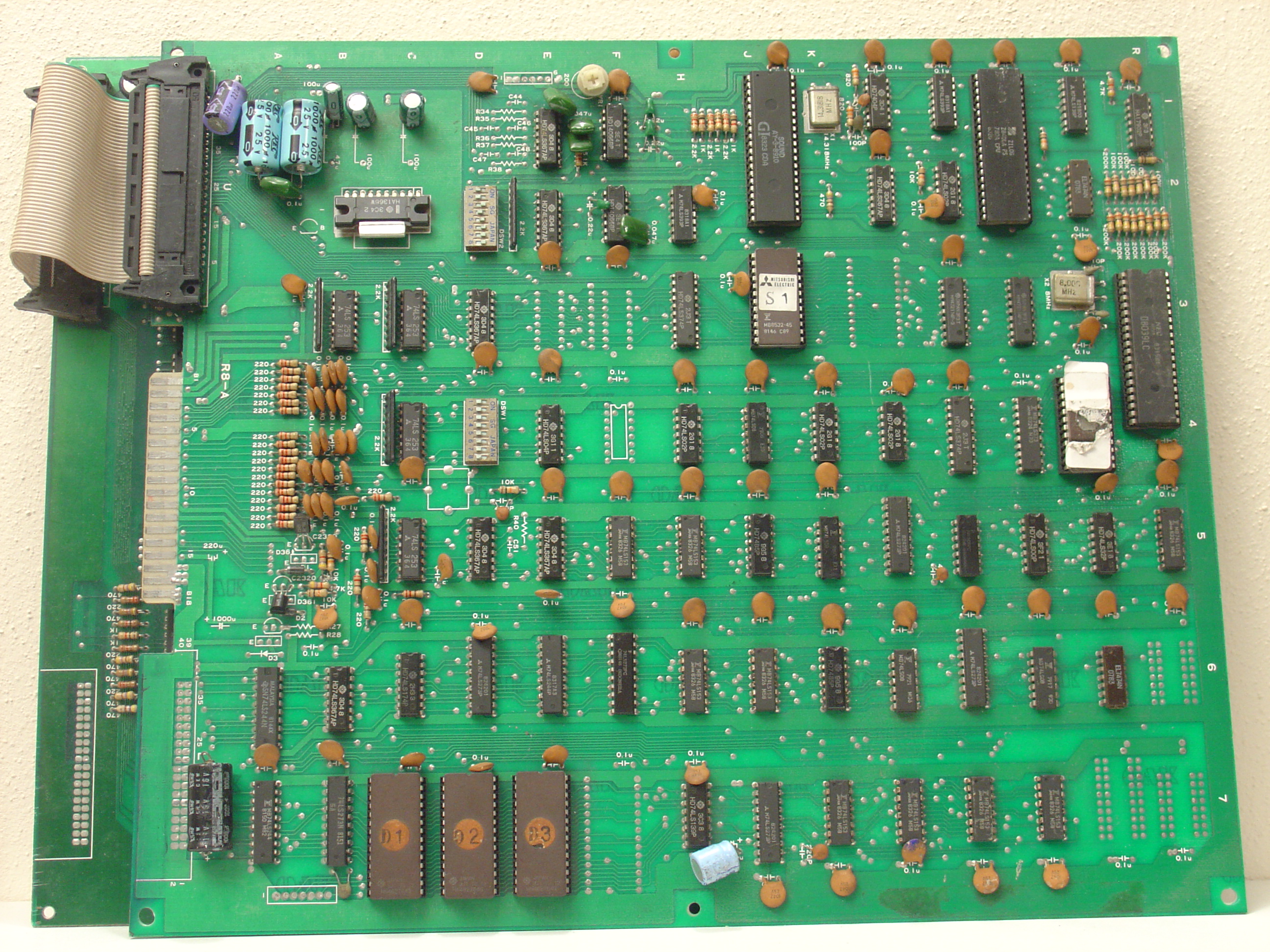

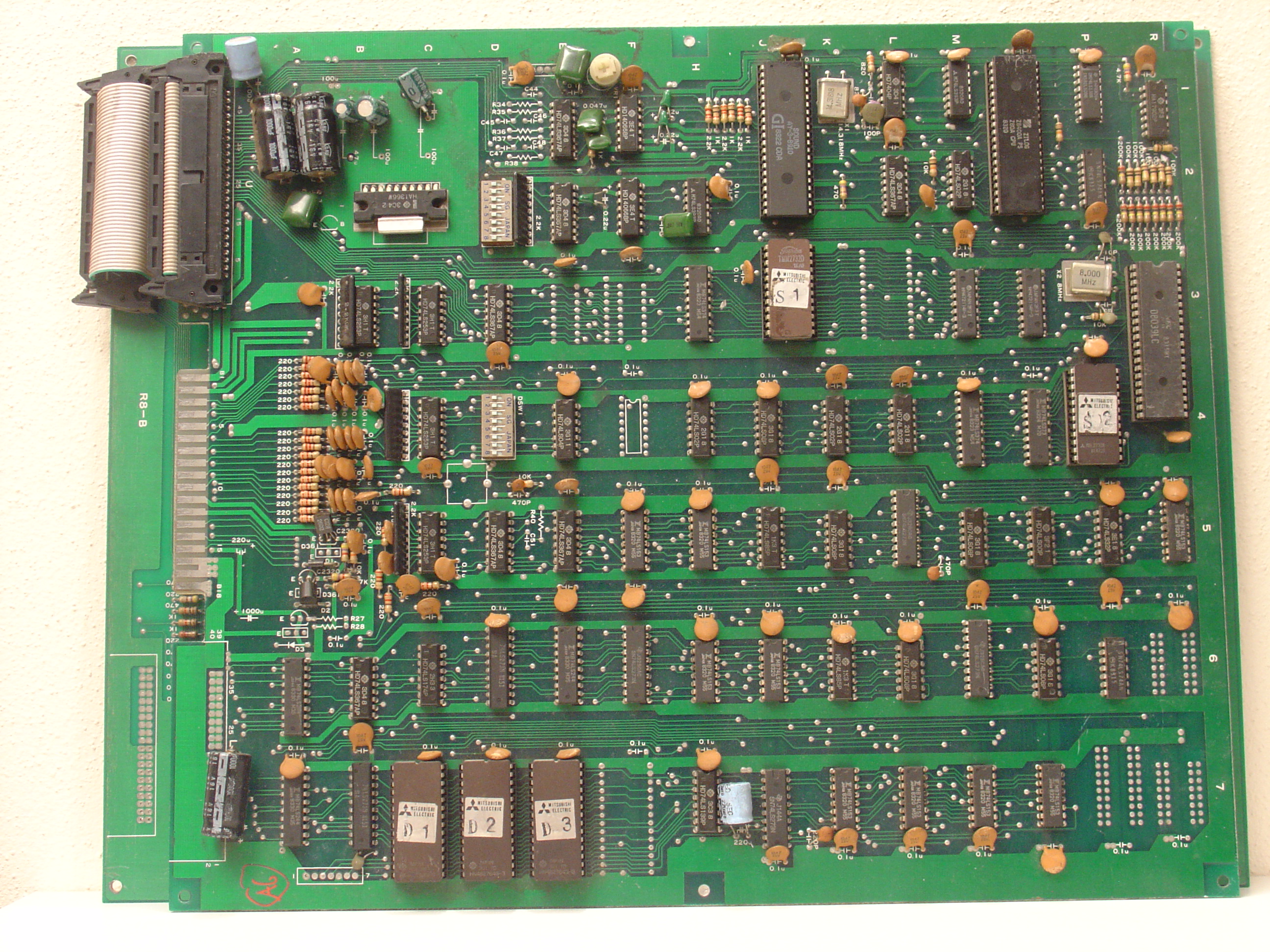

Top board marked: R8-A

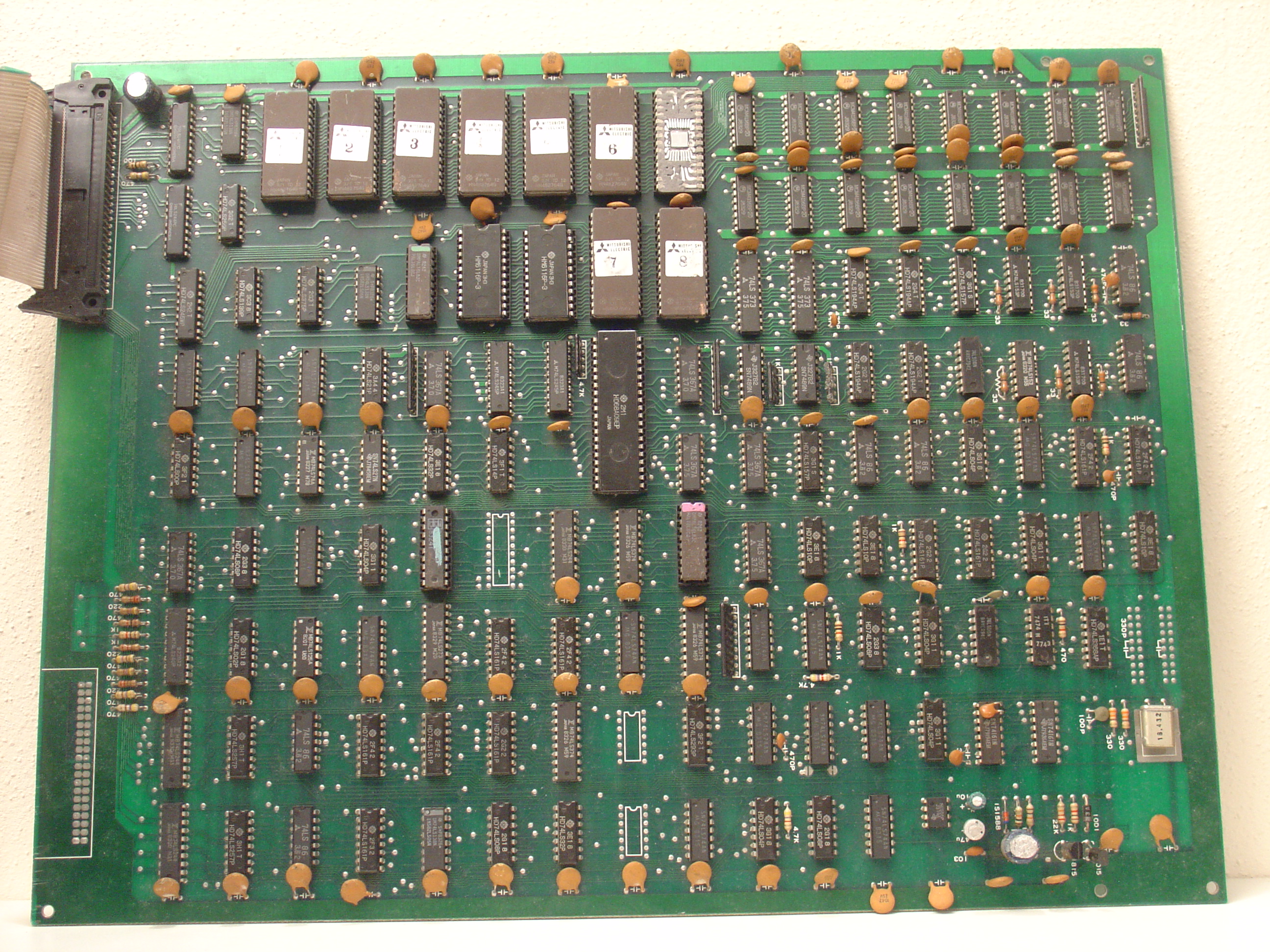

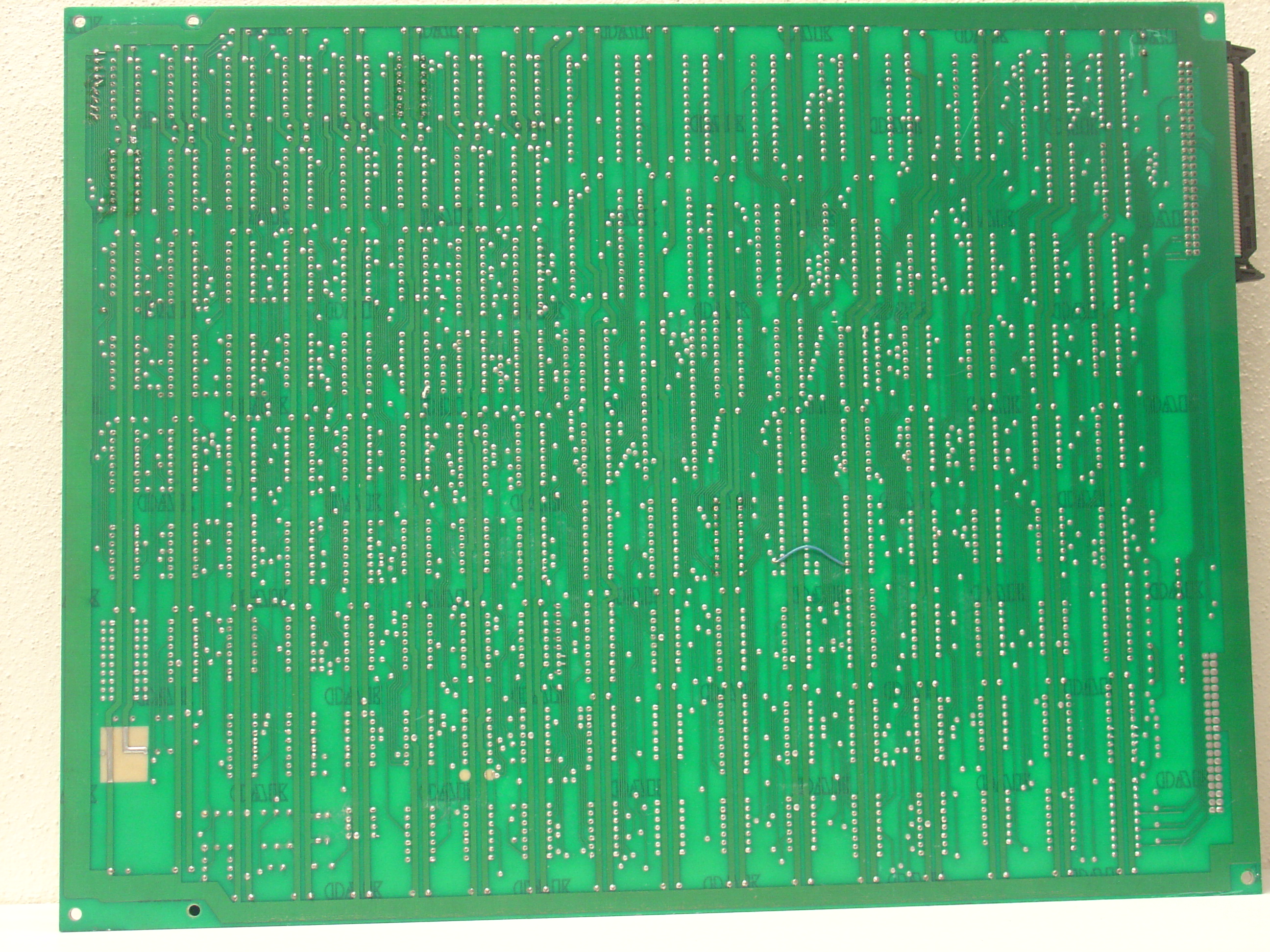

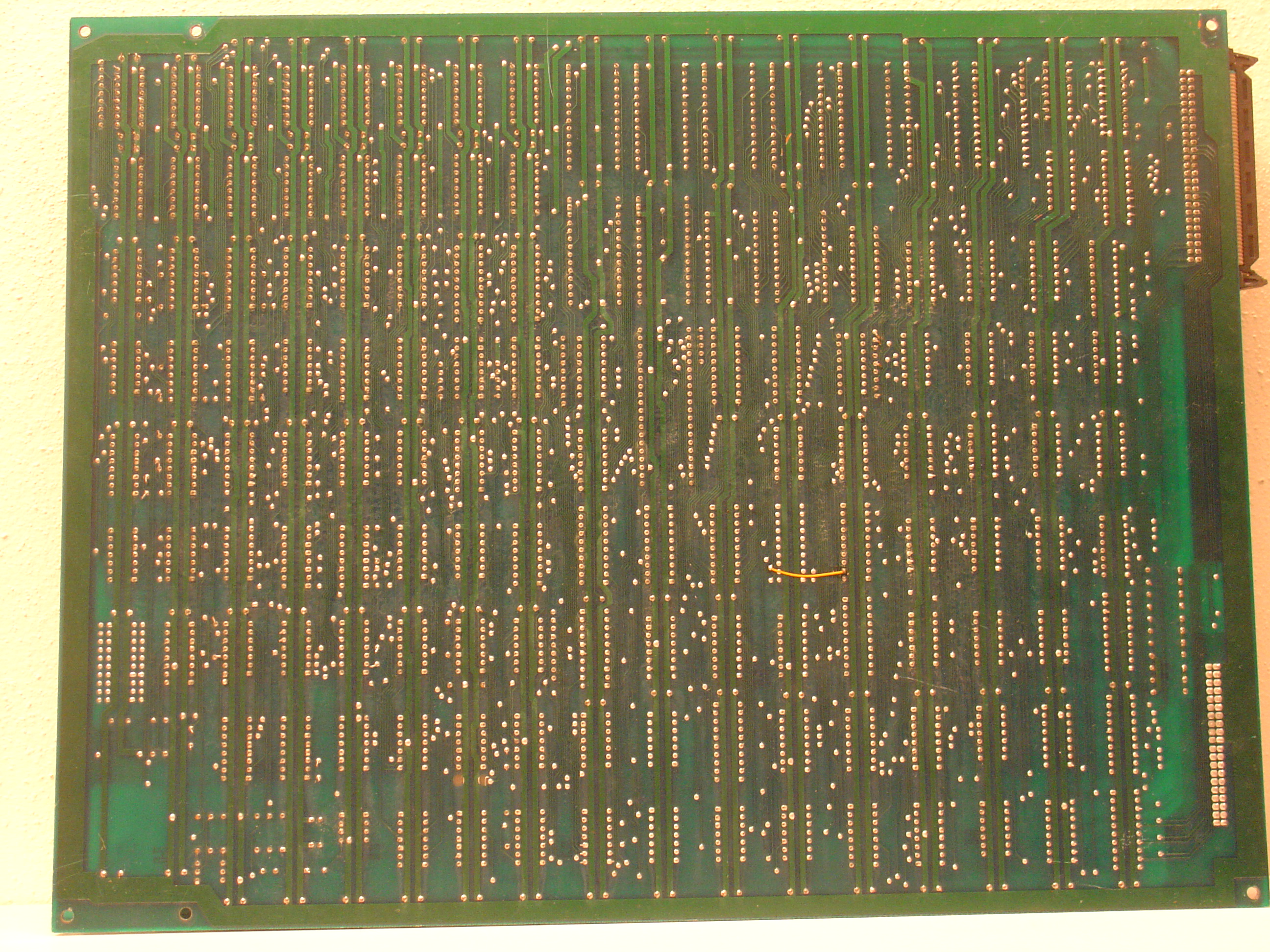

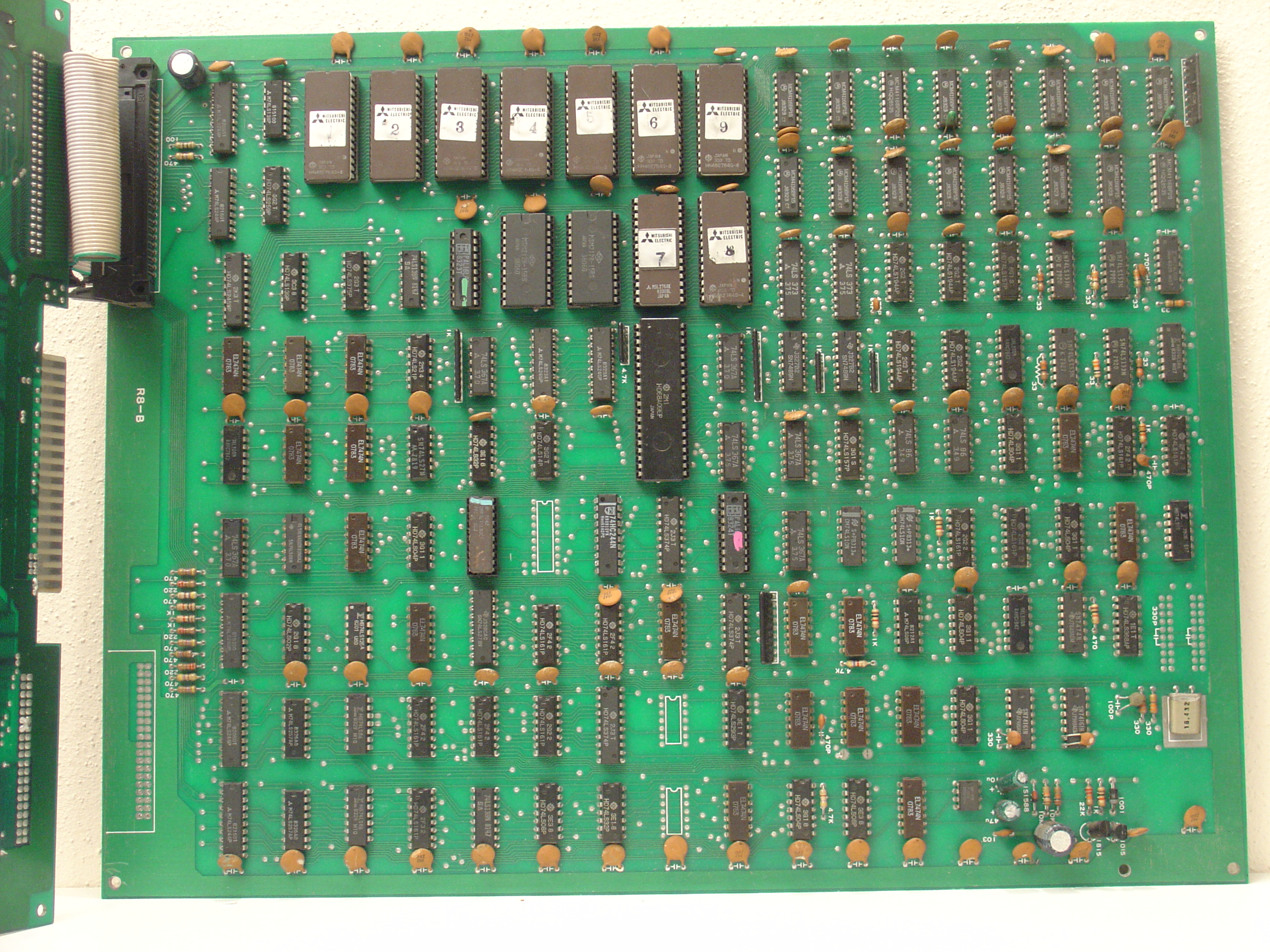

Lower board marked: R8-B

update 2012-10-23
We have 2 PCBs of the same game.
The first one was previously called: Juno First (bootleg 1)
The second one was previously called: Juno First (bootleg 2)
It is now confirmed that they are the same game, identical to the Konami original, but from an unknown manufacturer.
We are lucky that out of the 2 we could get a dump of all 3 PALs (green, red, blu).
