Jungle (Italy VI3.02)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 02/04/2016 |
| emulator | MAME 0.173 |
| dev | David Haywood |
| name | jungleyo on ProgettoEMMA jungleyo on Arcade Database |
| description | Jungle (Italy VI3.02) |
| year | 1999 |
| manufacturer | Yonshi |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68HC000FN10 | u3 | 16/32-bit Microprocessor - main | |
| 1x | u6295 | u98 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | HA17358 | u101 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | u104 | Audio Amplifier - sound | |
| 1x | oscillator | 12.000MHz | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | M27C1001 | 2,3 | dumped |
| 1x | M27C2001 | 1 | dumped |
| 3x | M27C4001 | 4,5,6 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 11x | LH52B256-10PLL | u16a,u17a,u27,u28,u29,u30,u39,u40,u74,u75,u76 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ATF20V8B-15PC | u37 | read protected |
| 2x | A40MX04-F-PL84 | u83,u86 | read protected |
Others
1x 28x2 JAMMA edge connector
1x pushbutton (SW1)
1x trimmer (volume) (VR1)
4x 8x2 switches DIP (SW1,SW2,SW3,SW4)
1x battery 3.6V (BT1)
Notes
PCB silkscreened: "MADE IN TAIWAN YONSHI PCB NO-006F"
Files
-

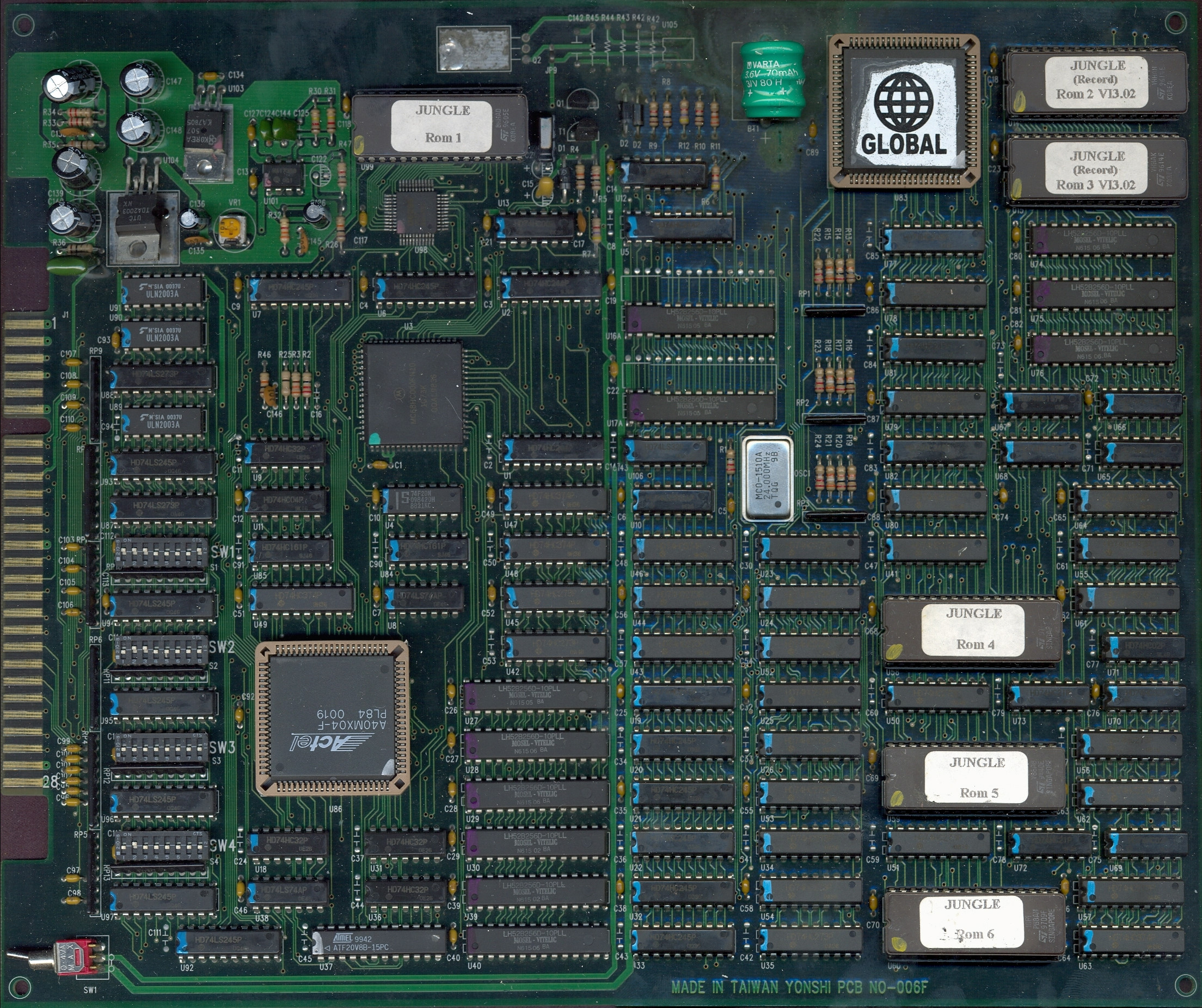

PCB component side
-

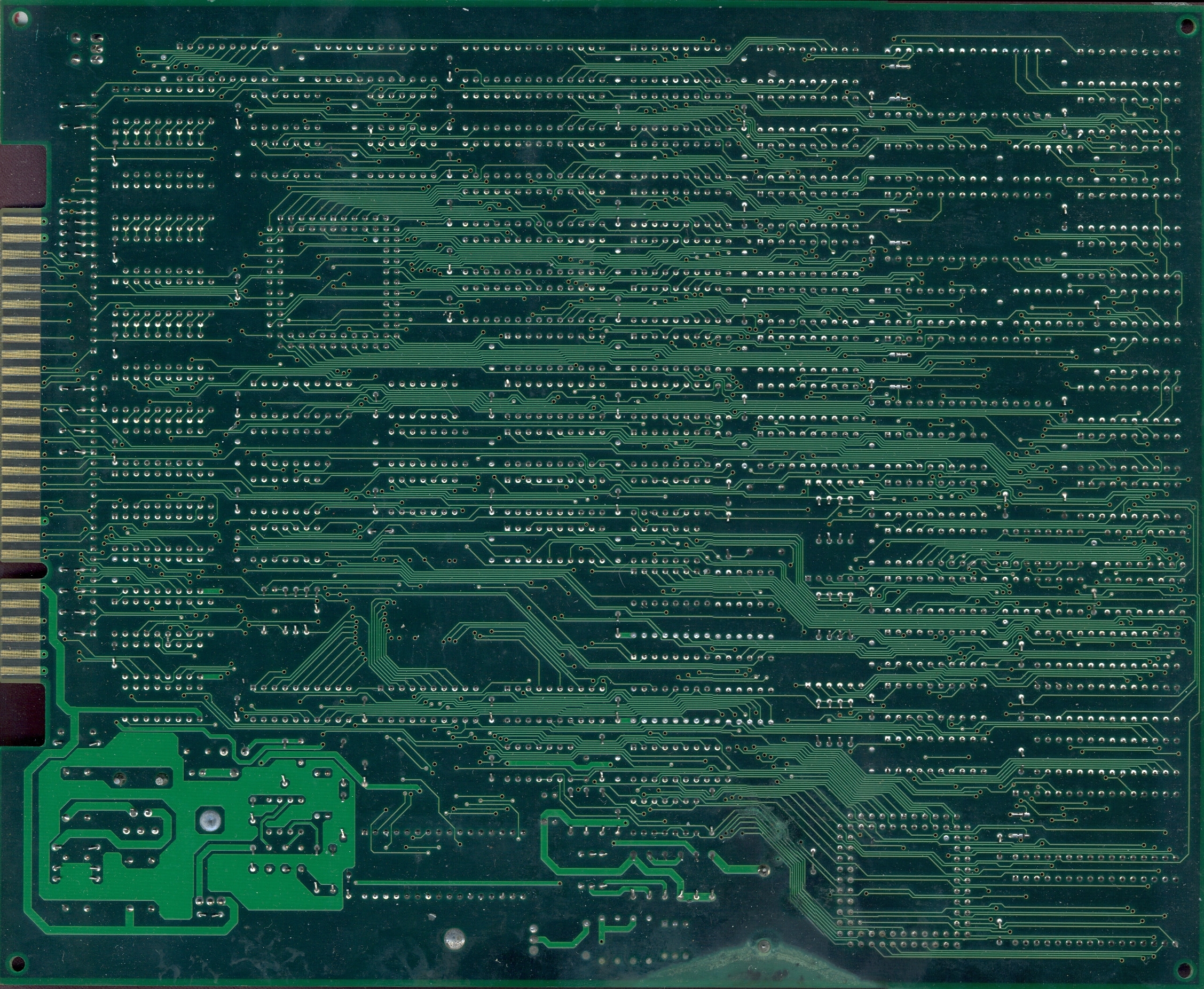

PCB solder side
-

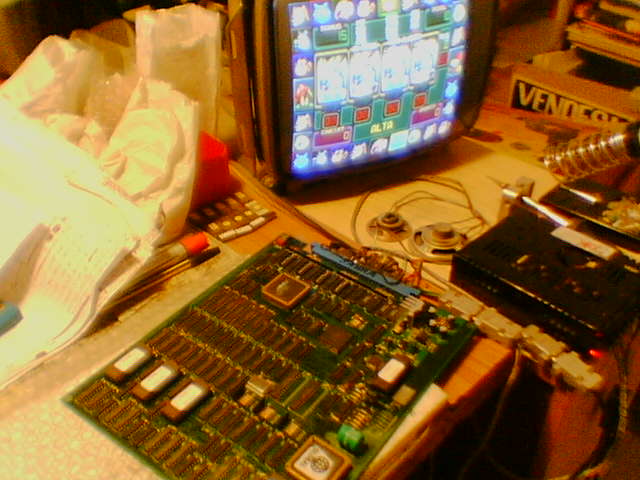

In game
