Jolly Card (Italian, blue TAB board, encrypted)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 18/09/2005 |
| emulator | MAME 0.100u2 |
| dev | Roberto Fresca |
| name | jolycdit on ProgettoEMMA jolycdit on Arcade Database |
| description | Jolly Card (Italian, blue TAB board, encrypted) |
| year | 1990 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | G65SC02P-4 | 8-bit Microprocessor - main | ||
| 1x | MC6845P | CRT Controller (CRTC) | ||
| 1x | AY-3-8910 | Programmable Sound Generator - sound | ||
| 2x | MC6821P | Peripheral Interface Adapter | ||
| 1x | oscillator | 16.000000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TMS27C256 | 1,2 | dumped |
| 1x | M5M27256 | JN | dumped |
| 1x | N82S147 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | HY6264LP-12 | |
| 1x | HM6116LP-3 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | HY18CV8S-25 | read protected | |
| 1x | HY18CV8S-30 | read protected | |
| 1x | GAL16V8B-25LP | dumped |
Others
1x 22x2 edge connector
1x 18x2 edge connector
1x trimmer (volume, missing)
1x 8 DIP switches bank (DIP SW1)
1x battery 3.6V
Notes
PCB is marked: "35P027" on solder side
PCB is labeled: "OK" on component side
Files
-

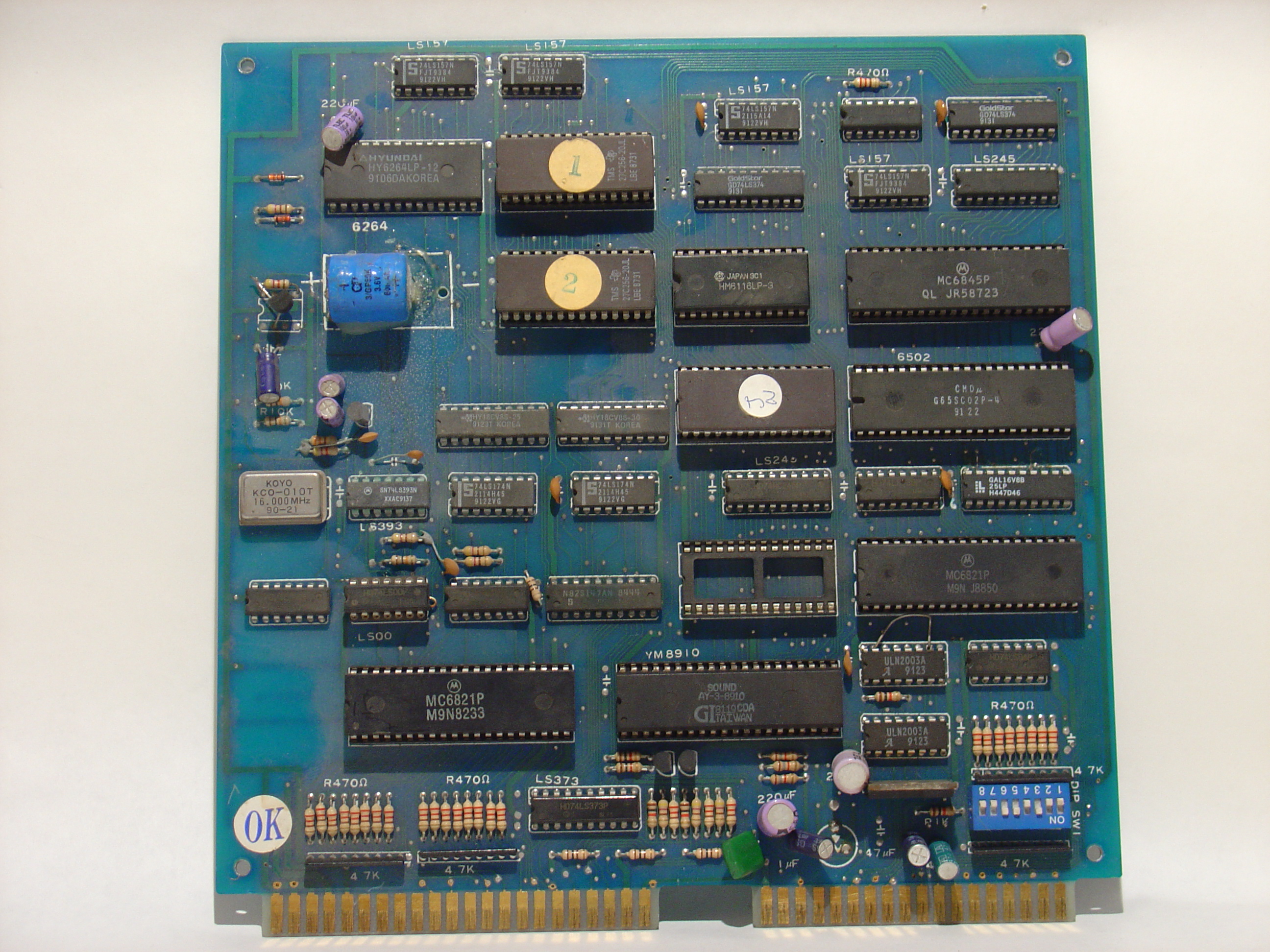

PCB component side
-

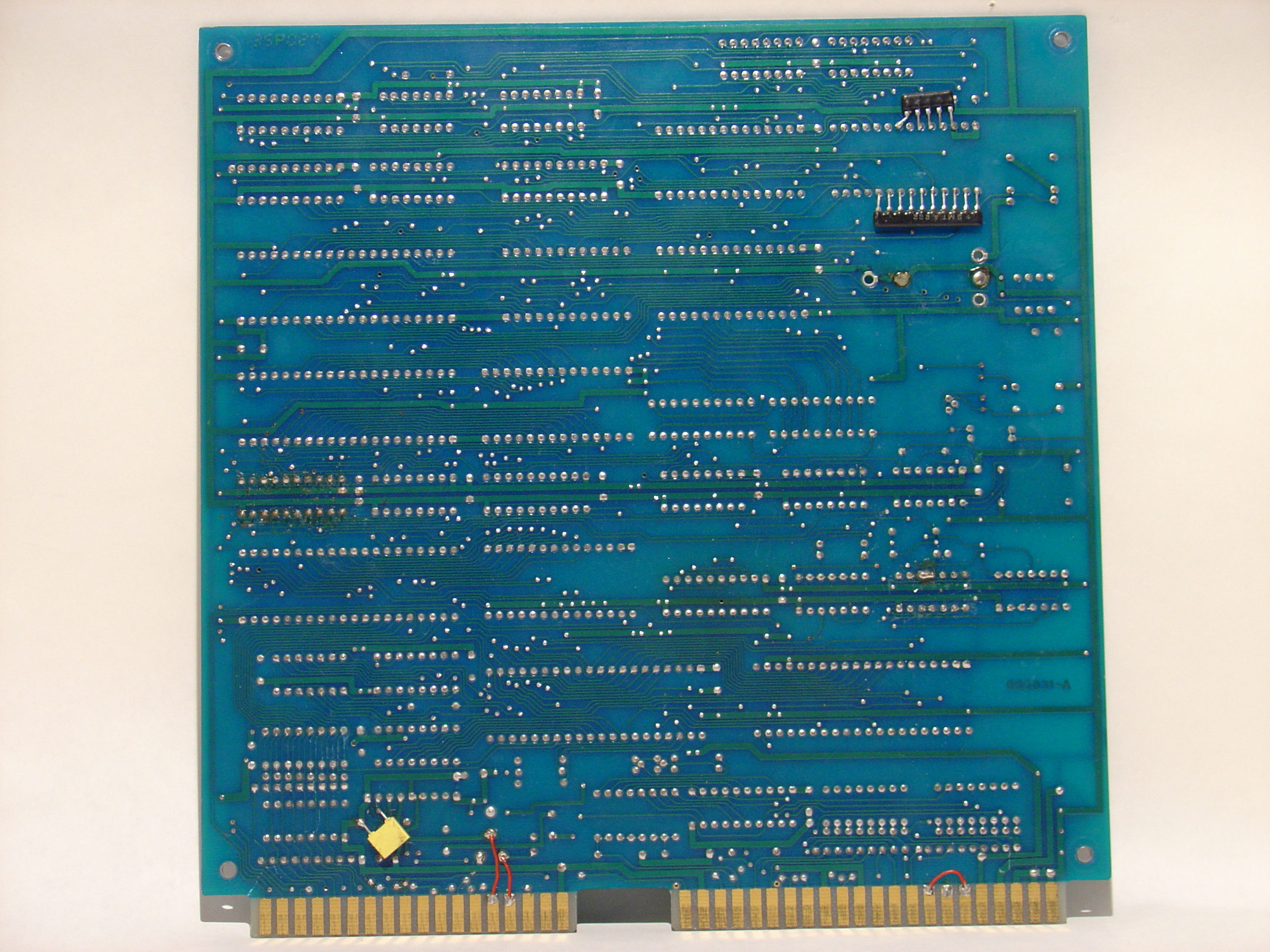

PCB solder side
