Jingle Bell (Italy, V133I)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 12/02/2009 |
| emulator | MAME 0.126u4 |
| dev | Luca Elia |
| name | jingbelli on ProgettoEMMA jingbelli on Arcade Database |
| description | Jingle Bell (Italy, V133I) |
| year | 1998 |
| manufacturer | IGS |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | HD64180RP8 | u18 | 8-bit Microprocessor - main | |
| 2x | NEC D8255AC | u19 u20 | Programmable Peripheral Interface | |
| 1x | IGS custom 009 (F56D246) | u22 | Video GFX | |
| 1x | U3567HX881 | u45 | FM Operator Type-LL - sound | |
| 1x | AR17961-AP0848 | u46 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | oscillator | 12.000 | ||
| 1x | oscillator | 3.579545 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | M27C512 | 1,2,3 | dumped |
| 1x | LE27C2001F | 4 | dumped |
| 2x | MX27C2000 | 5,6 | dumped |
| 1x | D27256 | 7 | dumped |
| 1x | MX27C512 | v | dumped |
| 1x | NM27C010 | sp | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | SRM2264LC10 | u42 |
| 2x | UM6164DK | u1,u2 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PALCE16V8H | u55 u56 | read protected |
| 1x | PALCE22V10H | u30 | read protected |
| 1x | PALCE22V10H | u31 | dumped |
Others
1x 38x2 edge connector
1x 10x2 edge connector
1x pushbutton
5x 8x2 switches DIP
1x battery 3V
Notes
Not working
Files
-

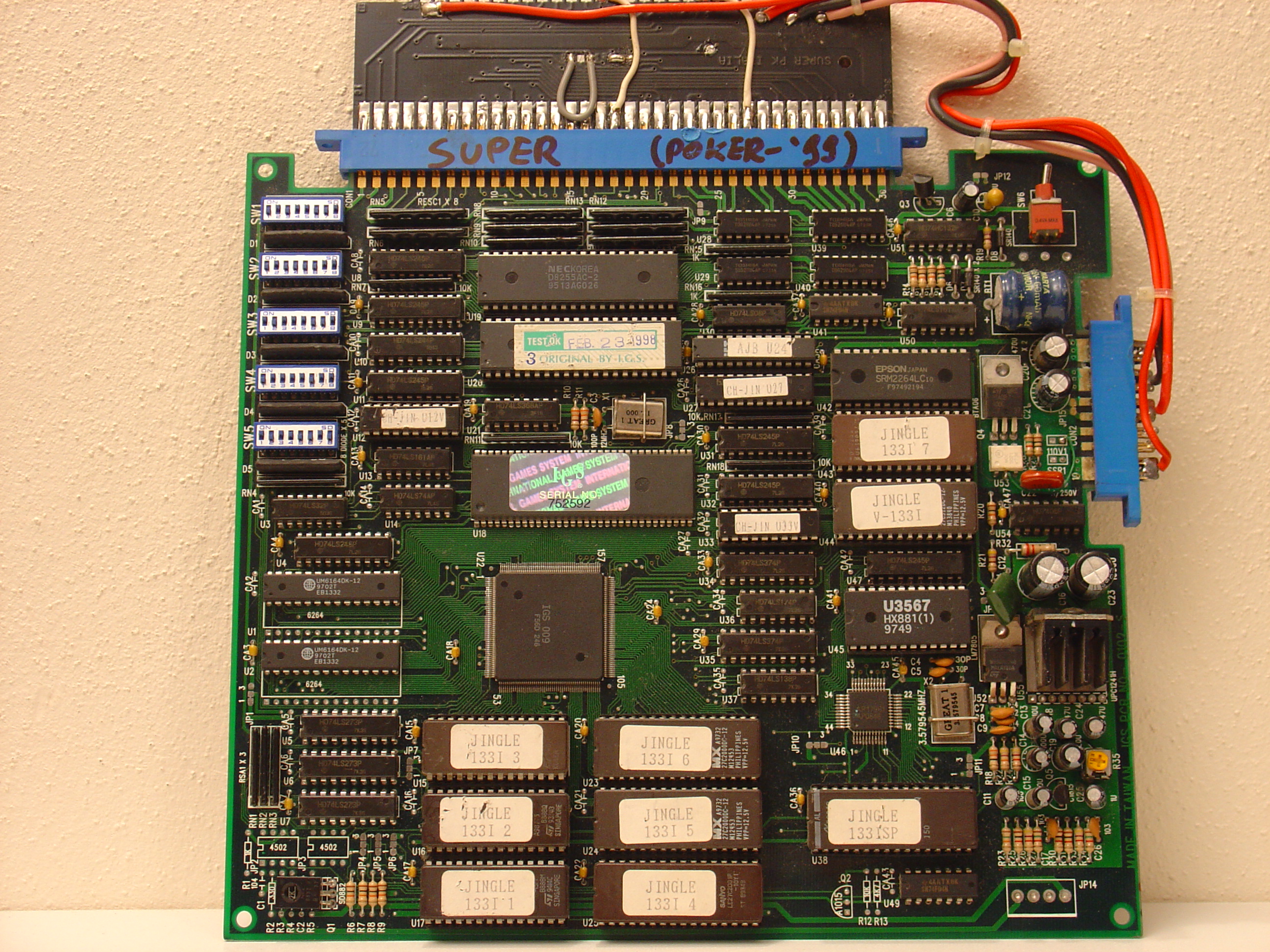

PCB component side
-

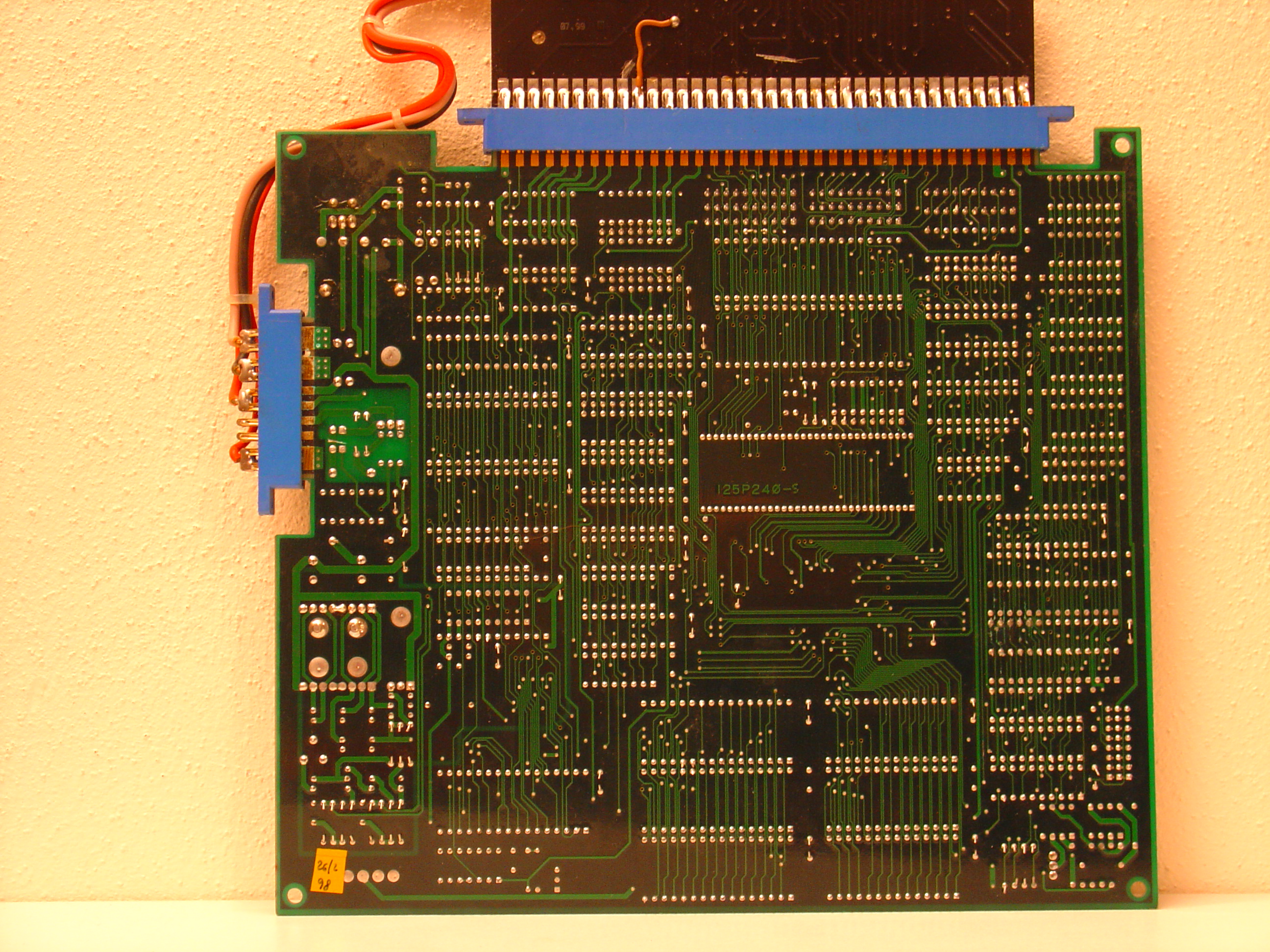

PCB solder side
