Jackpot (Ver 16.16L)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 06/01/2016 |
| emulator | MAME 0.222 |
| dev | Osso |
| name | jackpot on ProgettoEMMA jackpot on Arcade Database |
| description | Jackpot (Ver 16.16L) |
| year | 1998.09.08 |
| manufacturer | Electronic Projects |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TMPZ84C00AP-6 | 8-bit Microprocessor - main | ||
| 1x | MC6845P | CRT Controller (CRTC) | ||
| 1x | Z0840006PSC | 8-bit Microprocessor - sound | ||
| 1x | AY-3-8910 | Programmable Sound Generator - sound | ||
| 1x | LM324N | Quad Operational Amplifier - sound | ||
| 1x | LM358N | Dual Operational Amplifier - sound | ||
| 1x | TLC7524CN | 8-bit Multiplying Digital-to-Analog Converter (DAC) | ||
| 1x | TDA2002 | Audio Amplifier - sound | ||
| 1x | oscillator | 13.000MHz | ||
| 1x | oscillator | 3.579545 | ||
| 1x | yellow resonator | 500 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 93C66 | dumped | |
| 5x | AM27C512 | CM, SND | dumped |
| 4x | 27C010 | CF | dumped |
| 1x | M27C1001 | 0.16.16L | dumped |
| 2x | M27C4001 | WAV | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | LC3517AS-15 | |
| 2x | MCM2018AN45 | |
| 1x | HY6264LP-10 | |
| 1x | KM6264AL-10 | |
| 1x | MK48Z02B-25 | dumped |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | PALCE22V8H-25PC/4 | read protected | |
| 1x | PALCE20V8H-25PC/4 | read protected | |
| 1x | GAL16V8S-20HB1 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 20 legs connector
1x pushbutton (TEST)
1x trimmer (VOLUME)
1x green LED
1x red LED
Notes
main EPROM contains following text strings:
copyright (C) 1993 HI-TECH Software E.mail e.p.@sigea.it ELECTRONIC PROJECTS coll. esterna STEFANIA DIAZZI hardware e software MICHELE MATI direzione e produzione SANDRA BARTOLI assemblaggio QL ELETTRONICA.E.P.1998 ELECTRONIC PROJECTS JECKPOT VER 16.16L DEL 08-09-98
Files
-

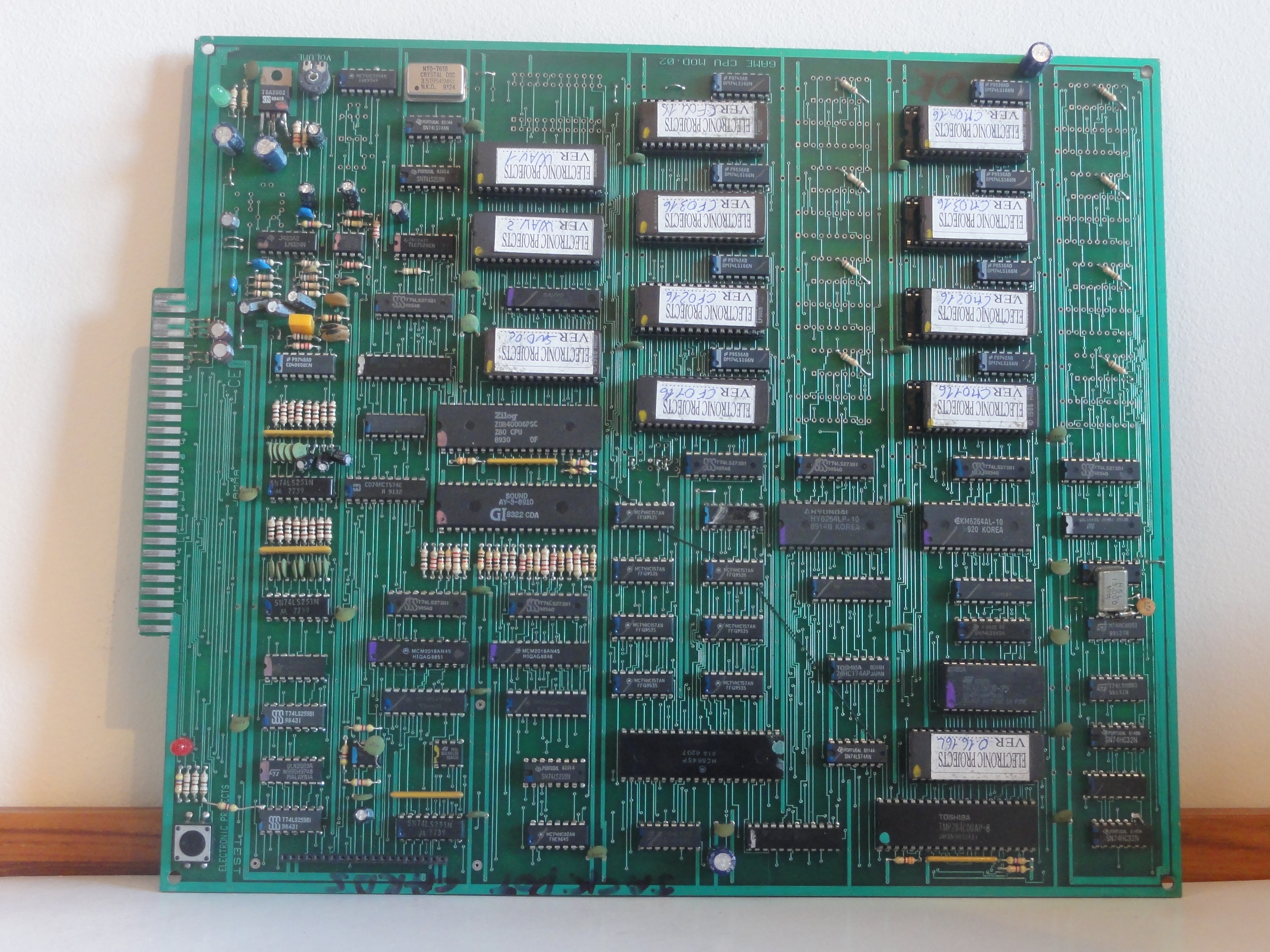

PCB component side
-
PCB solder side
-
In Game
