Inu No Osanpo / Dog Walking (Japan, Export, Rev A)
From Citylan
Jump to navigationJump to search
| dumper | "someone" |
| date | 11/01/2011 |
| emulator | MAME 0.140u2 |
| dev | ANY |
| name | inunoos on ProgettoEMMA inunoos on Arcade Database |
| description | Inu No Osanpo / Dog Walking (Japan, Export, Rev A) |
| year | 2001.07.06 |
| manufacturer | Wow Entertainment - Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000MHz | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27322 | EPR-22294A.ic22 | dumped |
| 16x | M27W064 | MPR-22278.ic1s - MPR-22293.ic16s | dumped |
| 1x | X76F100 | ic37 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | CY7C199 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | EPM7064 315-6206 | ic41 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7885A
Cart N°: 840-0073C
Protection IC: SEGA 315-5881 (317-0316-JPN)
Key: 0x294bc3e3
Files
-

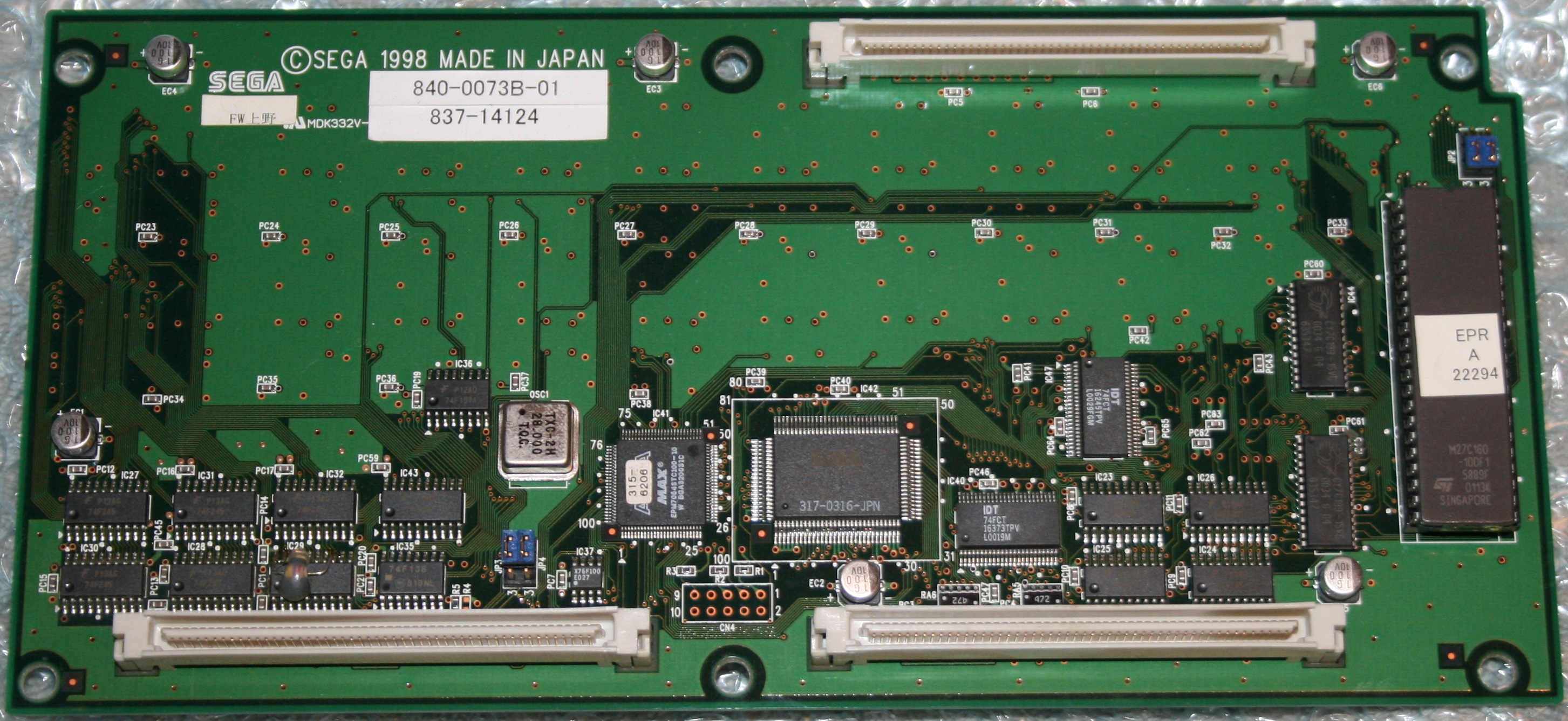

PCB component side 1
-

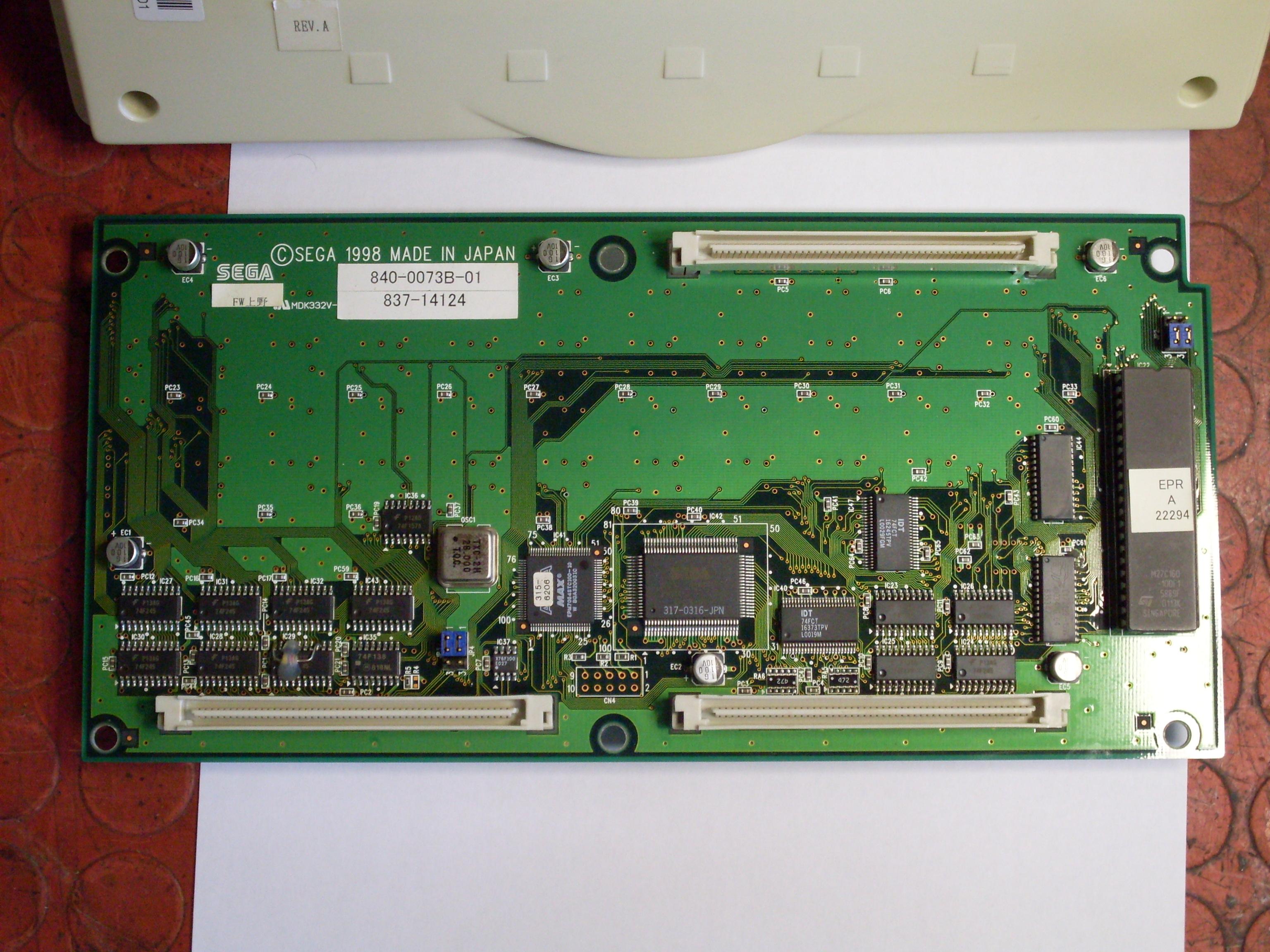

PCB component side 2
-

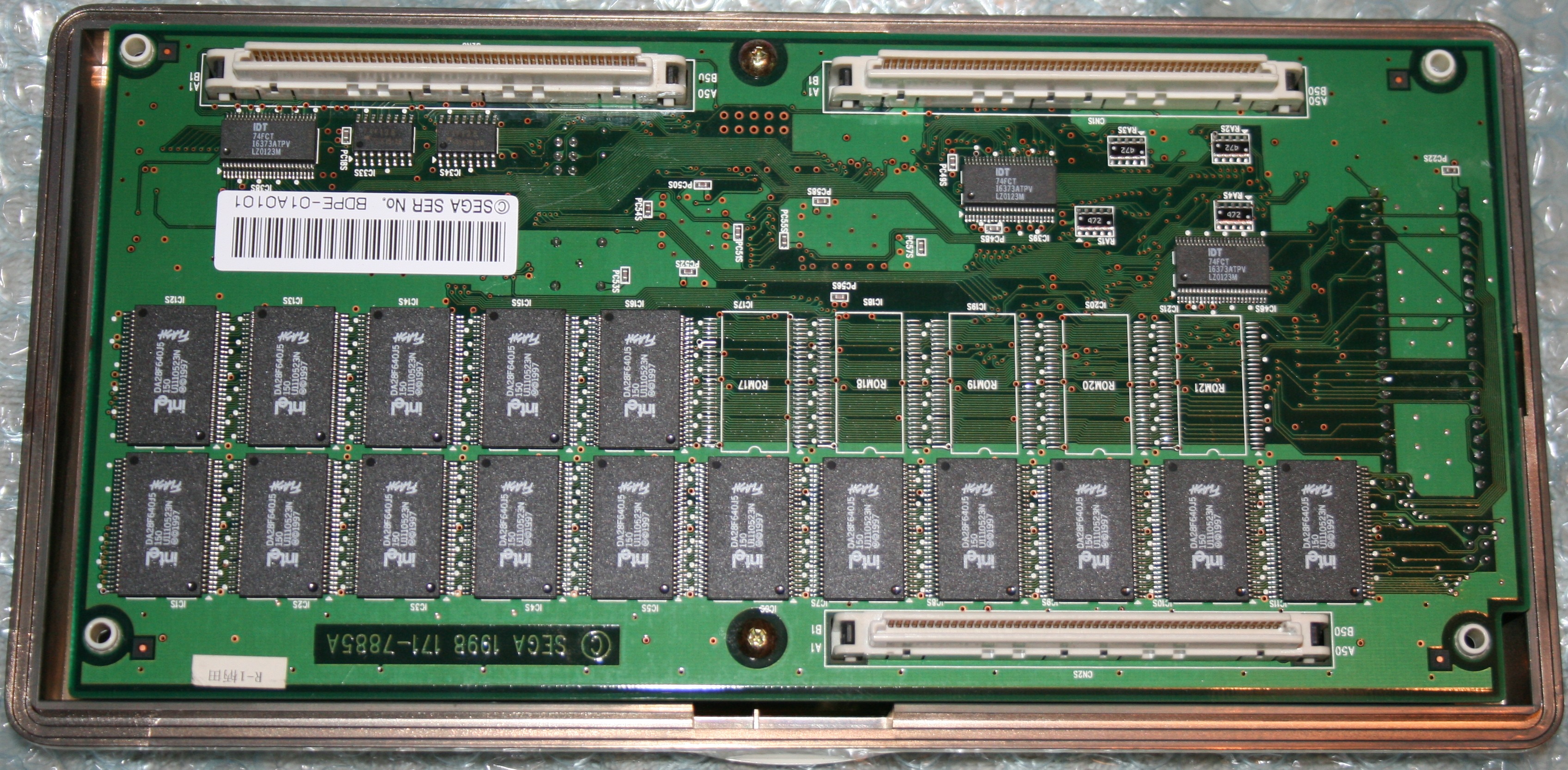

PCB solder side 1
-

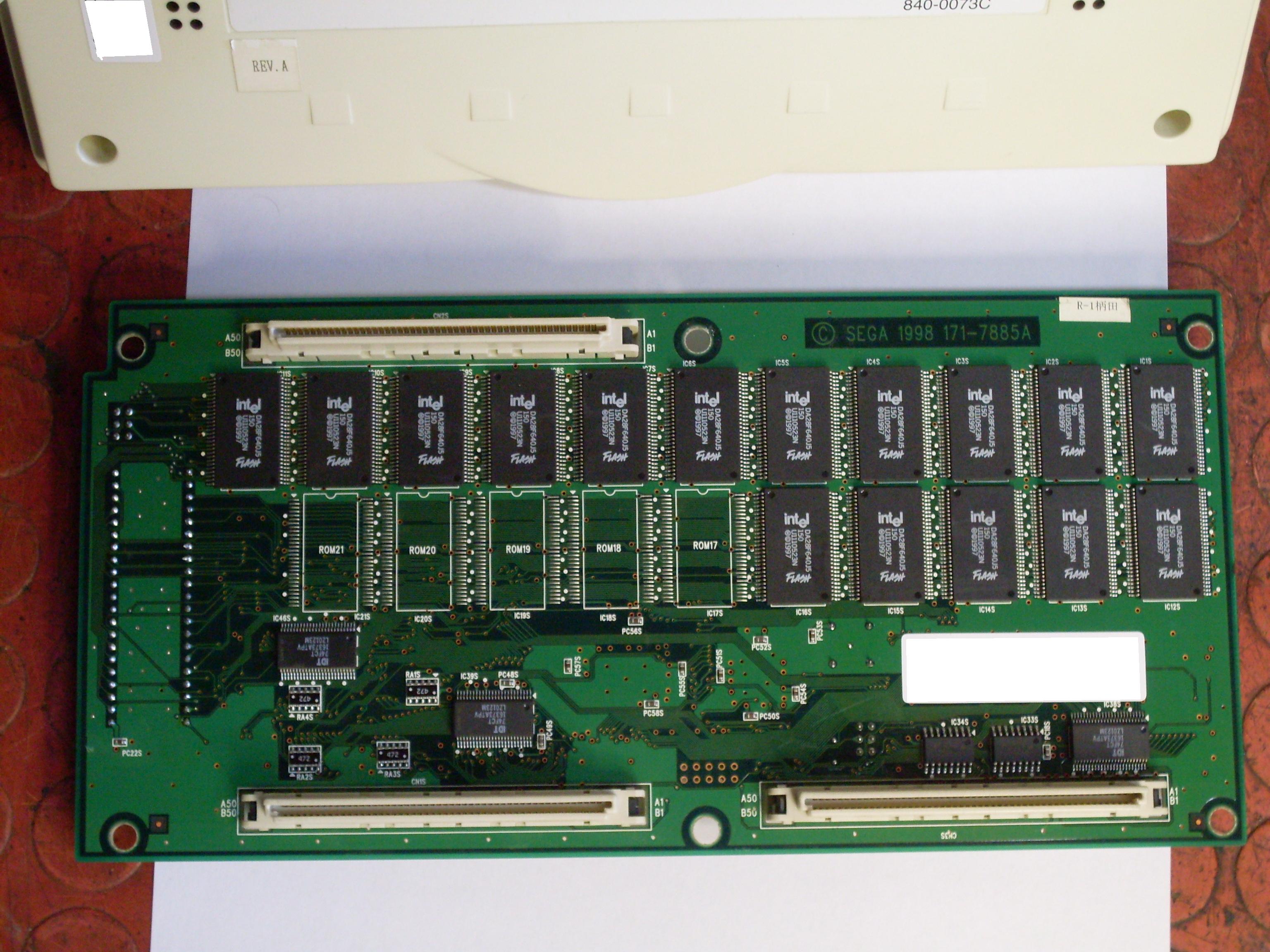

PCB solder side 2
-

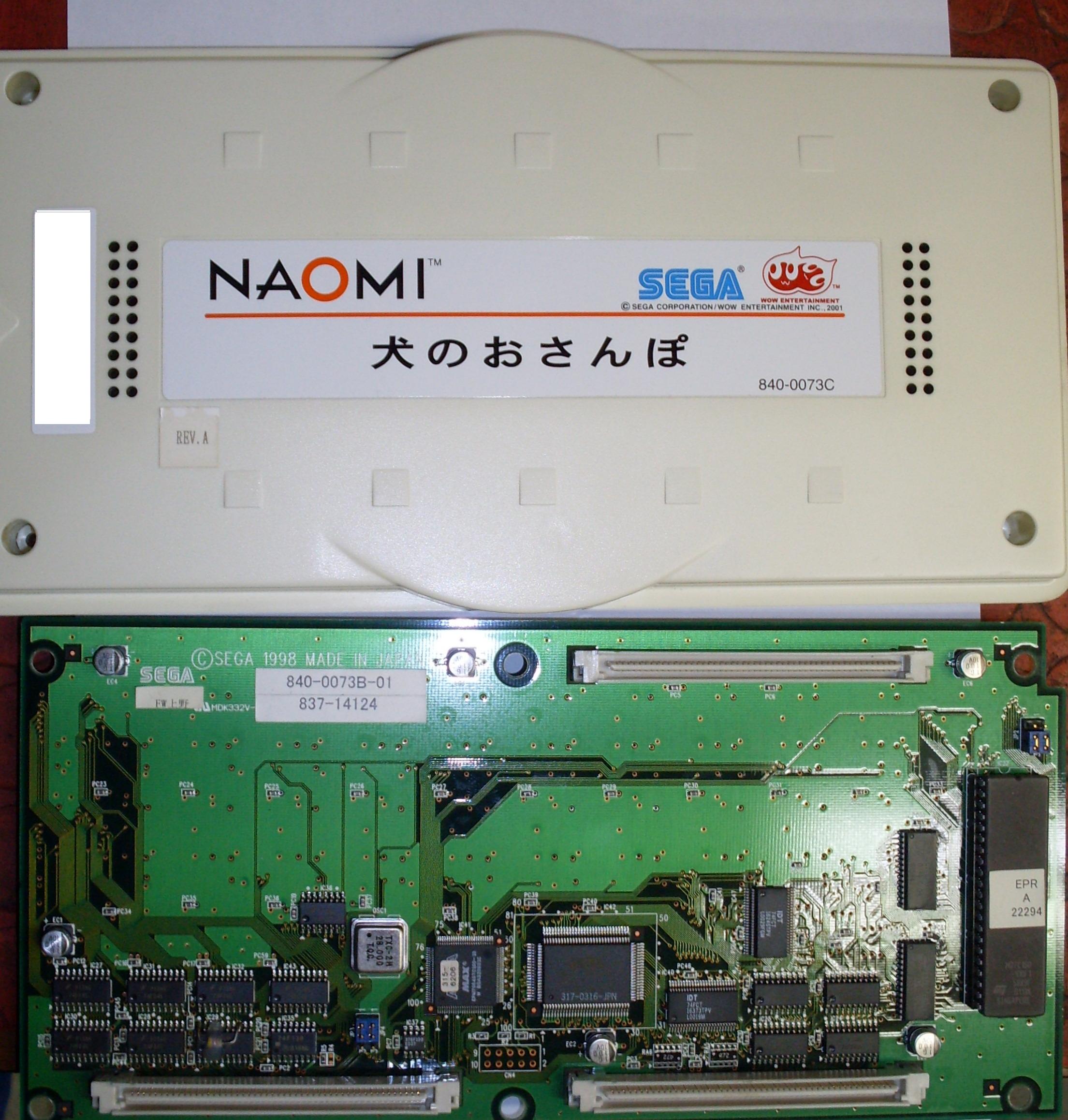

Cart + PCB component side
-

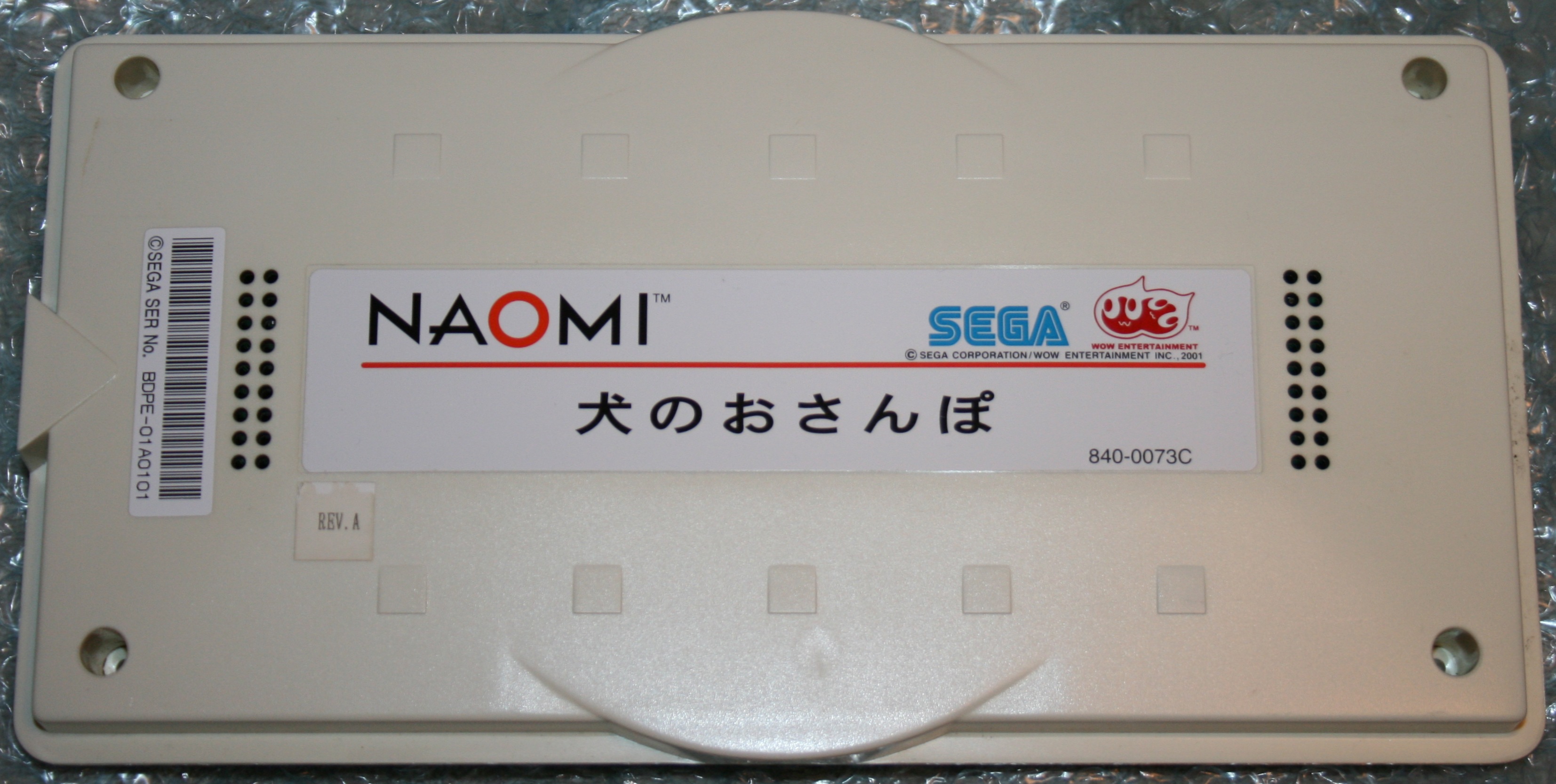

Cart 1
-

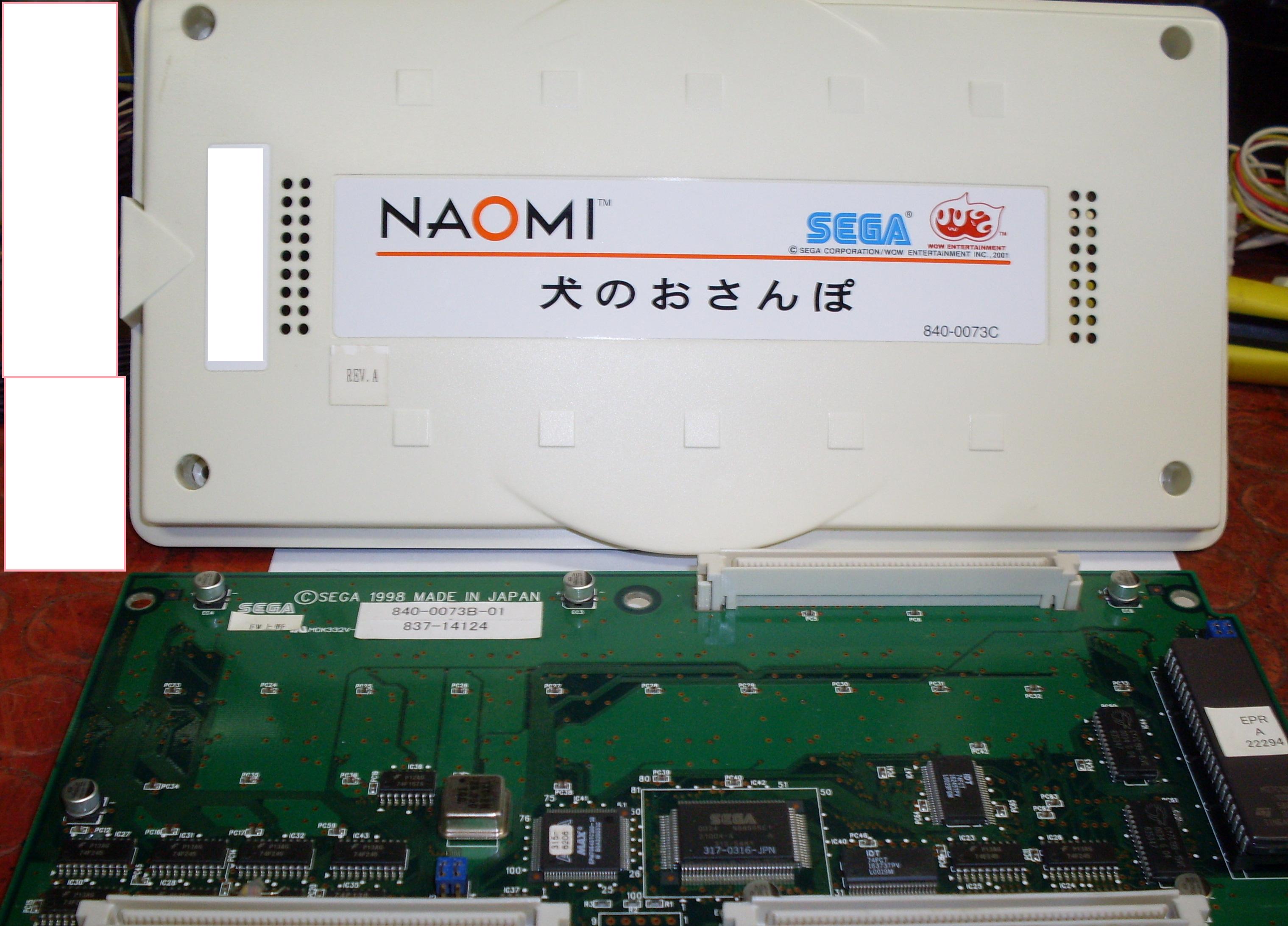

Cart 2
-

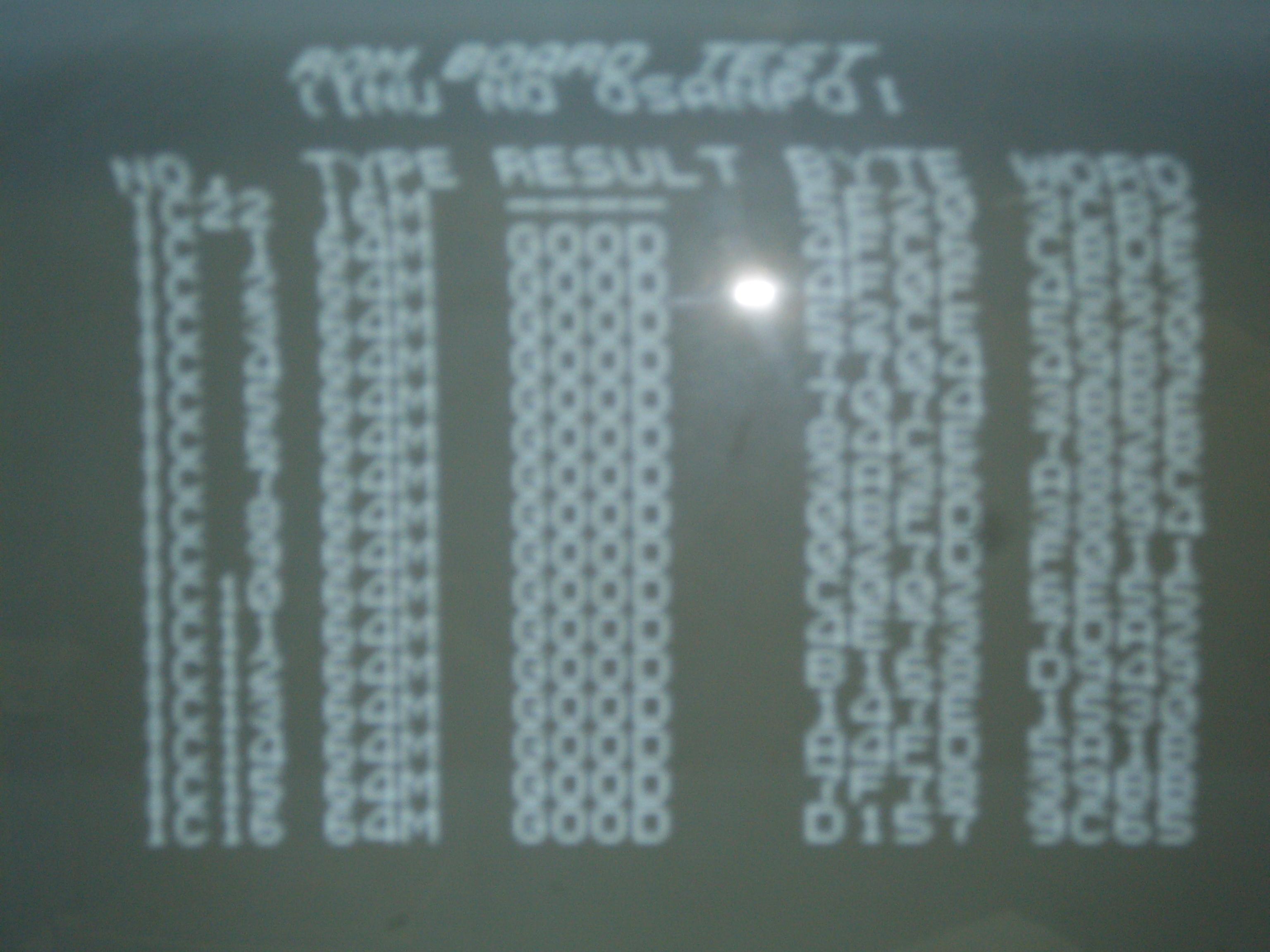

ROM board test
-

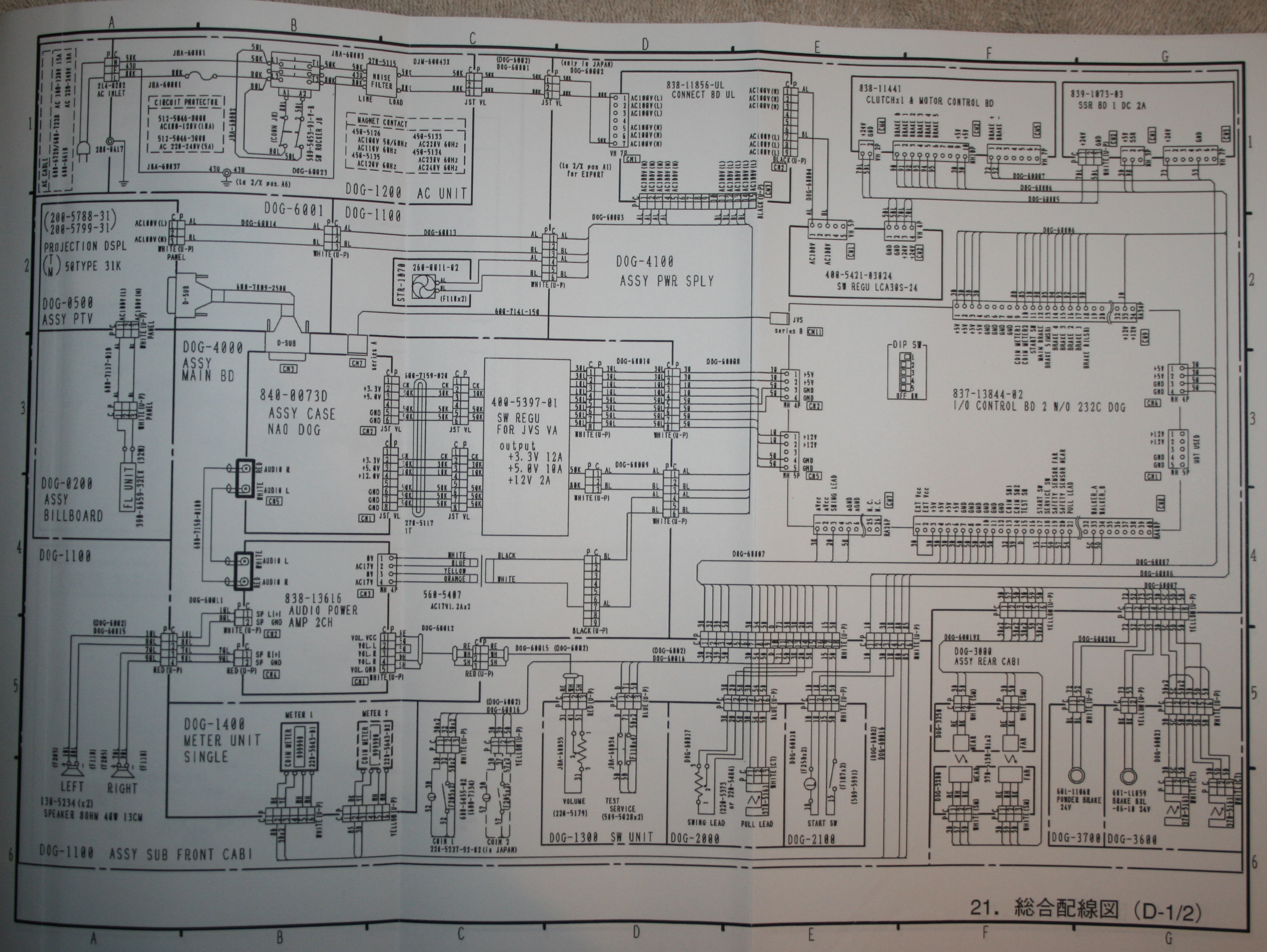

Wiring 1
-

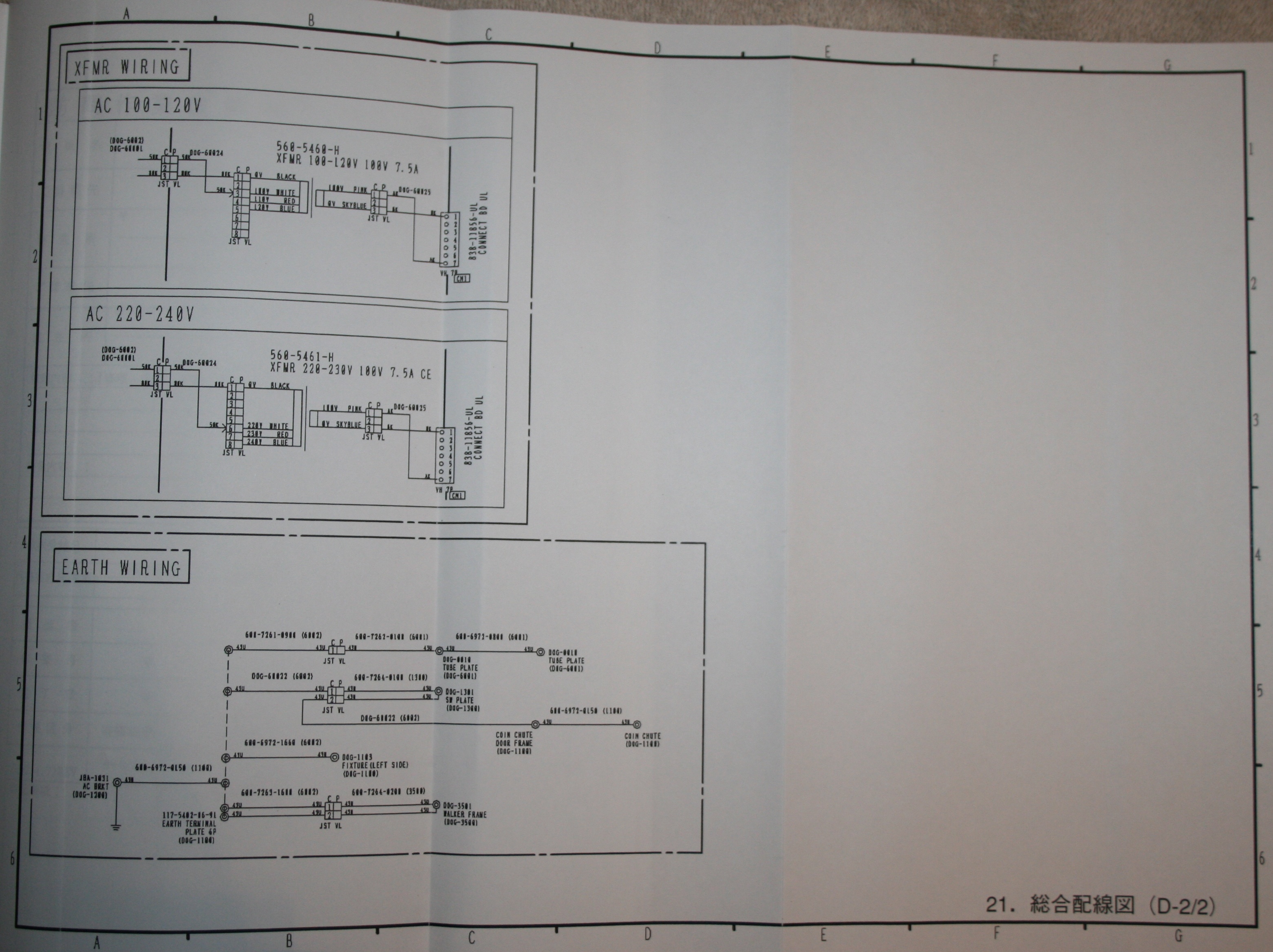

Wiring 2
-
manual cover
