Il Pagliaccio (Italy, Ver. 2.7C)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 09/04/2008 |
| emulator | MAME 0.128u5 |
| dev | David Haywood, Angelo Salese |
| name | ilpag on ProgettoEMMA ilpag on Arcade Database |
| description | Il Pagliaccio (Italy, Ver. 2.7C) |
| year | 2000-05 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68HC000FN12 | u23b | 16/32-bit Microprocessor - main | |
| 1x | P87C748EBPN | u132 | 8-bit Microcontroller - main (internal ROM not dumped) | |
| 1x | MP7524KN | - | u84 | 8-bit Multiplying Digital-to-Analog Converter (DAC) - sound |
| 1x | LM358 | - | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | - | u81 | Audio Amplifier - sound |
| 1x | oscillator | 11.0592MHz | u75 | |
| 1x | blu resonator | CSB400P |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | W27E040 | u31,u31,u46,u51 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | CY62256LL-70PC | u37,u38 |
| 2x | KM681000ALP-7 | u47,u55 |
| 1x | ADV471KP50 | u65 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | XC9572XL-TQ100AEN0005 | u56 | read protected |
| 1x | XC95144XL-TQ144AEN0005 | u80 | read protected |
| 1x | XC95144XL-TQ100AEN9945 | u26 | read protected |
Others
1x 28x2 non-JAMMA edge connector
1x 3 legs connector (JP5)
1x 7 legs connector (JP3)
1x trimmer (volume)(TRIM1)
2x pushbutton (MANAGEMENT,STATISTIC)
1x battery 3.6V (BT1)
Notes
PCB is marked: "BASE 68 CE" and "BASE 68 MH 05/00" on component side
PCB is marked: "BASE 68 MH 05/00" on solder side
update 20231111: better description
Files
-

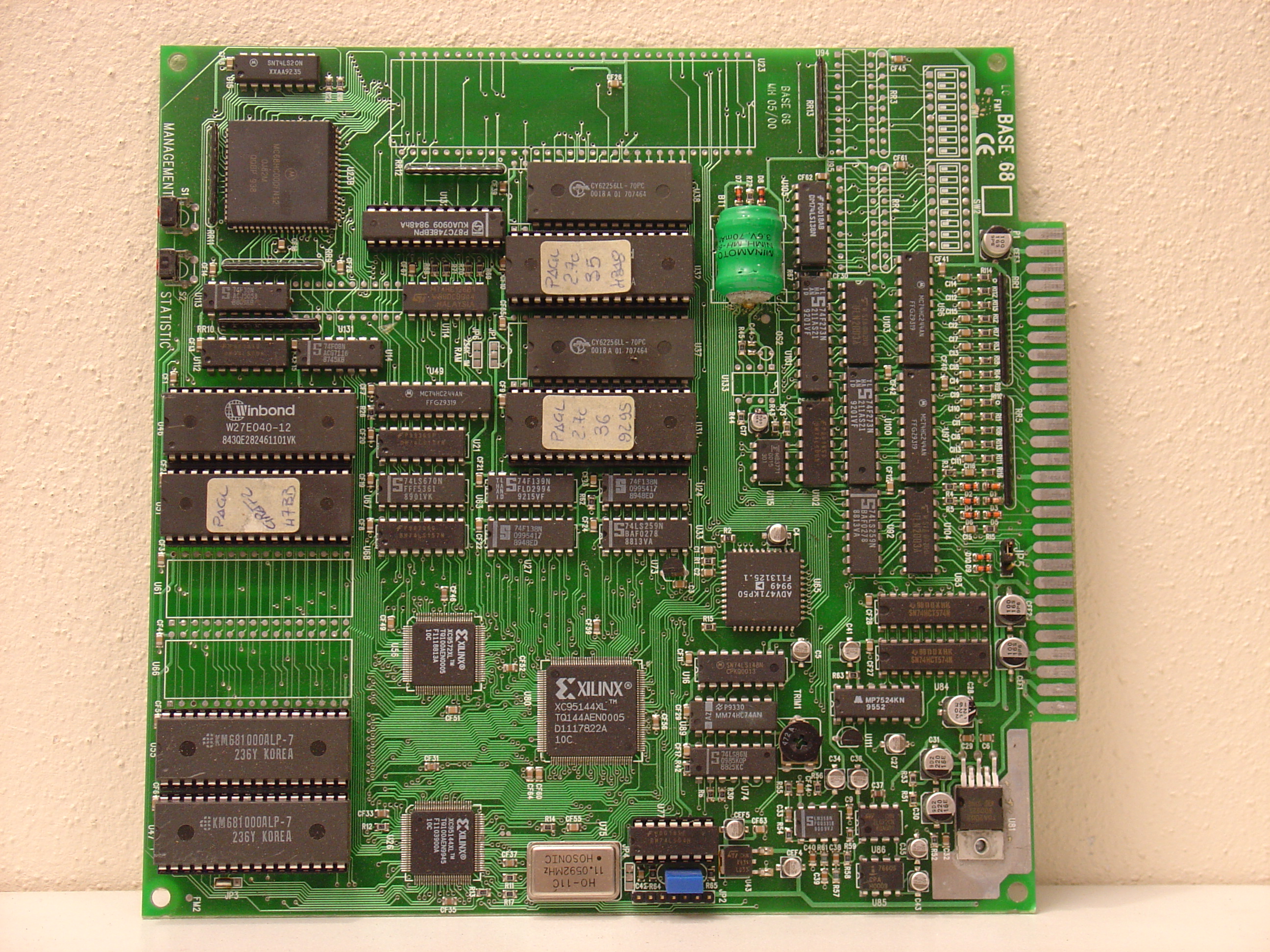

PCB component side
-
PCB component side notes
-

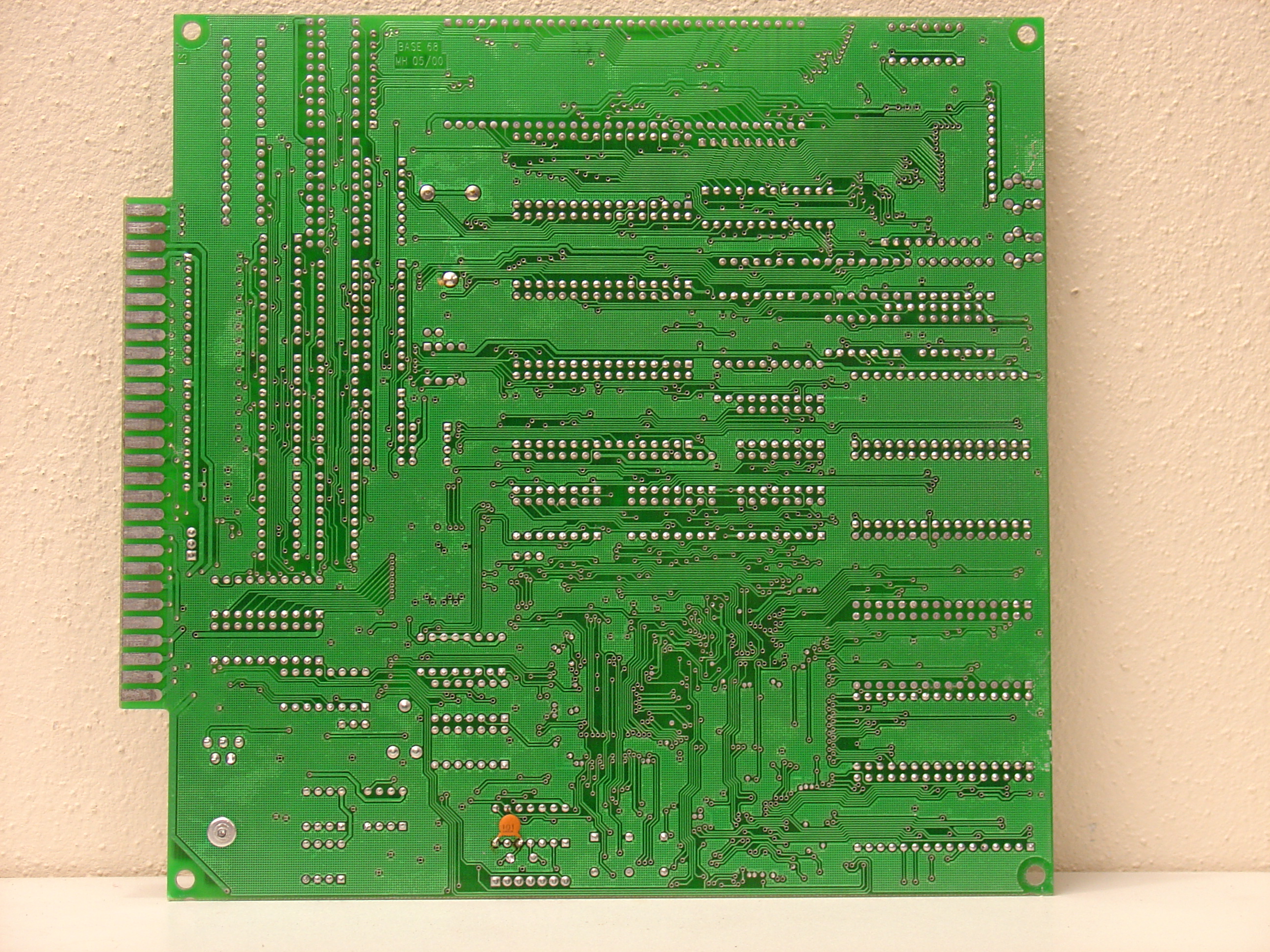

PCB solder side
-

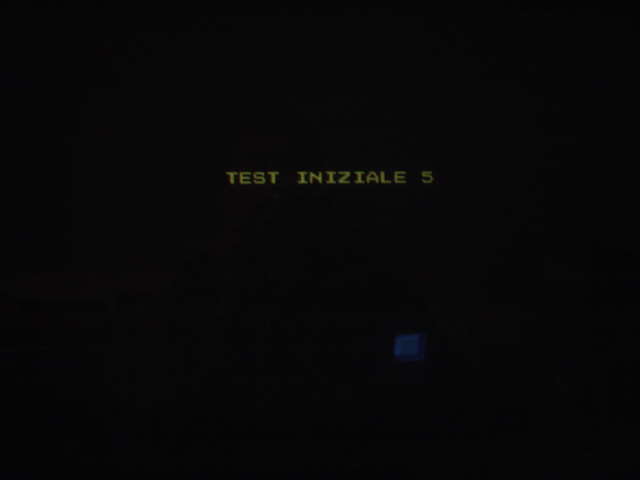

Boot screen
-

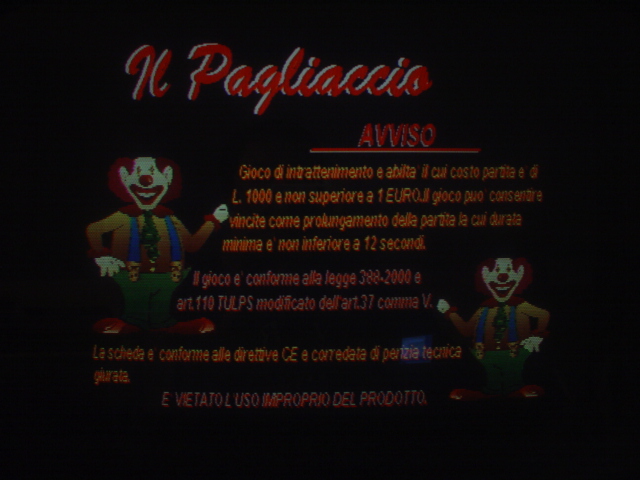

Title
-

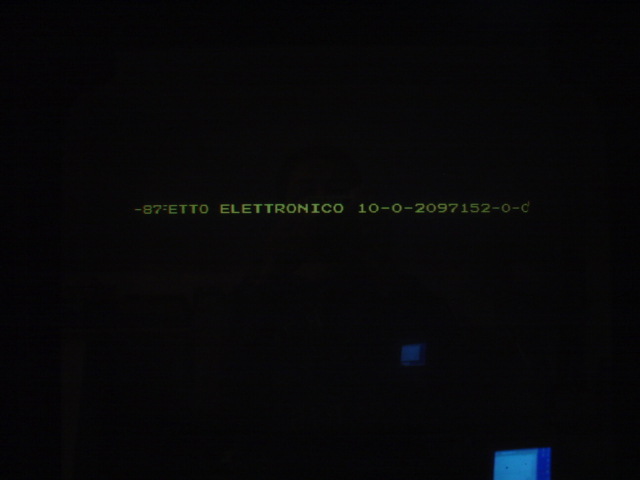

error
-

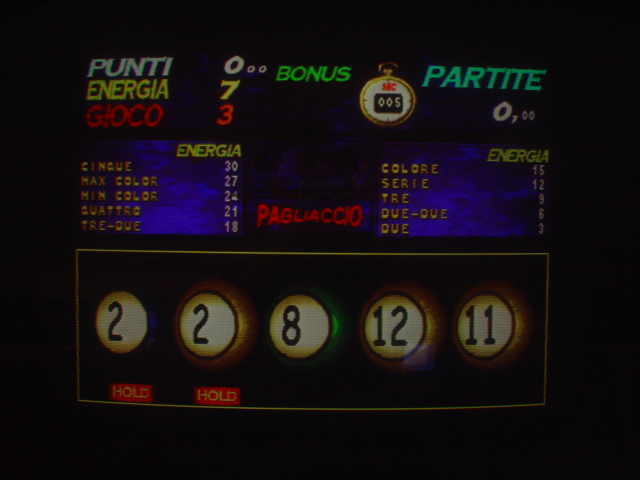

In game
-

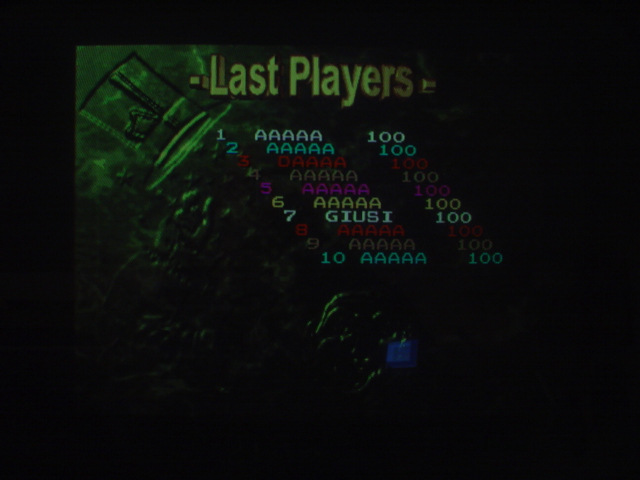

Hiscore
