Il Galeone
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 24/01/2016 |
| emulator | MAME 0.170 |
| dev | David Haywood |
| name | galeone on ProgettoEMMA galeone on Arcade Database |
| description | Il Galeone |
| year | 2000 |
| manufacturer | San Remo Games |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | D70116C-8 | ic1 | 16-bit Microprocessor - main | |
| 1x | M6376 | ic24 | ADPCM Speech Synthesizer - sound | |
| 1x | TDA1010 | ic26 | Audio Amplifier - sound | |
| 1x | oscillator | 16.000MHz | XT1 | |
| 1x | oscillator | 3.6864 | XT2 | |
| 1x | oscillator | unmarked | XT3 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TMS27C020 | ic7, ic8 | dumped |
| 1x | TMS27C040 | ic25 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | UM62256E-70LL | ic9,ic10,ic21,ic22 |
| 1x | ADV476 | ic16 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI1032E-70LJ | ic41 | read protected |
| 1x | PALCE16V8H-25PC/4 | ic11 | read protected |
| 1x | PALCE16V8H-25PC/4 | ic14 | read protected -> extracted with Brizzo's gizmo |
Others
1x 28x2 JAMMA edge connector (CN1)
1x 4 legs connector (CN2)
1x 10 legs connector (CN3)
1x 6 legs connector (CN4)
1x 10 legs connector (CN5)
1x 7 legs connector (CN6)
1x 8 legs connector (CN7)
1x 3 legs jumper (JP1)
1x 4x2 legs jumper (JP2)(unpopulated)
1x 2 legs jumper (JP3)(Reset)
1x trimmer (volume)(R16)
1x 8x2 switches DIP (DP1)
1x battery 3.6V (BT1)
Notes
Sockets for ic27,ic29,ic31,ic32 are empty.
PCB is marked: "SERIAL NUMBER 49391710" on component side
PCB is labeled: "MODEL:TV VERS:1.1 DATE:27/4" on component side
PCB is labeled: "M.VIDEO/MPU 27-03-11995 NumFab-0027 CanFab-0050" on solder side
update 20160125: extracted one of the PALs
Files
-

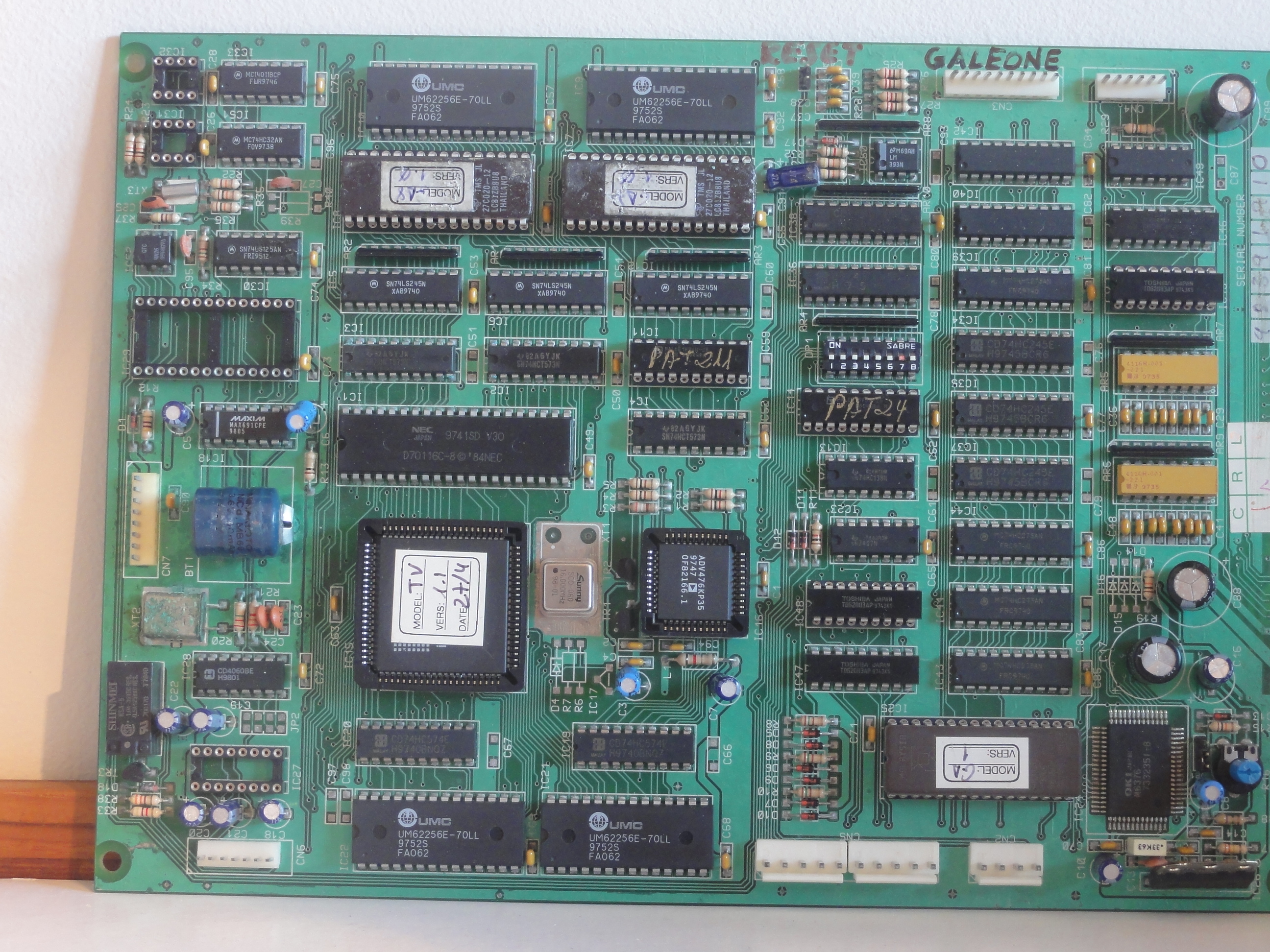

PCB component side
-

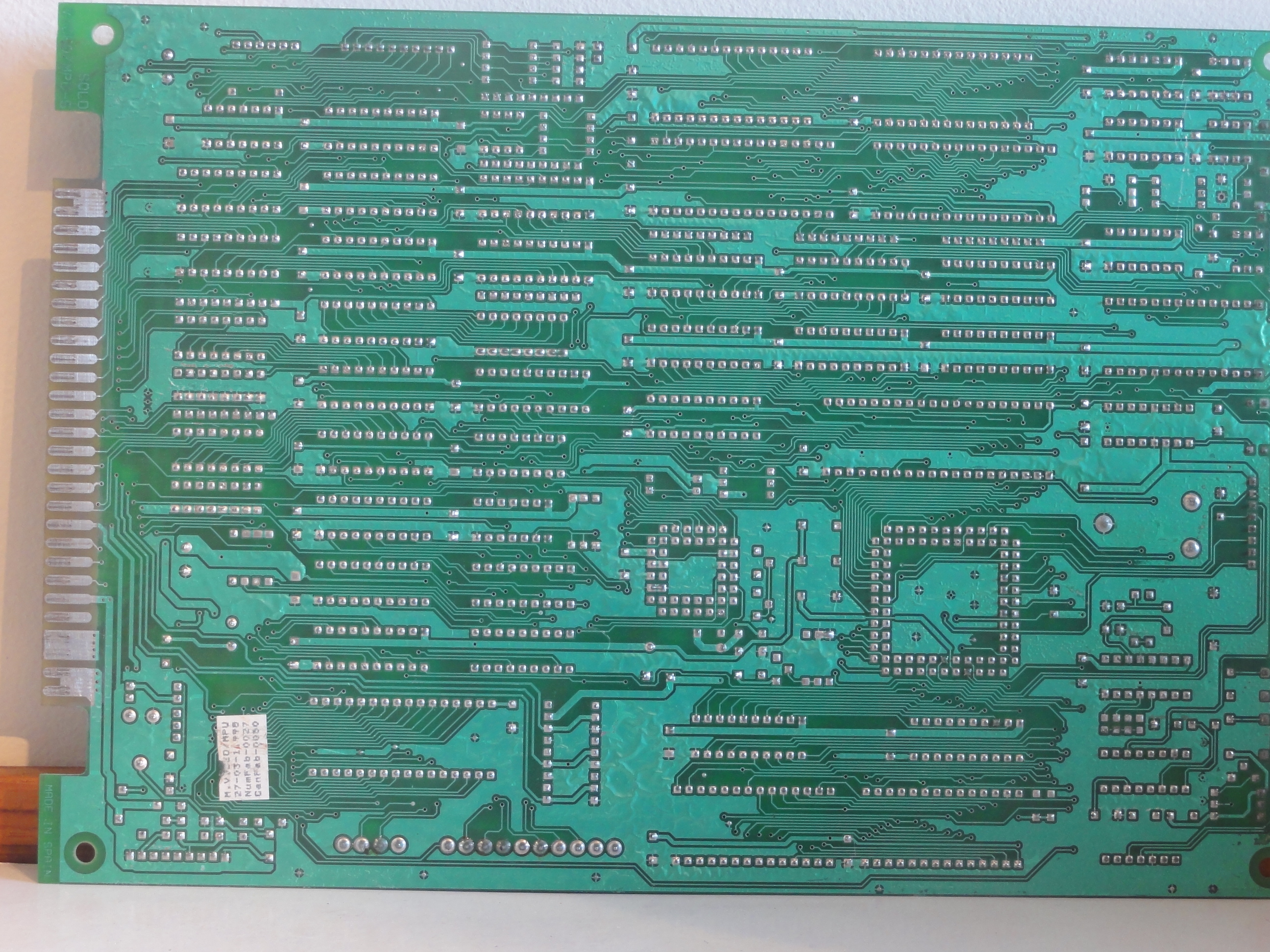

PCB solder side
-

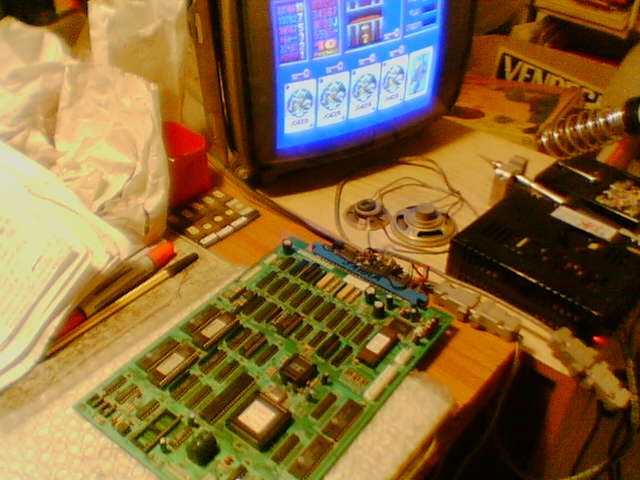

In game
-
ROMs
