Hot Slot (ver. 05.01)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 28/07/2008 |
| emulator | MAME 0.127 |
| dev | Roberto Fresca |
| name | hotslot on ProgettoEMMA hotslot on Arcade Database |
| description | Hot Slot (ver. 05.01) |
| year | 1996 |
| manufacturer | ABM Games |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68HC000FN12 | u1 | 16/32-bit Microprocessor - main | |
| 1x | HD6473308CP10 | u24 | 16-bit Single-Chip Microcomputer - main - NOT DUMPED | |
| 1x | 6295 | u31 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | KA358 | u33 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | u34 | Audio Amplifier - sound | |
| 1x | oscillator | 20.000000MHz | osc1 | |
| 1x | oscillator | 30.000MHz | osc2 | |
| 1x | blu resonator | 1000J | xtal1 |
ROMs for 1st PCB
| QTY | Type | position | status |
|---|---|---|---|
| 2x | 27C010 | 2,3 (PCB1) | dumped |
| 2x | 27C020 | 5,7 (PCB1) | dumped |
| 3x | 27C2001 | 1,4,6 (PCB1) | dumped |
ROMs for 2nd PCB
| QTY | Type | position | status |
|---|---|---|---|
| 1x | AM27C010 | 2 (PCB2) | dumped |
| 1x | M27C1001 | 3 (PCB2) | dumped |
| 2x | 27C020 | 1,7 (PCB2) | dumped |
| 1x | M27C2001 | 4 (PCB2) | dumped |
| 1x | AM27C020 | 5,6 (PCB2) | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | HM6116-70 | u6 |
| 4x | ZMDU6264ADC-07LLP | u4,u5,u43,u44 |
| 2x | HM3-65728H-8 | u61,u62 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A40MX04-PL84 | u50 | not dumped |
| 1x | GAL16V8D-25LP | u54 | read protected |
| 1x | PALCE22V10H-25PC/4 | u22 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 12 legs connector (J1)
1x 12 pins jumper (J2,J3)
1x 2 pins jumper (J4)
1x trimmer (volume)(P1)
1x trimmer (unknown)(P2)
1x 8x2 switches DIP(DIP1)
1x battery 3V
Notes
PCB is marked: "lc" on component side ("LC" is the Italian for "Lato Componenti" which translates to "Components Side")
PCB is marked: "ls" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")
PCB is labeled: "Hot Slot Non rimuovere" on component side
update 20160406: found another board, it's identical to the first one
Files
-

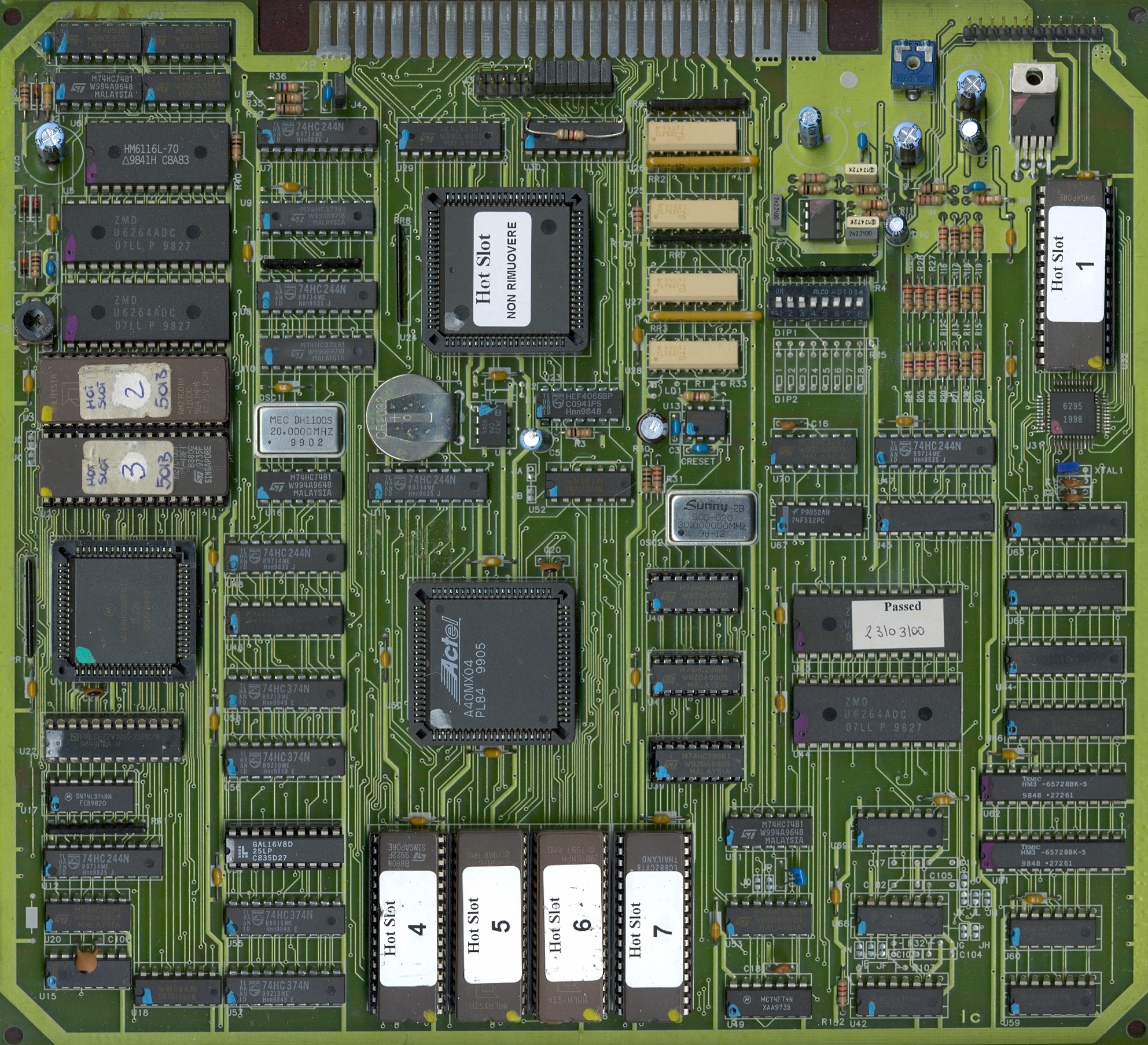

PCB component side
-

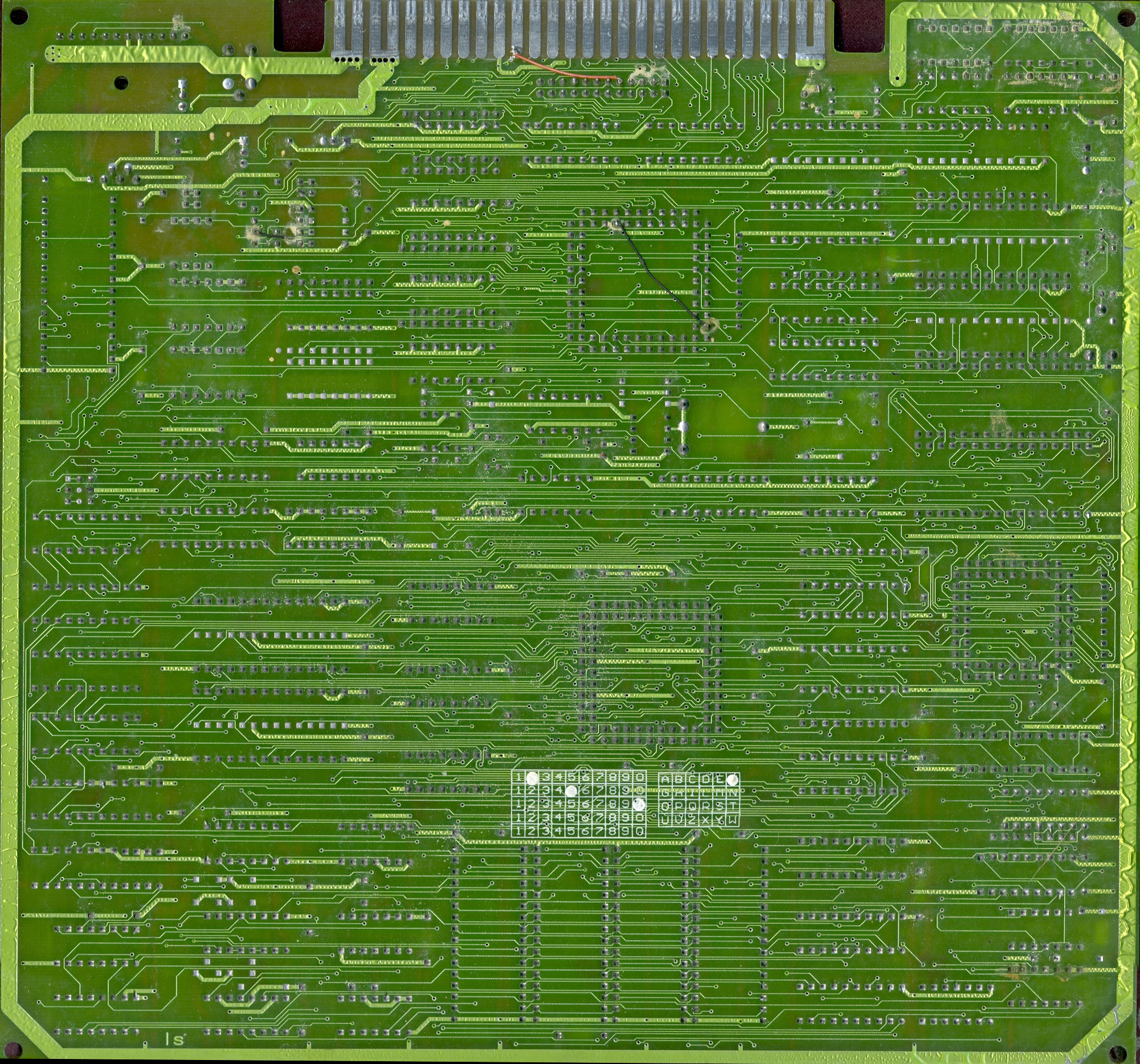

PCB solder side
-

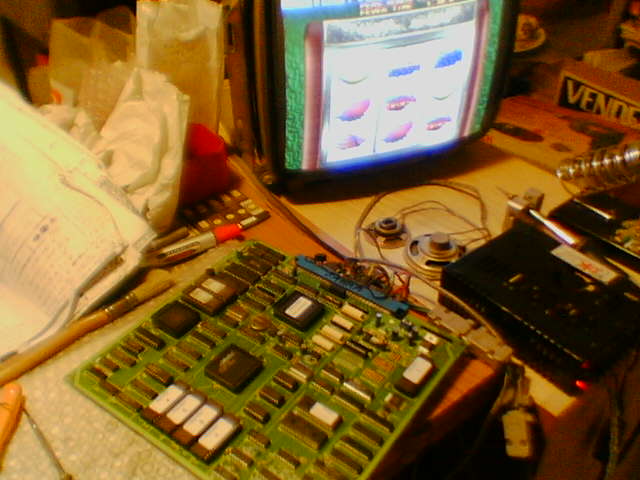

In game
