High Seas Havoc
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 12/06/2005 |
| emulator | MAME 0.106u6 |
| dev | David Haywood |
| name | hshavoc on ProgettoEMMA hshavoc on Arcade Database |
| description | High Seas Havoc |
| year | 1993 |
| manufacturer | Data East |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P8 | 12c | 16/32-bit Microprocessor - main | |
| 1x | Z8400B | 1a | 8-bit Microprocessor - sound | |
| 1x | PIC16C57 | 7a | 8bit CMOS Microcontroller - main (internal ROM not dumped) | |
| 1x | C3403 | - | 12d | Quad Operational Amplifier - sound |
| 1x | MB3734 | - | 12f | Audio Amplifier - sound |
| 1x | Sega custom 315-5660-FC1004 (QFP208) | 5d | Video and Sound | |
| 1x | oscillator | 53.6931MHz | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TMS27C040 | 9a,11a | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | 5P6408-50 | 1c |
| 1x | HM53861 Video SRAM | 9d |
| 2x | LH52250AN-70L | 12a,12b |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | HY18CV8S-30 | 4b,5b | dumped |
Others
1x 28x2 JAMMA edge connector (CN1)
1x trimmer (volume)(VR1)
2x 8 DIP switches banks (DSW1,DSW2)
Notes
PCB is marked: "DE-0407-2 MADE IN JAPAN" and "DATA EAST TM CG-2" on component side
update 20231117: BETTER DESCRIPTION
Files
-

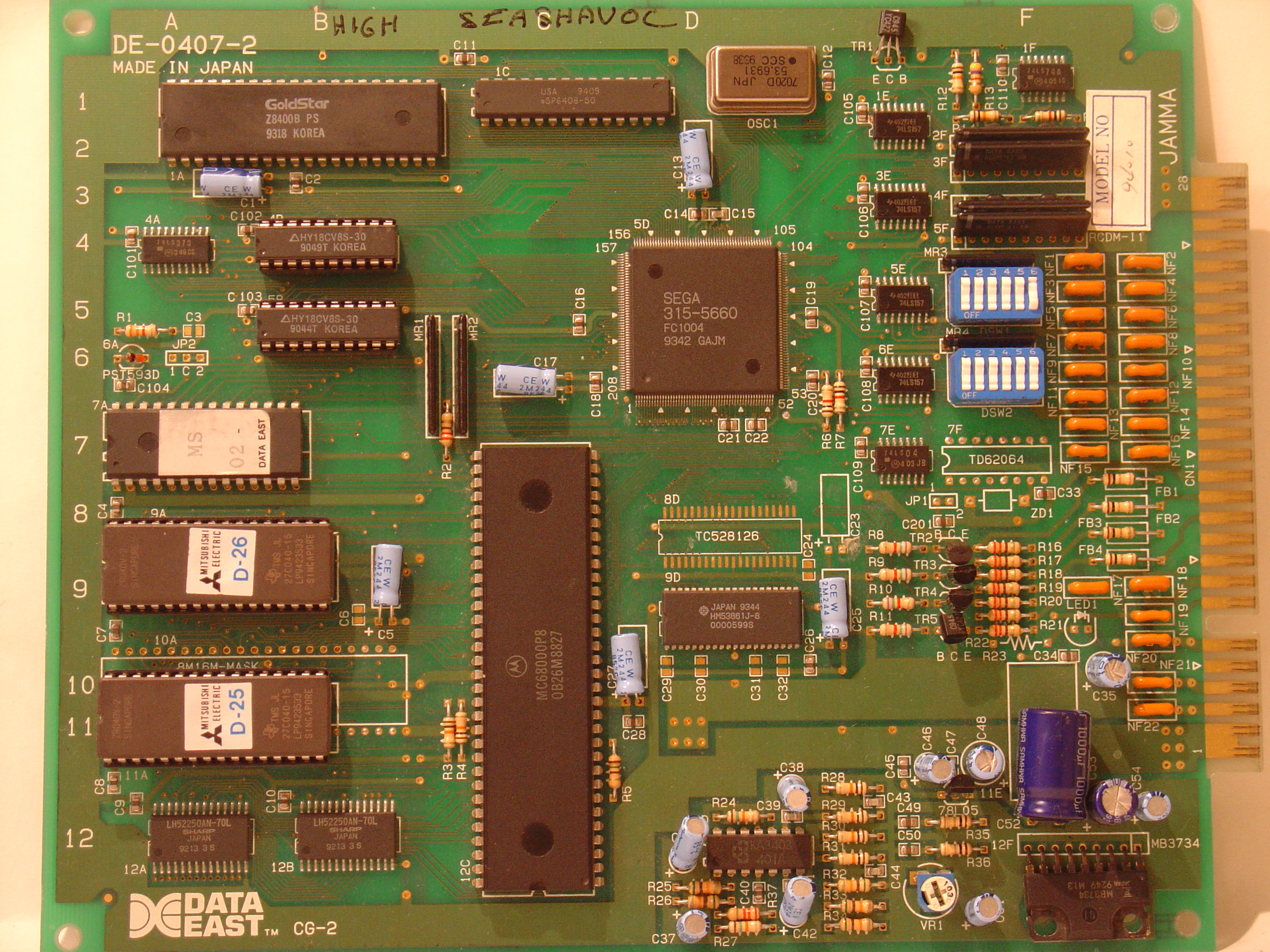

1st PCB component side 1
-

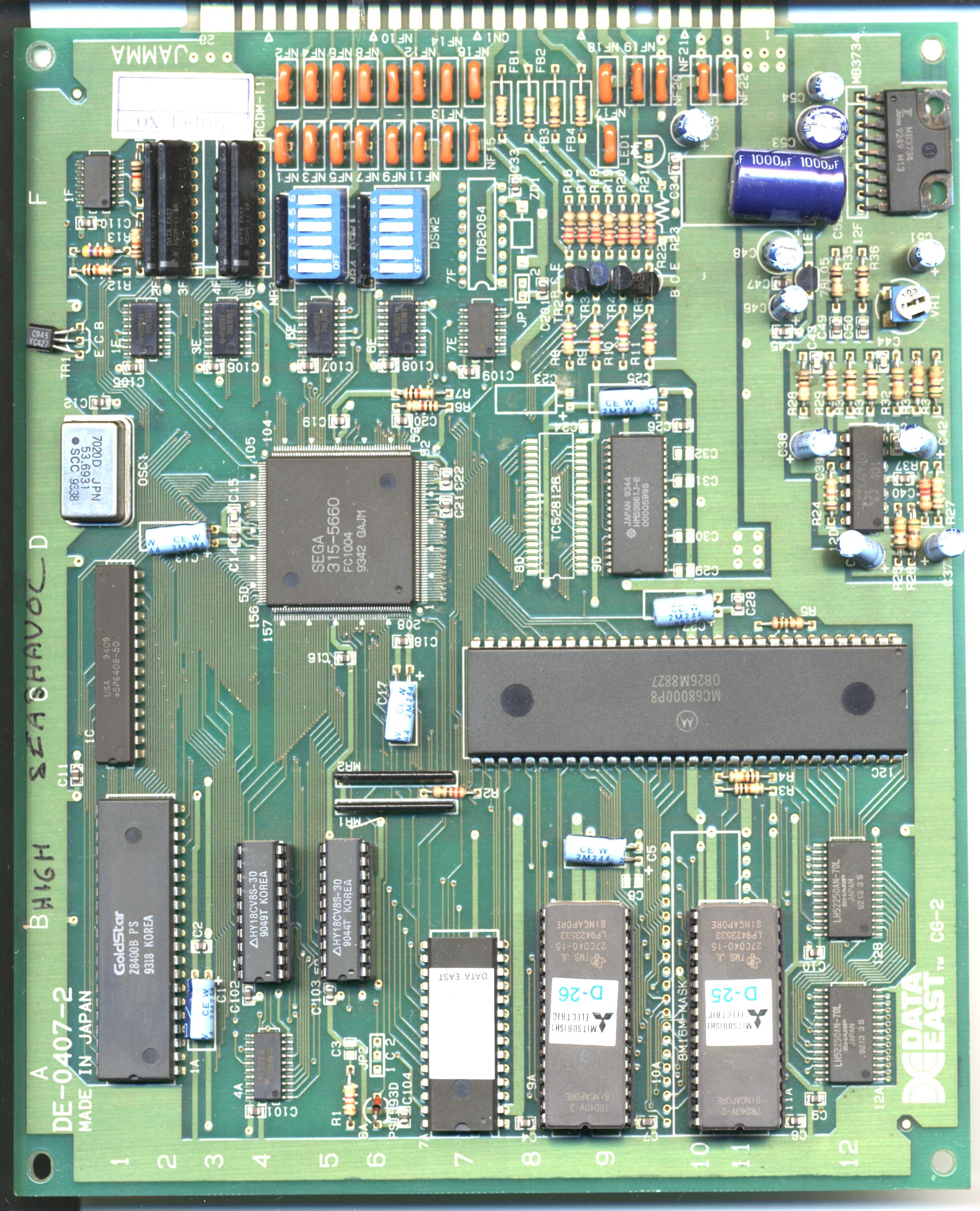

1st PCB component side 2
-

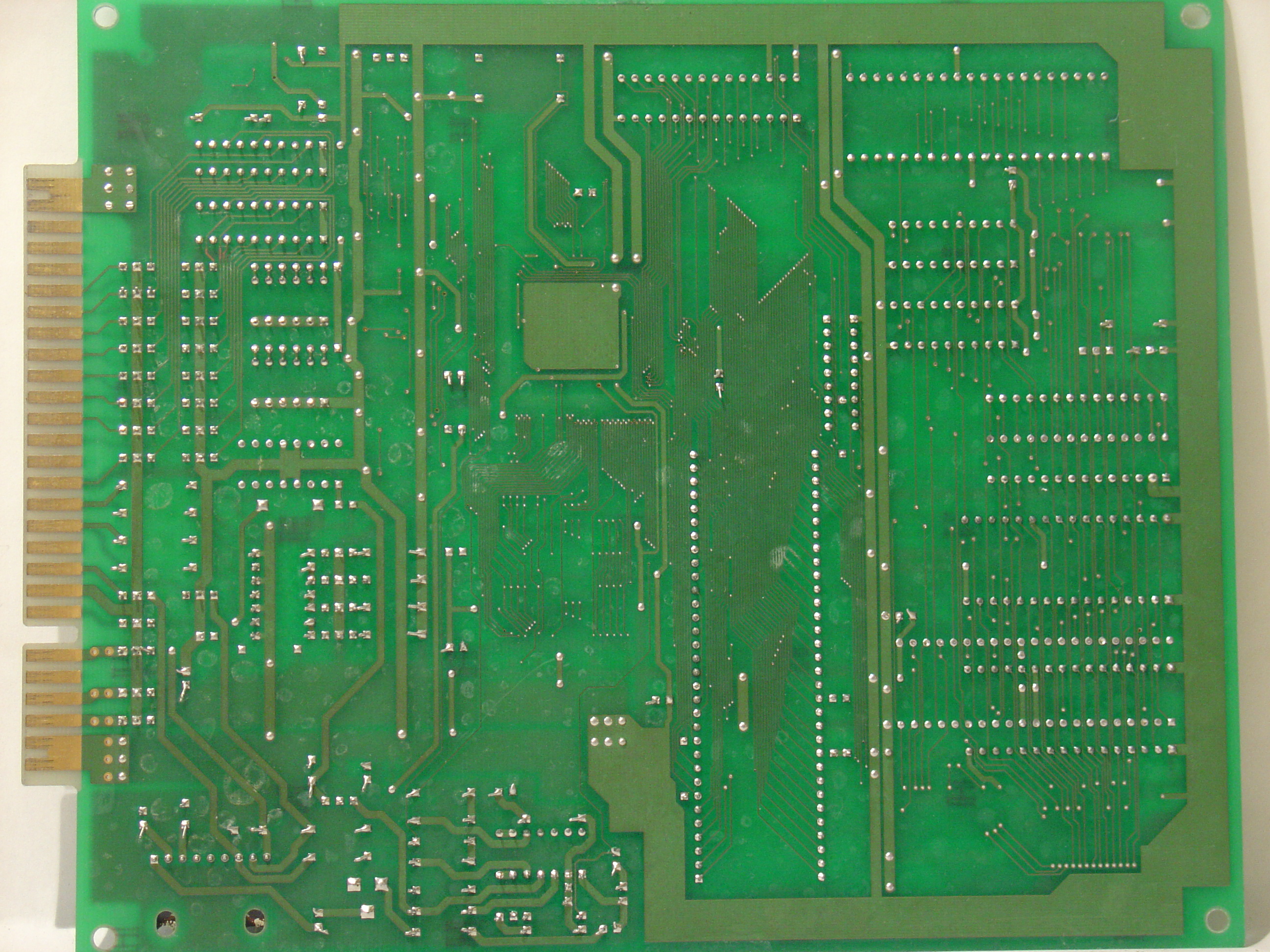

1st PCB solder side
-

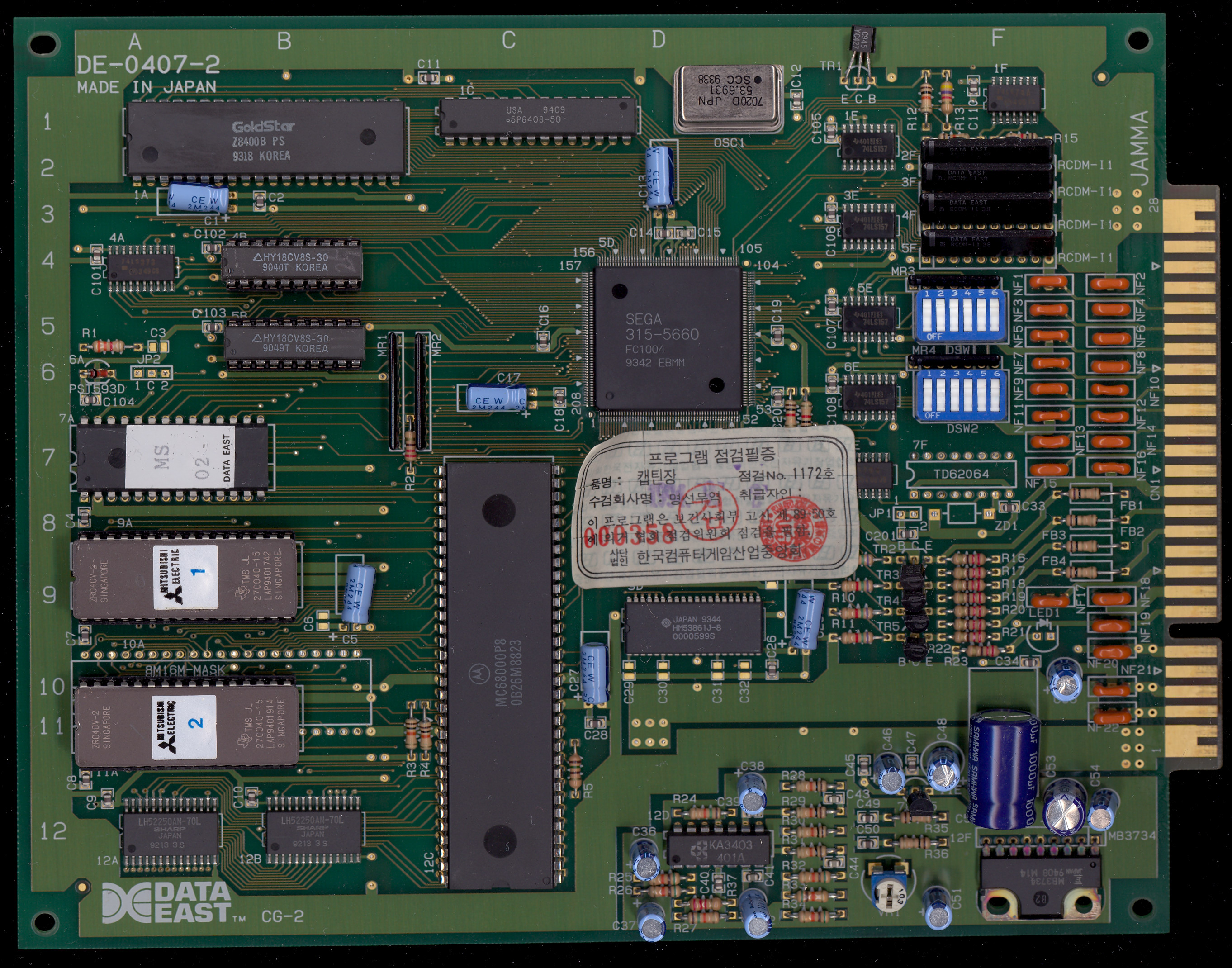

2nd PCB component side
-

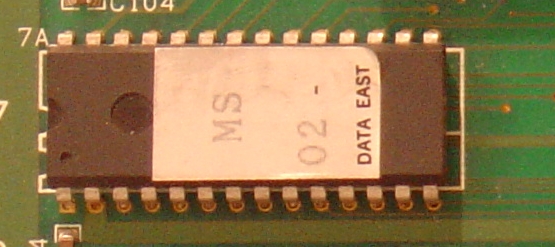

PIC16C57
-
Boot screen
-

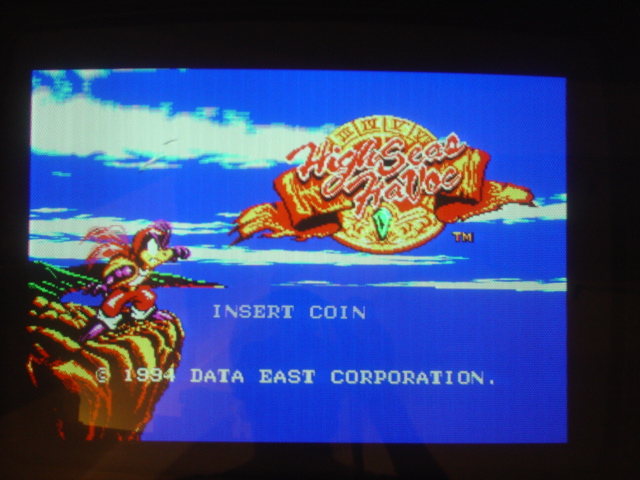

Title
-

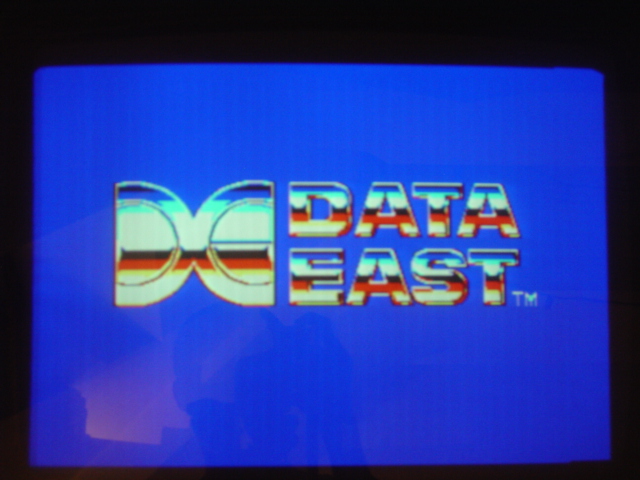

Intro
-

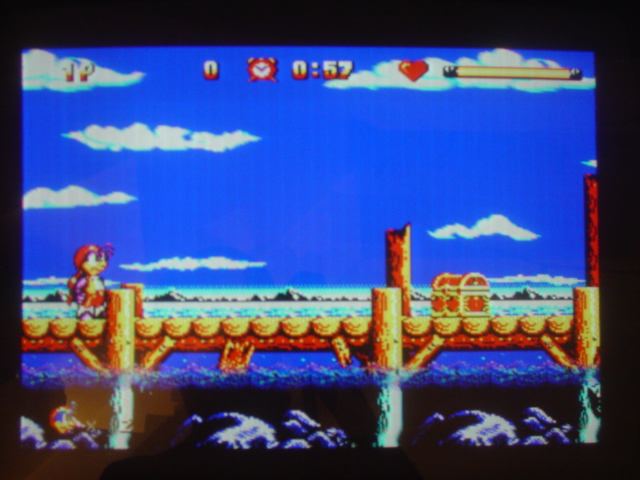

In game 1
-

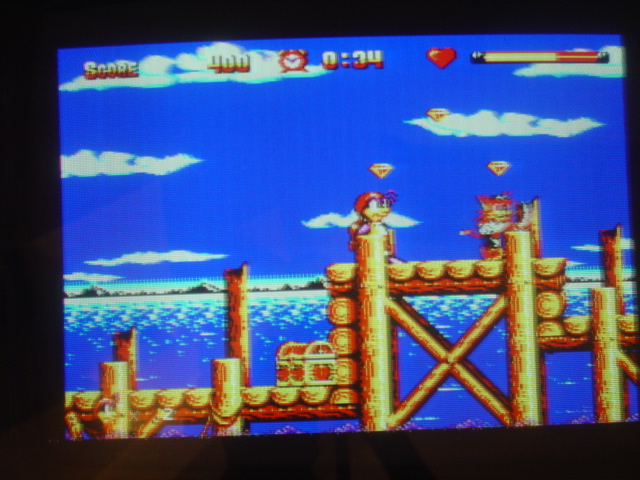

In game 2
-

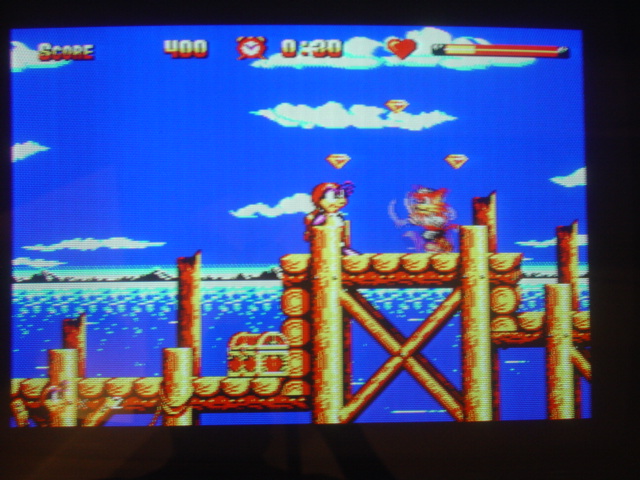

In game 3
-

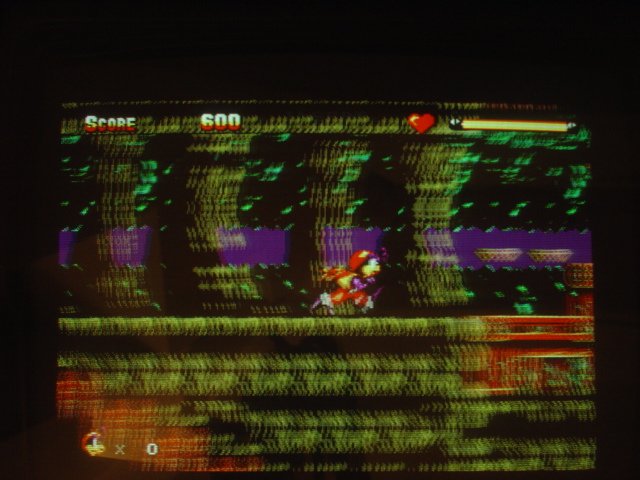

In game 4
-

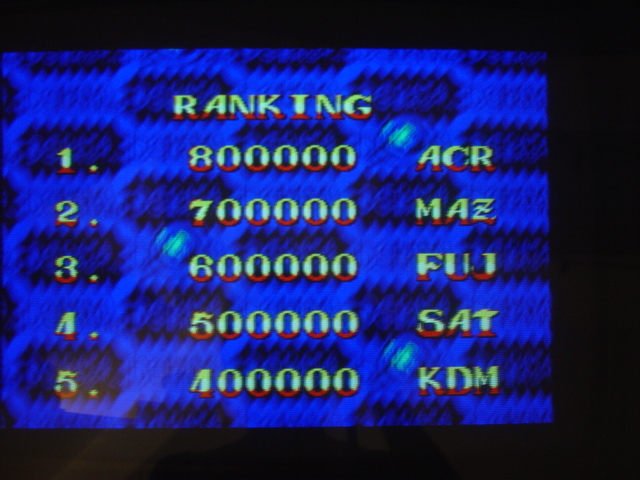

Hiscore
