High Impact Football (prototype, revision0 proto 8.6 12/09/90)

EMU Infos

dumper	f205v
date	03/09/2017
emulator	MAME 0.93
dev	Brian Troha

PCB Infos

name	hiimpactp on ProgettoEMMA hiimpactp on Arcade Database
description	High Impact Football (prototype, revision0 proto 8.6 12/09/90)
year	1990.12.09
manufacturer	Williams

Technical references

CPUs

QTY	Type	clock	position	function

ROMs

QTY	Type	position	status
17x	D27C010	u4-u114	dumped

RAMs

QTY	Type	position

PLDs

QTY	Type	position	status

Notes

Blister only, no PCB

---

label format is:
---
|P|------------------------
|R||     HIGH IMPACT      | -> game name
|O||     SOUND ROM U4     | -> rom function and position
|T||   (C) 1990 WILLIAMS  | -> copyright
|O||ELECTRONICS GAMES INC.| -> copyright
|8|------------------------
---

Files

•

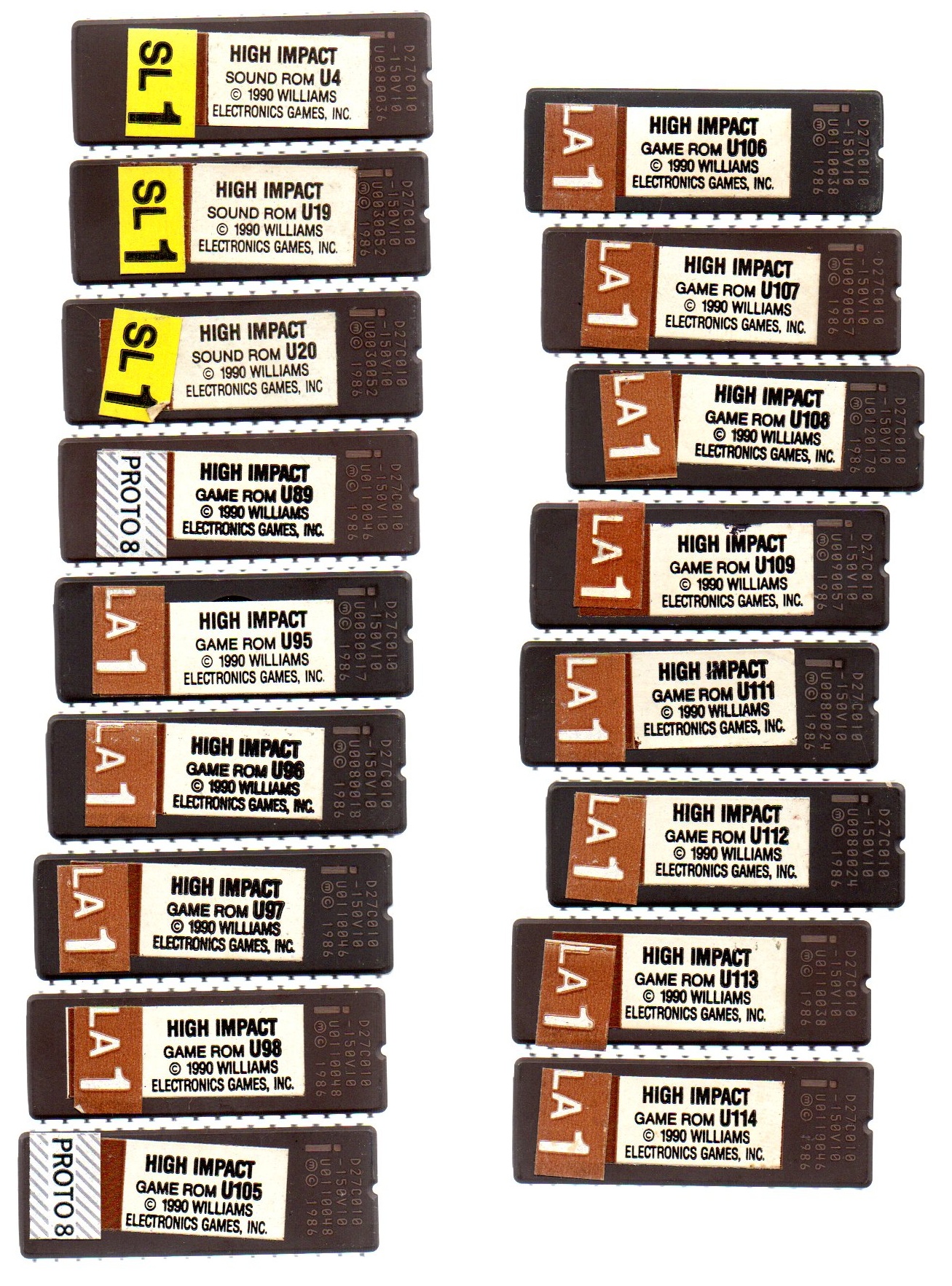

  EPROMs

1556
