Heat of Eleven '98 (ver EAA)
dumper | f205v |
date | 20/03/2005 |
emulator | MAME 0.104u9 |
dev | Ville Linde |
name | heatof11 on Arcade Database |
description | Heat of Eleven '98 (ver EAA) |
year | 1998 |
manufacturer | Konami |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
2x | IBM PowerPC 602 - EMPPC602FB66 | upper board IC200,IC220 | main | |
1x | 3DO chip B861132-VY21118-CDE2-3DO-02473-001-0F | upper board IC240 | ||
1x | oscillator | D180A7 | upper board X480 |
ROMs
QTY | Type | position | status |
---|---|---|---|
1x | MaskROM | lower board 8Q | dumped |
1x | 93C46 | lower board 7K | will be dumped soon |
RAMs
QTY | Type | position |
---|---|---|
1x | DALLAS DS1643 | smaller board u1(5E) (dumped) |
PLDs
QTY | Type | position | status |
---|---|---|---|
1x | PALCE16V8Q | smaller board 3D | read protected |
Others
1x 28x2 JAMMA edge connector
1x 2x2 switches DIP (upper board SW460)
1x 8x2 switches DIP (lower board 8P)
Notes
This is "M2 Hardware", it's CD based.
CD has been converted into a .CHD (thanks to R.Belmont), it's not available for download here, it's too big, you can find it there, out in the wild.......
upper board is marked: "DFUP0882ZAM1 MADE IN JAPAN" on component side
upper board is labeled: "KONAMI SERIAL. NO 835094" on component side
lower board is marked: "KONAMI PWB403045B MADE IN JAPAN (C) 1997 KONAMI CO..LTD." on component side
lower board is marked: "KONAMI PWB403045B" on solder side
smaller board is marked: "KONAMI GX636-PWB(A) (C) 1997 KONAMI ALL RIGHTS RESERVED" on component side - it's located under the lower board, the two are connected.
CD is labeled: 703EAA02
update 20120912: Thanks to Tirino73 I could redumped the disk (including pre-gap) and confirm dump for the BIOS
Files
-

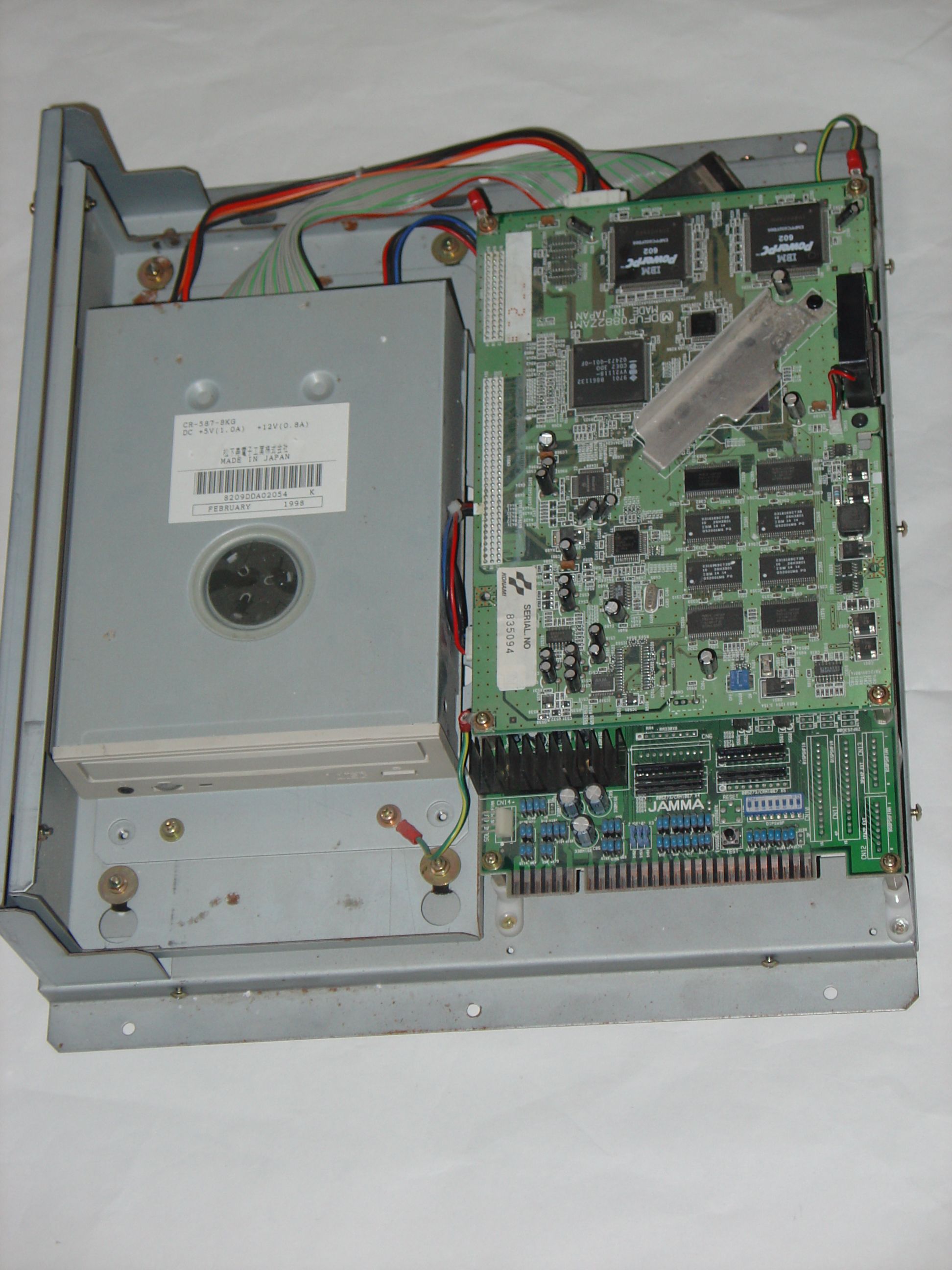

assembled unit
-

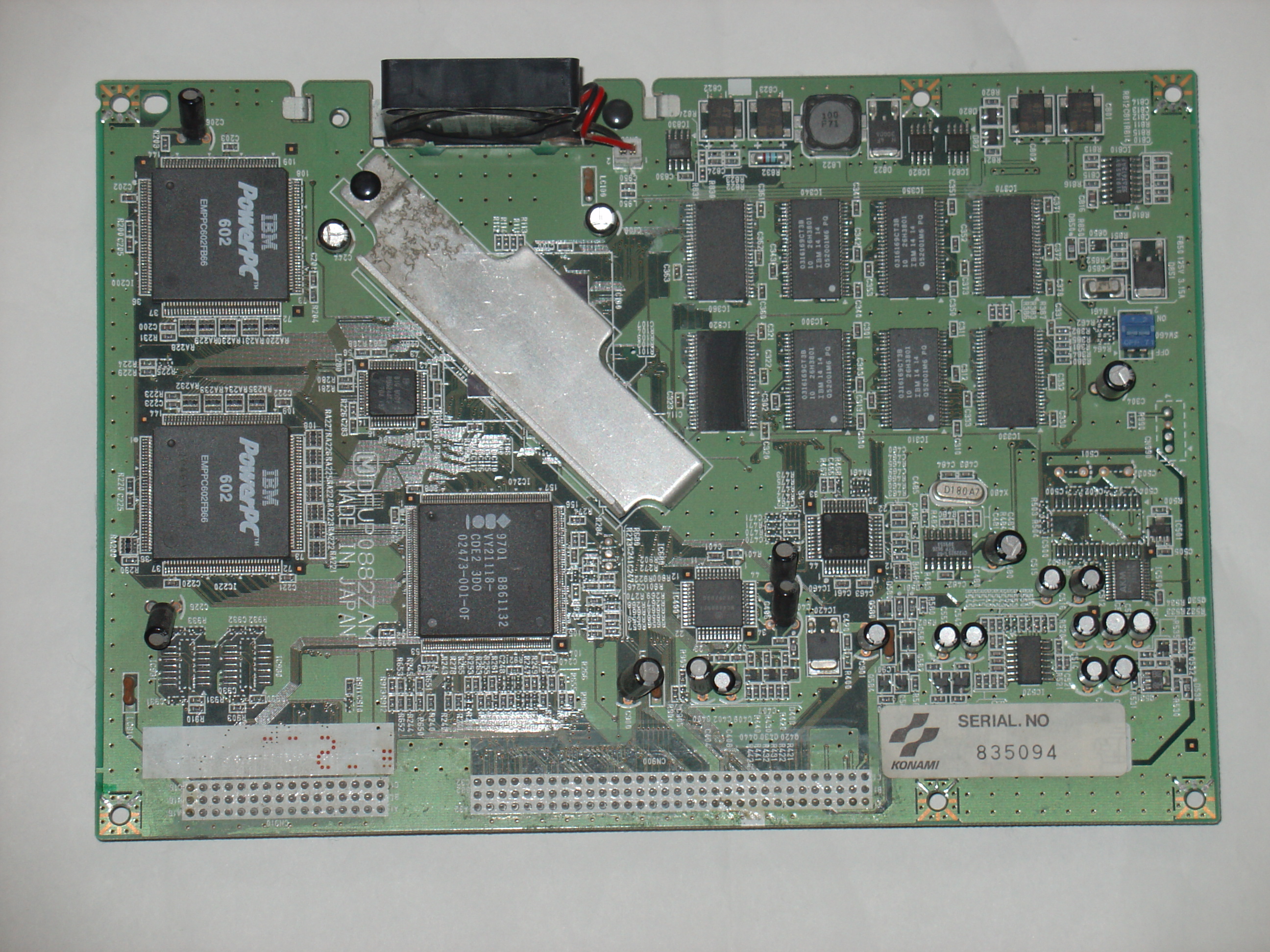

upper PCB component side
-

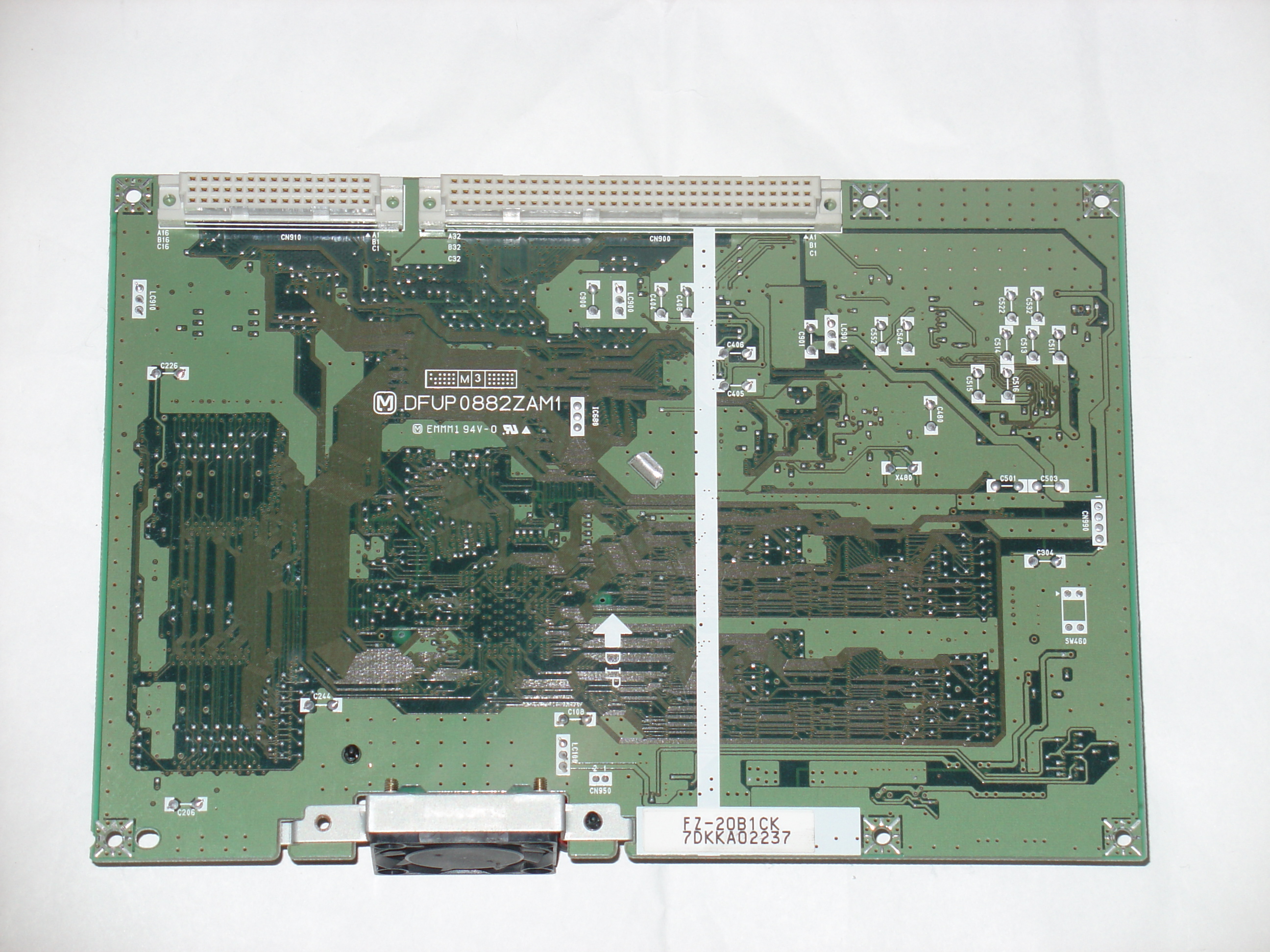

upper PCB solder side
-

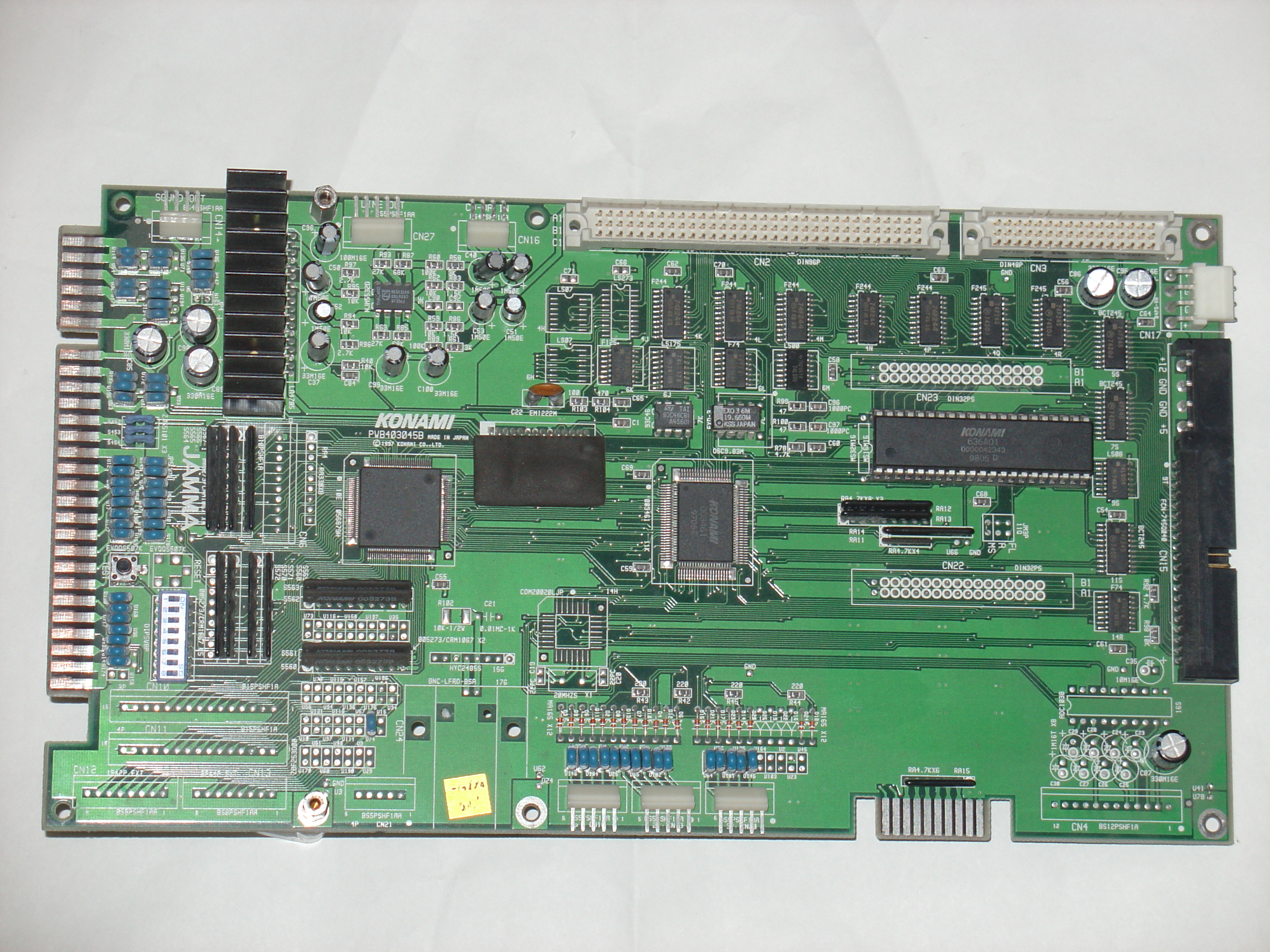

lower PCB component side
-

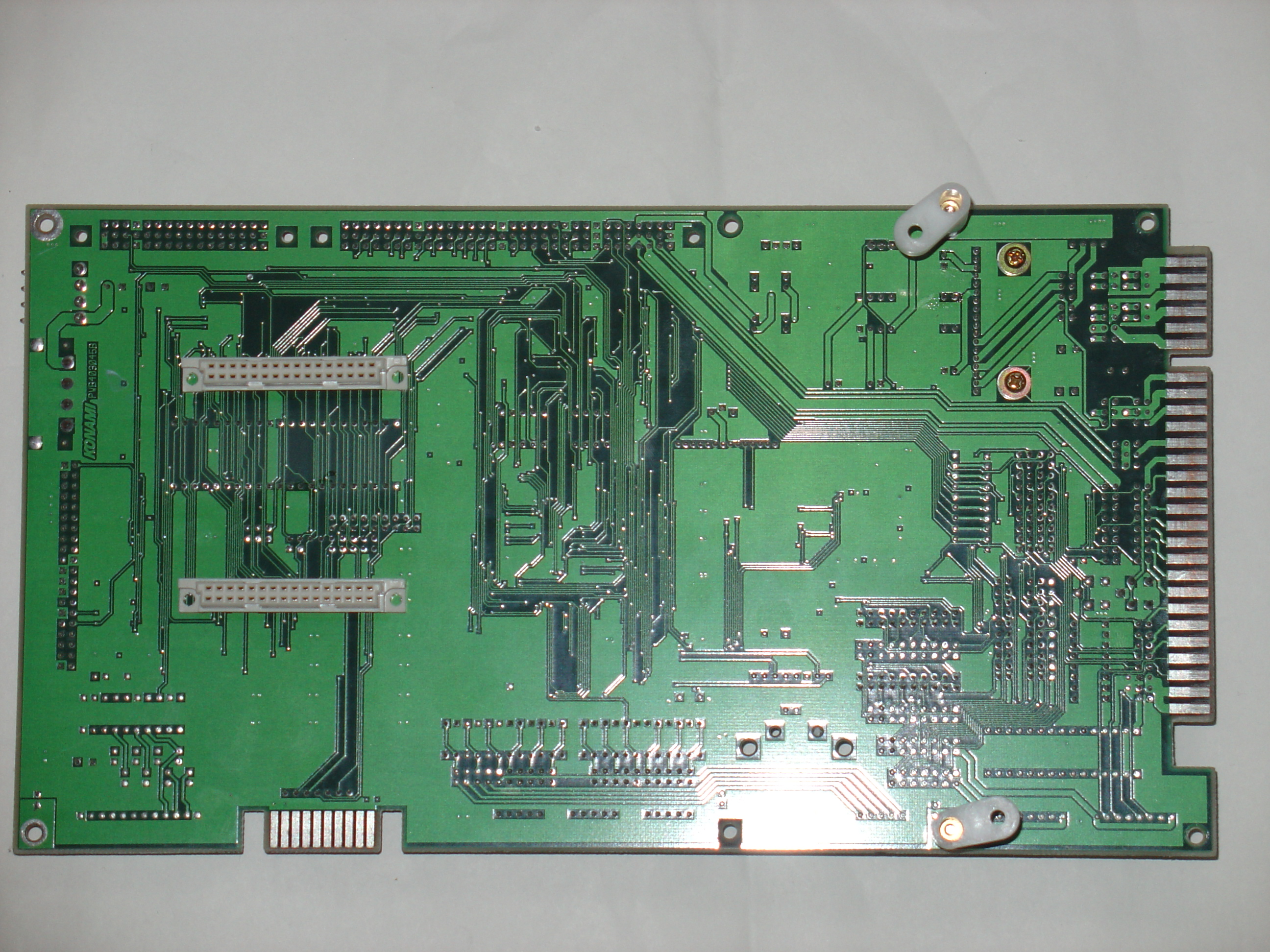

lower PCB solder side
-

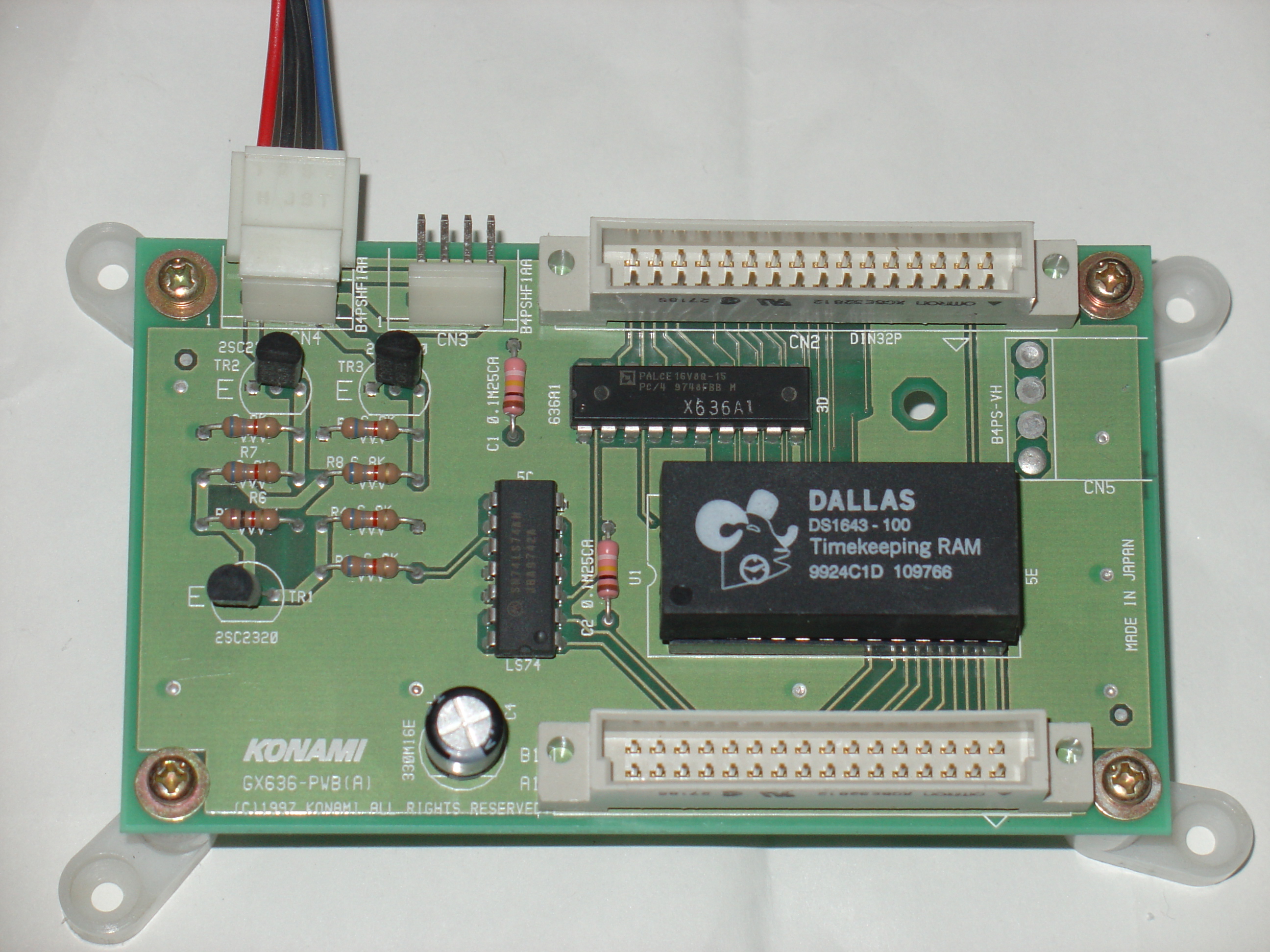

smaller PCB component side
-

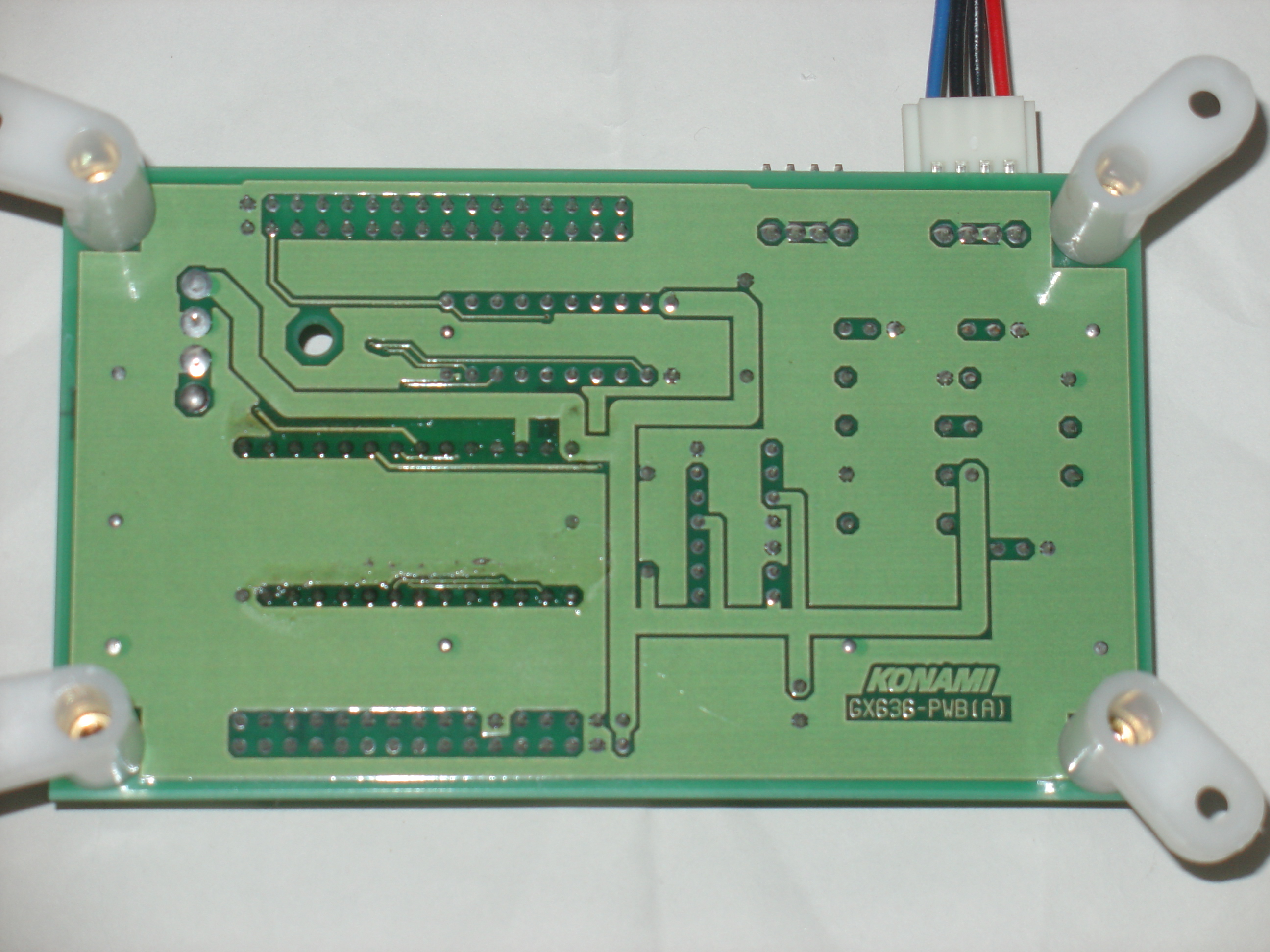

smaller PCB solder side
-

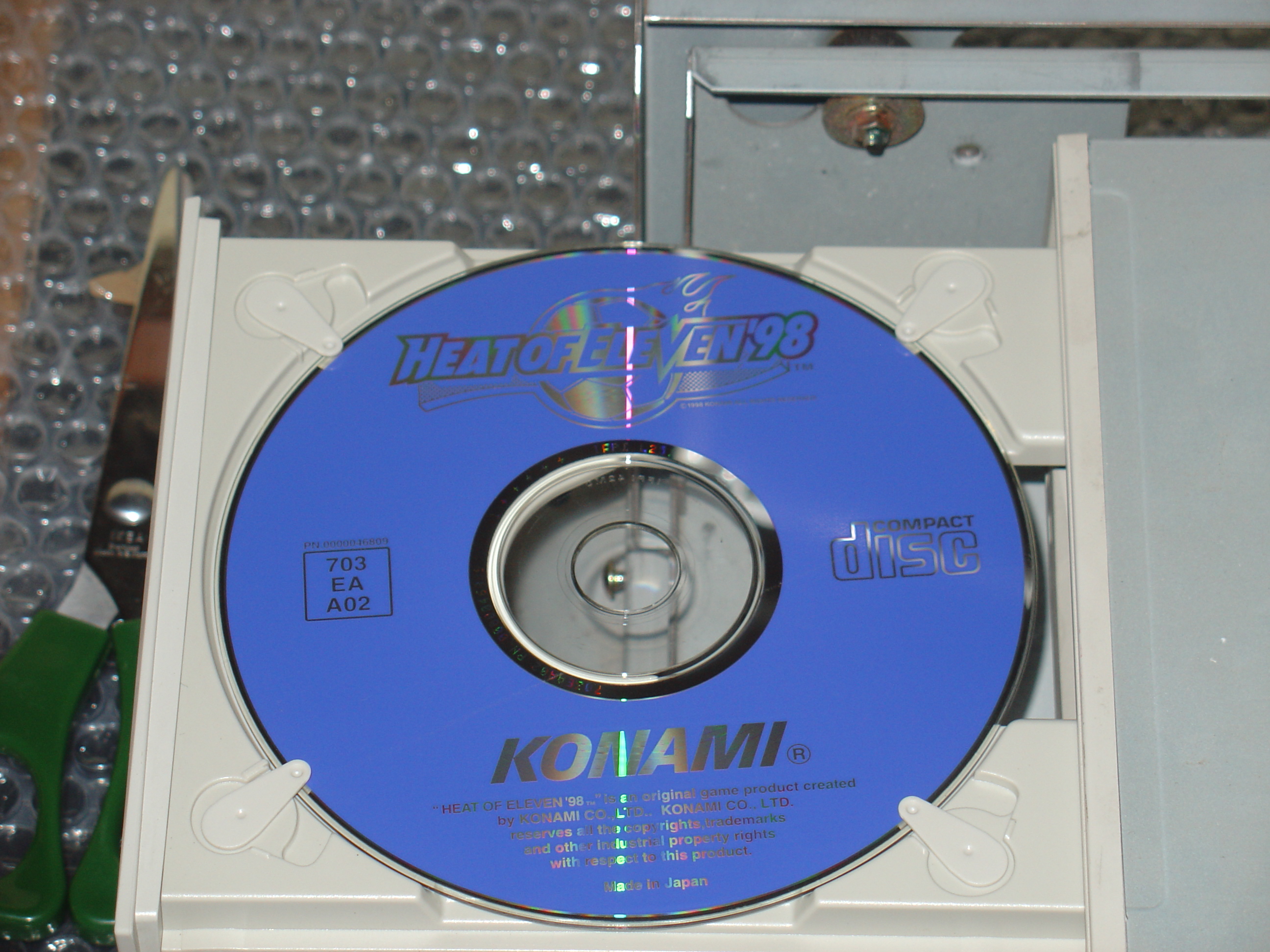

Disk 1
-

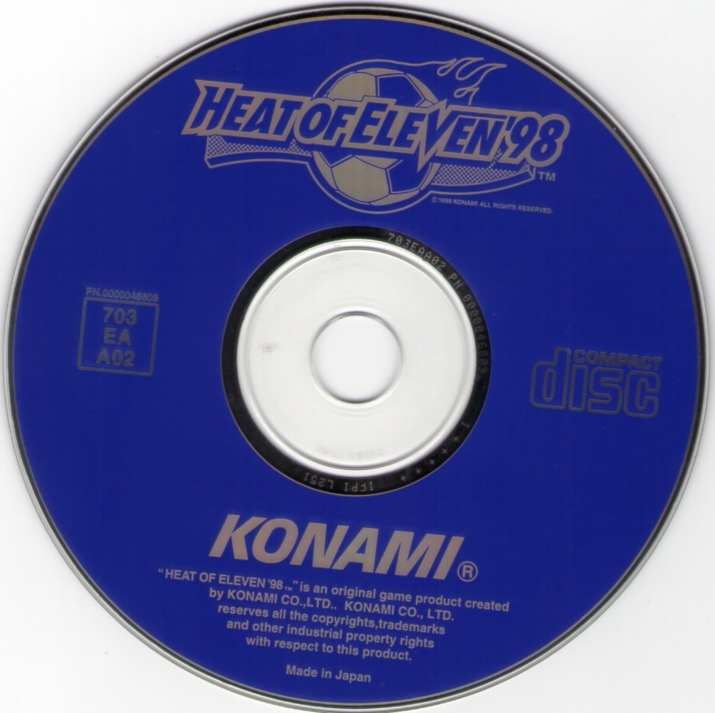

Disk 2
-
Read me
