Happy Jackie (v110U)
From Citylan
Jump to navigationJump to search
dumper | f205v |
dump date | 13/12/2008 |
emulator | MAME 0.128u6 |
dev | David Haywood |
name | jackie on ProgettoEMMA jackie on Arcade Database |
description | Happy Jackie (v110U) |
year | 1993 |
manufacturer | IGS |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | Z0840006PSC | u16 | 8-bit Microprocessor - main | |
2x | NEC D8255AC | u43 u44 | Programmable Peripheral Interface | |
1x | IGS custom AMT001 | u21 | ||
1x | IGS custom IGS 002 | u7 | ||
1x | UM3567 | u45 | FM Operator Type-LL - sound | |
1x | oscillator | 12.000 | ||
1x | oscillator | 3.579545 |
ROMs
QTY | Type | position | status |
---|---|---|---|
2x | D27128A | 1,3 | dumped |
1x | MBM27128 | 2 | dumped |
3x | 27010 | 4,5,6 | dumped |
1x | D27512 | 7sv | dumped |
1x | MBM27C512 | v110 | dumped |
RAMs
QTY | Type | position |
---|---|---|
1x | W2466V | u11 |
1x | CXK5864CP | u24 |
2x | T6116S45L | u37 u38 |
PLDs
QTY | Type | position | status |
---|---|---|---|
1x | unknown (DIP20 mil300) | u12 | read protected -> extracted with CmD's PALdumper - resulting file is under further investigation |
3x | PEEL18CV8PC | u8 u9 u14 | read protected -> extracted with CmD's PALdumper |
1x | TIBPAL16L8 | u31 | read protected -> extracted with CmD's PALdumper |
Others
1x 38x2 edge connector
1x 10x2 edge connector
1x pushbutton
1v trimmer (volume)
5x 8x2 switches DIP
1x battery 3.6V
Notes
Working
update 20090125 Using Charles MacDonald's PAL reader I extracted the various PAL file. I'm not sure if the extraction/analisys/minimisation process went OK, because my resulting files are 279 Byte, while 18cv8 resulting files should be 341 Byte. If any DEV could please give me some indications it would be very much appreciated.
Files
-

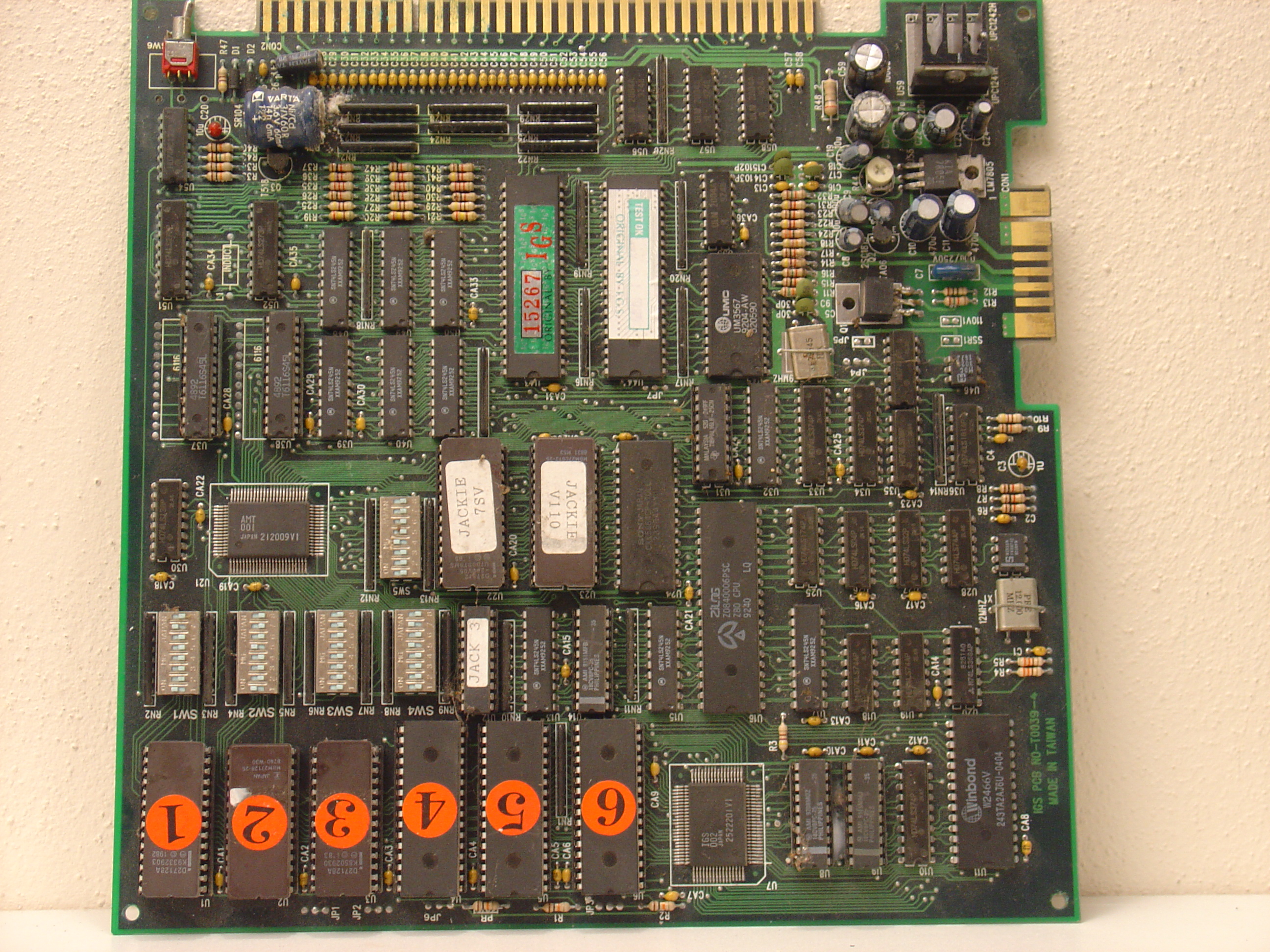

PCB component side
-

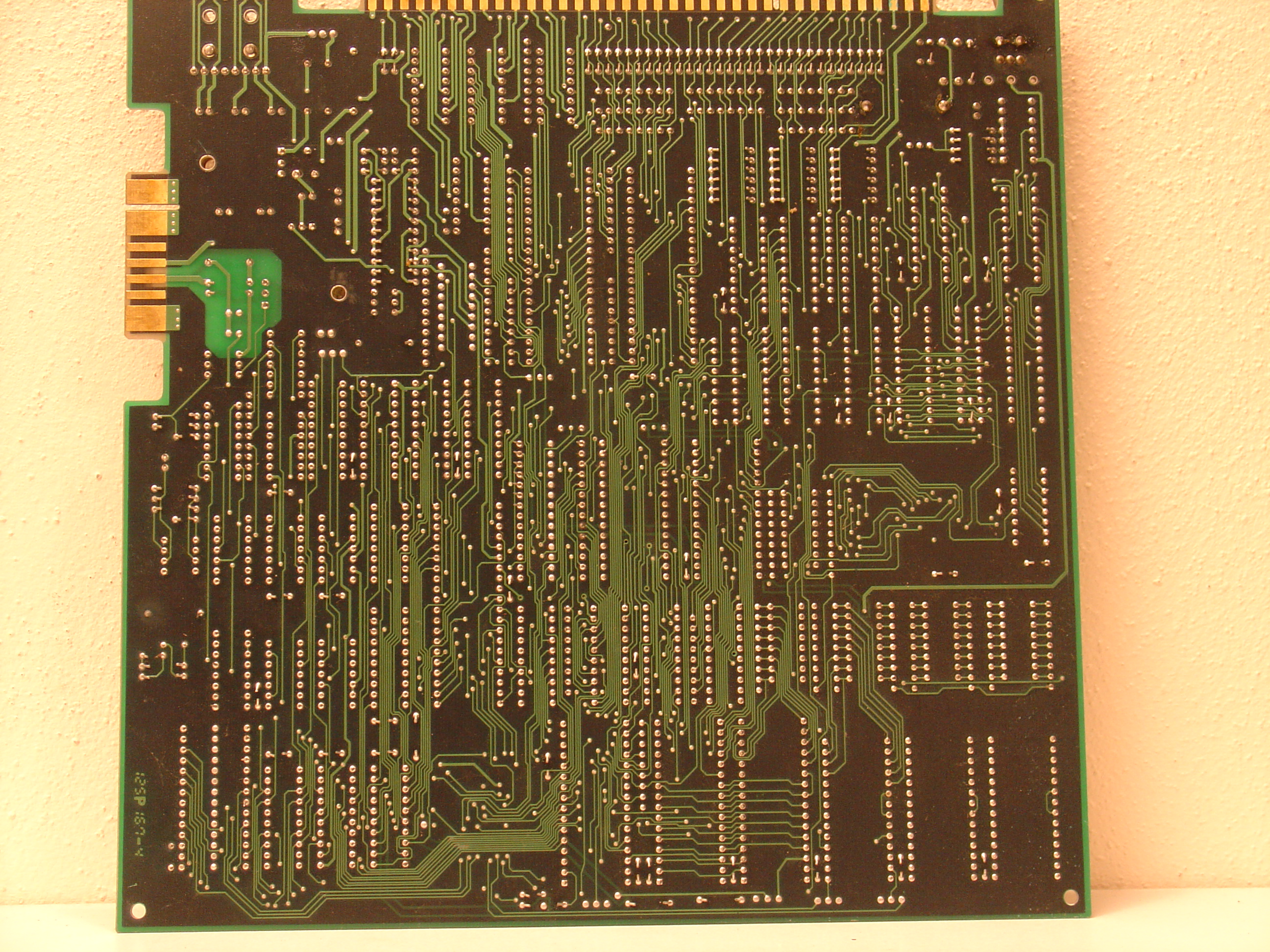

PCB solder side
-

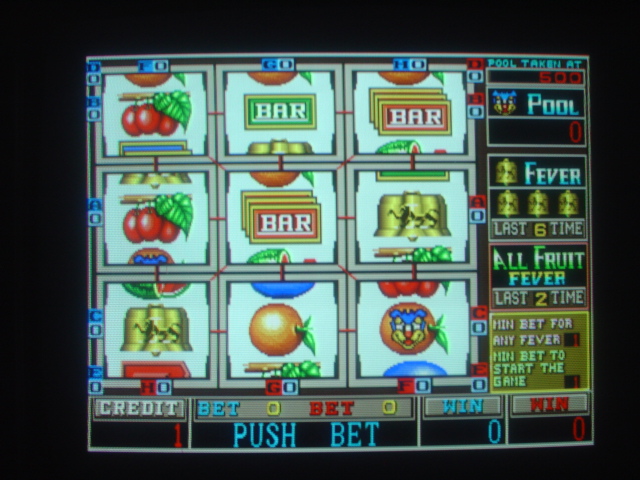

In game 1
-

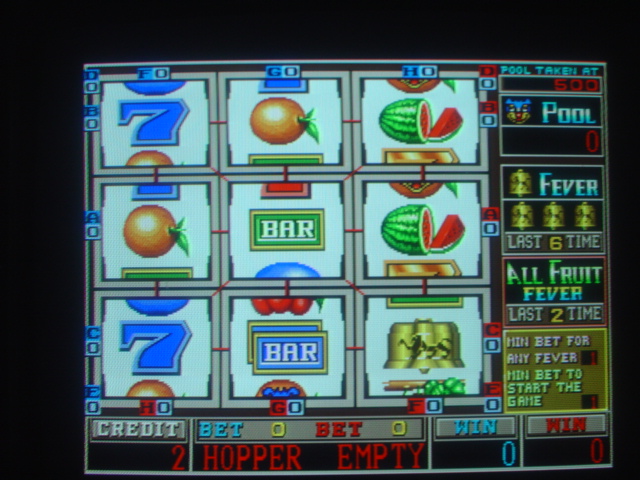

In game 2
-

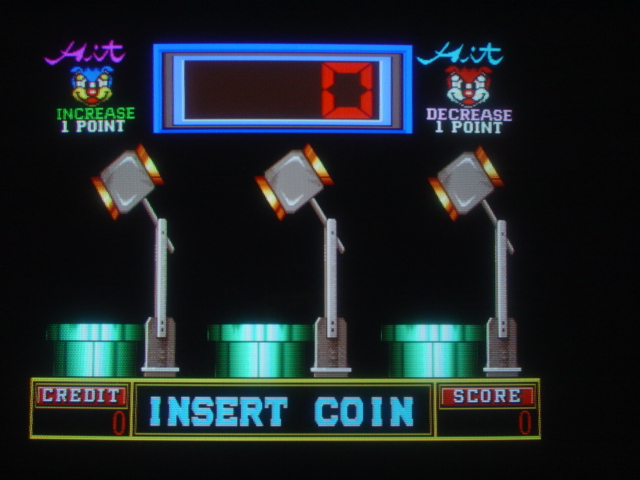

In game 3
-

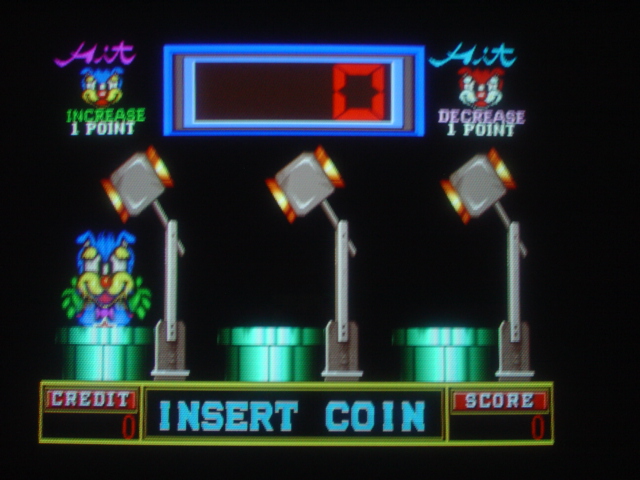

In game 4
-

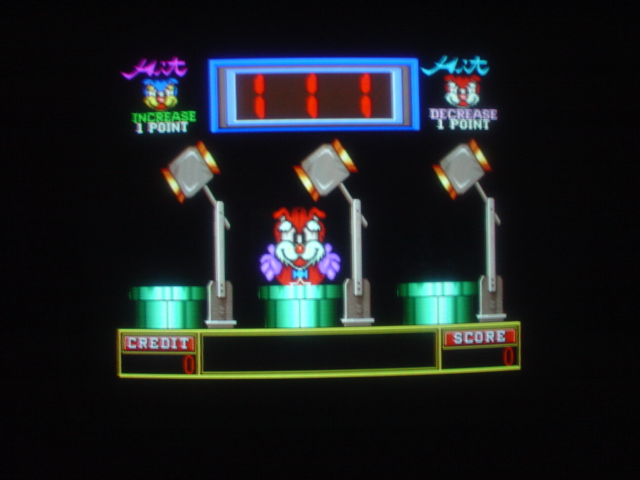

In game 5
-

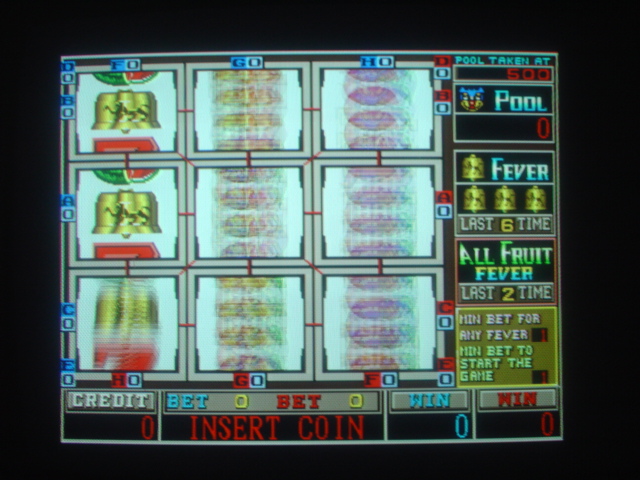

Attract mode 1
-

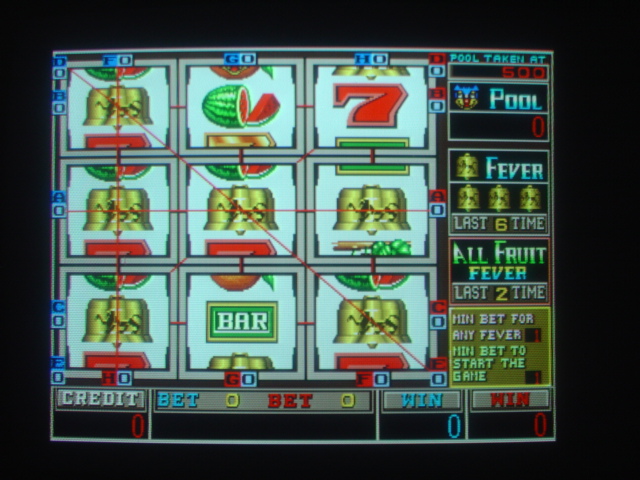

Attract mode 2
-

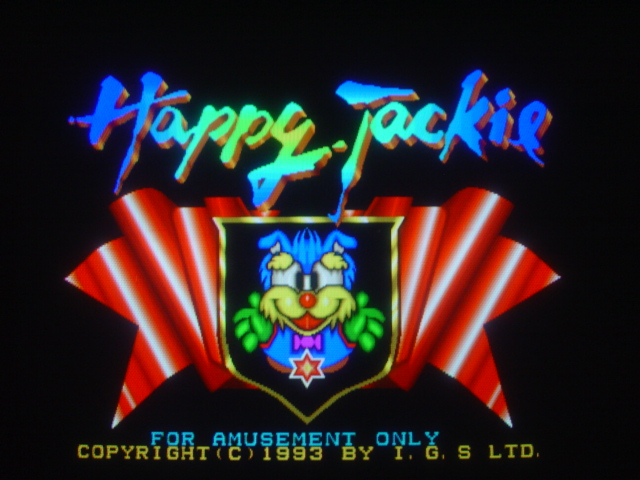

Title
-

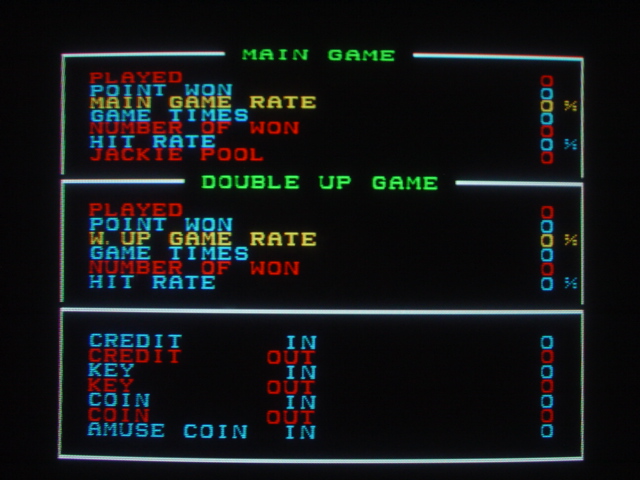

Statistics 1
-

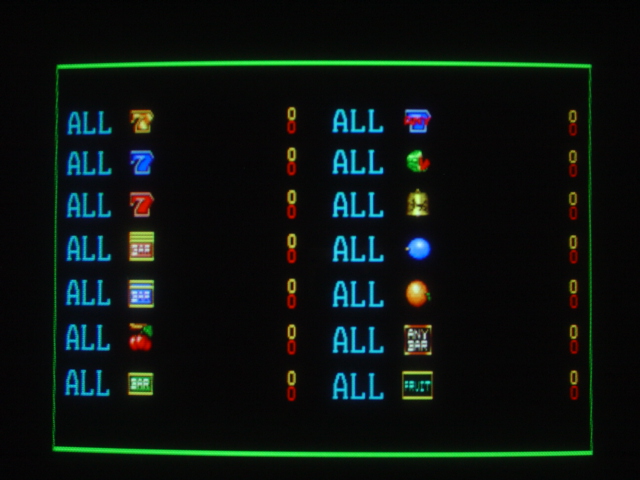

Statistics 2
-

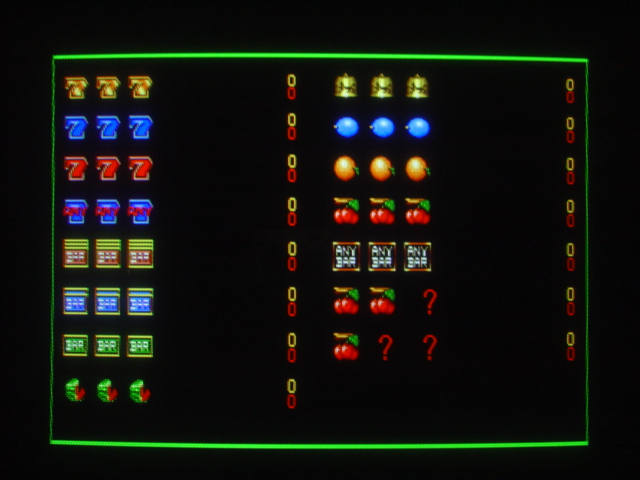

Statistics 3
-

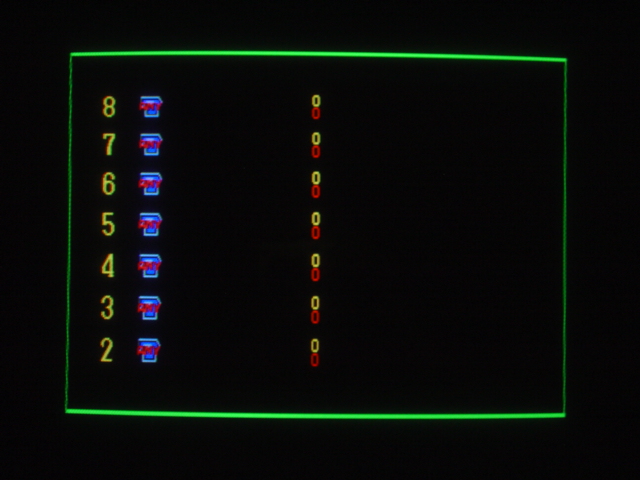

Statistics 4
-
ROMs
