Grande Fratello (Ver. 1.7)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 13/03/2016 |
| emulator | MAME 0.179 |
| dev | Osso |
| name | granfrat on ProgettoEMMA granfrat on Arcade Database |
| description | Grande Fratello (Ver. 1.7) |
| year | 200x |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | H8/3337 | u1 | 32-bit Single-Chip Microcomputer - main (internal ROM not dumped) | |
| 1x | D7759GC | u25 | ADPCM Speech Synthesizer LSIs - sound | |
| 1x | TDA2003 | u26 | Audio Amplifier - sound | |
| 1x | oscillator | 14.31818MHz | u30 | |
| 1x | oscillator | 16.000MHz | x1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | MX27C2000 | 0 | dumped |
| 4x | M27C4001 | 1-4 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | MX66C1024MC-70 | u9,u10,uu11 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI1032E-70LJ | u2,u3 | read protected |
Others
1x 28x2 JAMMA edge connector (J1)
1x RS232 connector (J2)
1x 7x2 pins connector (J3)
1x 17x2 pins connector (J5)
2x trimmer (P1-A/S)(P2-VOL)
2x 8x2 switches DIP (SW1,SW2)
1x battery 3.6V (BT1)
Notes
Files
-

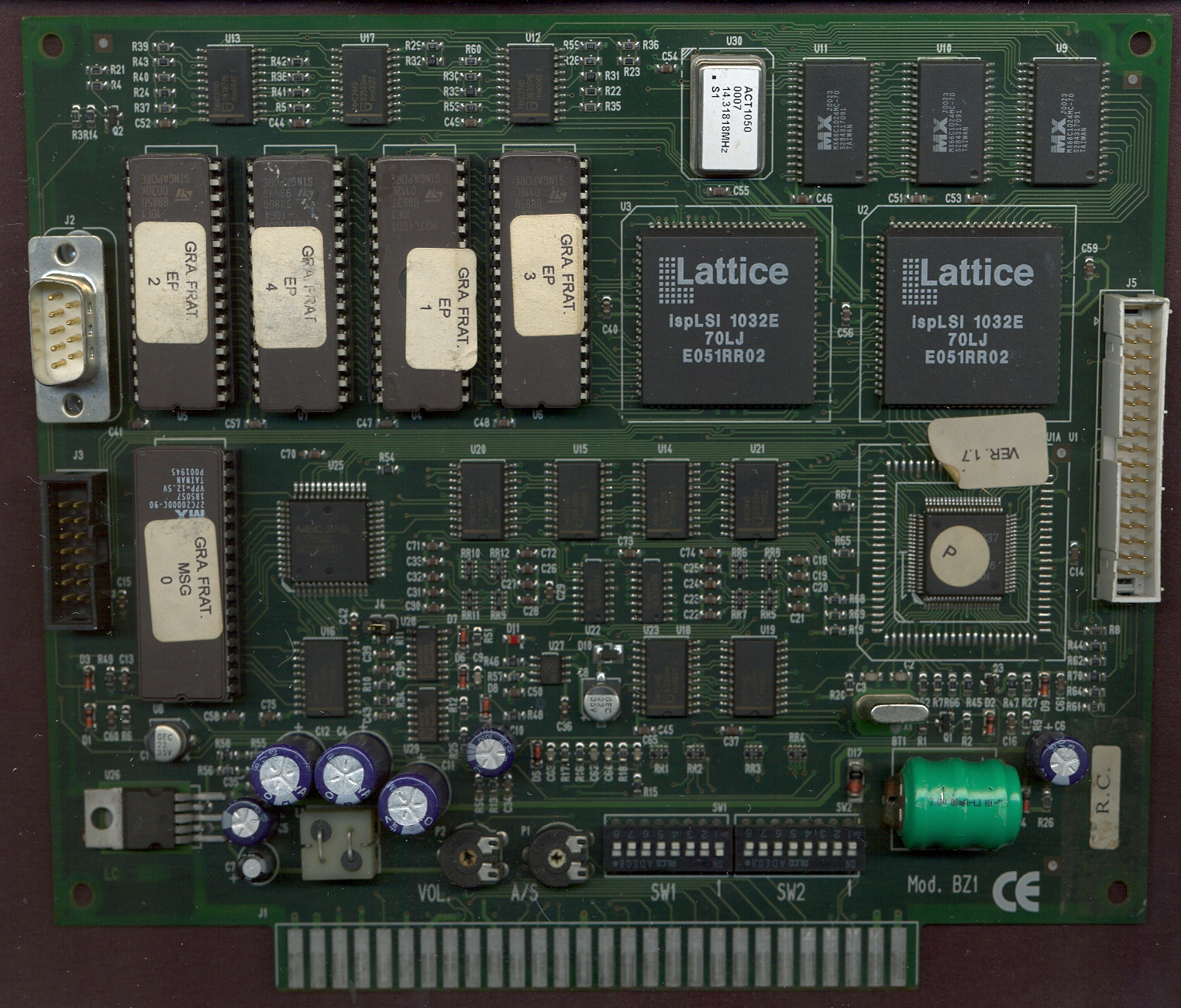

PCB component side
-

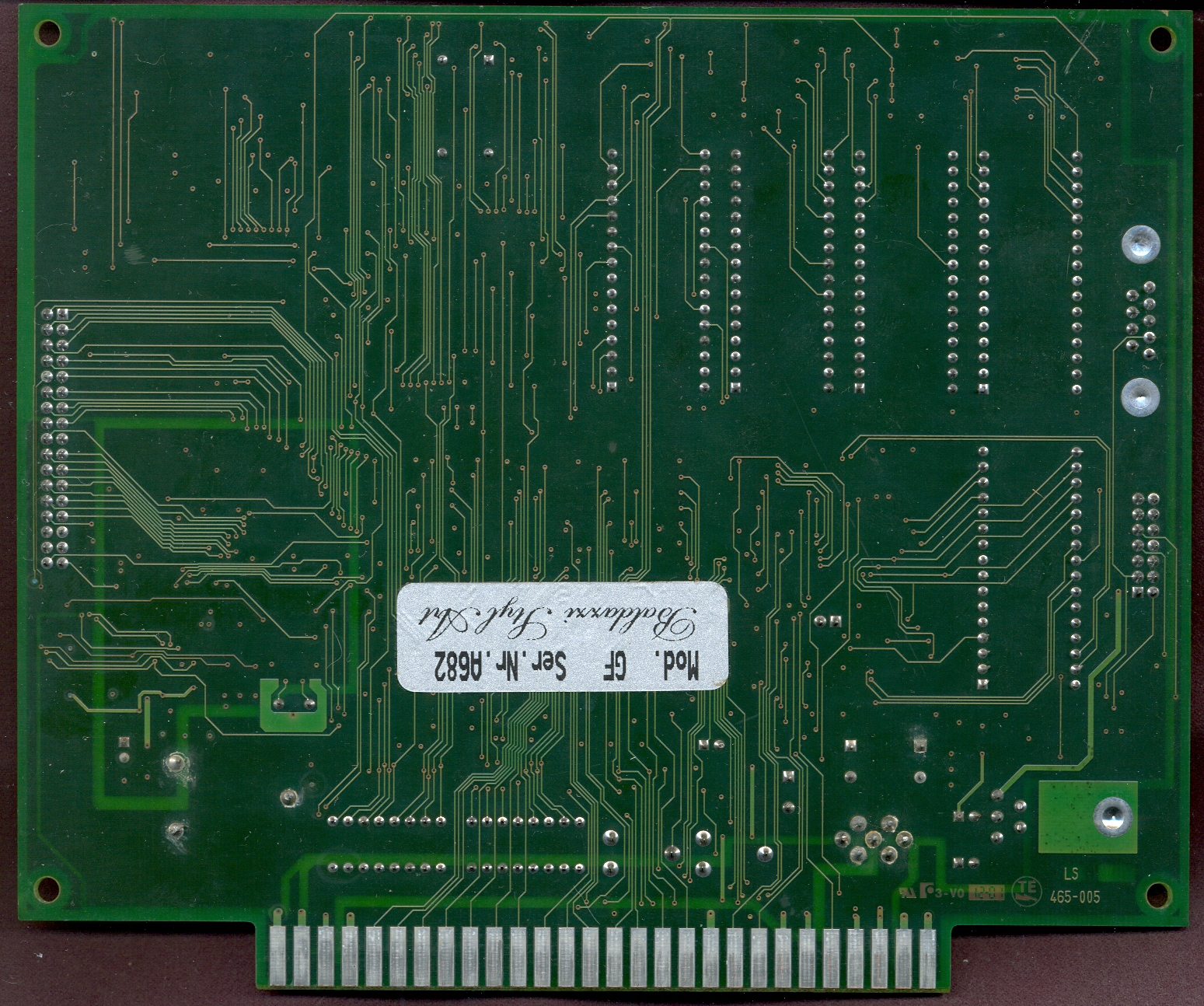

PCB solder side
-

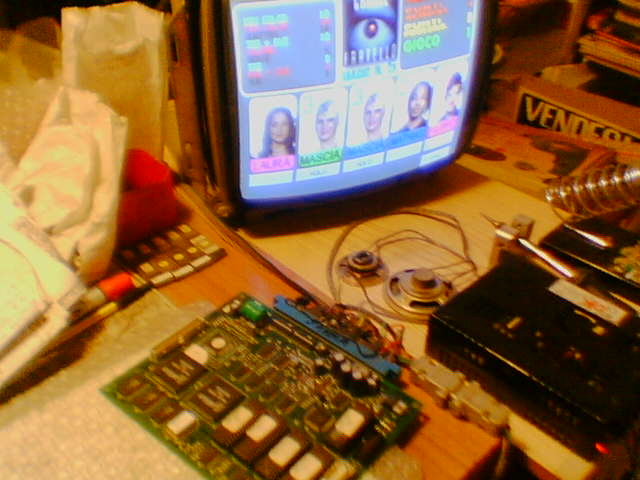

In game
