Grand Striker (Europe, Oceania)
From Citylan
Jump to navigationJump to search
dumper | f205v |
date | 26/09/2005 |
emulator | MAME 0.61 |
dev | Farfetch'd |
name | gstriker on ProgettoEMMA gstriker on Arcade Database |
description | Grand Striker (Europe, Oceania) |
year | 1993 |
manufacturer | Human |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | TMP68HC000P-16 | u53 | 16/32-bit Microprocessor - main | |
1x | MC68B50CP | u101 | Asincronous Communications Interface Adapter (ACIA) | |
1x | unknown | u18 | unmarked QFP160-(40x40)-28x28mm | |
1x | unknown | u30 | unmarked QFP160-(40x40)-28x28mm | |
1x | unknown | u76 | unmarked QFP100-(30x20)-20x14mm | |
1x | unknown | u100 | unmarked QFP80-(24x16)-20x14mm | |
1x | Z0840006PSC-z80CPU | u90 | 8-bit Microprocessor - sound | |
1x | YM2610 | u95 | FM Operator Type-N (OPN) - sound | |
1x | MB3735 | Audio Amplifier - sound | ||
1x | oscillator | 20.000000MHz | u113 | |
1x | oscillator | 8MHz | X1 |
ROMs
QTY | Type | position | status |
---|---|---|---|
2x | M27C1001 | u79,u87 | dumped |
2x | M27C4001 | u6,u58 | dumped |
1x | 27080 | u99 | dumped |
7x | TC5316200BP | u2,u4,u22,u23,u24,u25,u93 | dumped |
RAMs
QTY | Type | position |
---|---|---|
12x | MB8464A-80L | u10,u12,u14,u16,u17,u33,u41,u42,u71,u72,u74,u75 |
4x | SRM22256C | u9,u11,u13,u15 |
1x | PDM41298LA25P | u32 |
3x | BR6116P-45 | u92,u102,u104 |
PLDs
QTY | Type | position | status |
---|---|---|---|
1x | TIBPAL16L8 | u52,u74,u75,u89,u109 | dumped |
Others
1x 28x2 JAMMA edge connector
1x RS232 connector (CN1)
1x trimmer (volume)
2x 8 DIP switches banks (SW1,SW2)
Notes
PCB is marked: "HUMAN" and "LD01-A MDK 321V-0" on component side
update 20180325: better description.
update 20220206: added flyer and manual thanks to Vernimark.
BTW, the correct game name should be: "Grand Striker - Human Cup (Europe, Oceania)"
Files
-

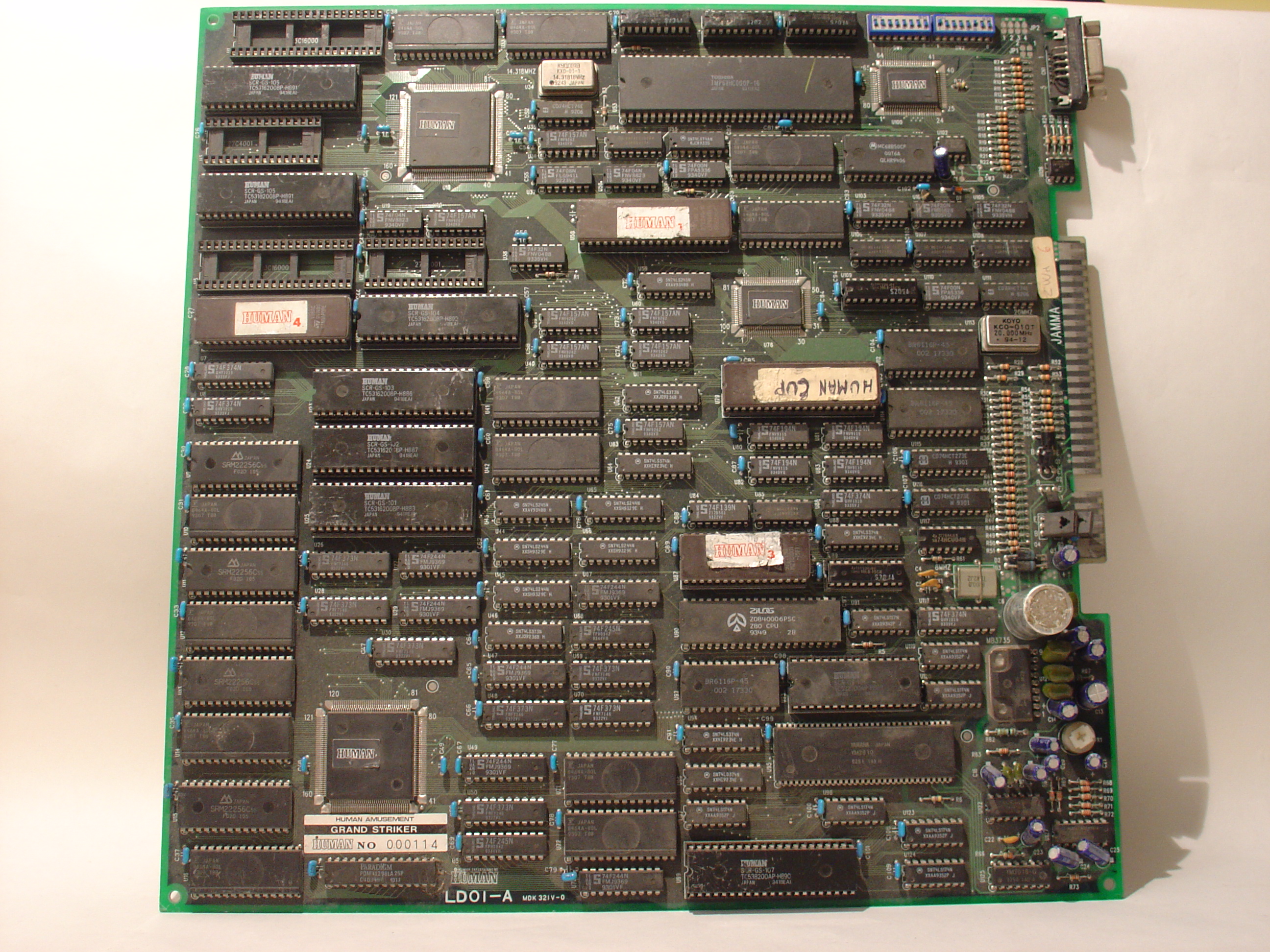

PCB component side
-

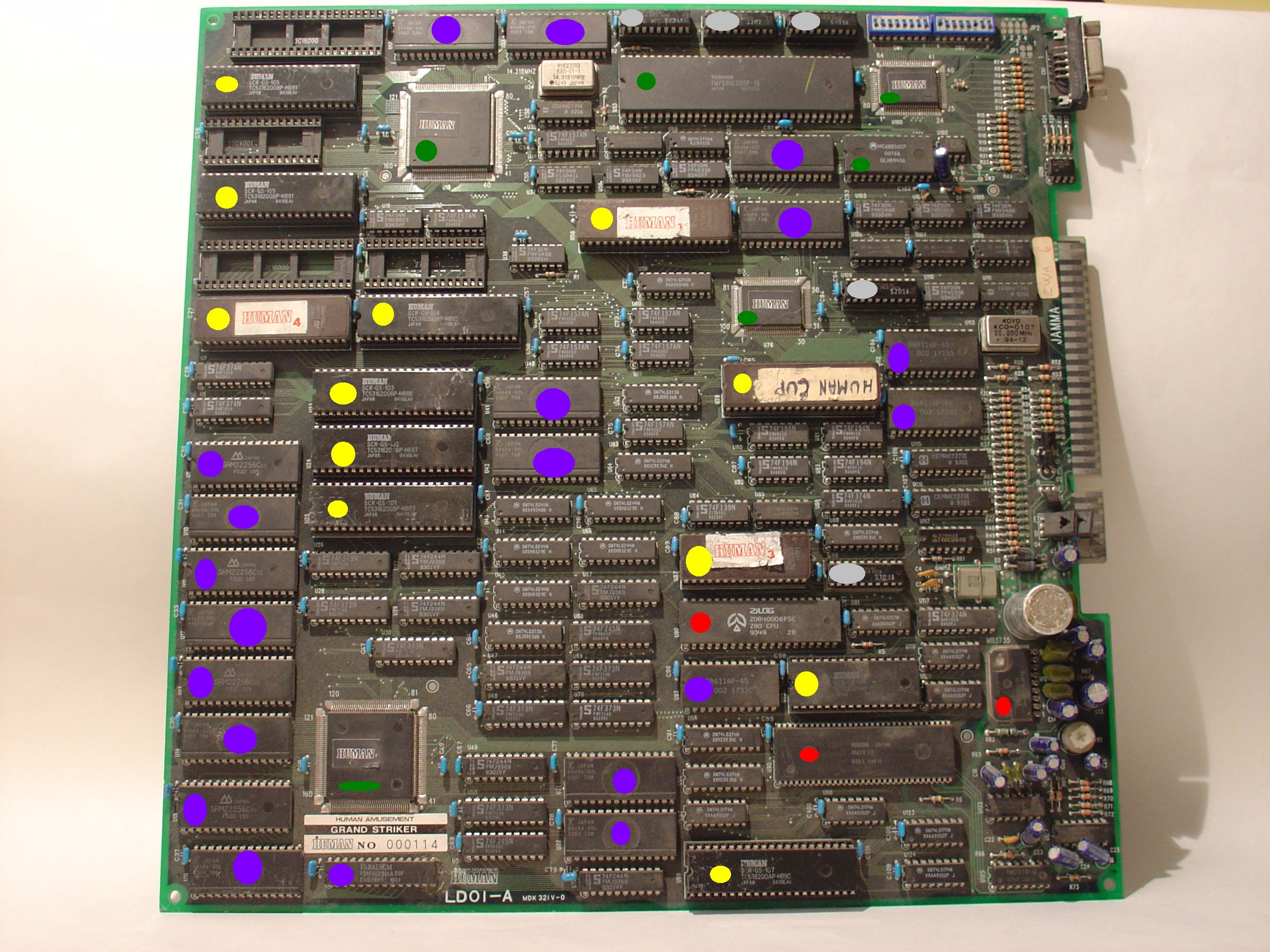

PCB component side notes
-

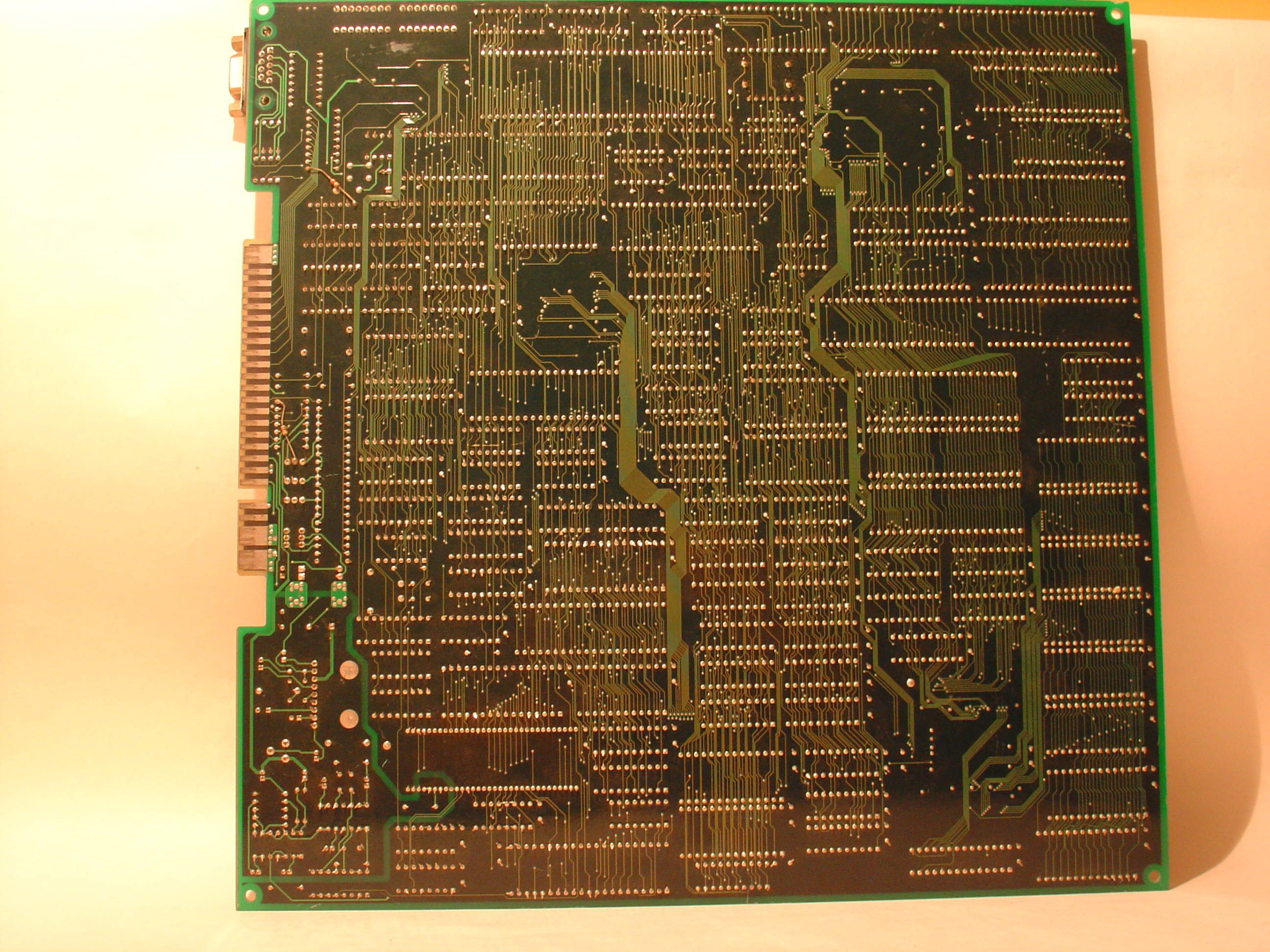

PCB solder side
-

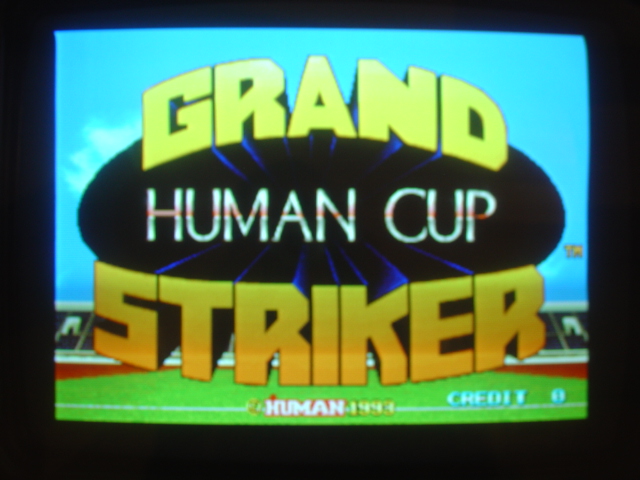

Title
-

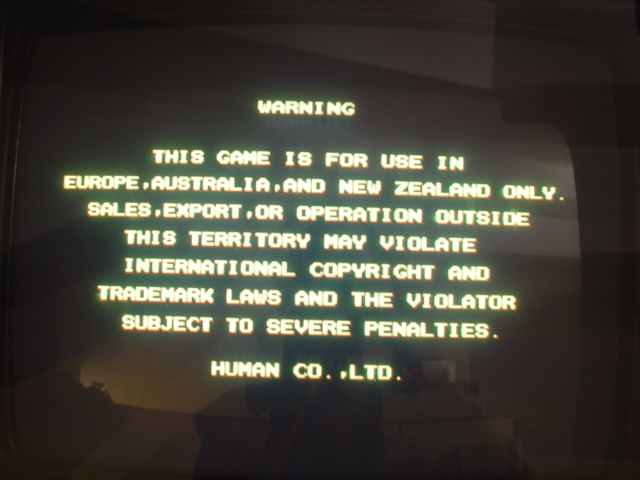

Disclaimer
-

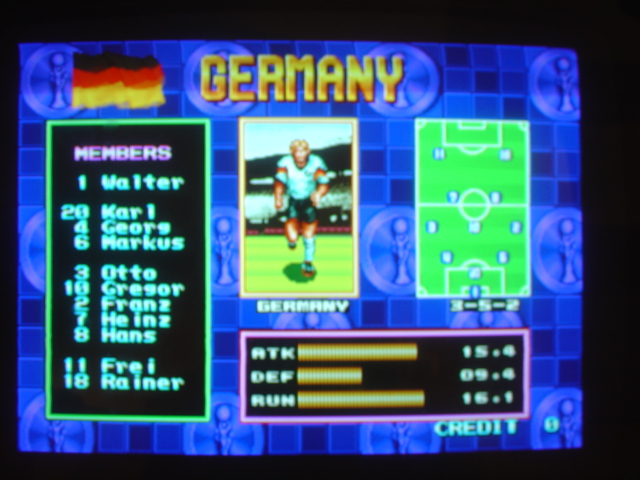

Select
-

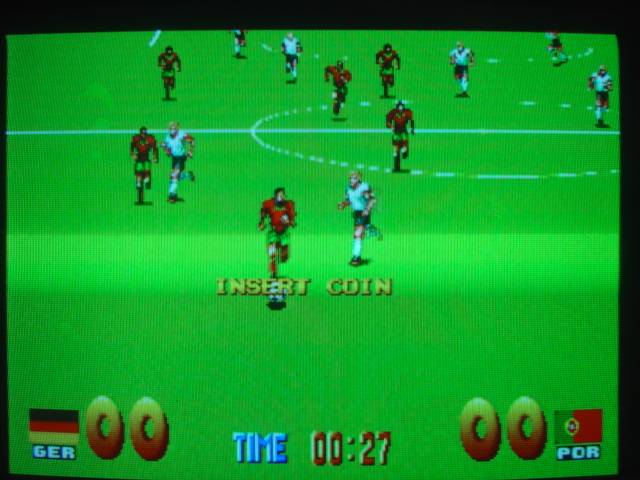

In game
-

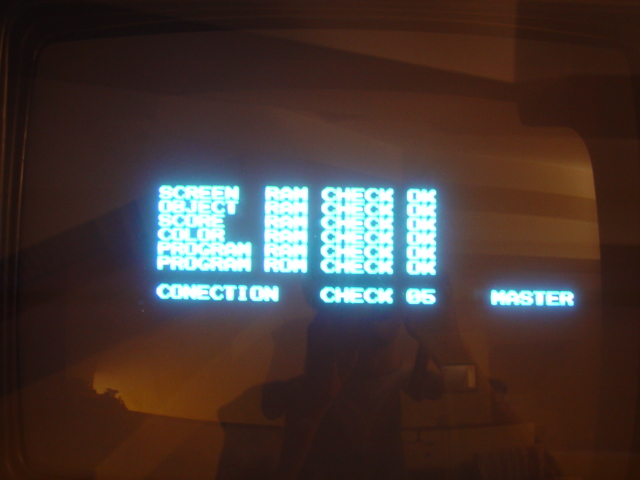

Test
-
PALs (still missing in MAME source)
-
manual
