Giant Gram 2000
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 02/08/2010 |
| emulator | MAME 0.114u1 |
| dev | Guru |
| name | gram2000 on ProgettoEMMA gram2000 on Arcade Database |
| description | Giant Gram 2000 |
| year | 2000.07.03 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 50MHz | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | EPR-23377.ic11 | dumped |
| 20x | 236410 | MPR-23357.ic17s - MPR-23376.ic36s | dumped |
| 1x | 25LC040 | ic13s | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | IDT71V256 | ic15 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A54SX32 317-0296-COM | ic1 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7978B
Cart N°: 840-0039C
Key: 0x7f805c3f
update 20170604: dumped 25LC040, better scans
Files
-

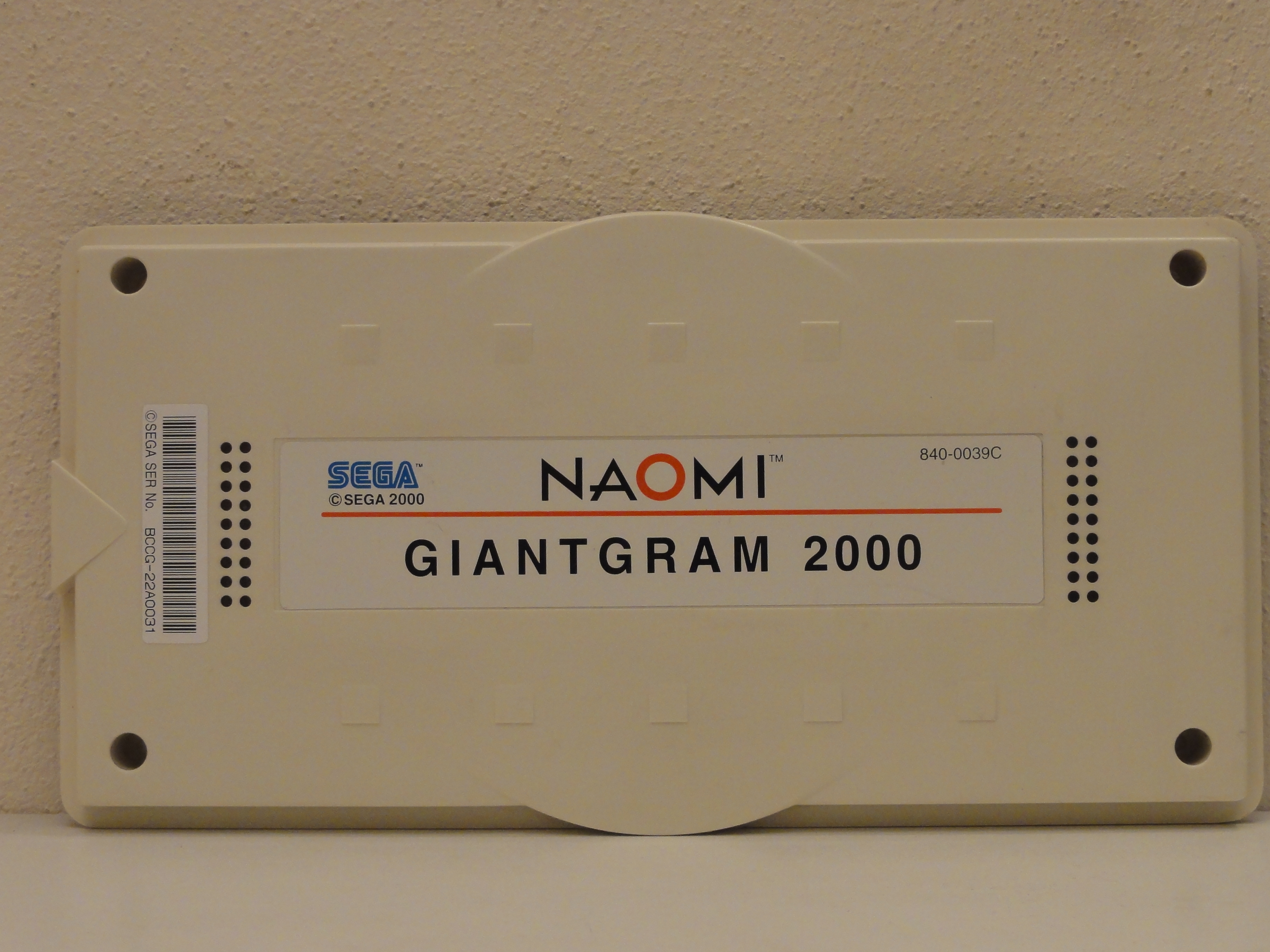

Cart 1
-

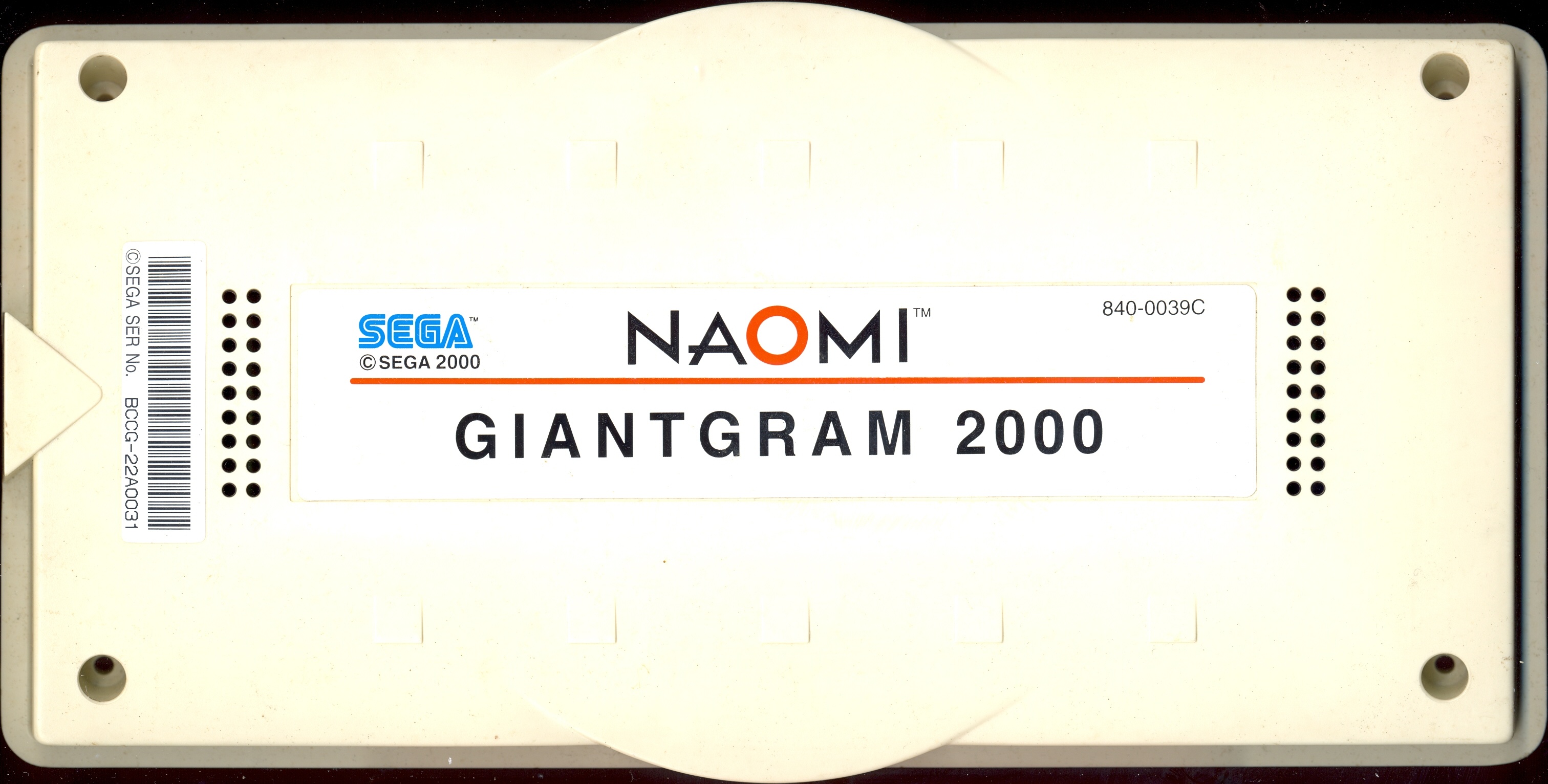

Cart 2
-

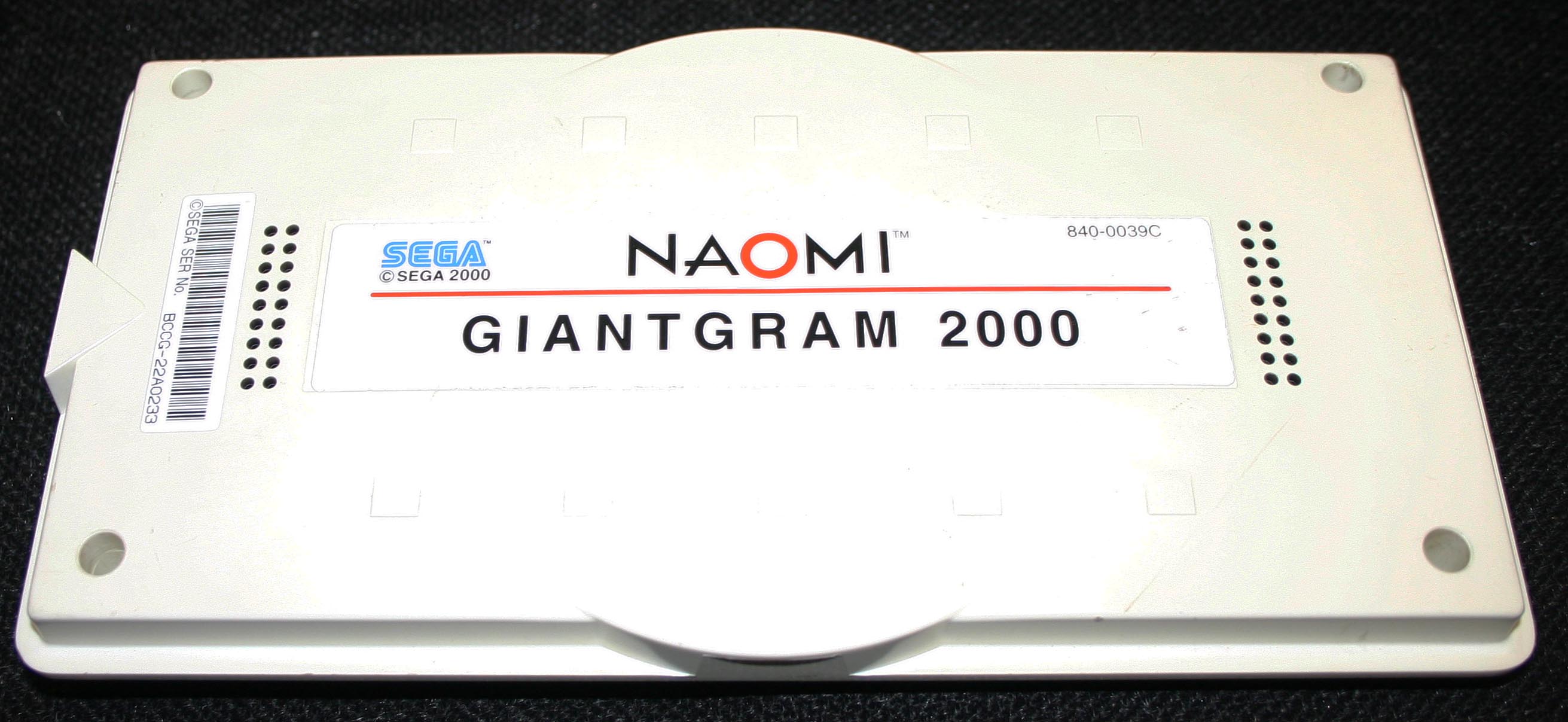

Cart 3
-

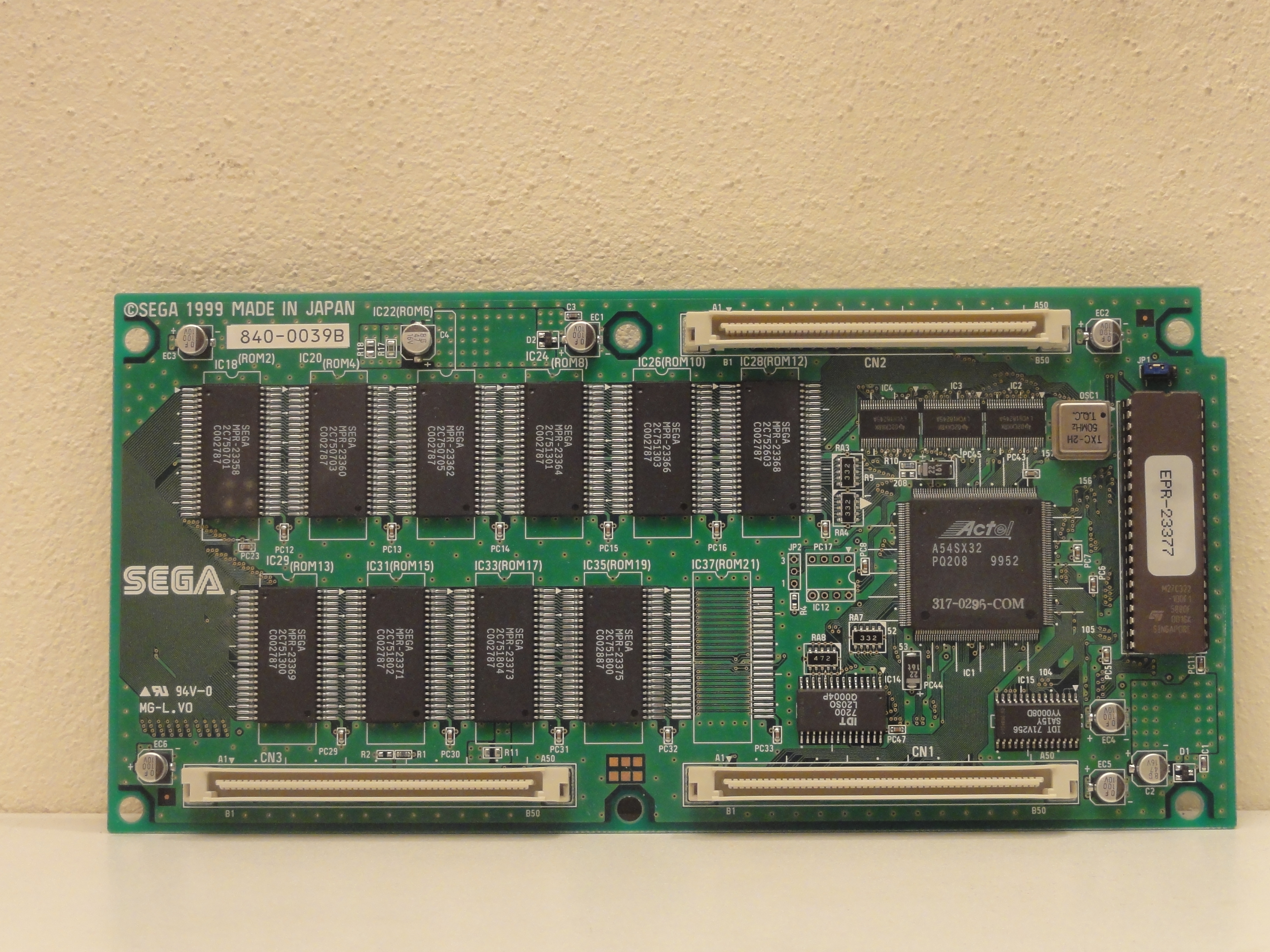

PCB component side 1
-

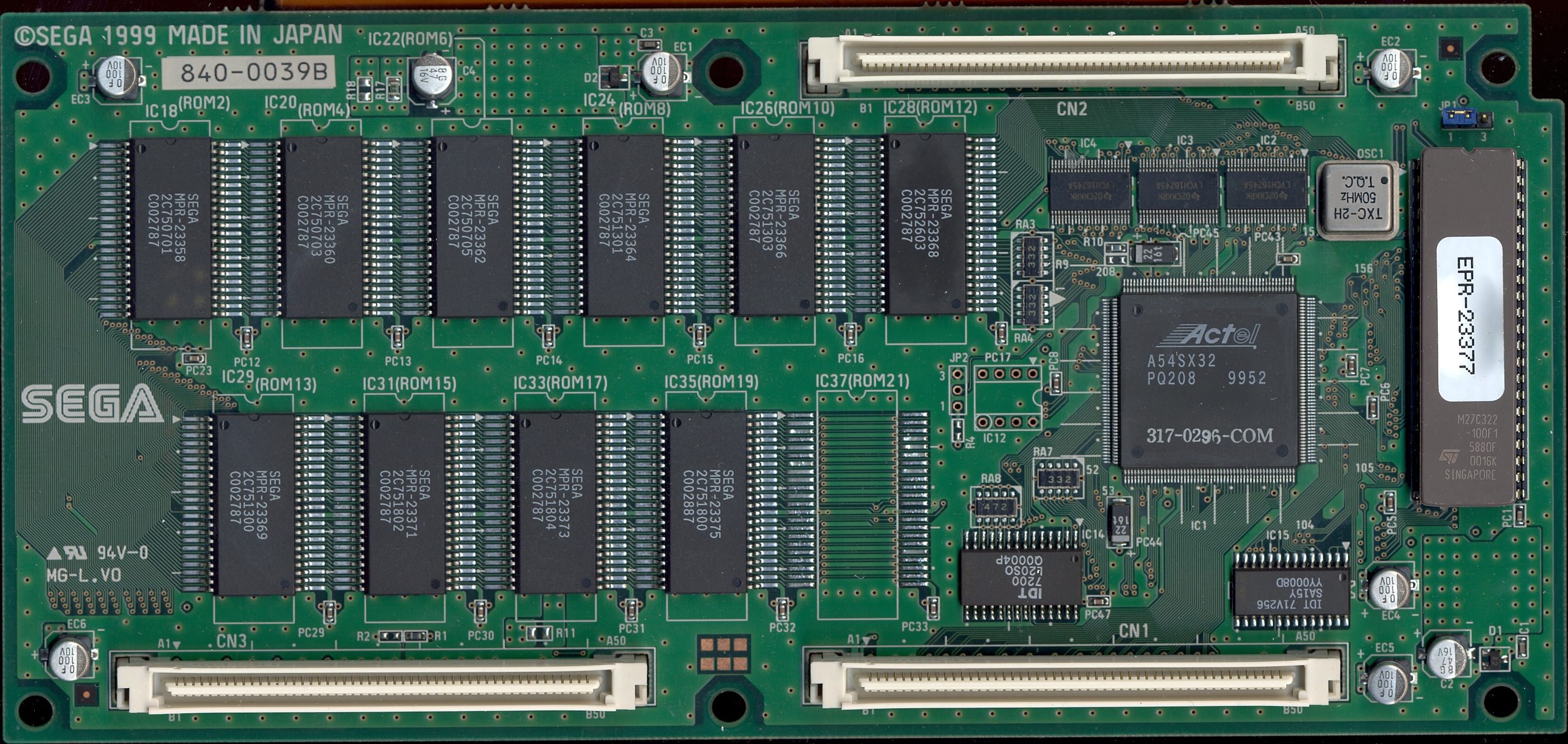

PCB component side 2
-

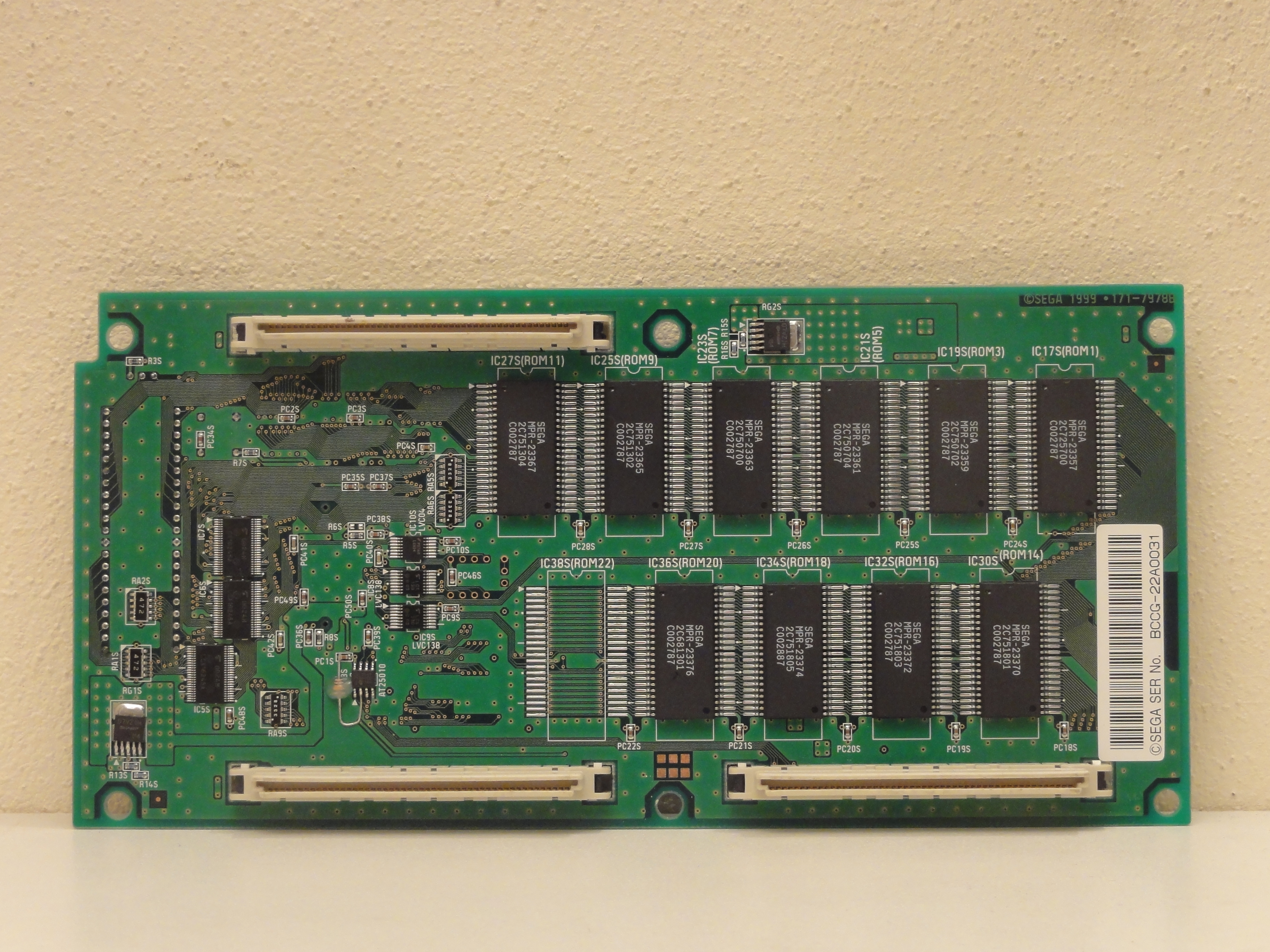

PCB solder side 1
-

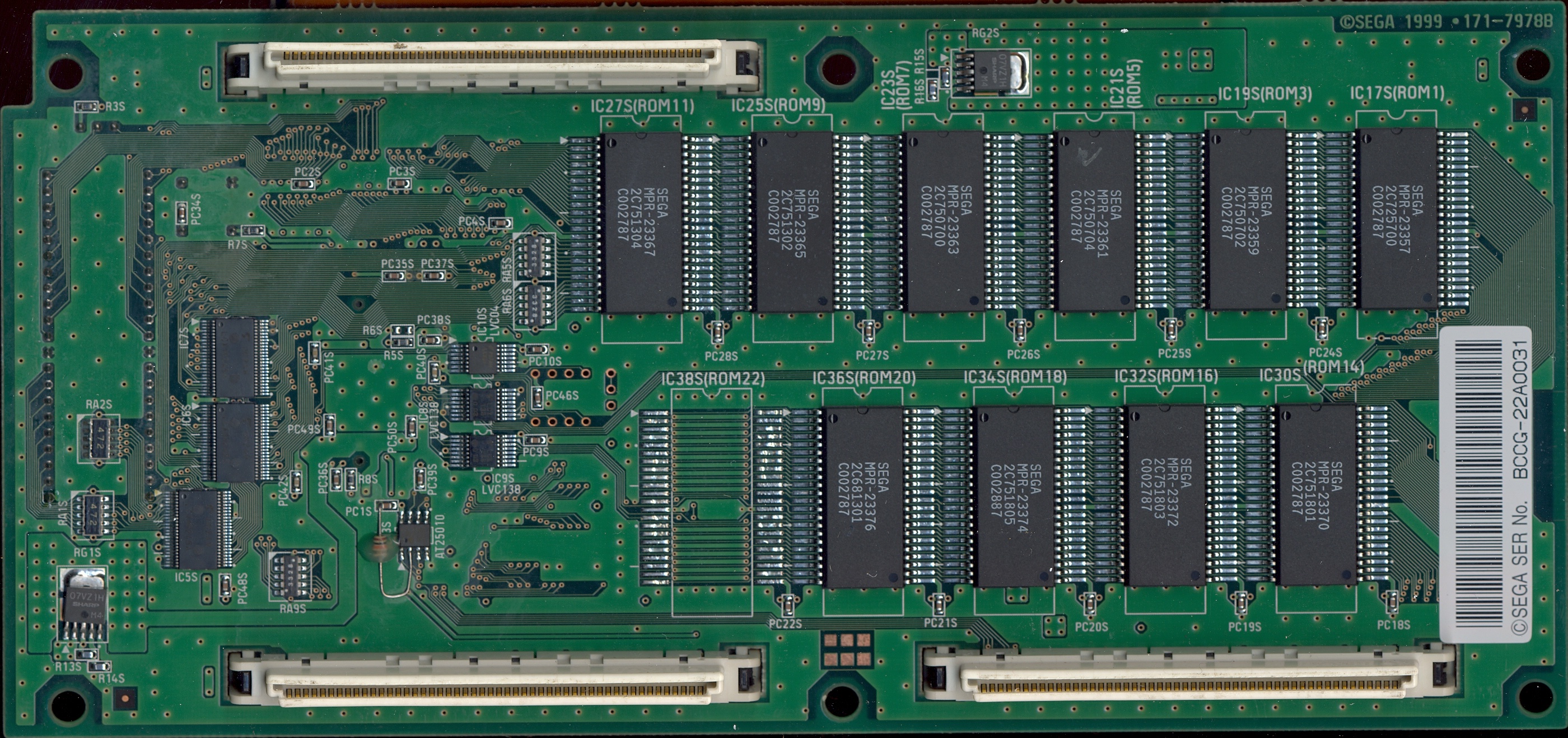

PCB solder side 2
-

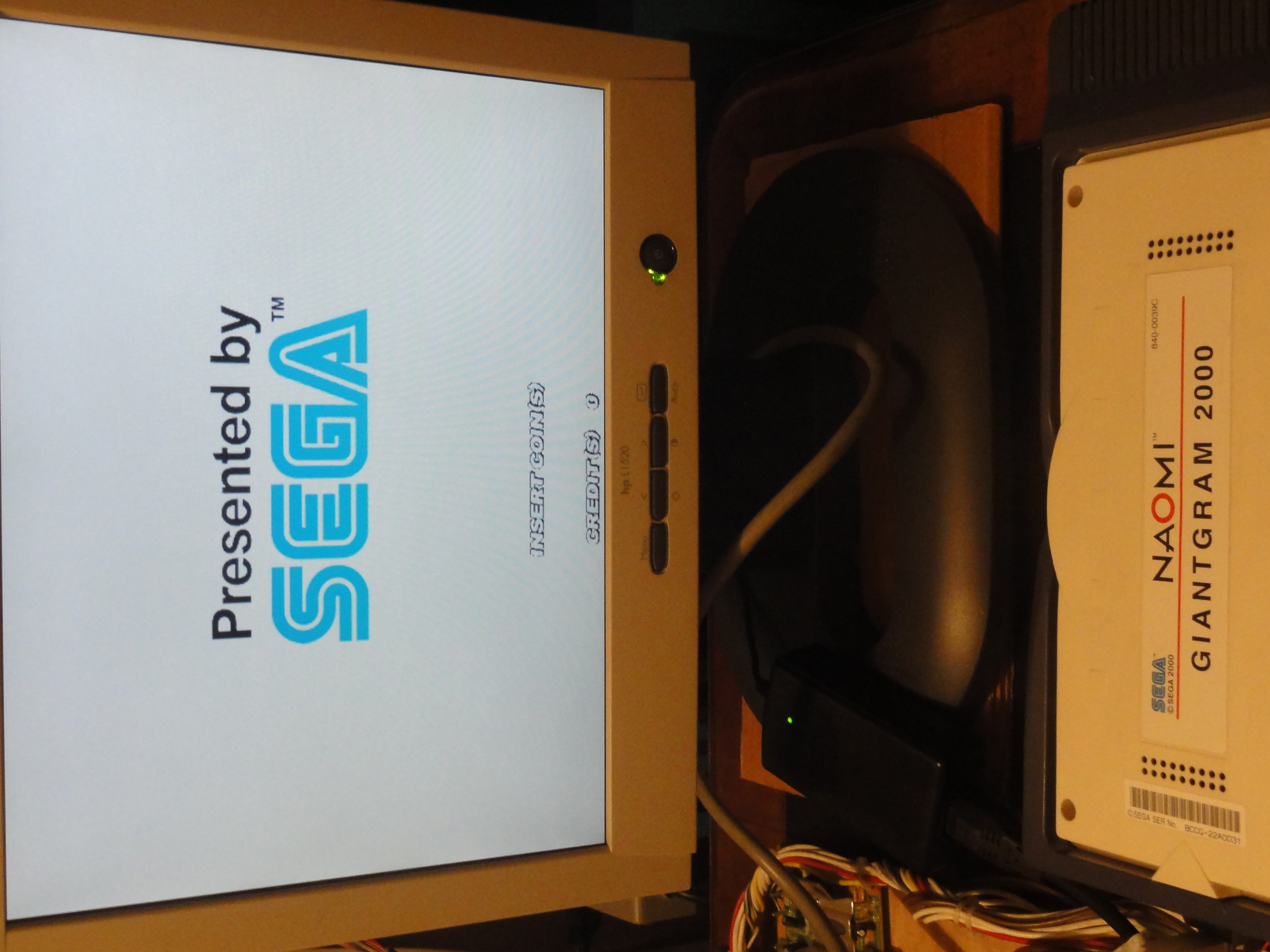

Title 1
-

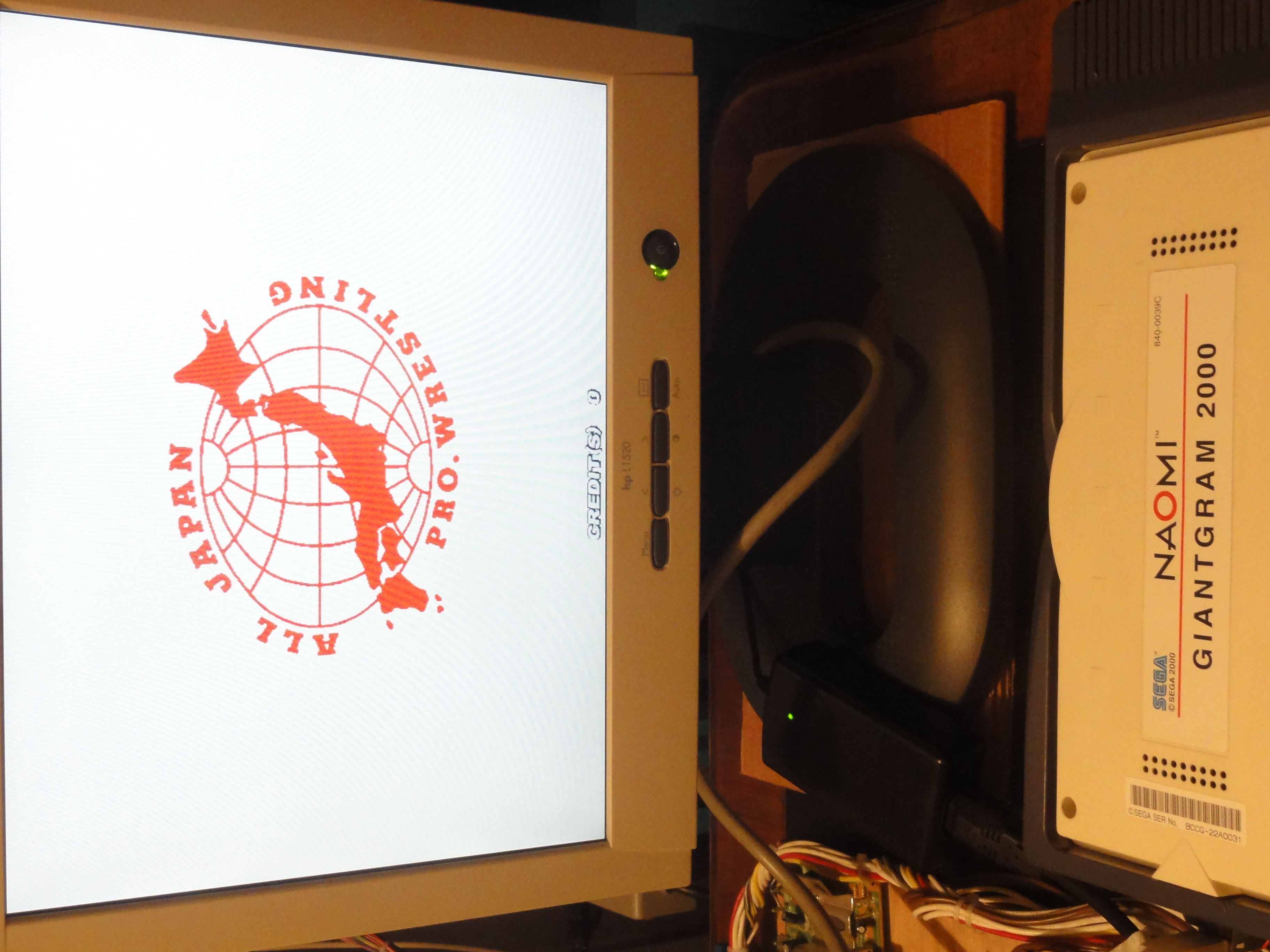

Title 2
-

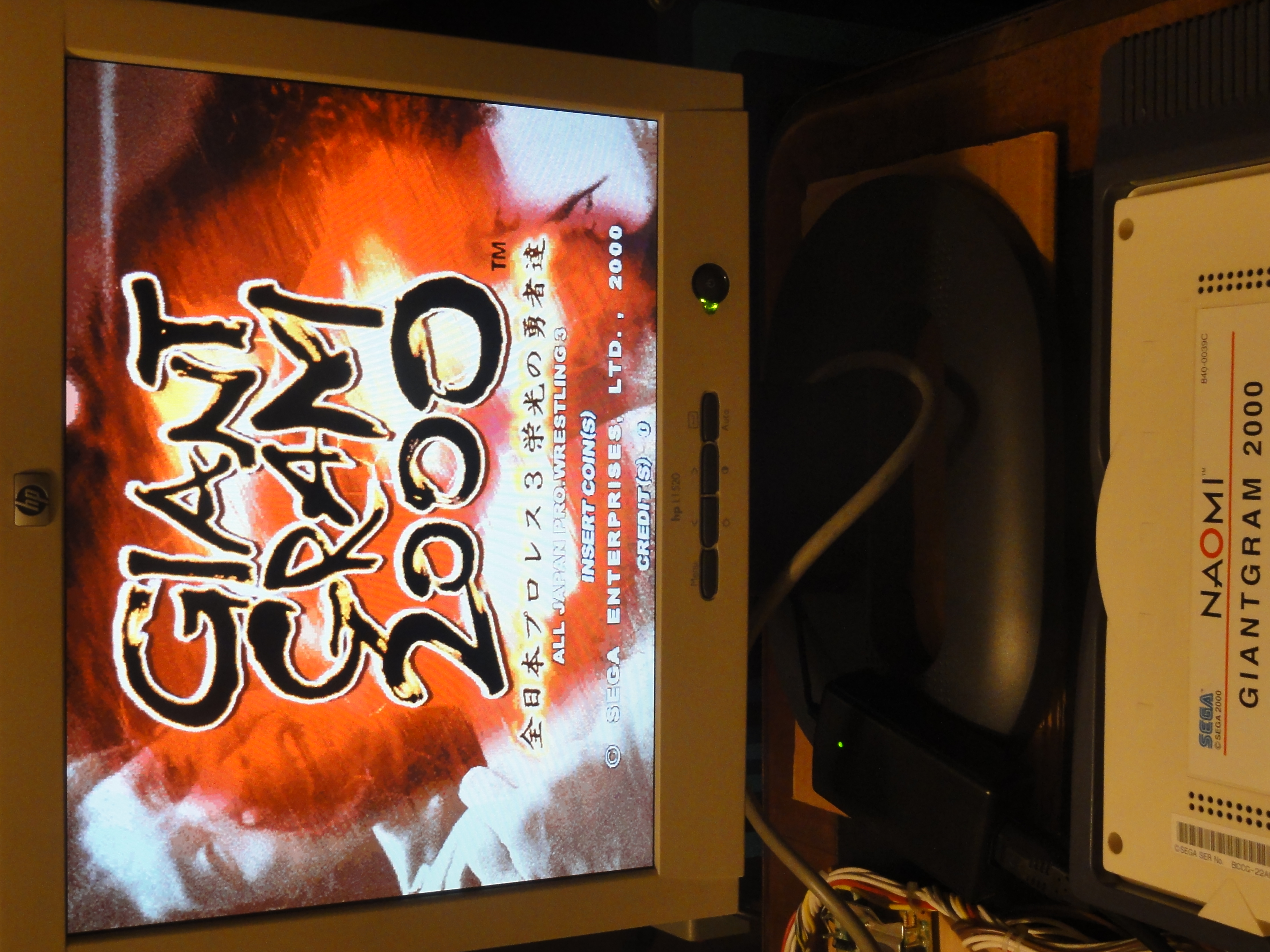

Title 3
-

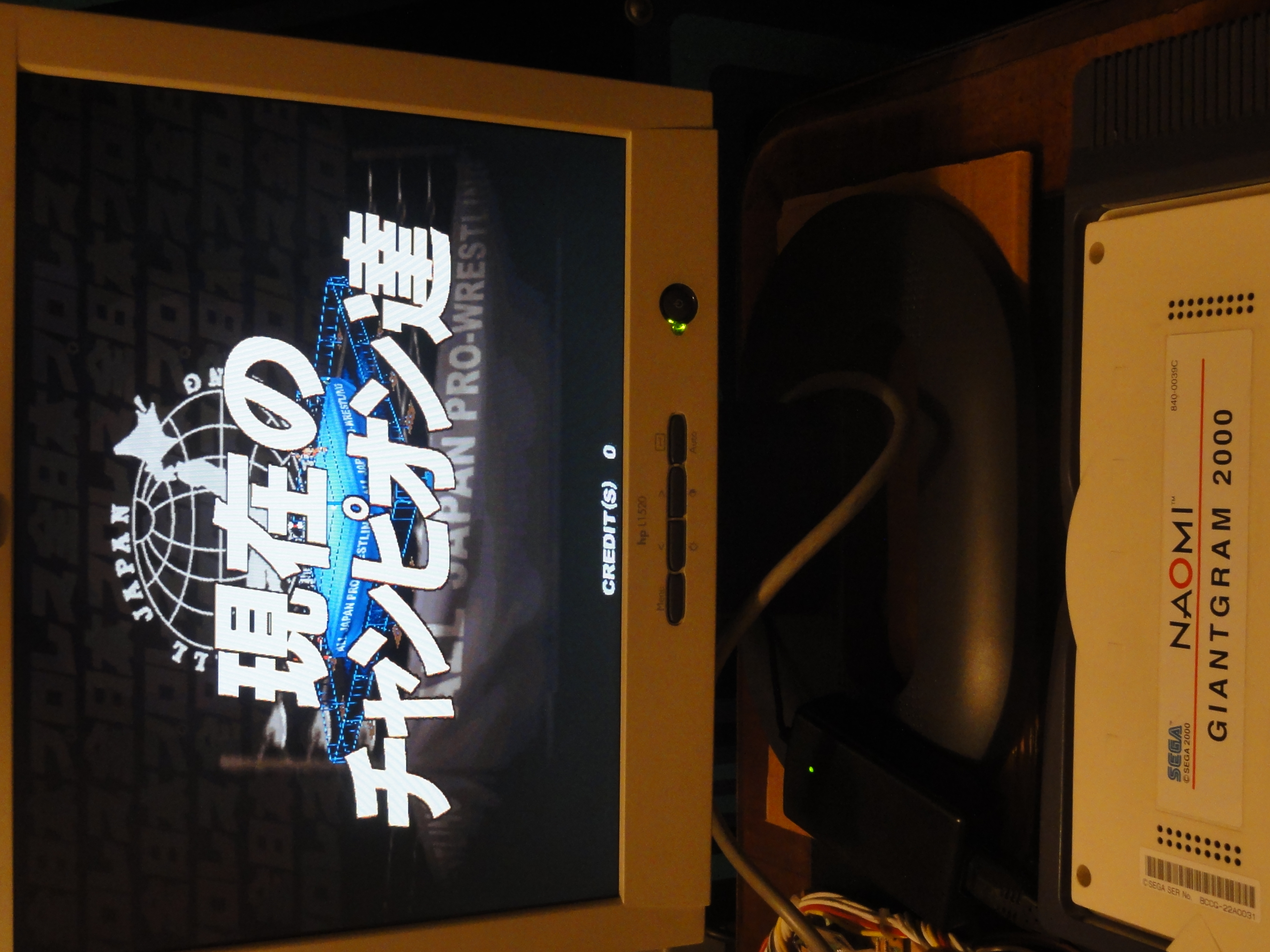

Title 4
-

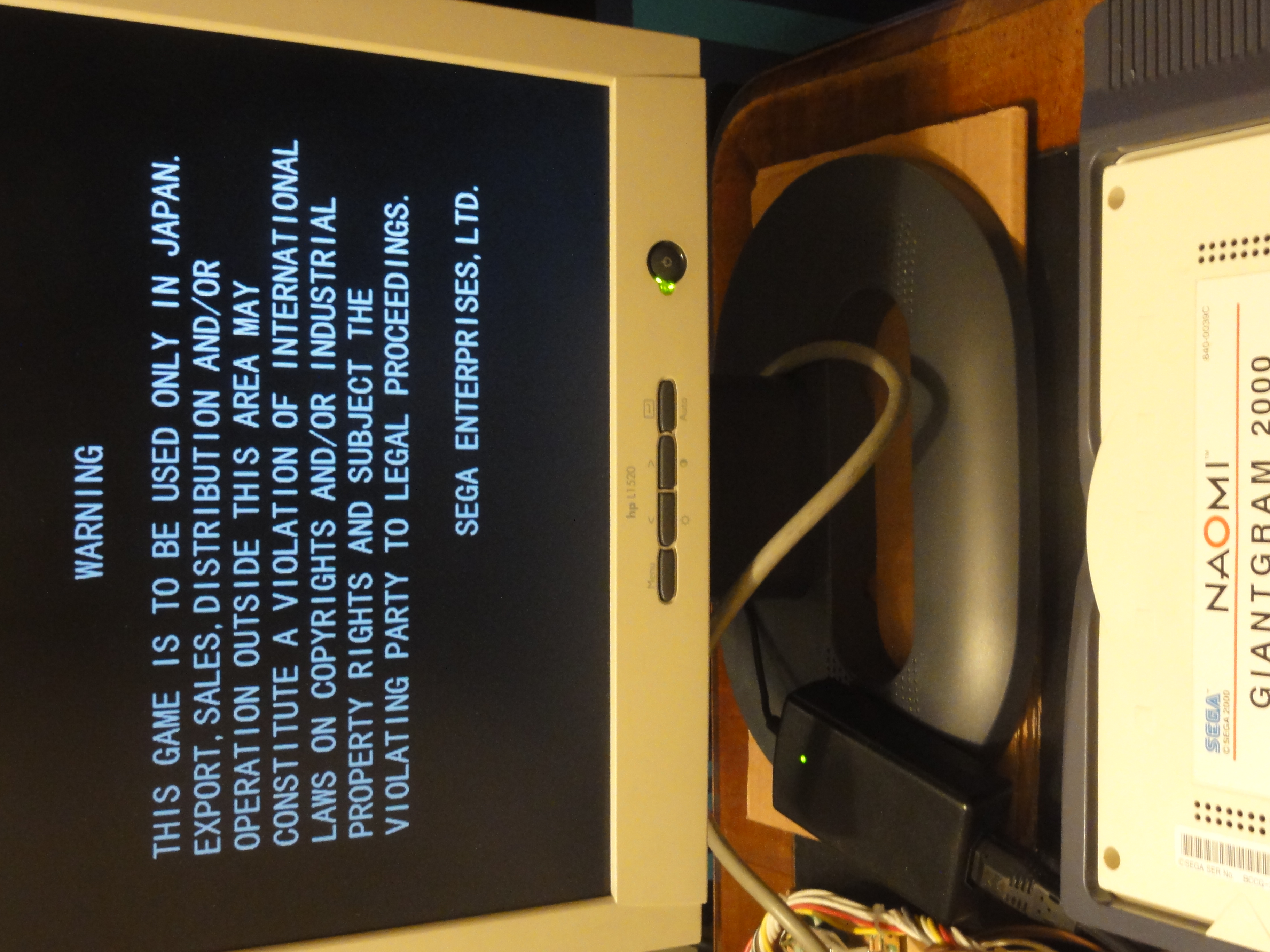

Disclaimer
-

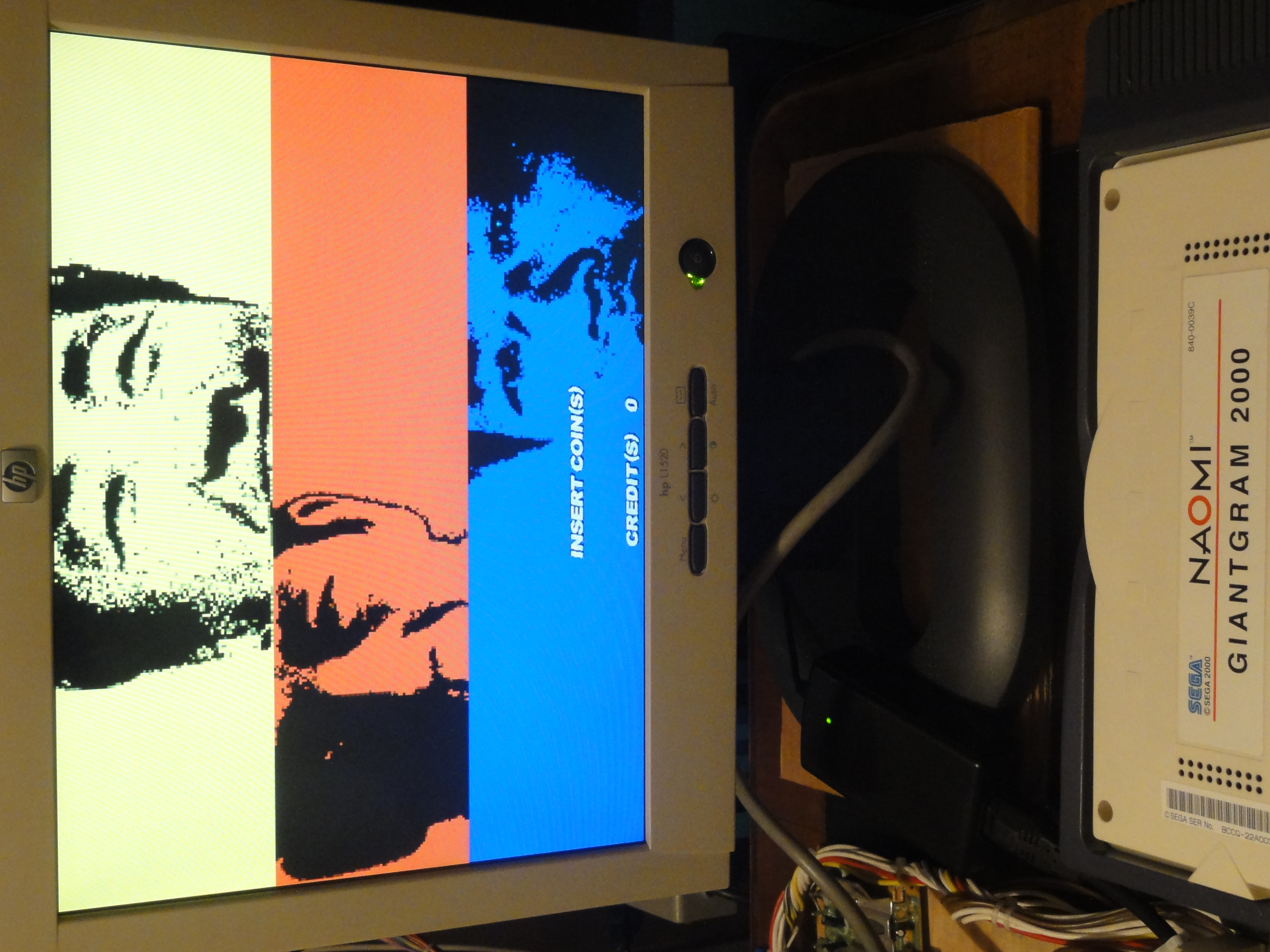

Intro 1
-

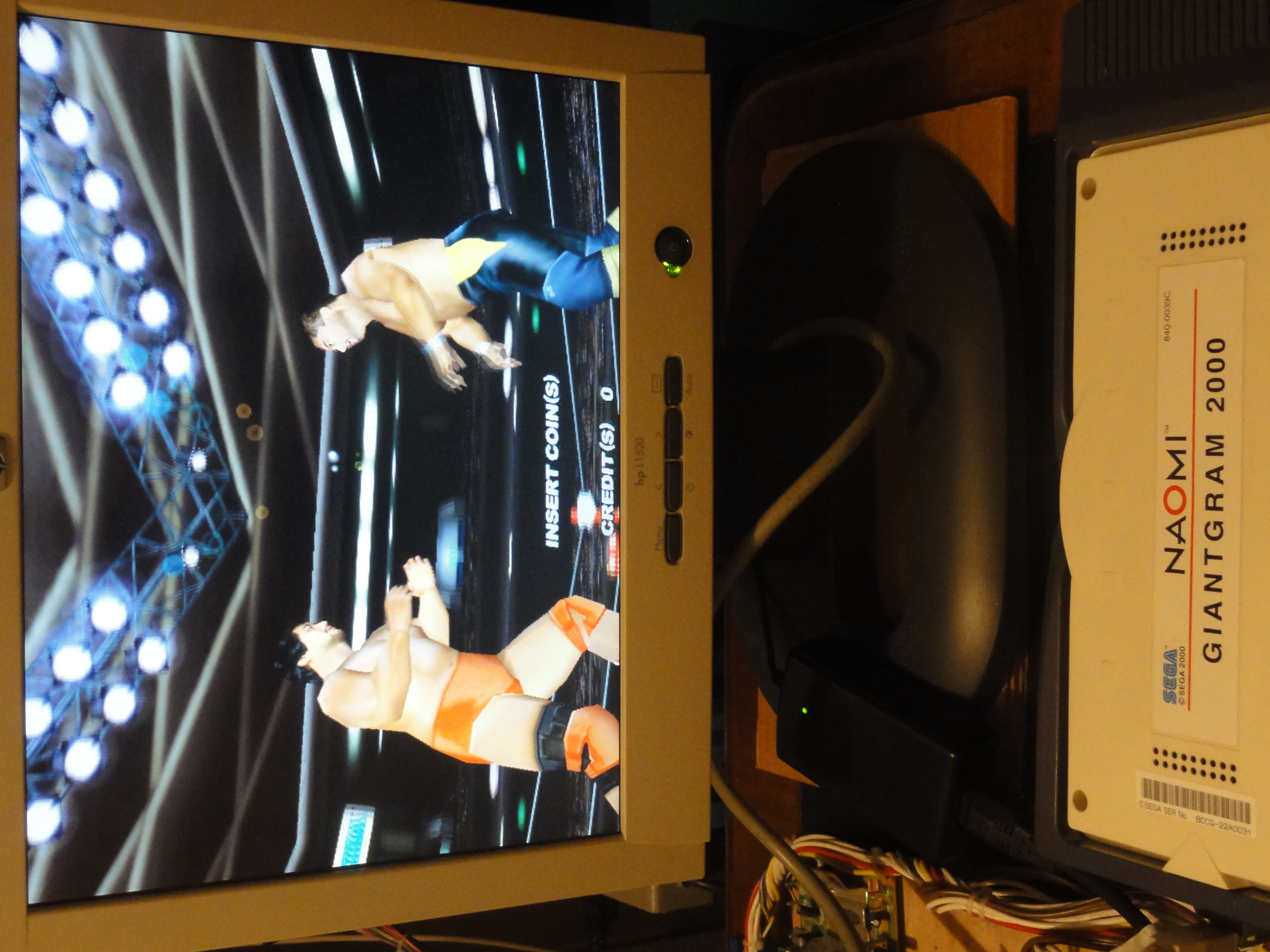

Intro 2
-

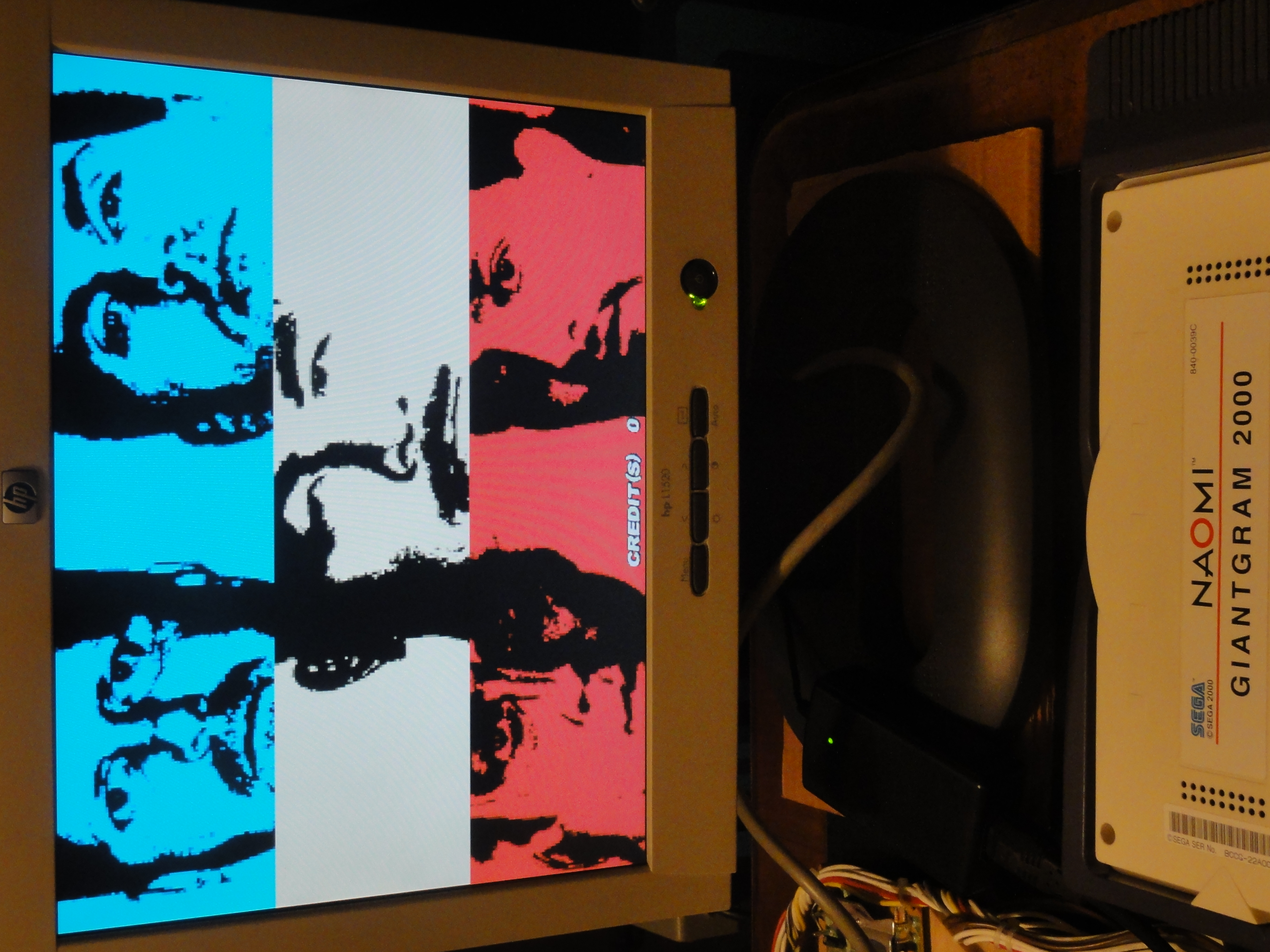

Intro 3
-

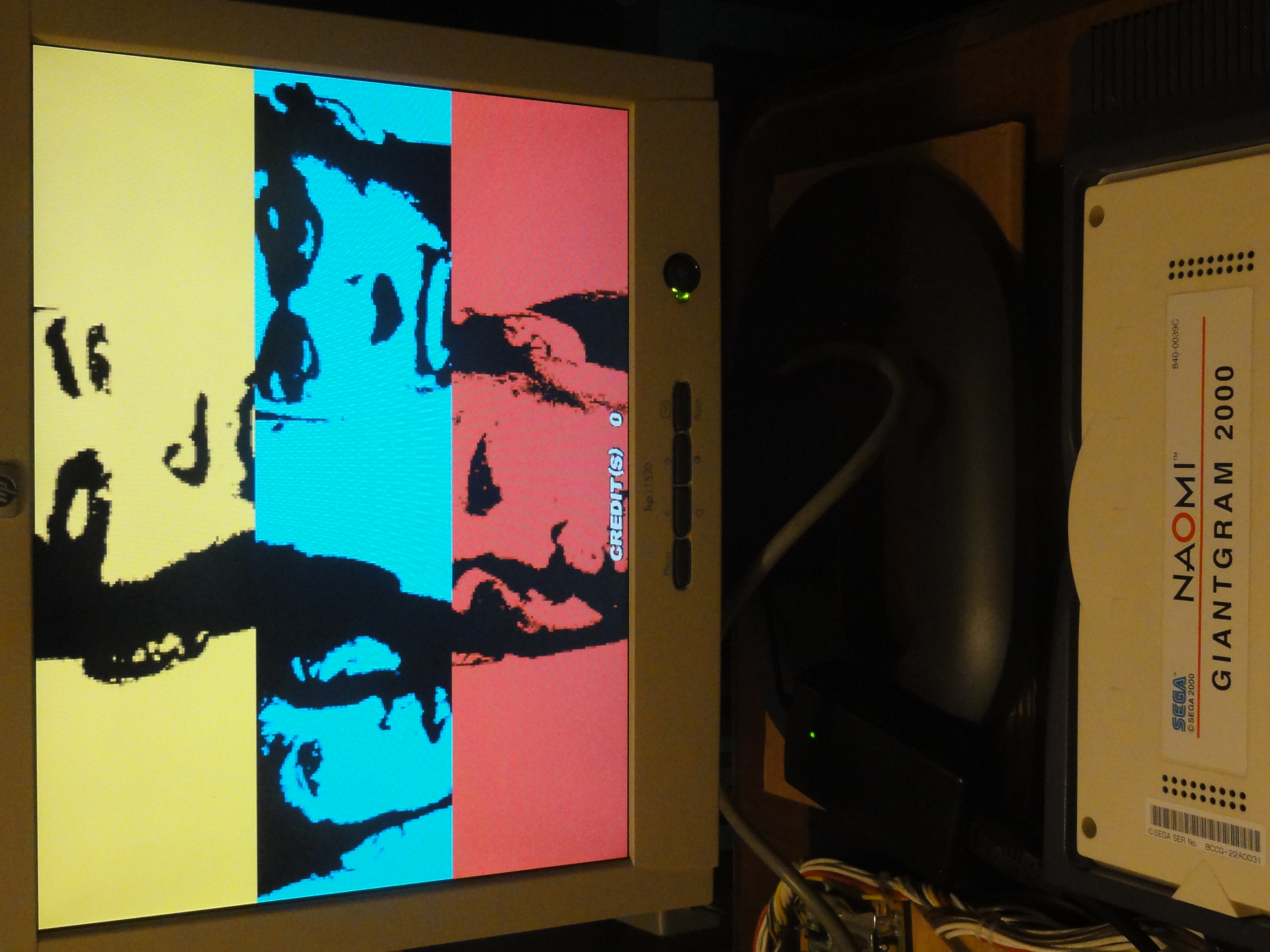

Intro 4
-

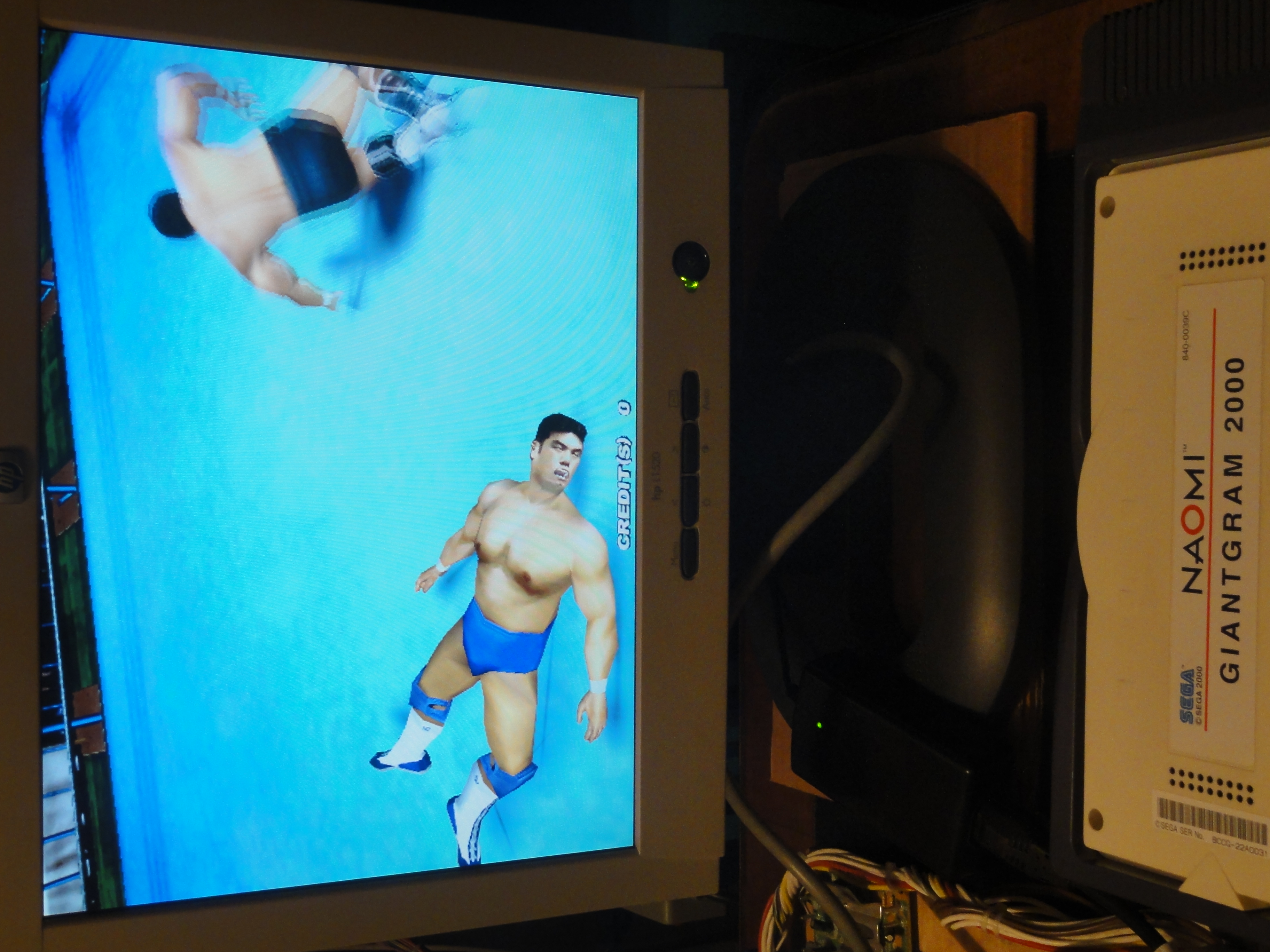

Intro 5
-

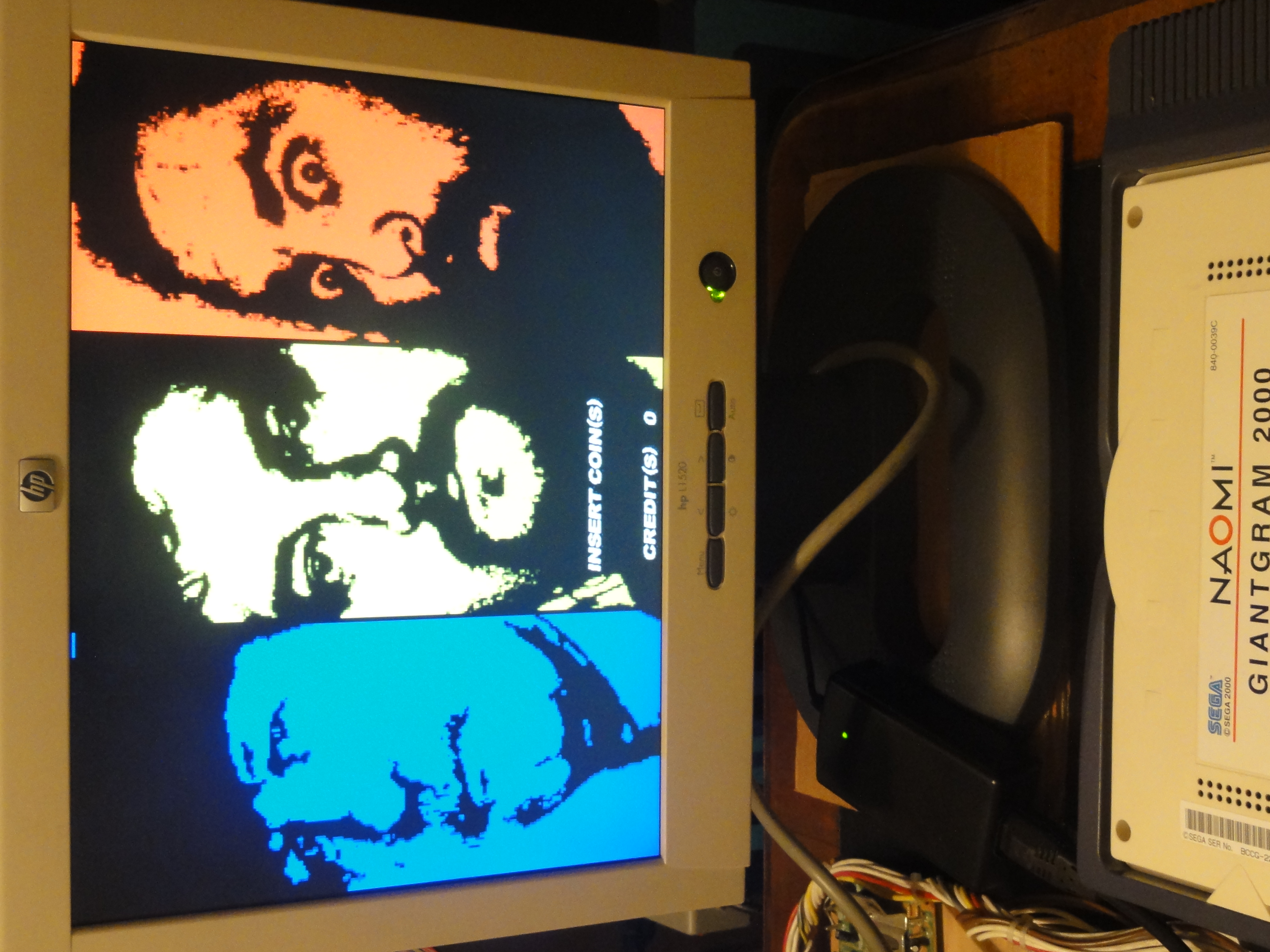

Intro 6
-

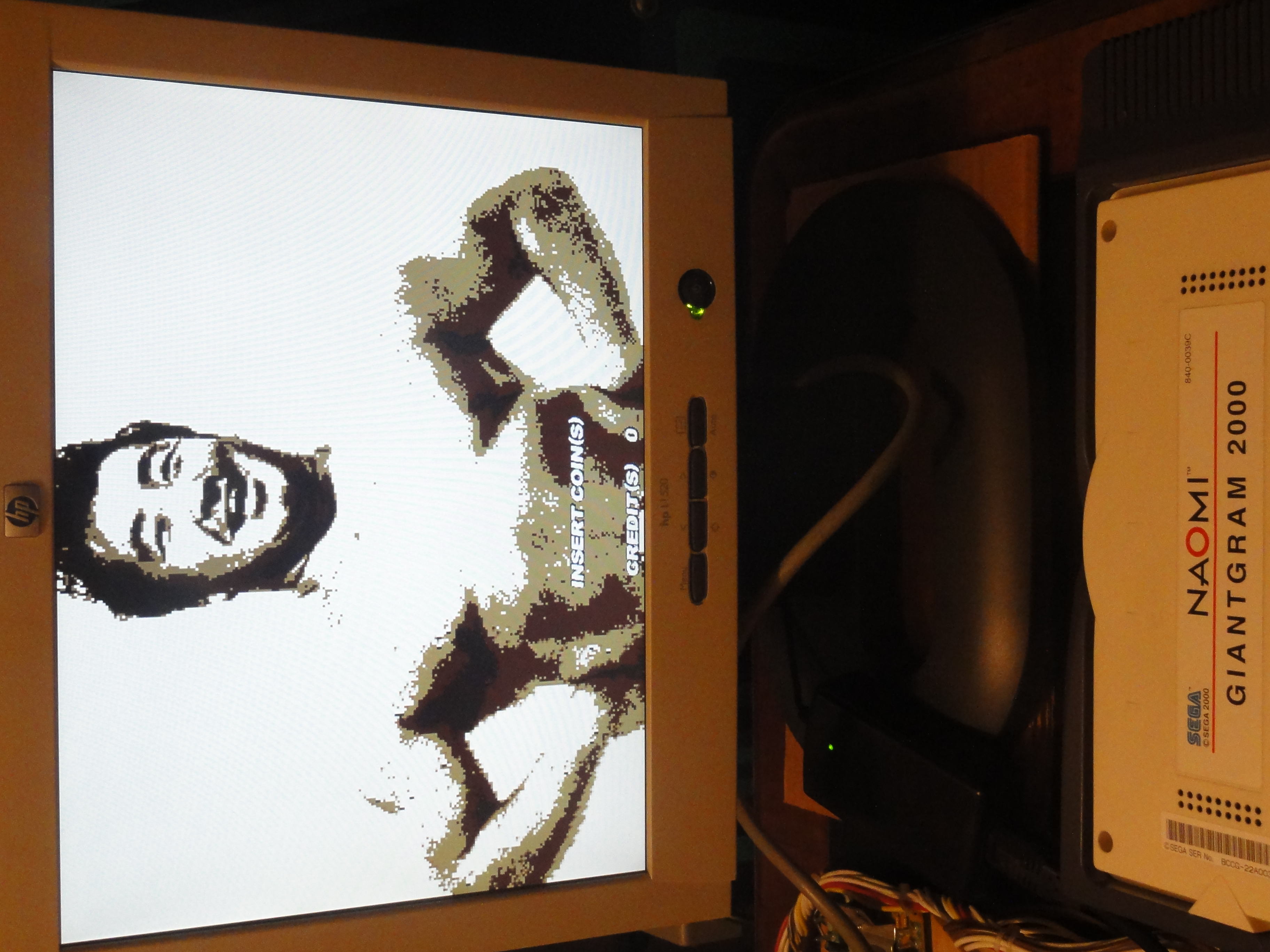

Intro 7
-

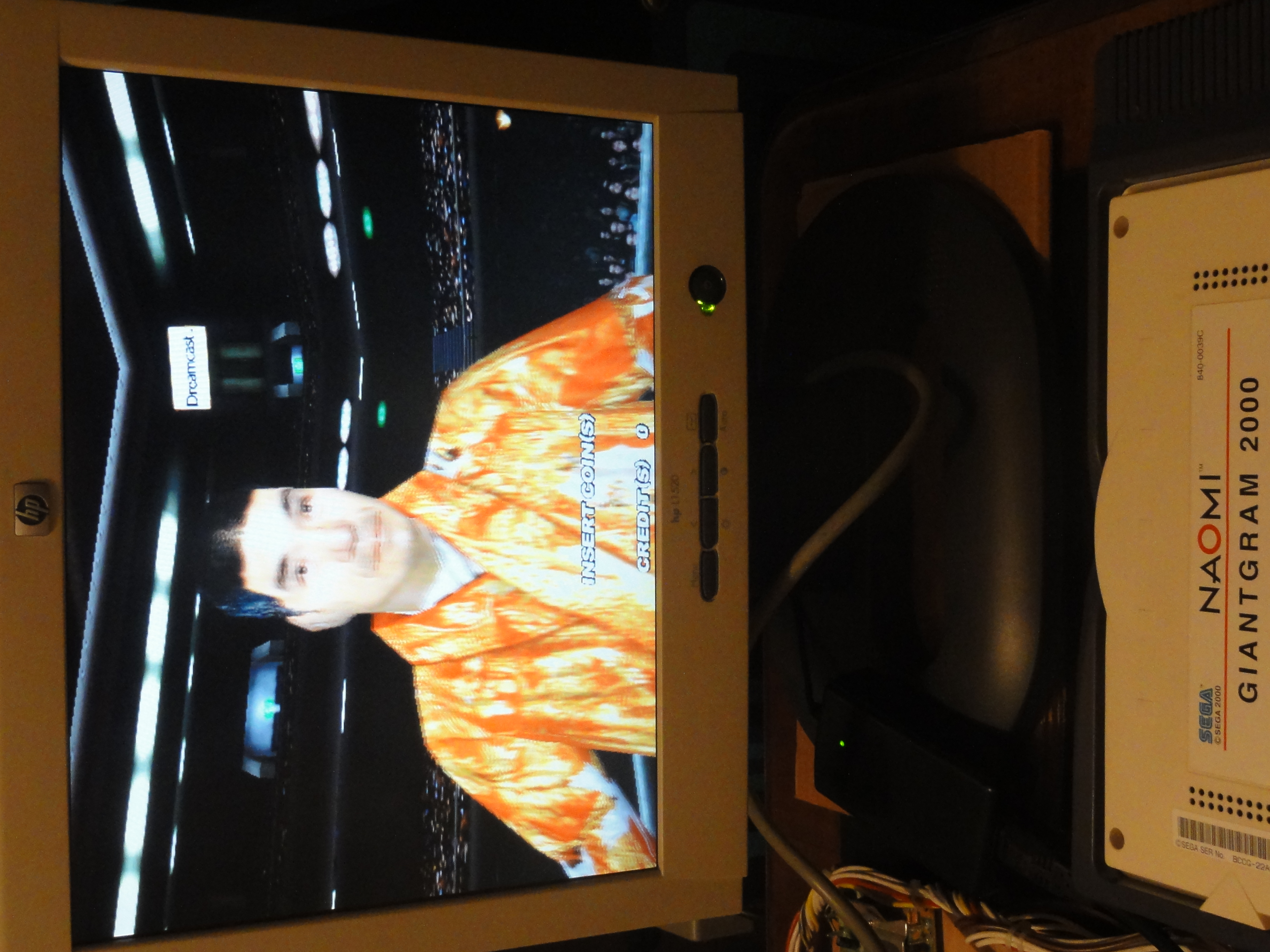

Intro 8
-

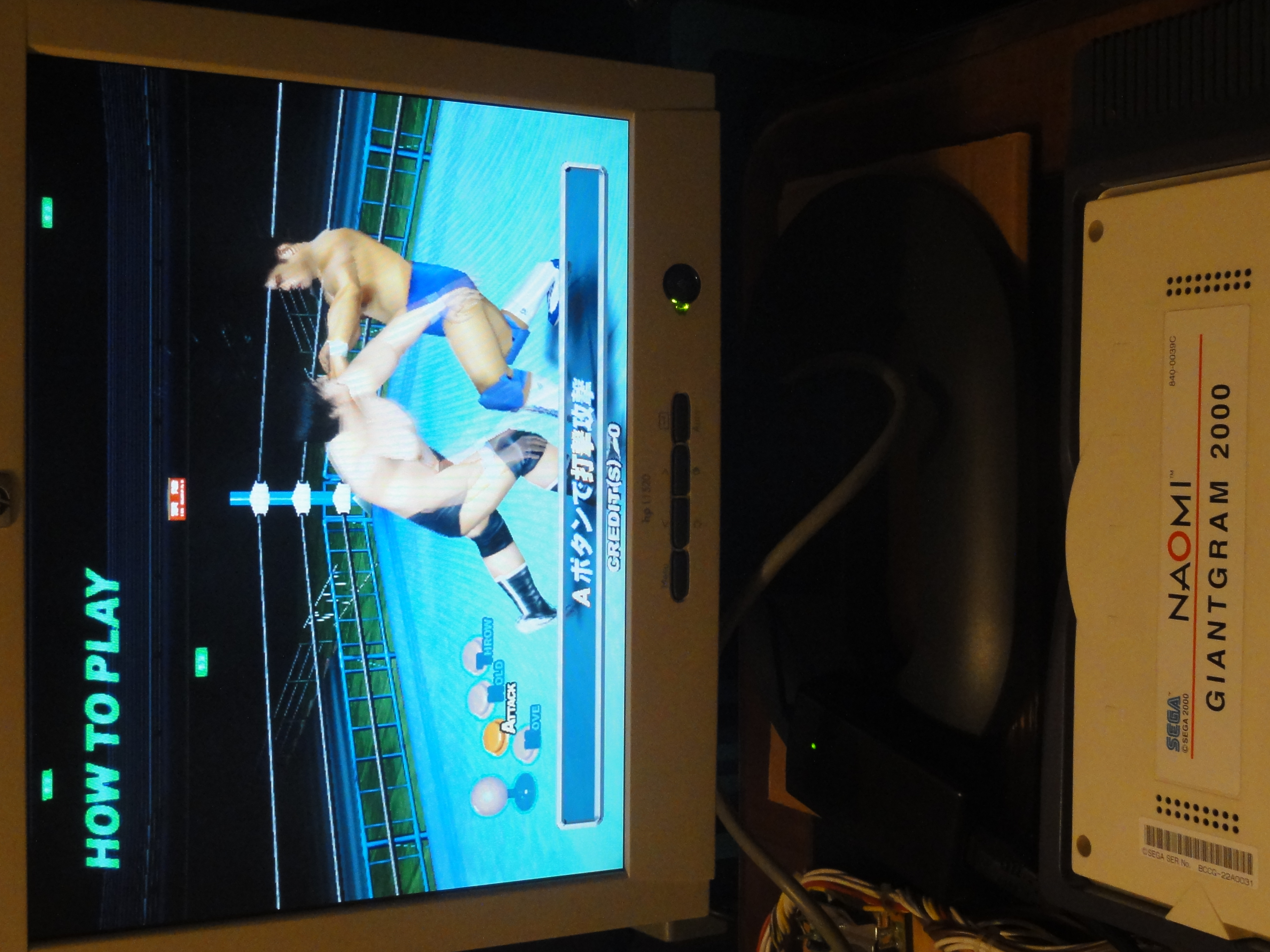

How to play 1
-

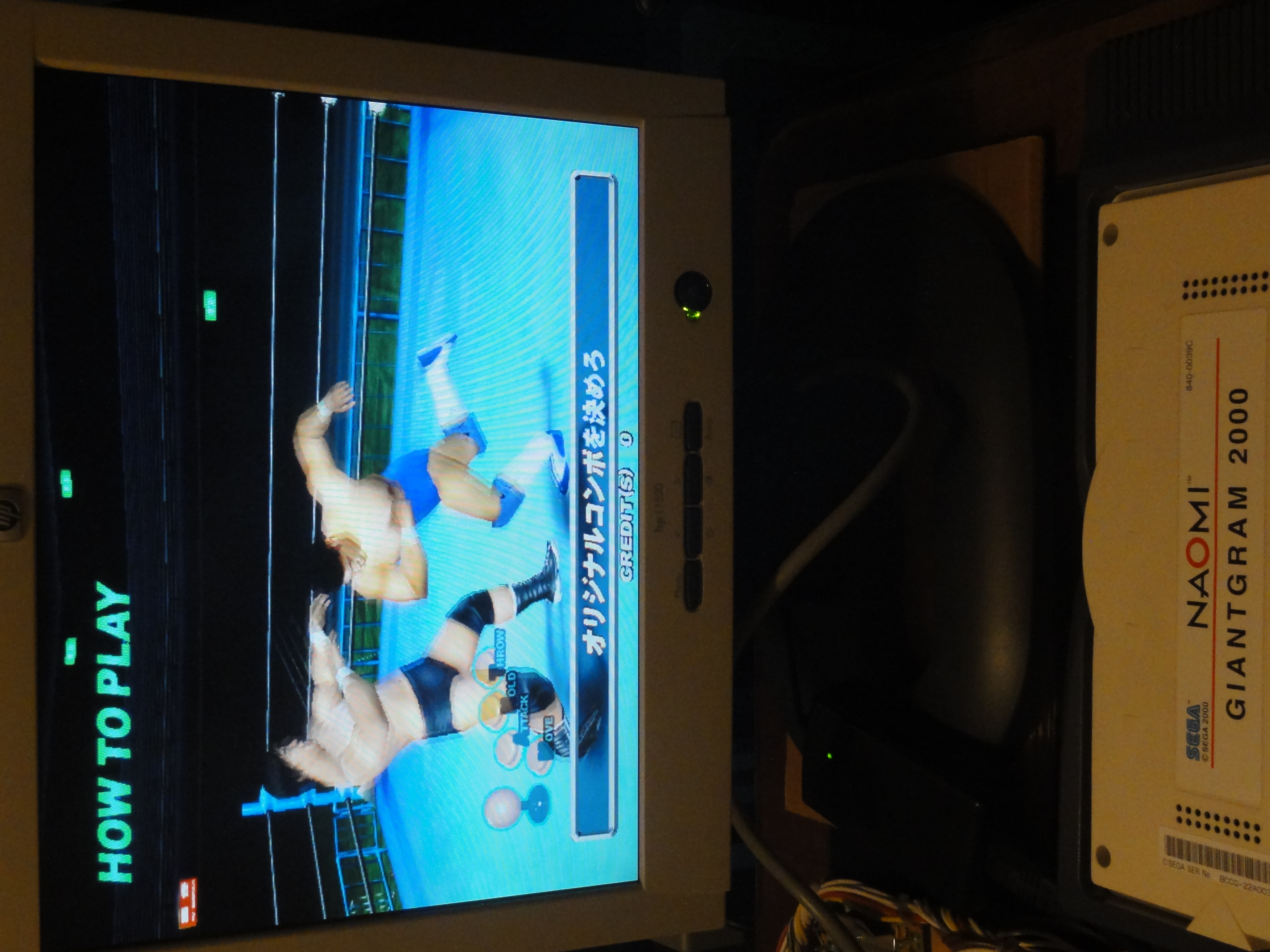

How to play 2
-

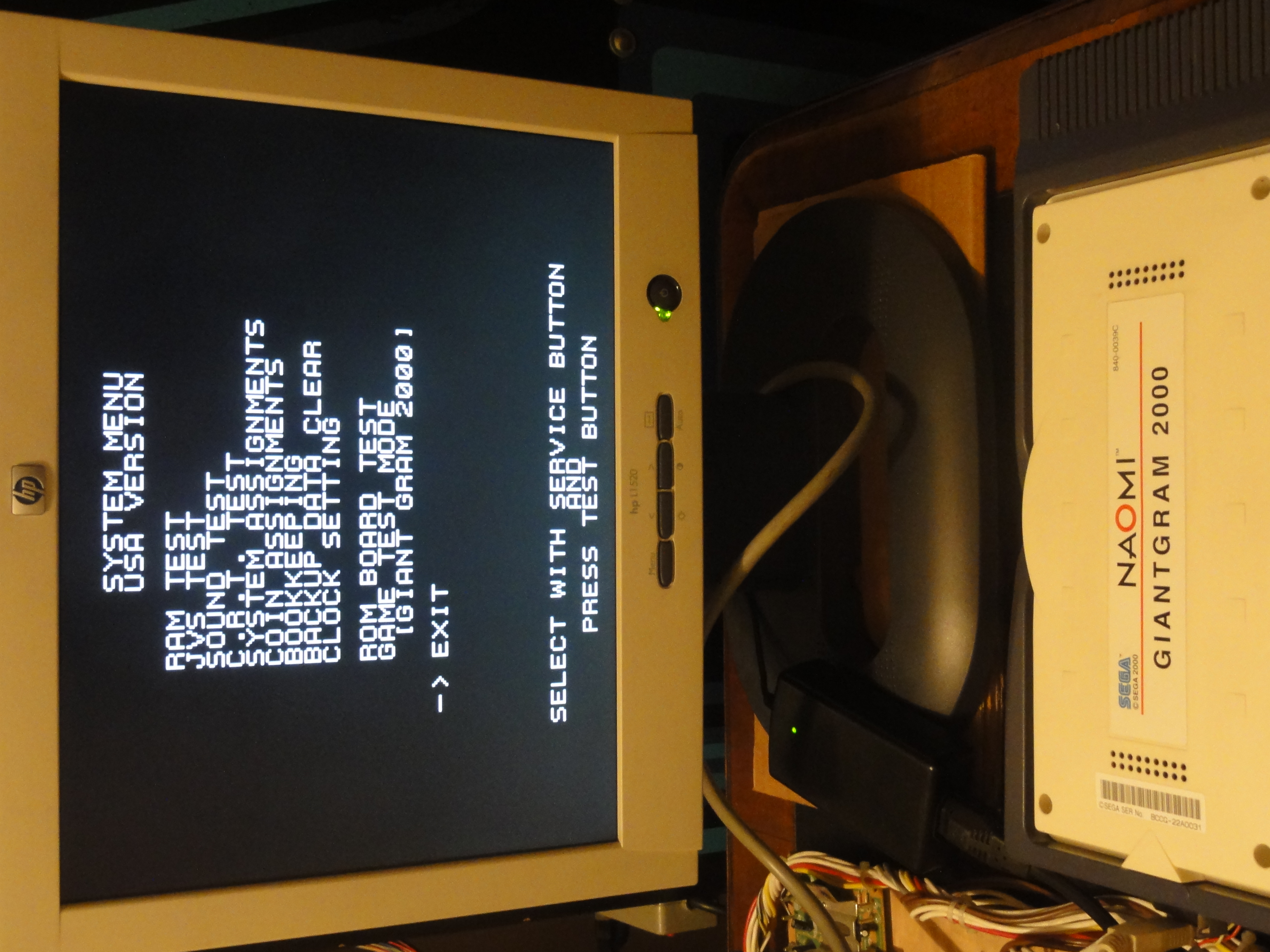

System menu
-

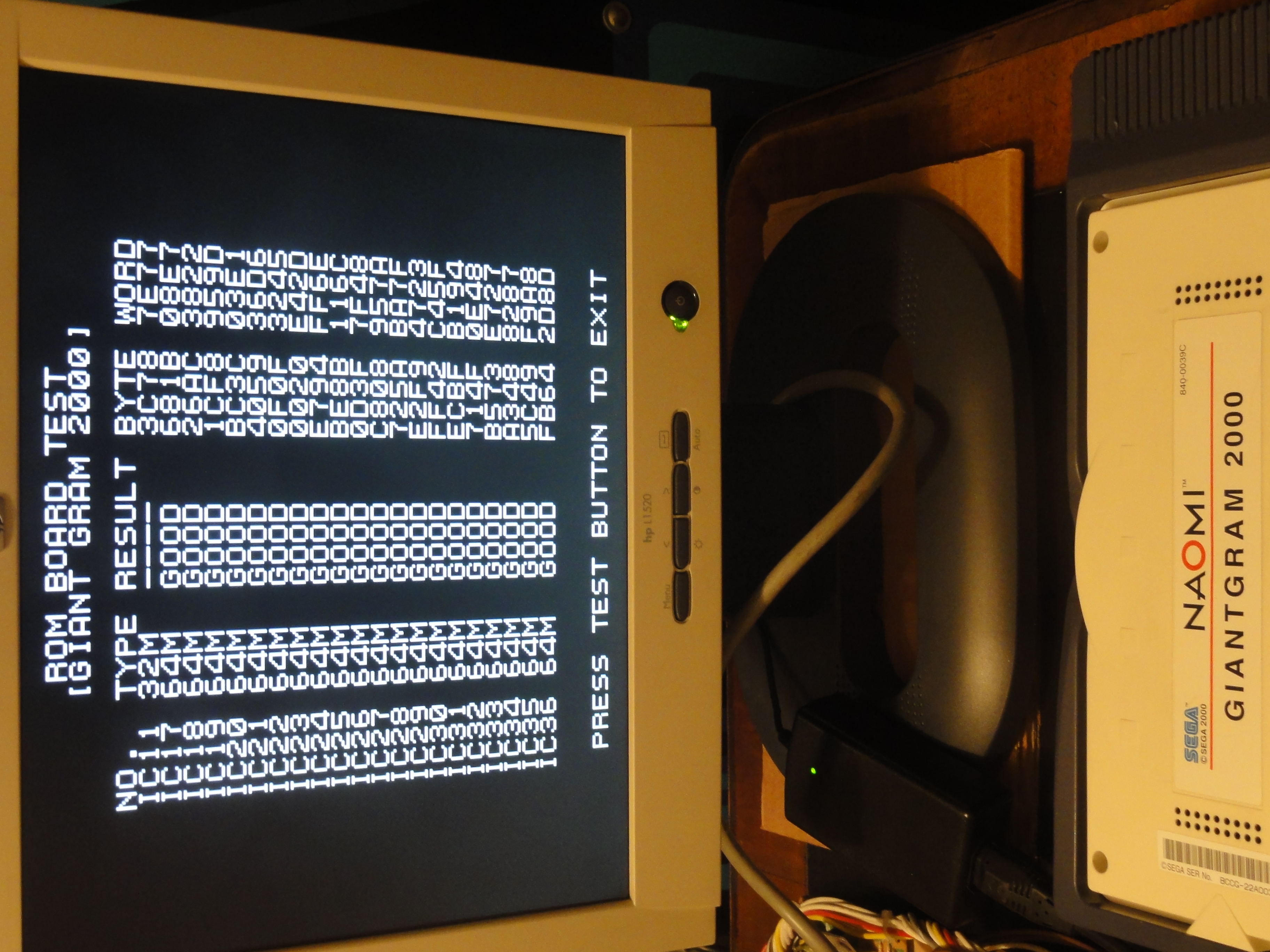

ROM board test
-

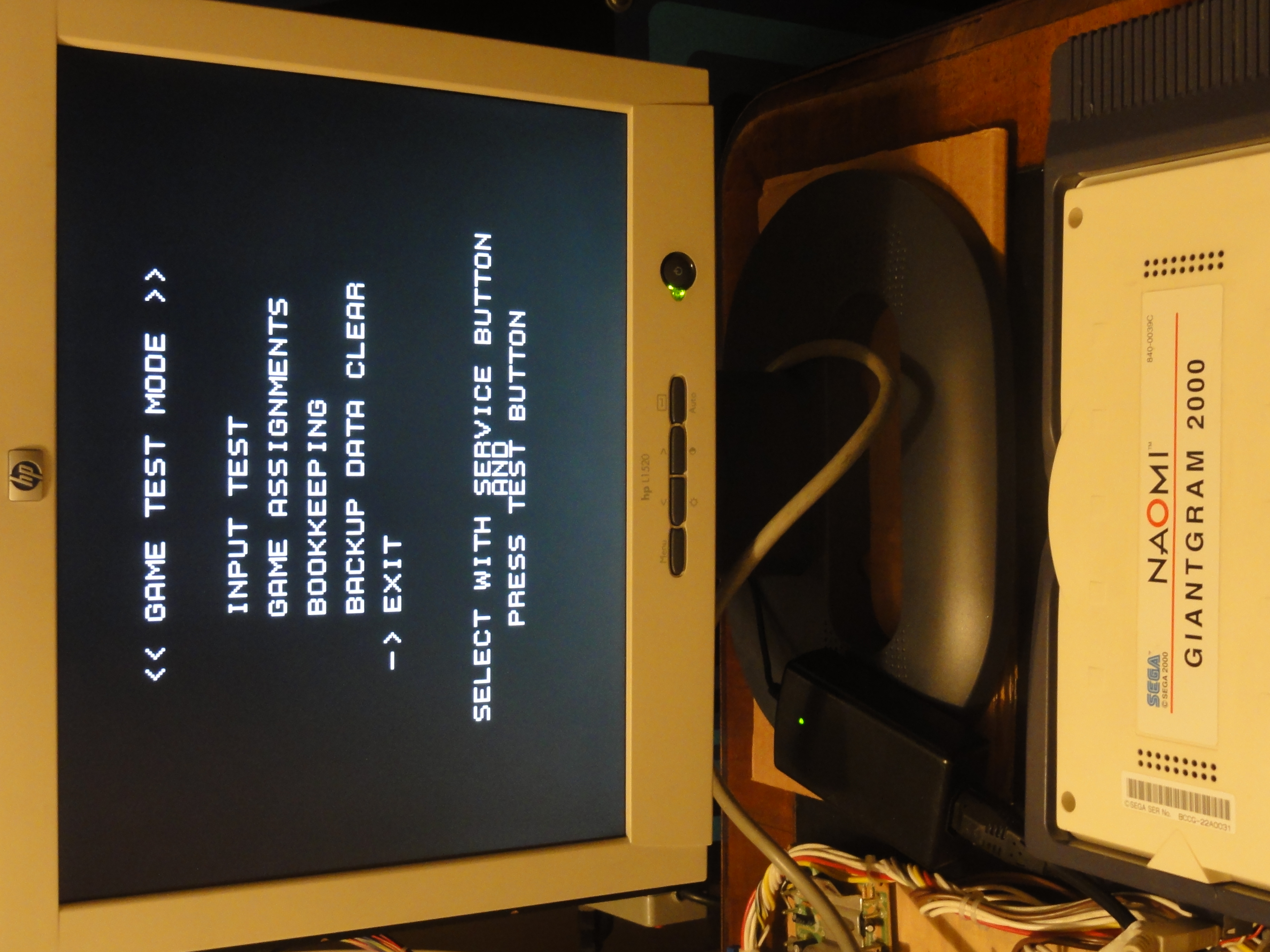

Game test mode
-

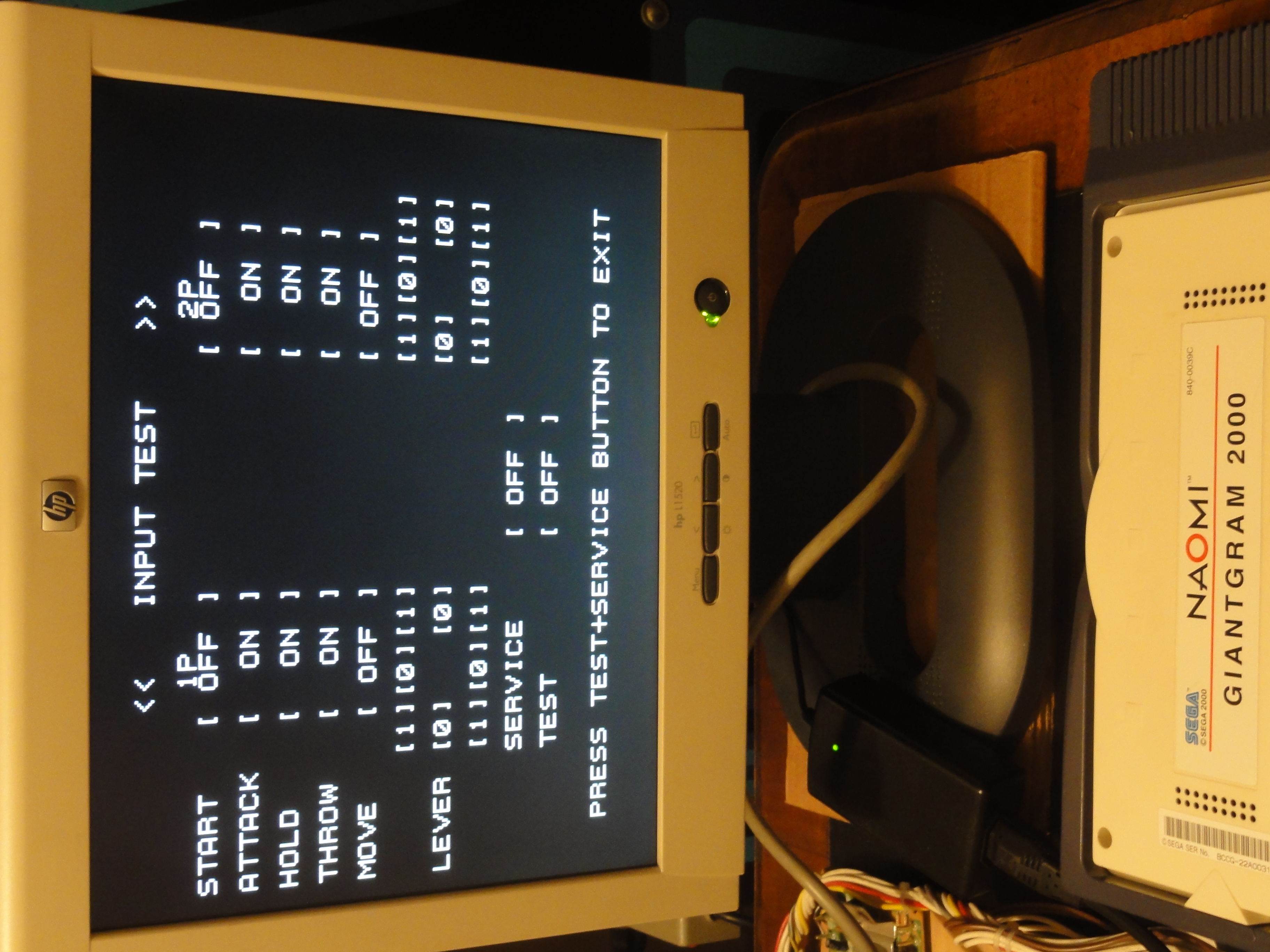

Input test
-

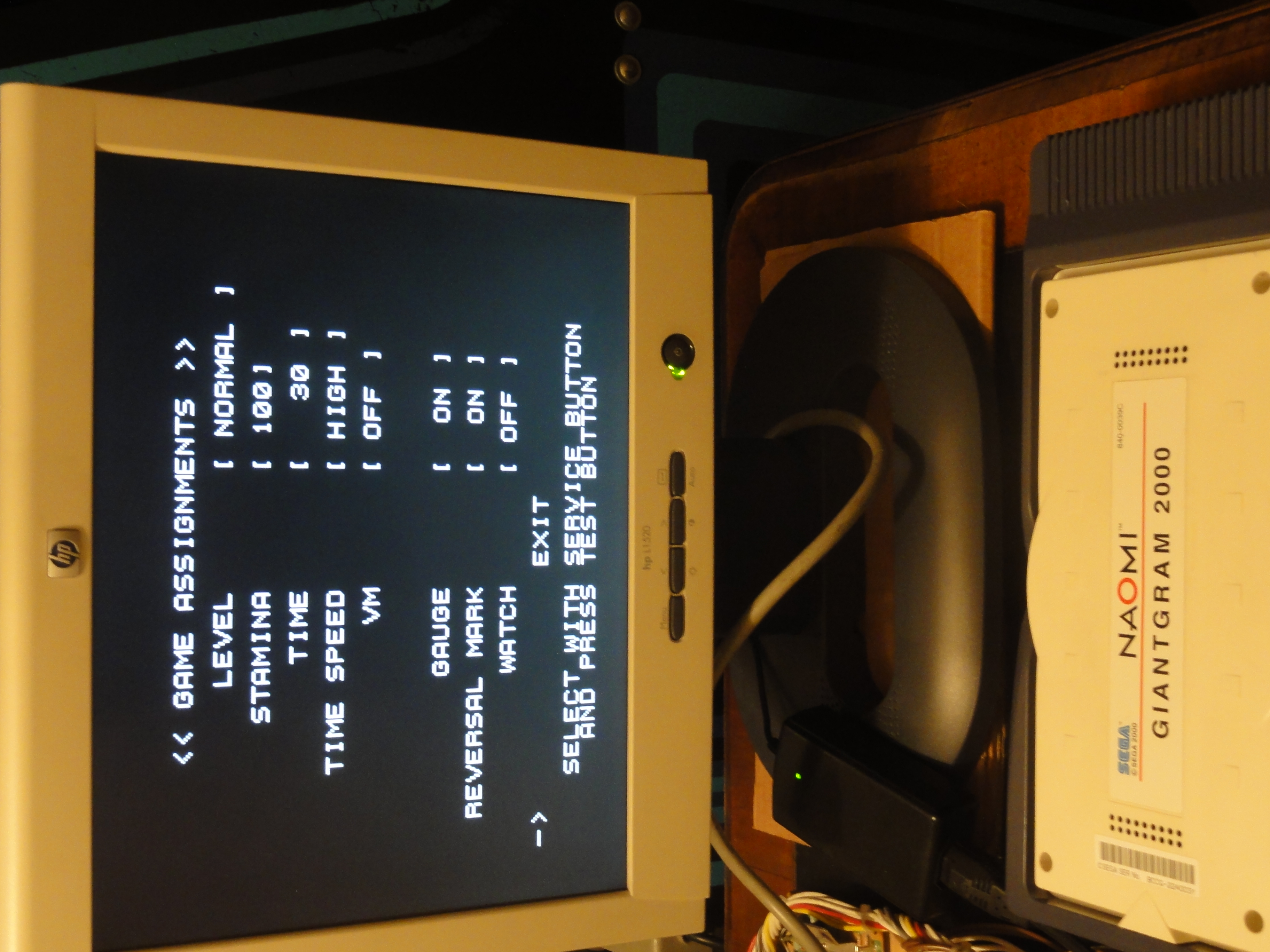

Game assignments
-

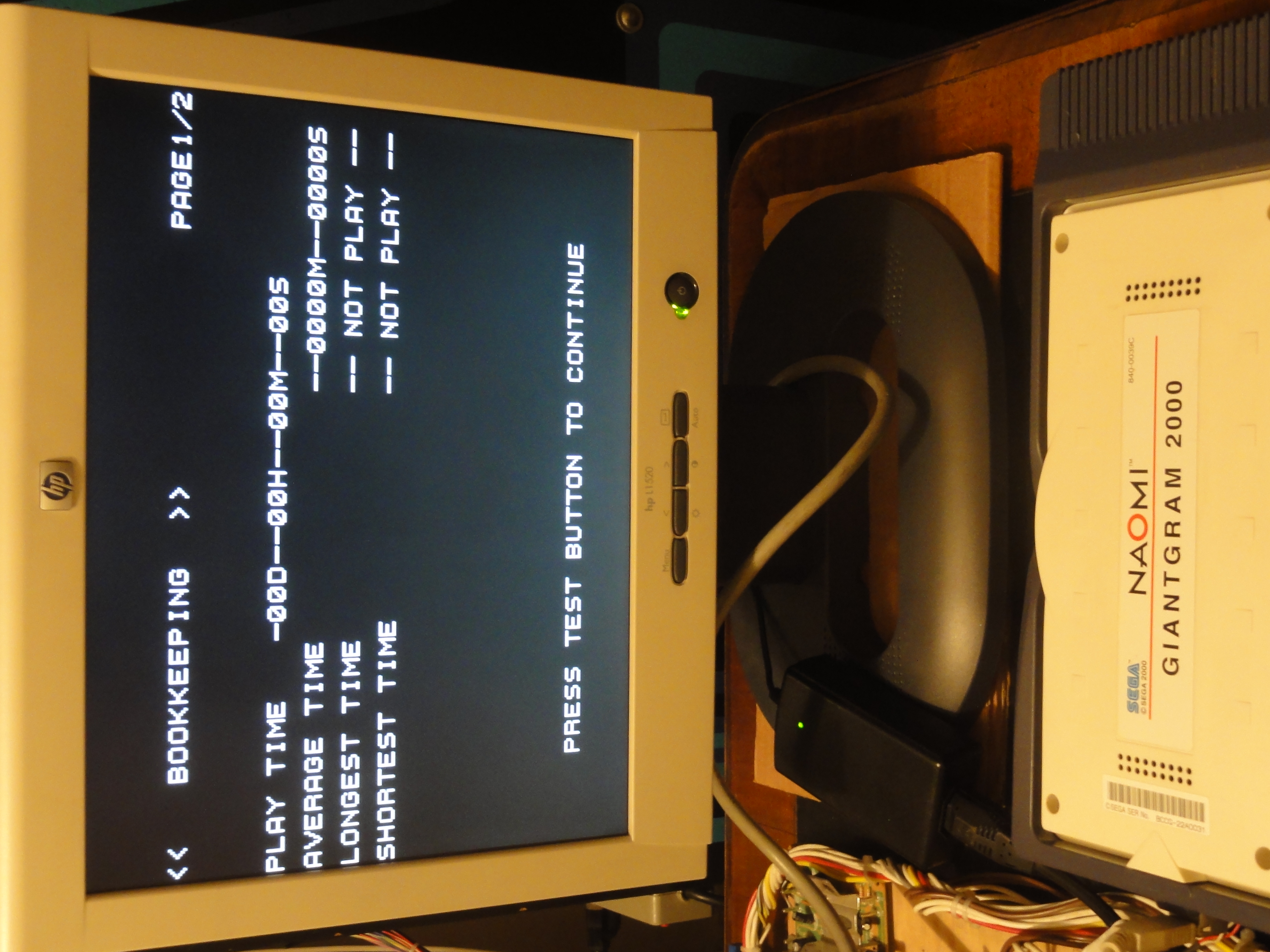

Bookkeeping 1
-

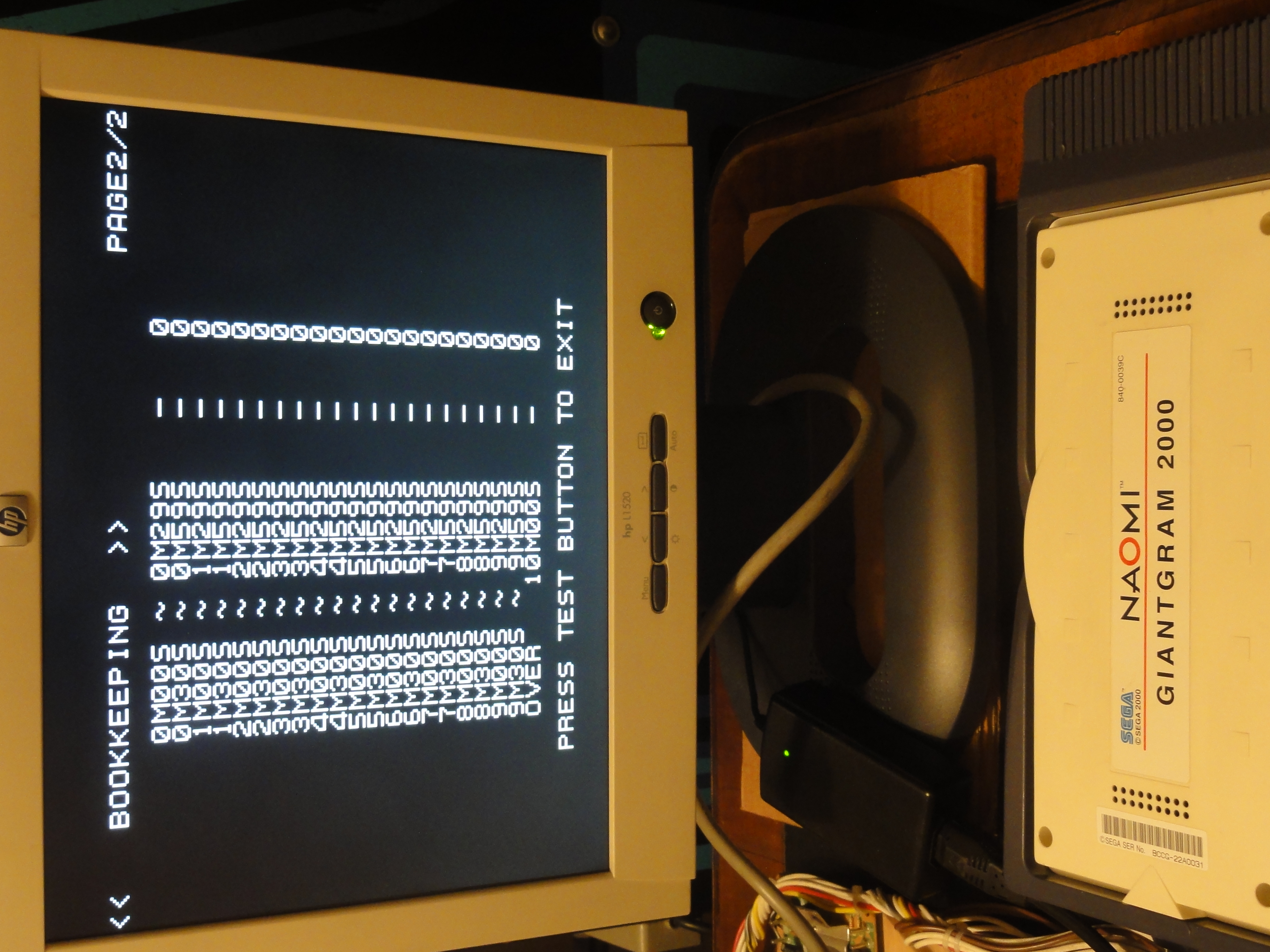

Bookkeeping 2
-

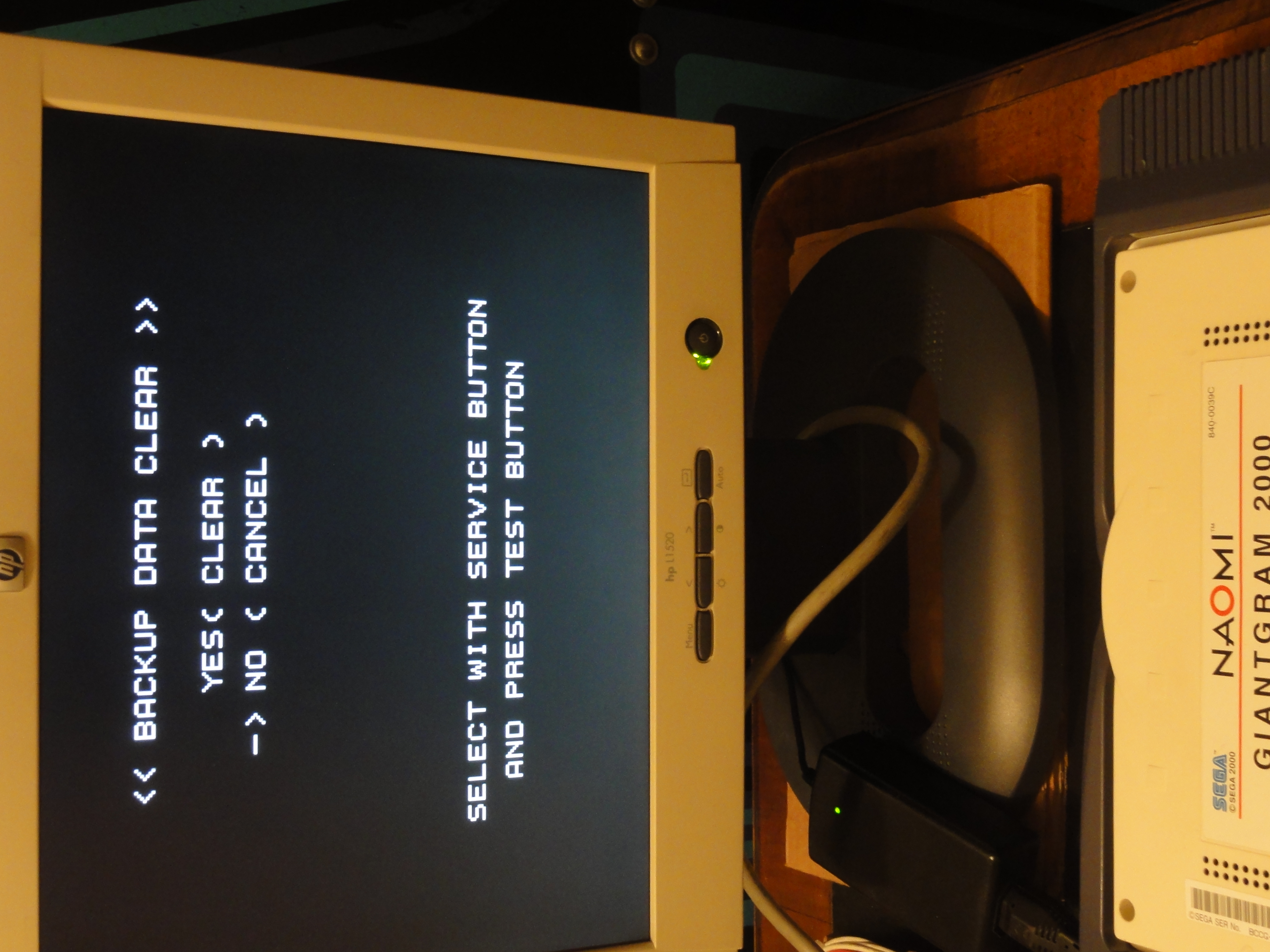

Backup data clear
-
Readme
