Ghosts'n Goblins (Italian bootleg, harder on Capcom hardware)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 21/10/2009 |
| emulator | MAME 0.124u4 |
| dev | Corrado Tomaselli |
| name | gngblita on ProgettoEMMA gngblita on Arcade Database |
| description | Ghosts'n Goblins (Italian bootleg, harder on Capcom hardware) |
| year | 1985 |
| manufacturer | Capcom |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68B09P | 11l | 8-bit Microprocessor - main | |
| 2x | YM2203 | 13e 14e | FM Operator Type-N (OPN) - sound | |
| 2x | YM3014 | 13e 14e | D/A Converter (DAC) - sound | |
| 1x | LM324 | 12d | Quad Operational Amplifier - sound | |
| 1x | oscillator | 12.000 MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | 27256 | 02,03,05 | dumped |
| 14x | M5L27128 | 01,04, 07-17 | dumped |
| 1x | TBP24S10 | 1 | dumped |
| 1x | N82S123N | 2 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | HM6264LP | 2c,7a |
| 3x | MBM2148L | 6d,7d,8d |
| 1x | TMM2016BP | 7h |
| 2x | 6116ASP | 8n,13n |
| 6x | TMM2114AP | 11e,12e,11h,12h,11j,12j |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 28x2 edge connector
1x black epoxy block
2x 8x2 switches DIP
Notes
This is the same game as Ghosts'n Goblins (Italian bootleg, harder) installed on an original Capcom PCB
Files
-

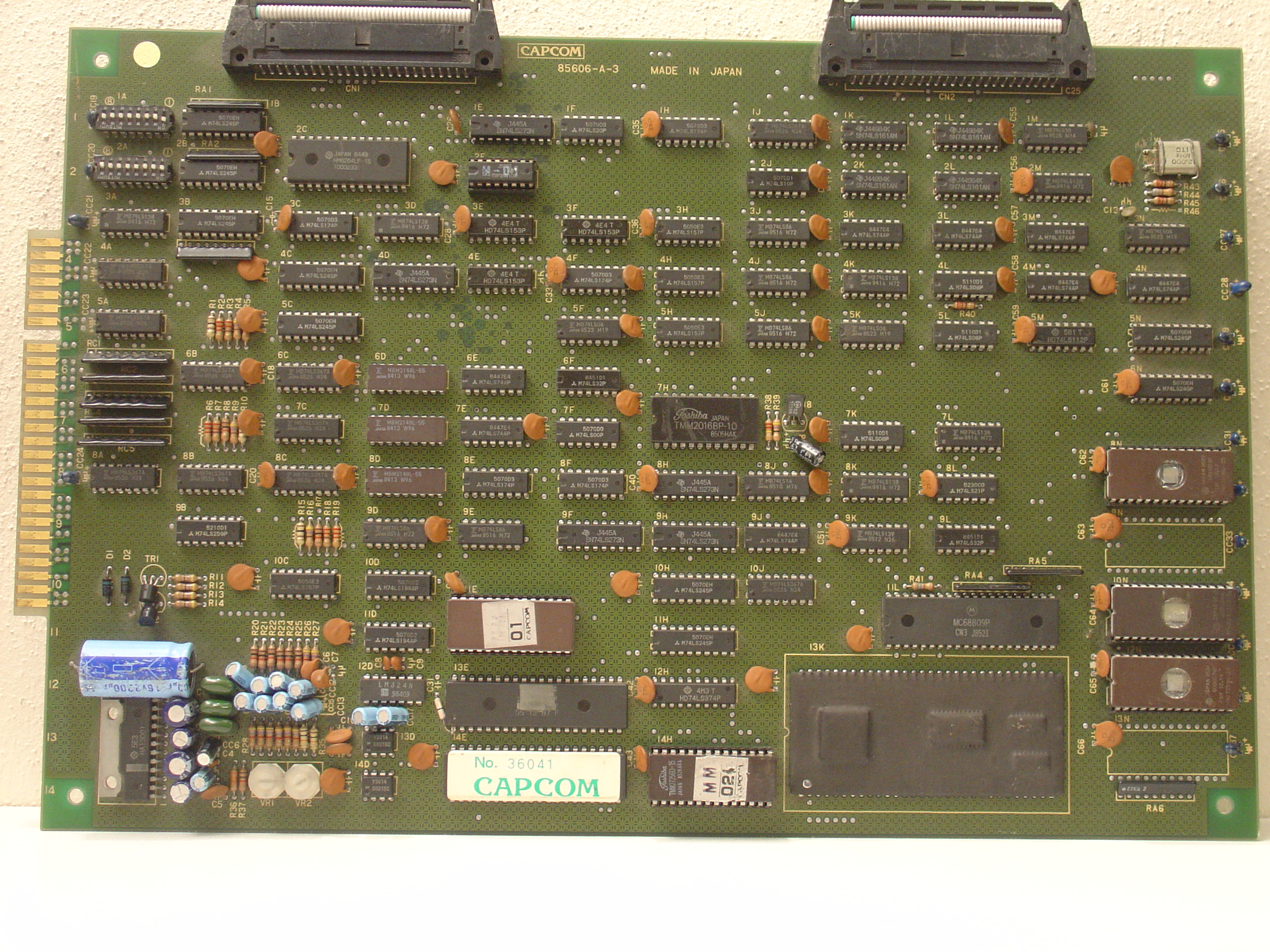

main PCB component side
-

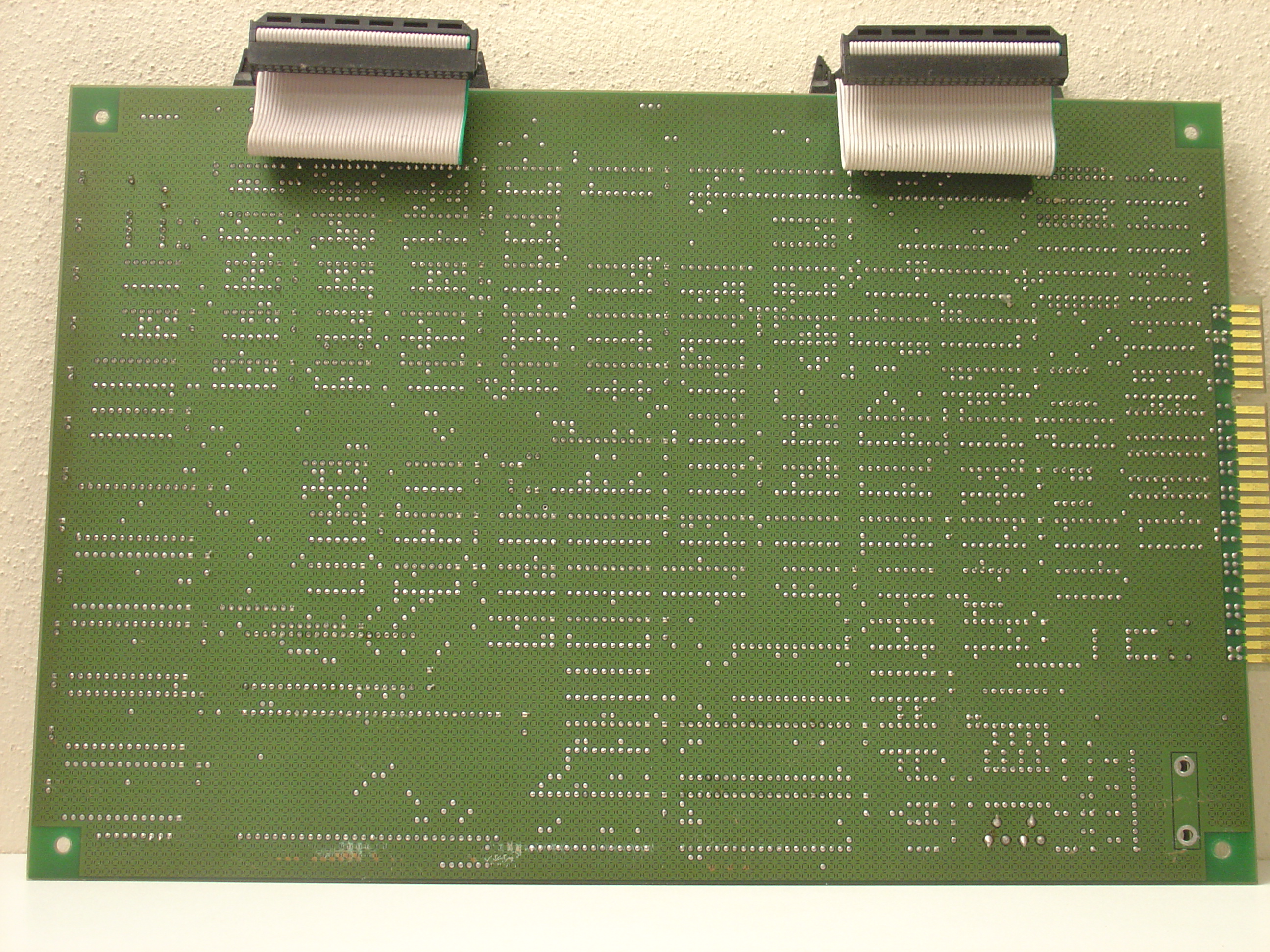

main PCB solder side
-

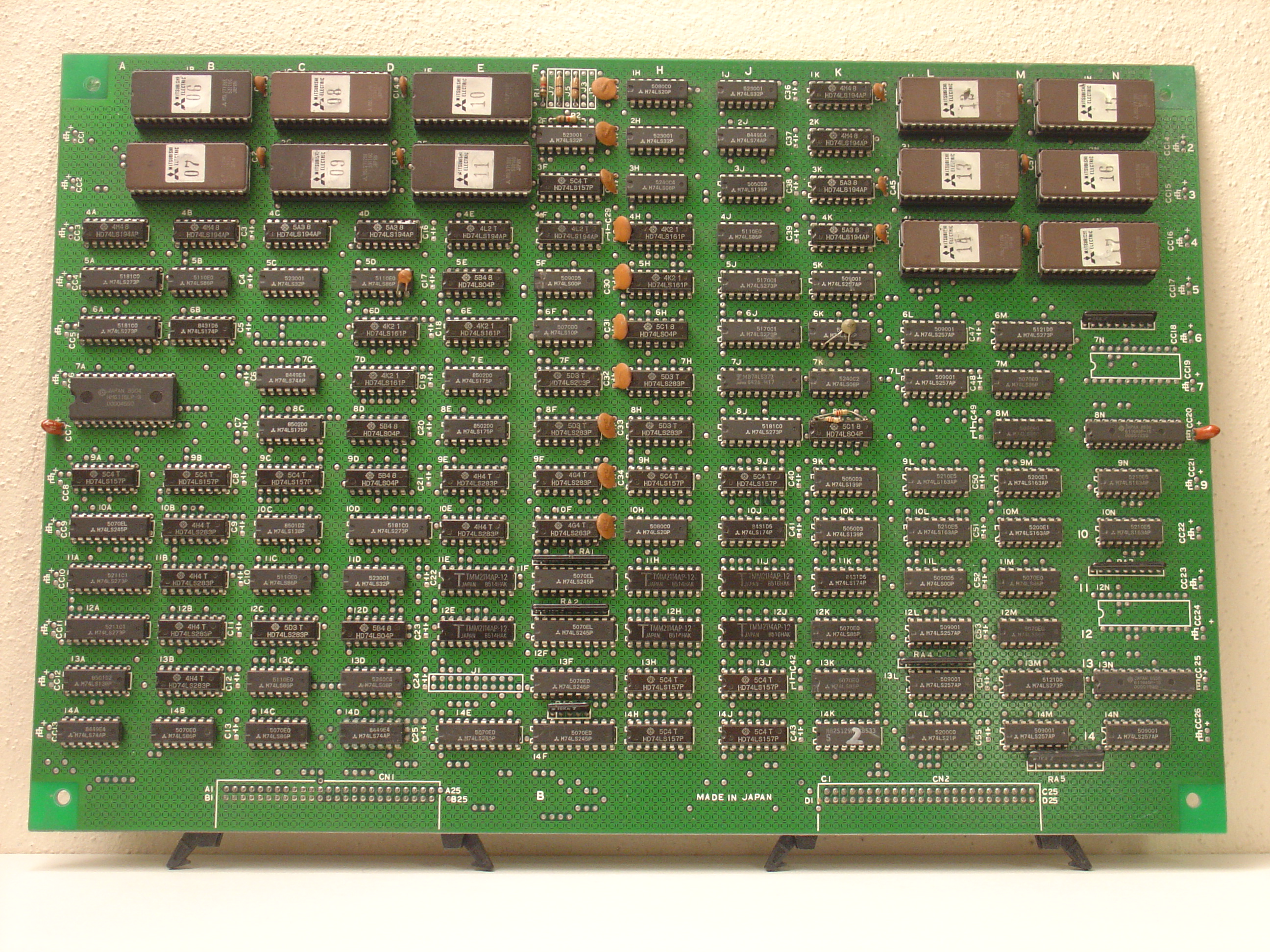

ROMs PCB component side
-

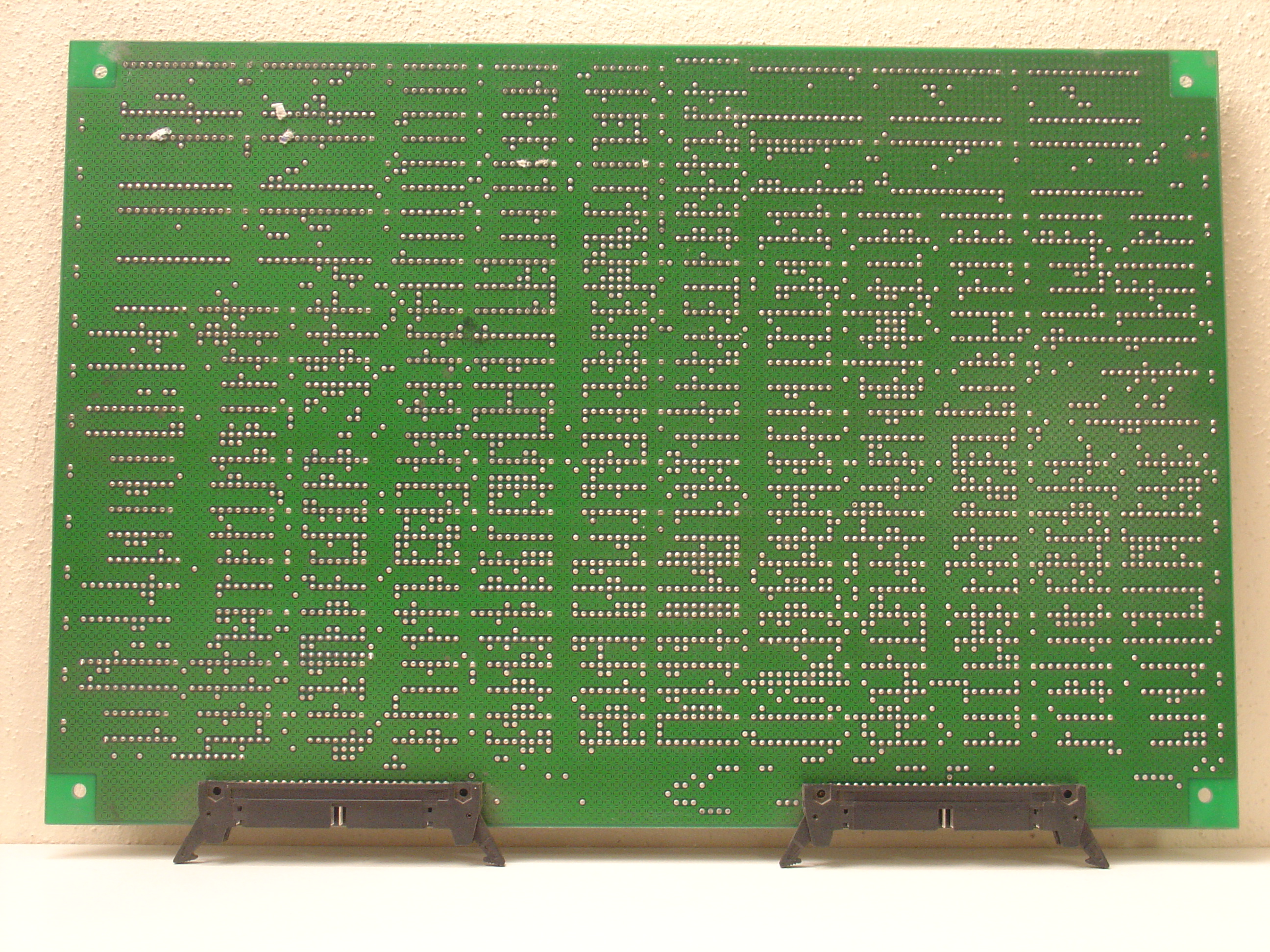

ROMs PCB solder side
852
