| dumper | f205v |
| date | 07/11/2010 |
| emulator | MAME 0.71u2 |
| dev | David Haywood, Leandro |
| name | genix on ProgettoEMMA genix on Arcade Database |
| description | Genix Family |
| year | 19941005-142120 |
| manufacturer | NIX |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TS68000CP12 | 15.99MHz | u6.13b - both PCBs | 16/32-bit Microprocessor - main |
| 1x | M6295 | 1.332MHz | u29.3b - both PCBs | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound |
| 1x | LM324N | - | u28.2b - both PCBs | Quad Operational Amplifier - sound |
| 1x | TDA2003 | - | u30.3a - both PCBs | Audio Amplifier - sound |
| 1x | oscillator | 24.000000MHz | xt1.8e - both PCBs | |
| 1x | oscillator | 32.000000MHz | xt2 - both PCBs |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | 27C020 | u69.6g u70.4g u71.3g u72.1g - 1st PCB | dumped |
| 4x | M27C2001 | u34.12g u35.12h u48.13g u49.13h - 1st PCB | dumped |
| 2x | M27C4001 | u15.15c u31.1b - 1st PCB | dumped |
| 1x | M27C4001 | u16.16c - 1st PCB | dumped, but it's bad, due to bitrod |
| 1x | 93C46 | u20.9a - 1st PCB | not dumped |
| 7x | M27C020 | u35.12h u48.13g u49.13h u69.6g u70.4g u71.3g u72.1g - 2nd PCB | dumped |
| 1x | M27C2001 | u34.12g - 2nd PCB | dumped |
| 1x | M27C040 | u31.1b - 2nd PCB | dumped |
| 2x | M27C4001 | u15.15c u16.16c - 2nd PCB | dumped |
| 1x | 93C46 | u20.9a - 2nd PCB | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | HM3-65728BK-5 | u80.1e u82.1d u85.5e u86.6e - 1st PCB |
| 2x | MCM2018AN45 | u81.2e u83.2d - 1st PCB |
| 4x | HM3-65764E-5 | u24.7c u27.6c u60.14f u61.15f - 1st PCB |
| 2x | W24257-70L | u25.16e u26.15e - 1st PCB |
| 2x | HM3-65728BK-5 | u85.5e u86.6e - 2nd PCB |
| 4x | MCM2018AN45 | u80.1e u82.1d u81.2e u83.2d - 2nd PCB |
| 1x | HM3-65764H-5 | u27.6c - 2nd PCB |
| 3x | HM3-65764E-5 | u24.7c u60.14f u61.15f - 2nd PCB |
| 2x | W24257-70L | u25.16e u26.15e - 2nd PCB |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | PALCE20V8H-25PC/4 | u102.13c - both PCBs | read protected |
| 4x | EPM7064LC84-15 | u98.8c u99.11c u100.8f u101.11e - both PCBs | read protected |
Others
1x 28x2 JAMMA edge connector
1x pushbutton (SW1.13a)
1x trimmer (volume.2a)
Notes
update 20190310: found a second PCB for the same game. Full redump, correct clocks, better PBC location of components, correct RAM sizes.
Files
-
PCB component side
-
PCB solder side
-
Title 1
-
Title 2
-
Attract mode 1
-

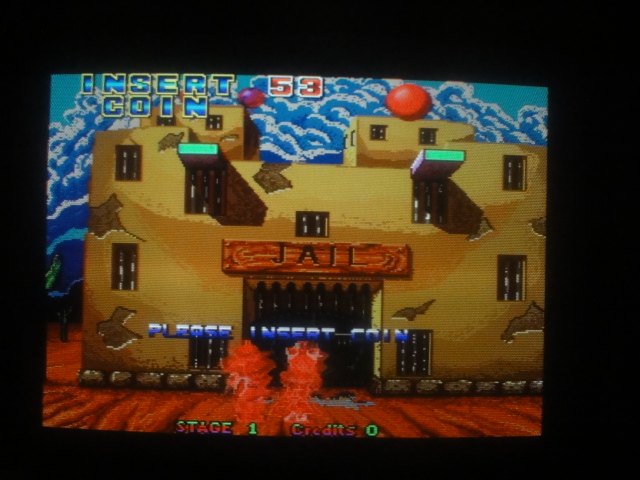

Attract mode 2
-
Attract mode 3
-
Attract mode 4
-
Select 1
-
Select 2
-
In game 1
-
In game 2
-
Hiscore
