Gee Bee (Europe)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Corrado Tomaselli |
| date | 17/12/2007 |
| emulator | MAME 0.122u5 |
| dev | Corrado Tomaselli |
| name | geebeeb on ProgettoEMMA geebeeb on Arcade Database |
| description | Gee Bee (Europe) |
| year | 1978 |
| manufacturer | Namco - F.lli Bertolino |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 8080A | 1F | 8-bit Microprocessor - main | |
| 1x | oscillator | 18435 | 1B |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 5x | MM2708 | 1,2,3,4,grt | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x trimmer (volume)
1x 6 DIP switches banks
Notes
PCB is marked: "namco" on component side
PCB is marked: "F.lli Bertolino Turin Italy" on solder side
Files
-

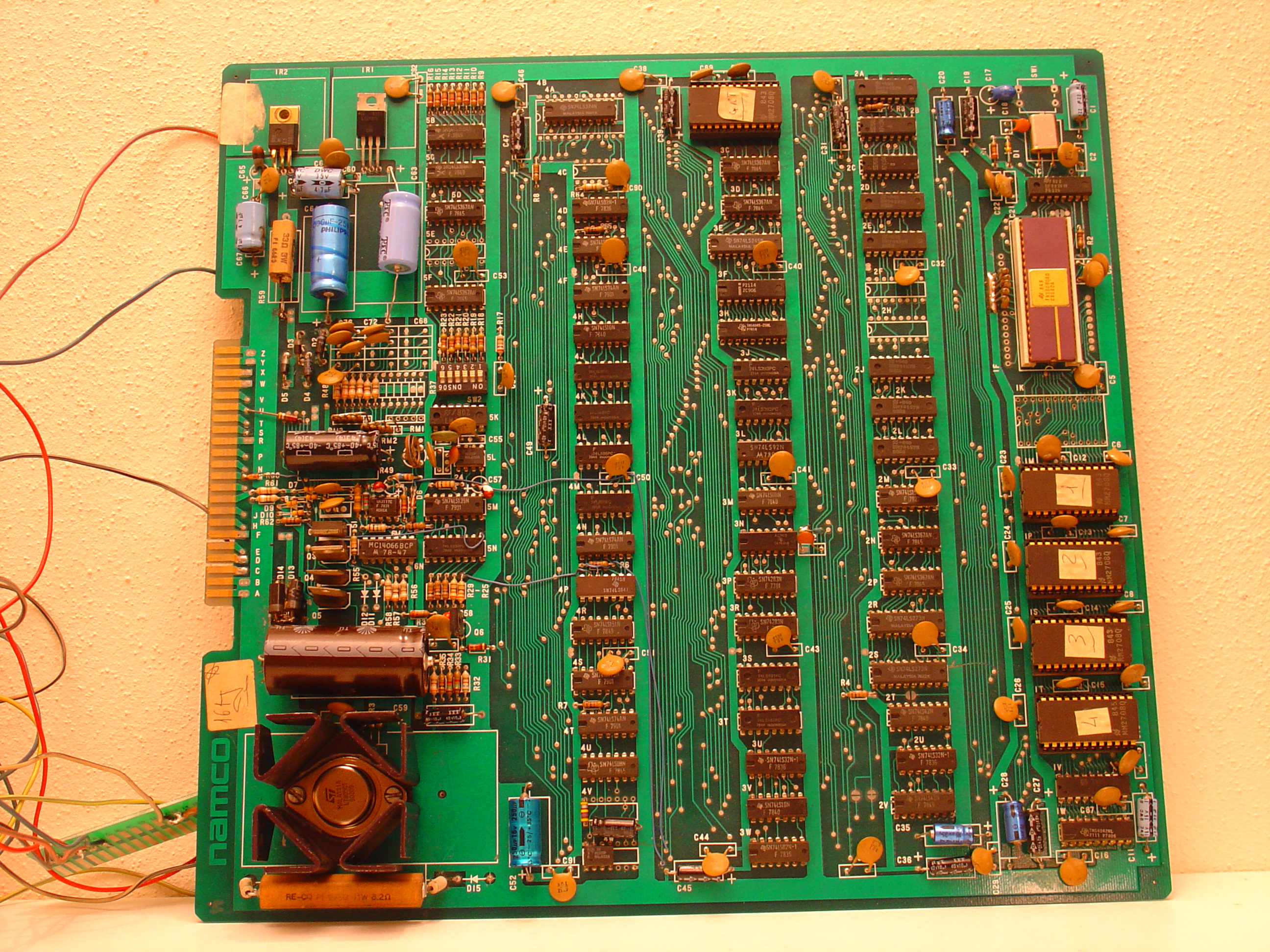

PCB component side
-

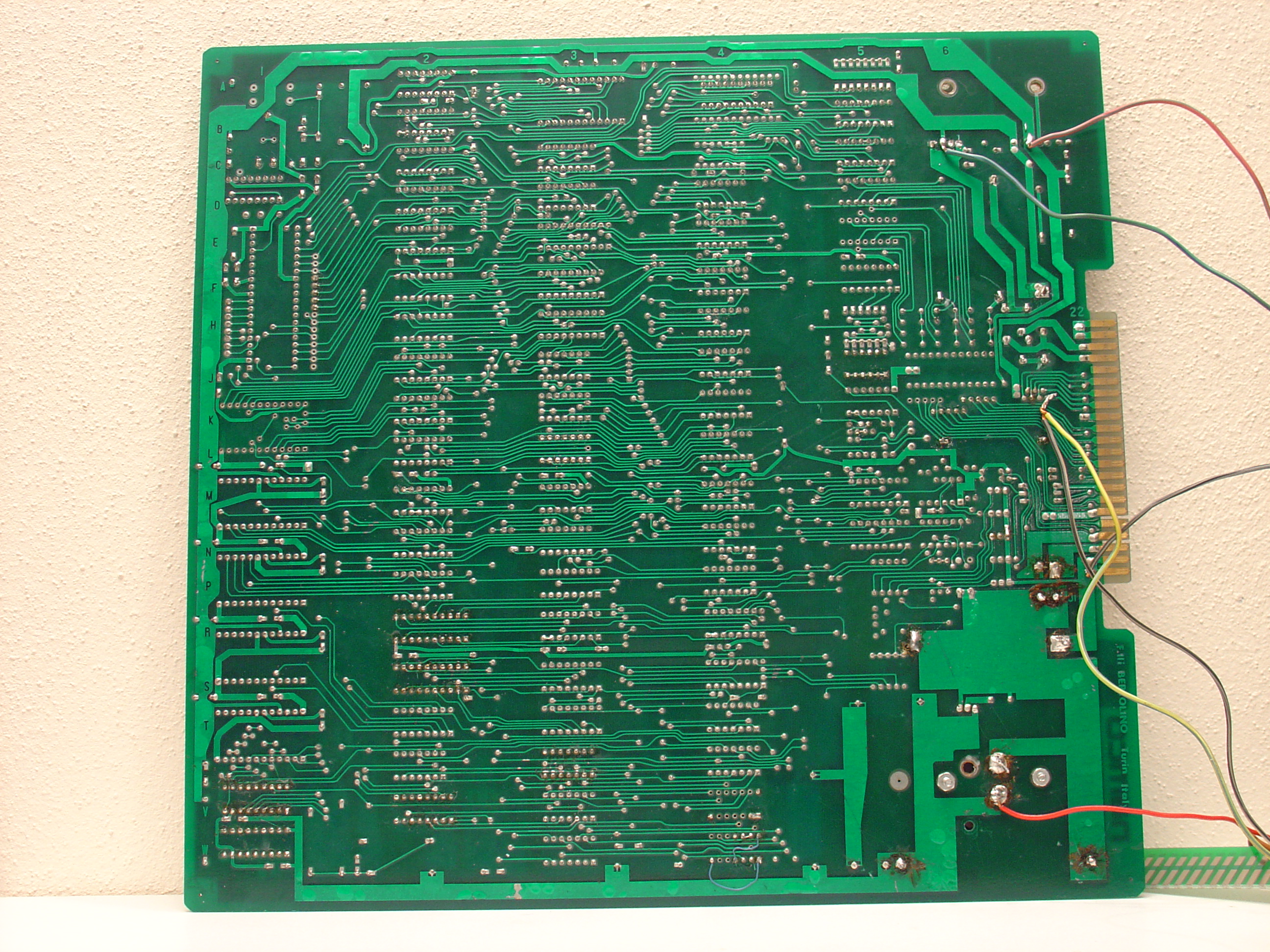

PCB solder side
