Gals Panic (Export, EXPRO-02 PCB)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 09/02/2006 |
| emulator | MAME 0.117u1 |
| dev | David Haywood |
| name | galsnewa on ProgettoEMMA galsnewa on Arcade Database |
| description | Gals Panic (Export, EXPRO-02 PCB) |
| year | 1990 |
| manufacturer | Kaneko |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 68000 | 11.99MHz | u43 | 16/32-bit Microprocessor - main |
| 1x | 6295 | 1.999MHz | u31 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound |
| 1x | LA4460N | - | u5 | Audio Power Amplifier - sound |
| 1x | custom KANEKO VU-002 | u67 | TQFP160 | |
| 1x | custom KANEKO VIEW2-CHIP | u66 | TQFP144 | |
| 1x | custom KANEKO CALC1-CHIP | u81 | DIP40-600mil | |
| 1x | custom KANEKO GP-U41 | u41 | DIP40-600mil | |
| 1x | custom KANEKO GP-U27 | u27 | DIP40-600mil | |
| 2x | D42101C-3 | u39,u40 | Line buffer for NTSC TV | |
| 1x | oscillator | 12.0000MHz | u62 | |
| 1x | oscillator | 16.0000MHz | u63 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | 27010 | 109,110 | dumped (read as MSM271000) |
| 11x | 27040 | 000,001,002,003,004,005,006,007,008,018,206 | dumped |
| 5x | 274096 | 013,014,015,016,017 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 6x | M5M4C264L | u20,u21,u22,u23,u24,u25 |
| 2x | LH5116-10 | u18,u19 |
| 2x | LC3664NL-12 | u78,u80 |
| 2x | KM62256ALP-8 | u64,u65 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | GAL16V8A-25LP | u26,u28,u44,u57,u58,u60 | read protected (label prefixed "GP-") |
| 11x | AMI18CV8PC-25 | u10,u11,u12,u29,u32,u33,u34,u35,u38,u45,u48 | read protected |
| 5x | AMI22CV10P-25 | u15,u36,u37,u77,u78 | read protected |
Others
1x JAMMA edge connector
1x trimmer (volume, VR1)
2x 8x2 switches dip (SW1,SW2)
Notes
PCB is marked: "MDK321 V-0", "KANEKO MADE IN JAPAN" and "EXPRO-02" on component side
update 20190310: found another PCB for the same game: checked clocks, documented RAMs and PLDs, better description of components.
Files
-

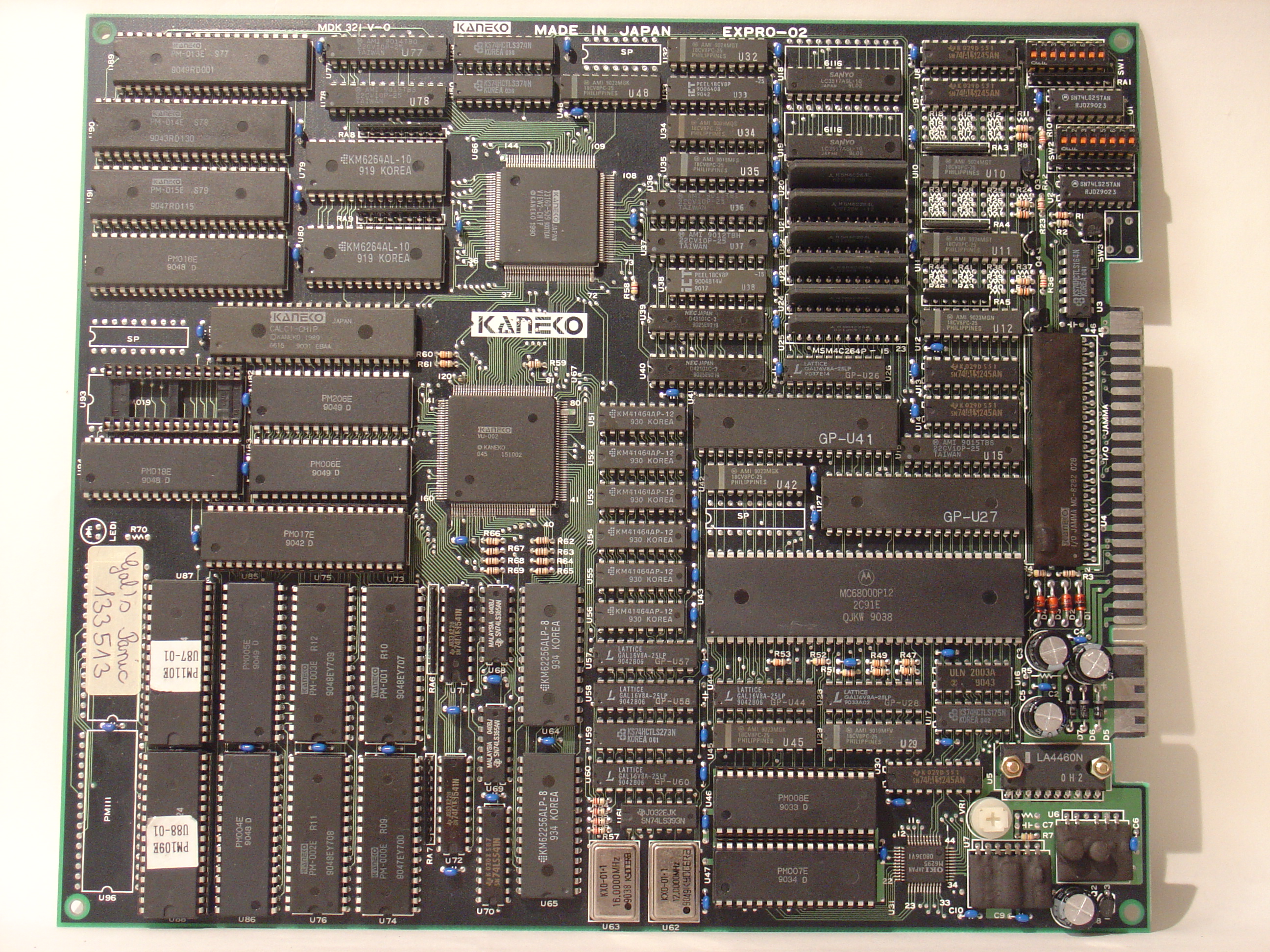

PCB component side
-

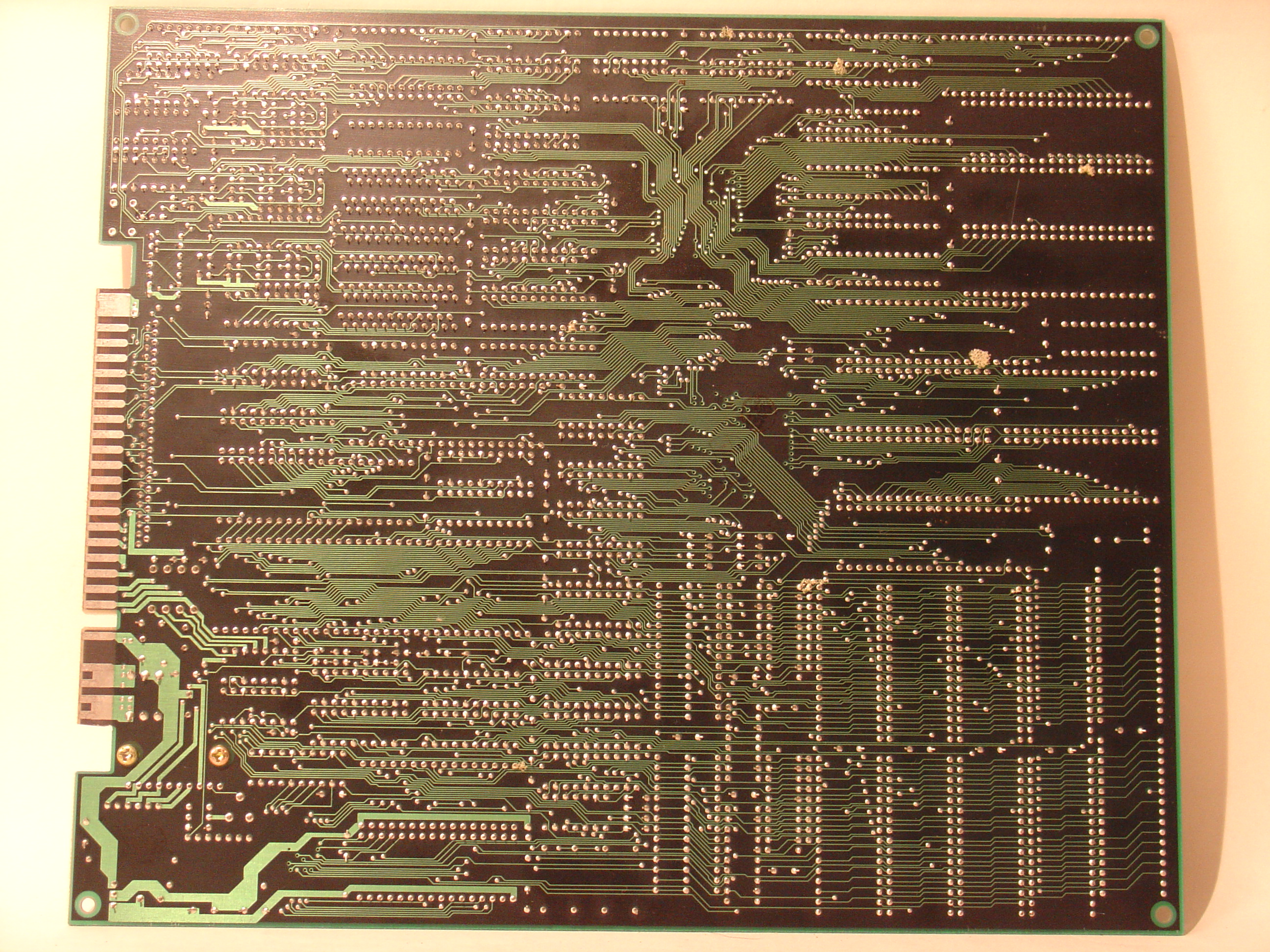

PCB solder side
