Galaxia (set 3)
From Citylan
Jump to navigationJump to search
| dumper | Dyno Dastardly, Janniz |
| date | 08/02/2016 |
| emulator | MAME 0.153 |
| dev | Paul Swan, Andrew Welburn |
| name | galaxiab on ProgettoEMMA galaxiab on Arcade Database |
| description | Galaxia (set 3) |
| year | 1979 |
| manufacturer | Zaccaria - Zelco |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 2650 | 8a | 8-bit Microprocessor - main | |
| 3x | 2636 | 8f,10f,11f | Programmable Video Interface | |
| 1x | oscillator | ? | 11a |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 12x | 2708 | 10h,10i,11h,11i,11l,13h,13i,13l,1d,3d,8h,8i | dumped |
| 1x | N82S130 | 11o | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | 2102 | 1b,3c |
| 4x | 2114 | 1c,2c,13f,13g |
| 2x | 2101 | 2f,3f |
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
Etching: ZACCARIA 1B1132/1
Silk: ZACCARIA on one side and SETT 24 toward the connectors
update 20220213: thanks to Vernimark we now have the schematics.
Files
-

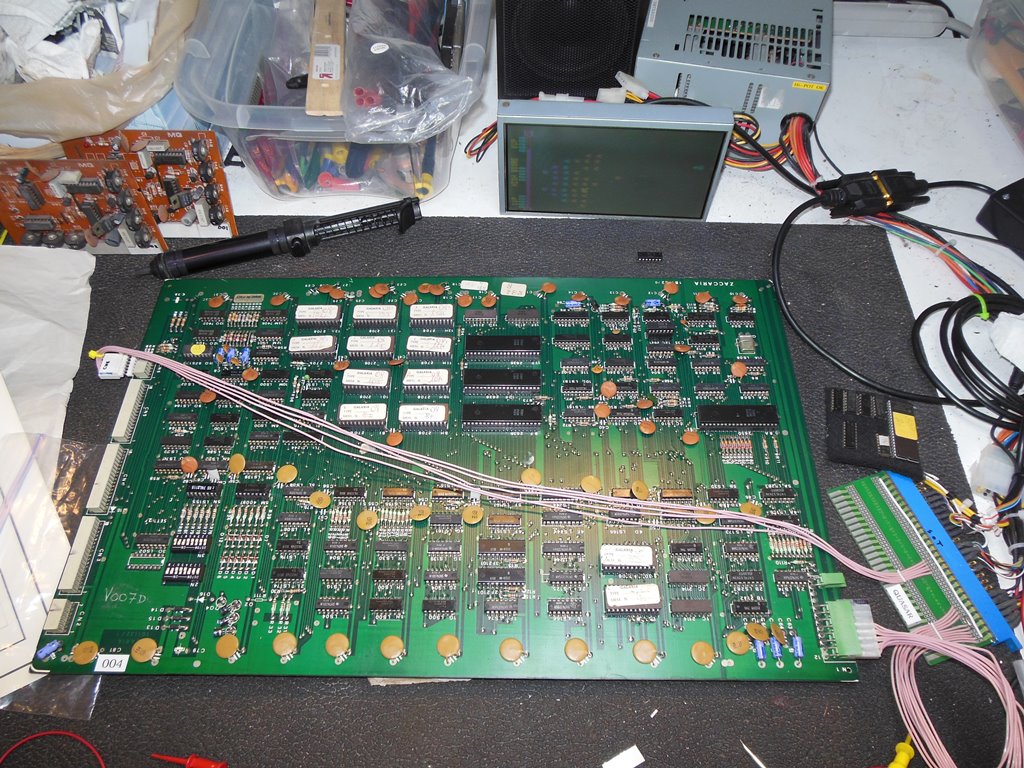

PCB component side
-

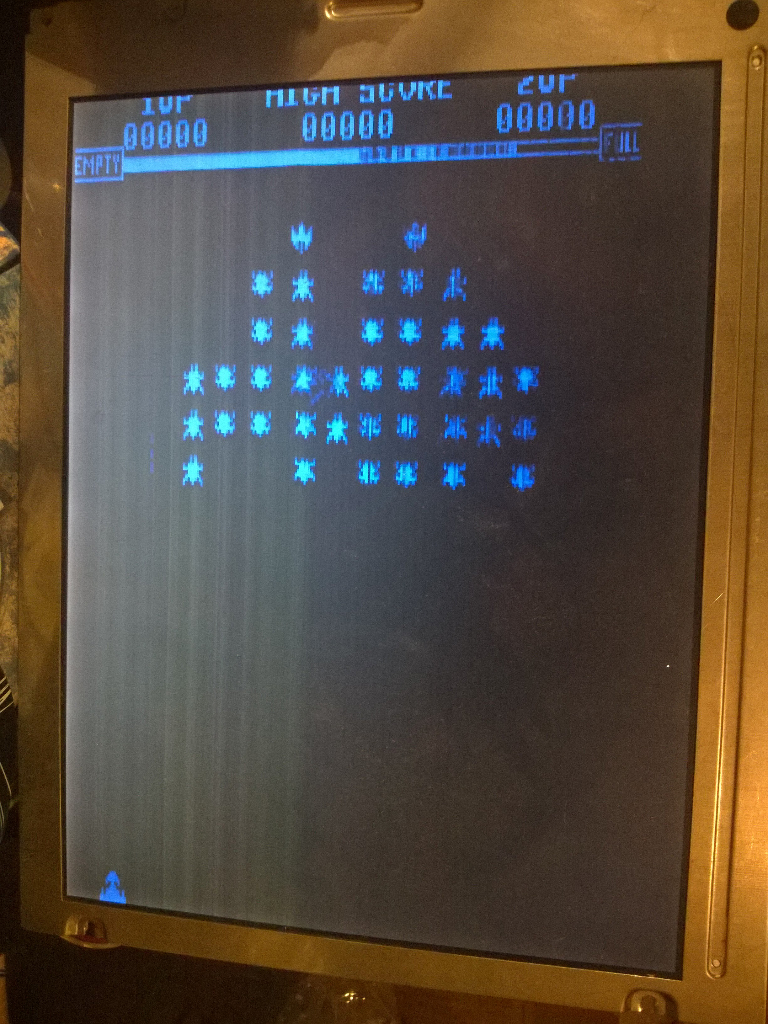

In game
-
readme
1366
