Fortress 2 Blue Arcade (World) (ver 1.01 / pcb ver 3.05)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 14/02/2006 |
| emulator | MAME 0.104u1 |
| dev | Pierpaolo Prazzoli |
| name | fort2b on ProgettoEMMA fort2b on Arcade Database |
| description | Fortress 2 Blue Arcade (World) (ver 1.01 / pcb ver 3.05) |
| year | 2001 |
| manufacturer | Eolith |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Hyperstone E1-32N | u1 | 32-bit Microprocessor - main | |
| 1x | GMS80C32-PL40 | u103 | 8-bit Microcontroller - main (not dumped) | |
| 1x | custom EV0514-001 | u14 | video | |
| 1x | QS1000 | u93 | sound | |
| 1x | TDA1519 | u99 | Audio Amplifier - sound | |
| 1x | oscillator | 45.000000MHz | u25 | close to main |
| 1x | oscillator | 14.31818MHz | u53 | close to custom |
| 1x | oscillator | 12.000MHz | x2 | close to u103 |
| 1x | oscillator | 24.000 | x1 | close to sound |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | W27C257-12 | u107,u111 | dumped |
| 3x | M27C4001 | u43,u97,u108 | dumped |
| 16x | MX29F1610MC-12C3 | 00-15 | dumped |
| 1x | 93C66 | u124 | not dumped |
| 1x | QS1001A | u96 | sound (not dumped) |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | K6R1016C1C | u10,u11,u12,u13 |
| 8x | A6173081-12 | u2,u3,u4,u5,u6,u7,u8,u9 |
PLDs
| QTY | Type | position | status |
|---|
Others
1x JAMMA edge connector
1x 30x2 pins flat cable connector (to ROMs board)
2x trimmer (volume)
2x 4x2 switches DIP
Notes
The MAME source code needs to include as "UNDUMPED" both the internal memory for GMS80C32-PL40 and the 93C66 ROM.
Files
-

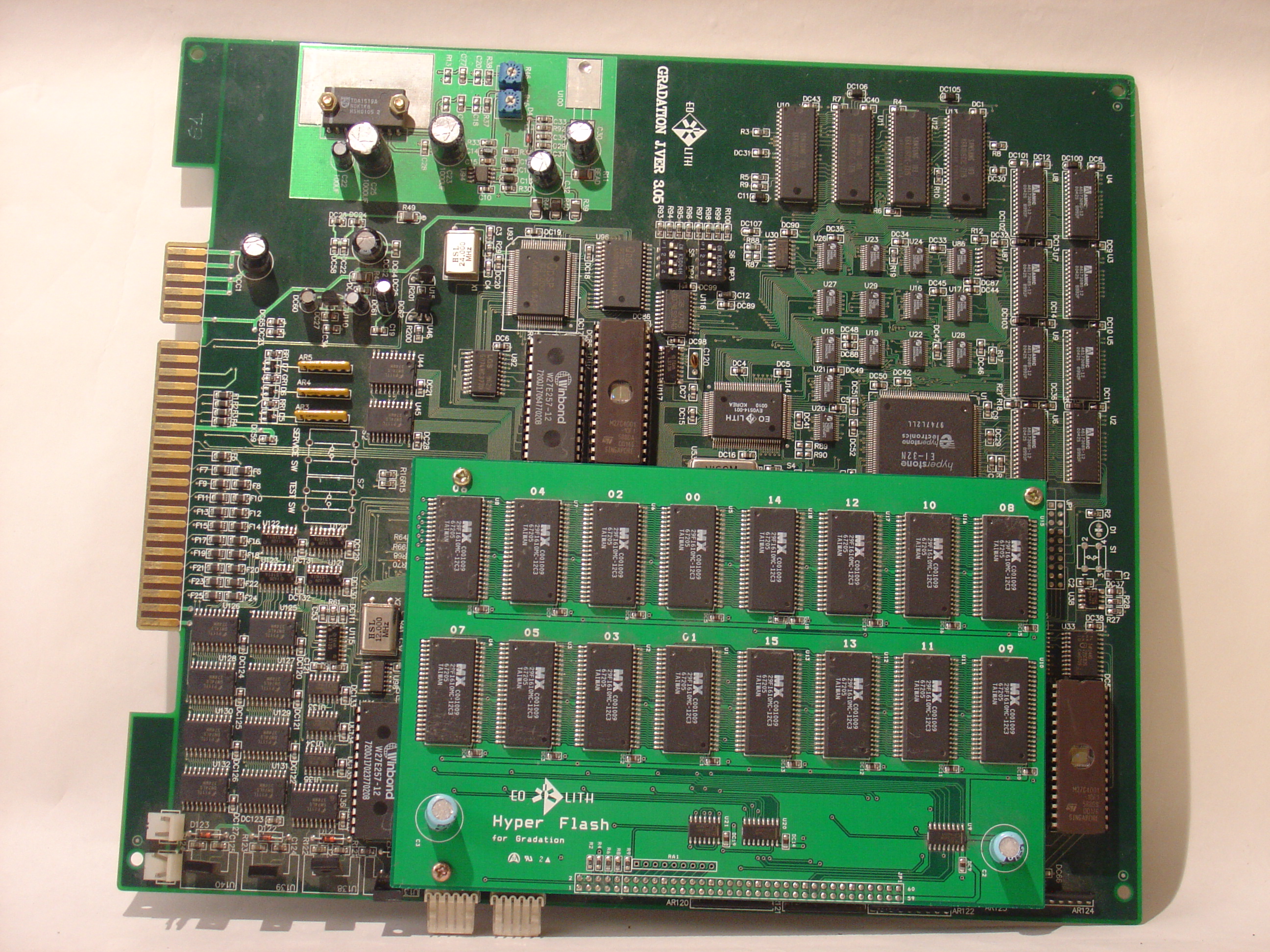

complete PCB component side
-

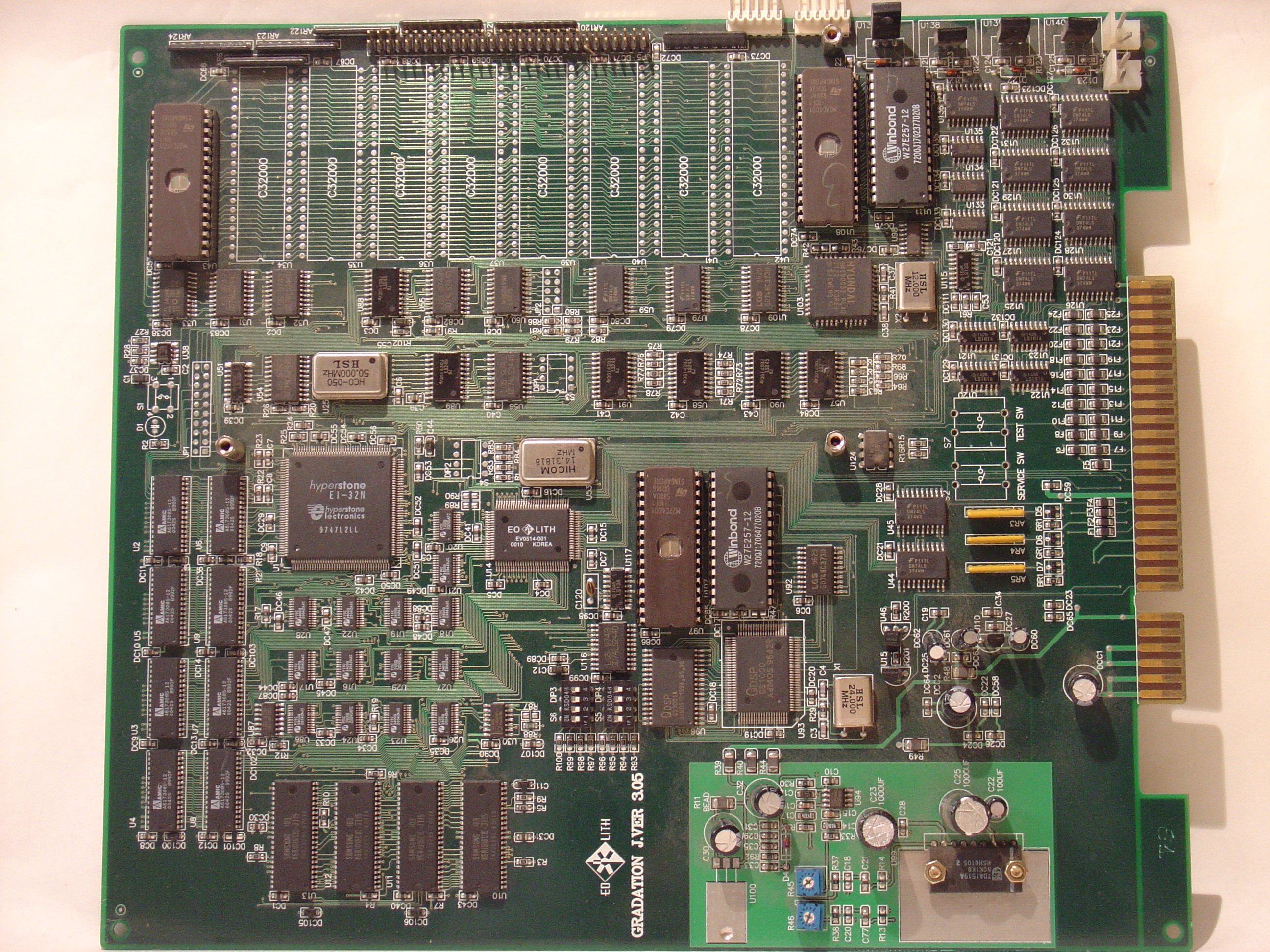

main PCB component side
-

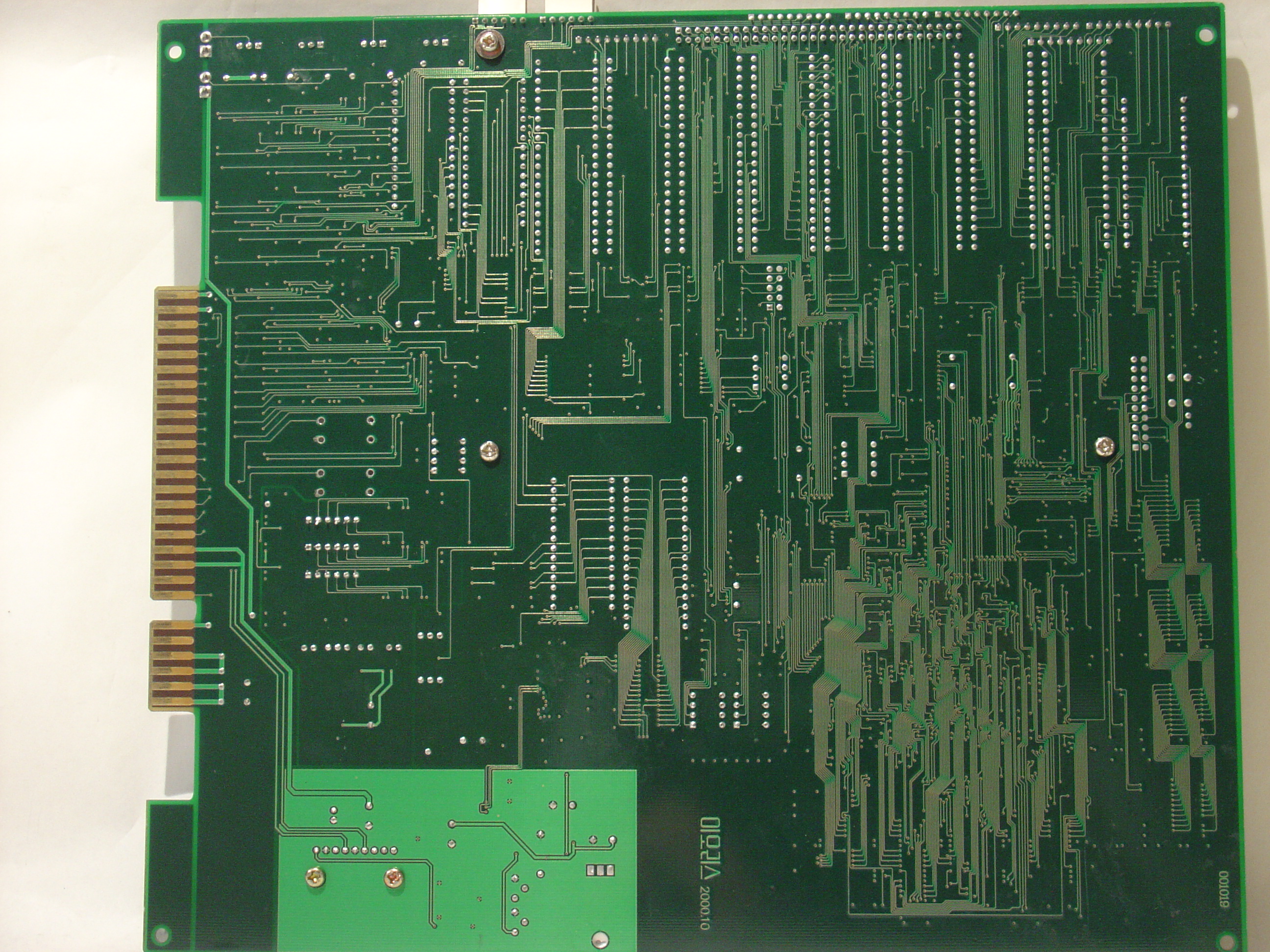

main PCB solder side
-

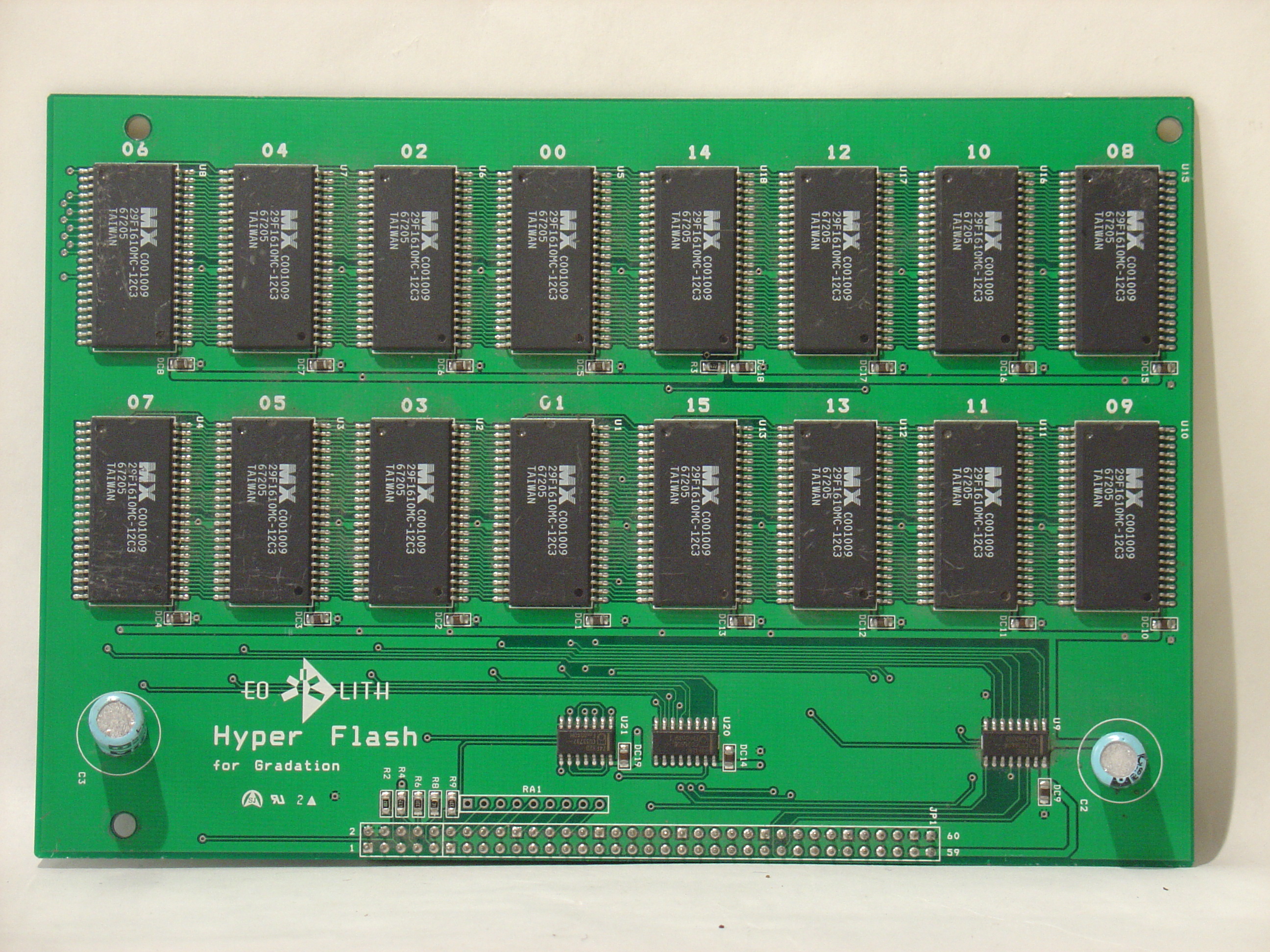

ROMs PCB component side
-

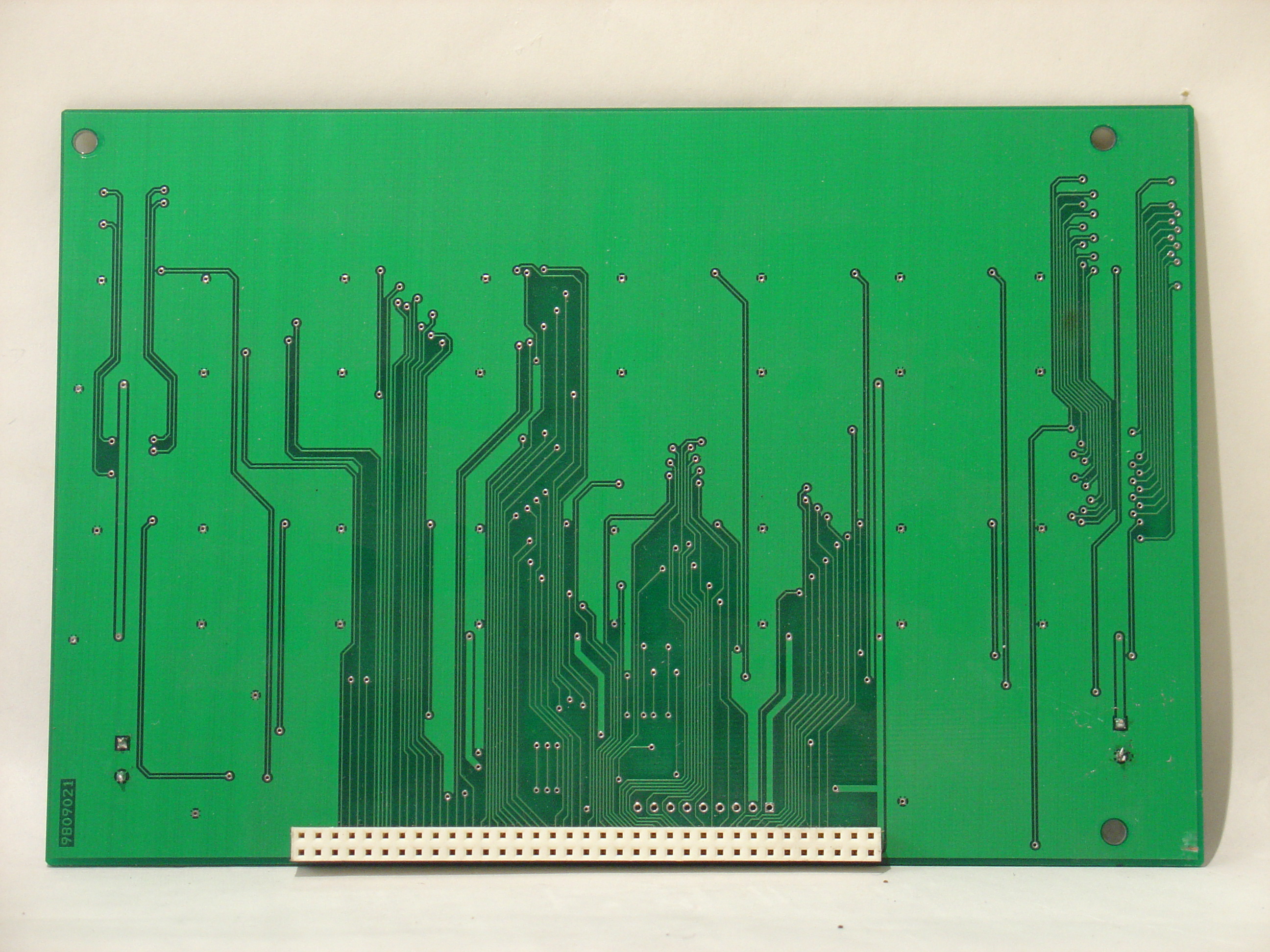

ROMs PCB solder side
-

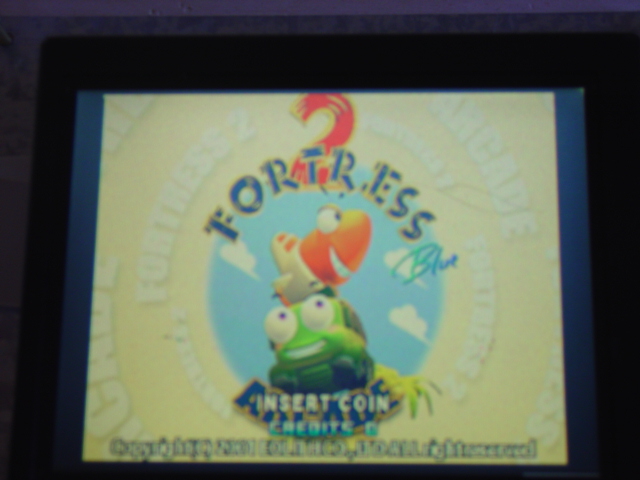

Title
-

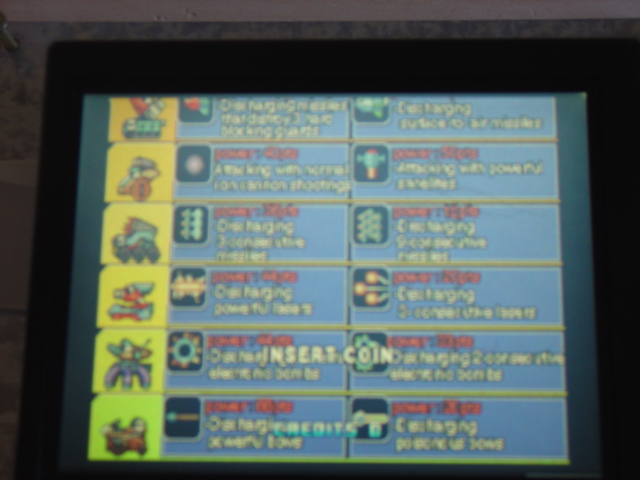

Attract mode 01
-

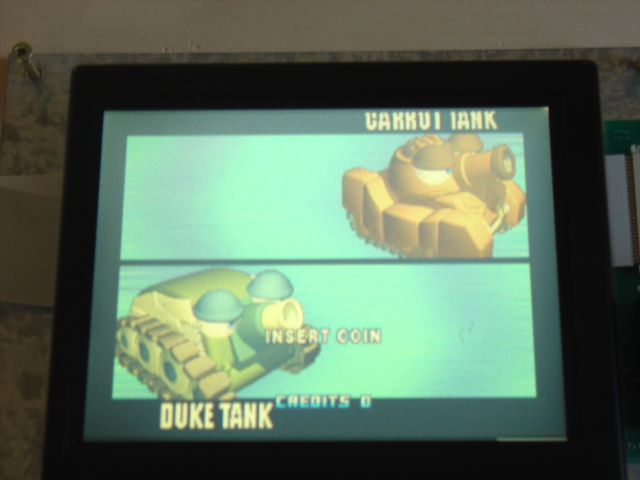

Attract mode 02
-

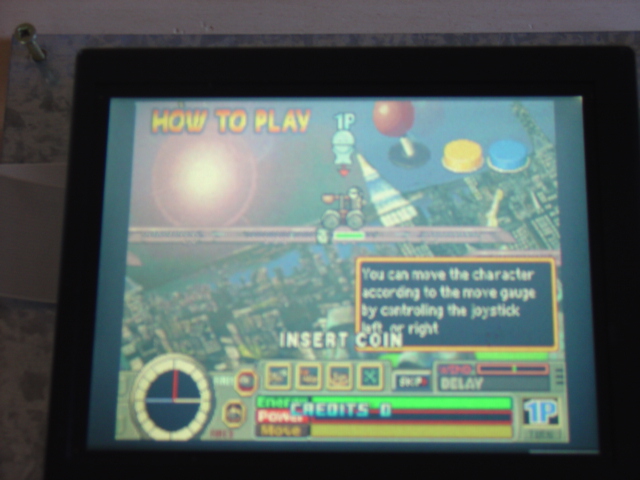

How to play
-

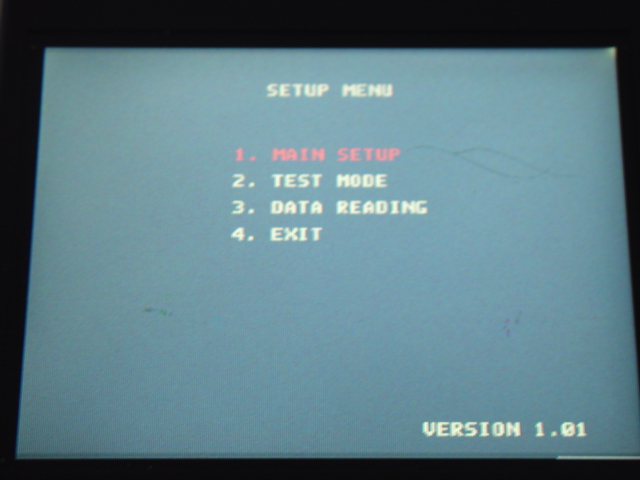

Test mode
