Football Champ / Euro Football Champ (World)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 17/03/2019 |
| emulator | MAME 0.36b9 |
| dev | Ernesto Corvi |
| name | footchmp on ProgettoEMMA footchmp on Arcade Database |
| description | Football Champ / Euro Football Champ (World) |
| year | 1990 |
| manufacturer | Taito |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P12 | 11.99MHz | ic13 | 16/32-bit Microprocessor - main |
| 1x | Z8400AB1-Z80ACPU | 3.998MHz | ic68 | 8-bit Microprocessor - sound |
| 1x | YM2610 | 55.53KHz(pin29,pin30) - 7.996MHz(pin63) - variable(pin64) | ic58 | FM Operator Type-N (OPN) - sound |
| 1x | Y3016-F | 49.92Hz | ic62 | D/A Converter (DAC) - sound |
| 1x | MB3737A | - | ic71 | Audio Amplifier - sound |
| 1x | oscillator | 26.686MHz | osc1 | |
| 1x | oscillator | 24.000MHz | osc2 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C512 | ic70 | dumped |
| 1x | M5M27C101K | ic4 | dumped |
| 3x | M27C1001 | ic5,ic6,ic7 | dumped |
| 3x | uPD27C4000 | ic1,ic2 | dumped |
| 2x | uPD27C8000 | ic9,ic10,ic57 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | HM3-65764K-5 | ic66 |
| 1x | IMS1630PL10Z | ic69 |
| 6x | MN44256-10LL | ic3,ic12,ic26,ic27,ic33,ic34 |
| 16x | TC51832SPL-85 | ic19,ic20,ic21,ic22,ic29,ic30,ic31,ic32 ic41,ic42,ic43,ic44,ic49,ic50,ic51,ic52 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PAL16L8BCN | ic45,ic46 | dumped |
Others
Custom Taito chips: TC0190FMC(ic8), TC0480SCP(ic23), TC05400BN(ic28), TC0520TBC(ic40), TE7750(ic53), TC0360PRI(ic55), TC0530SYC(ic56), TC0260DAR(ic67)
1x 28x2 JAMMA edge connector (G)
1x 3 legs connector (S)
1x 4 legs connector (Z)
1x 5 legs connector (empty space P)
1x 5 legs connector (on a 6 legs space M)
2x 15 legs connector (3P,4P)
1x trimmer (volume VR1)
Notes
PCB is marked: "TAITO K1100647A J1100261A MAIN PCB", "TAITO CORPORATION MADE IN JAPAN" and "SERIAL NO.116109026" on component side
PCB is labelled: "K11E0647A FOOTBALL CHAMP" on component side
label format is: ------- | C80 | -> game code | 14 | -> rom number -------
Files
-

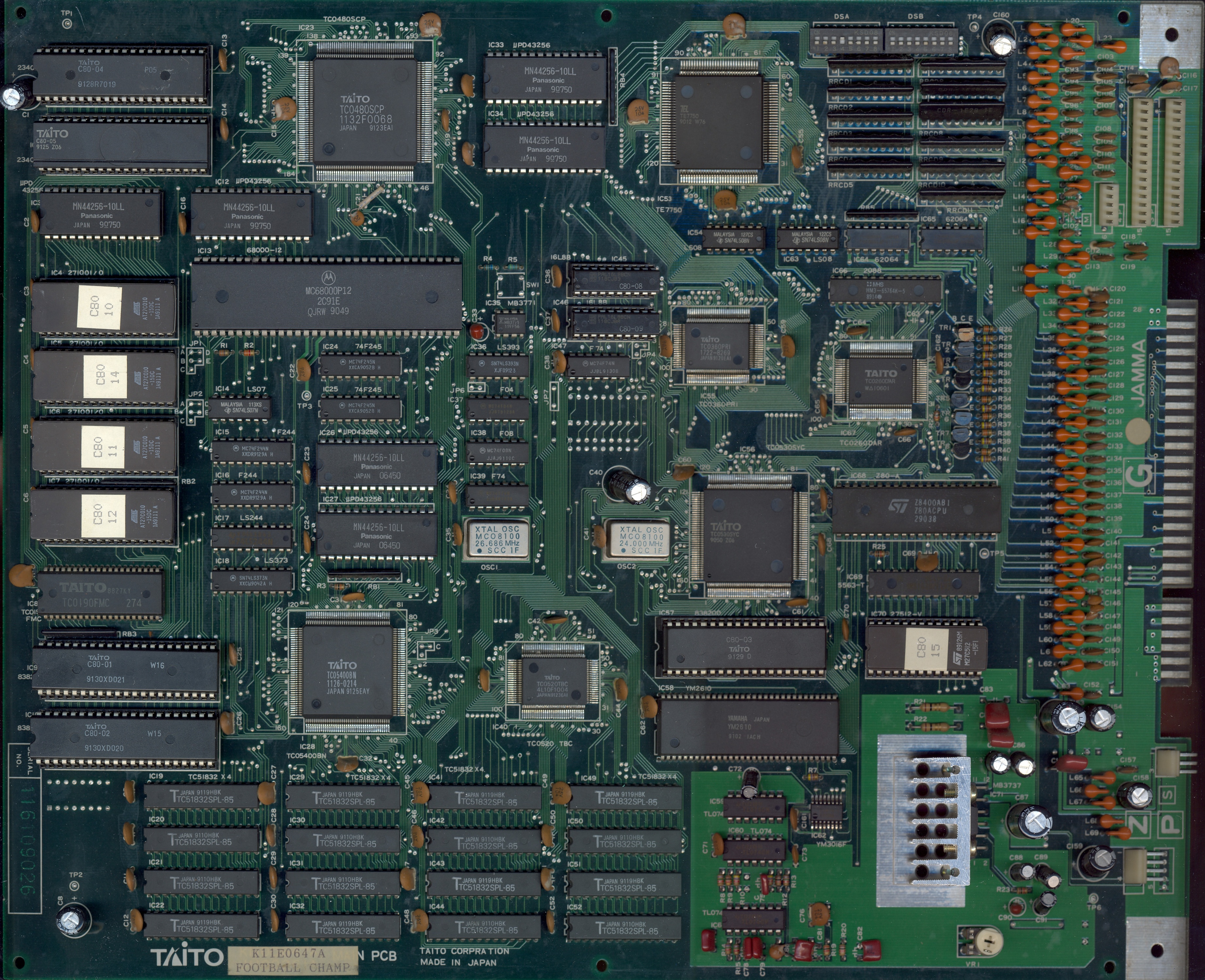

PCB component side
-

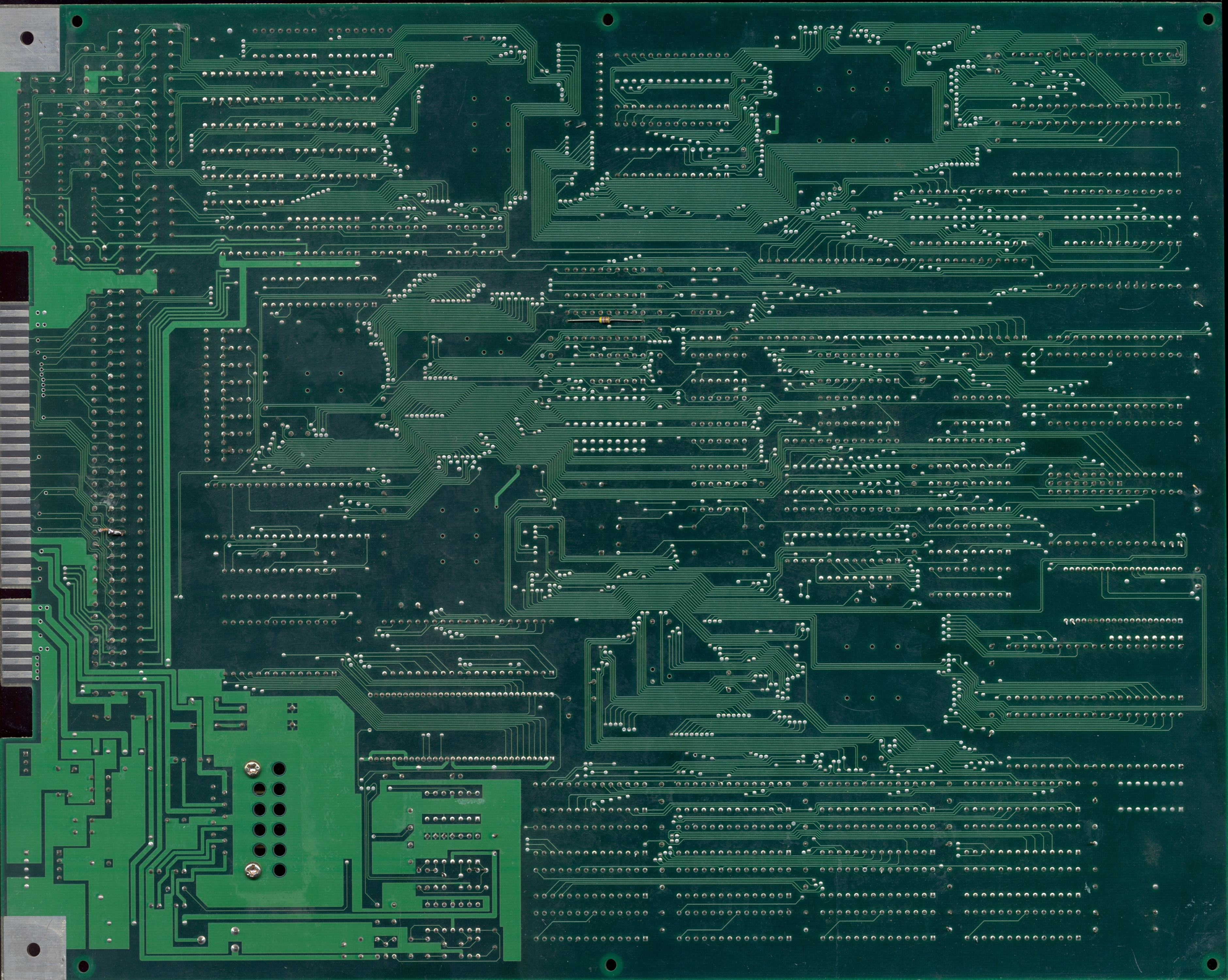

PCB solder side
-
