Football Champ (year hack)
| dumper | f205v |
| date | 03/03/2019 |
| emulator | |
| dev |
| name | 1663 |
| description | Football Champ (year hack) |
| year | 1992 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P12 | ic13 | 16/32-bit Microprocessor - main | |
| 1x | Z8400AB1-Z80ACPU | ic68 | 8-bit Microprocessor - sound | |
| 1x | YM2610 | ic58 | FM Operator Type-N (OPN) - sound | |
| 1x | Y3016-F | ic62 | D/A Converter (DAC) - sound | |
| 1x | MB3737A | ic71 | Audio Amplifier - sound | |
| 1x | oscillator | 26.686MHz | osc1 | |
| 1x | oscillator | 24.000MHz | osc2 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C512 | ic70 | dumped |
| 1x | M5M27C101K | ic4 | dumped |
| 3x | M27C1001 | ic5,ic6,ic7 | dumped |
| 3x | uPD27C4000 | ic1,ic2 | dumped |
| 2x | uPD27C8000 | ic9,ic10,ic57 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | HM3-65764K-5 | ic66 |
| 1x | IMS1630PL10Z | ic69 |
| 6x | MN44256-10LL | ic3,ic12,ic26,ic27,ic33,ic34 |
| 16x | TC51832SPL-85 | ic19,ic20,ic21,ic22,ic29,ic30,ic31,ic32 ic41,ic42,ic43,ic44,ic49,ic50,ic51,ic52 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PAL16L8BCN | ic45,ic46 | dumped |
Others
Custom Taito chips: TC0190FMC(ic8), TC0480SCP(ic23), TC05400BN(ic28), TC0520TBC(ic40), TE7750(ic53), TC0360PRI(ic55), TC0530SYC(ic56), TC0260DAR(ic67)
1x 28x2 JAMMA edge connector (G)
1x 3 legs connector (S)
1x 4 legs connector (Z)
1x 5 legs connector (empty space P)
1x 5 legs connector (on a 6 legs space M)
2x 15 legs connector (3P,4P)
1x trimmer (volume VR1)
Notes
PCB is marked: "TAITO K1100647A J1100261A MAIN PCB", "TAITO CORPORATION MADE IN JAPAN" and "SERIAL NO.116109066" on component side
PCB is labelled: "K11E0647A FOOTBALL CHAMP" on component side
label format is: ------- | C80 | -> game code | 11 | -> rom number -------
update 20190304 from Osso: ic4 is an year hack to show 1992. There are 6 bytes different: 3 of them change 30 into 32 to change the year from 1990 to 1992 and the other 3 change FF to FD to fool checksum routine.
Files
-

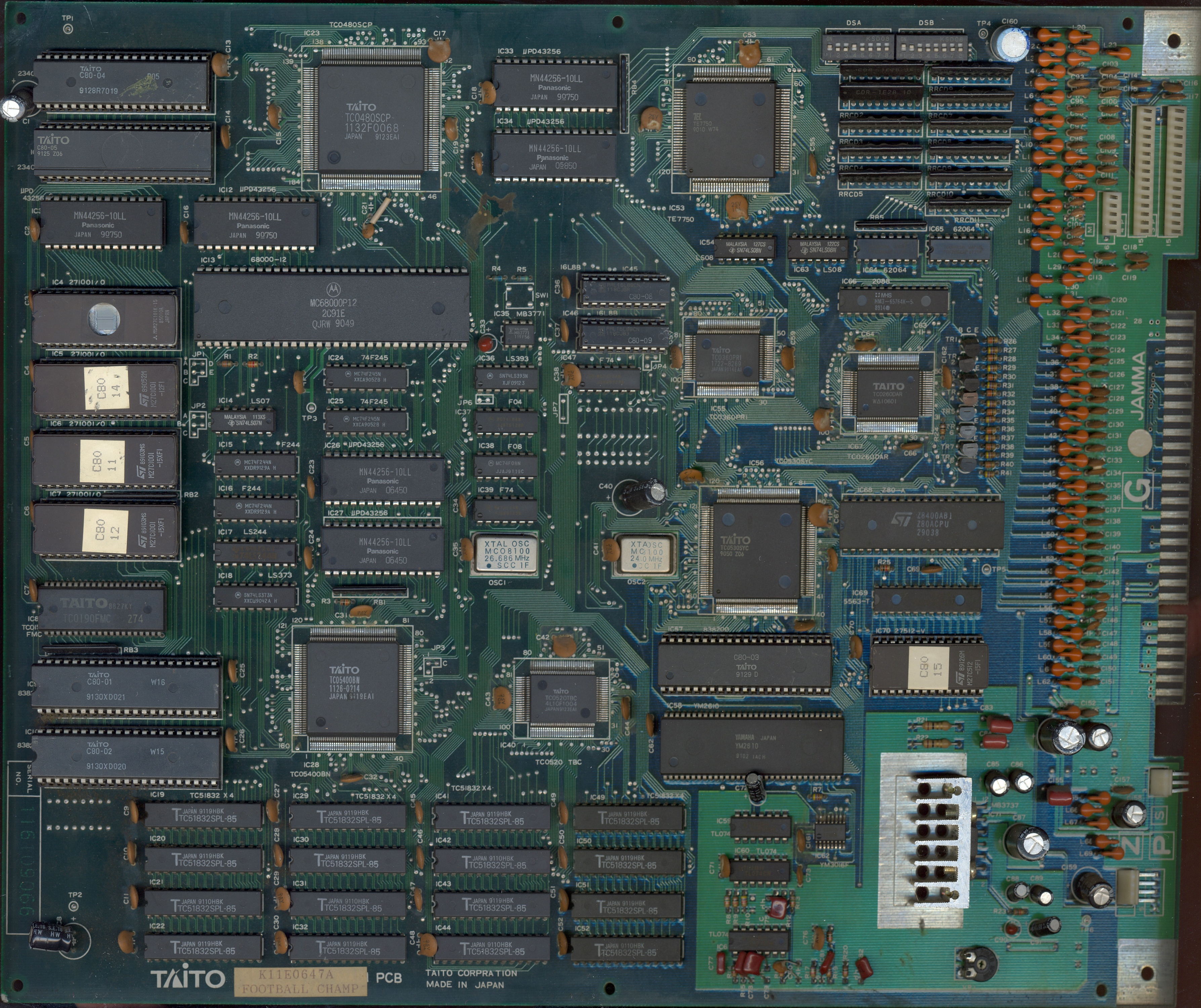

PCB component side
-

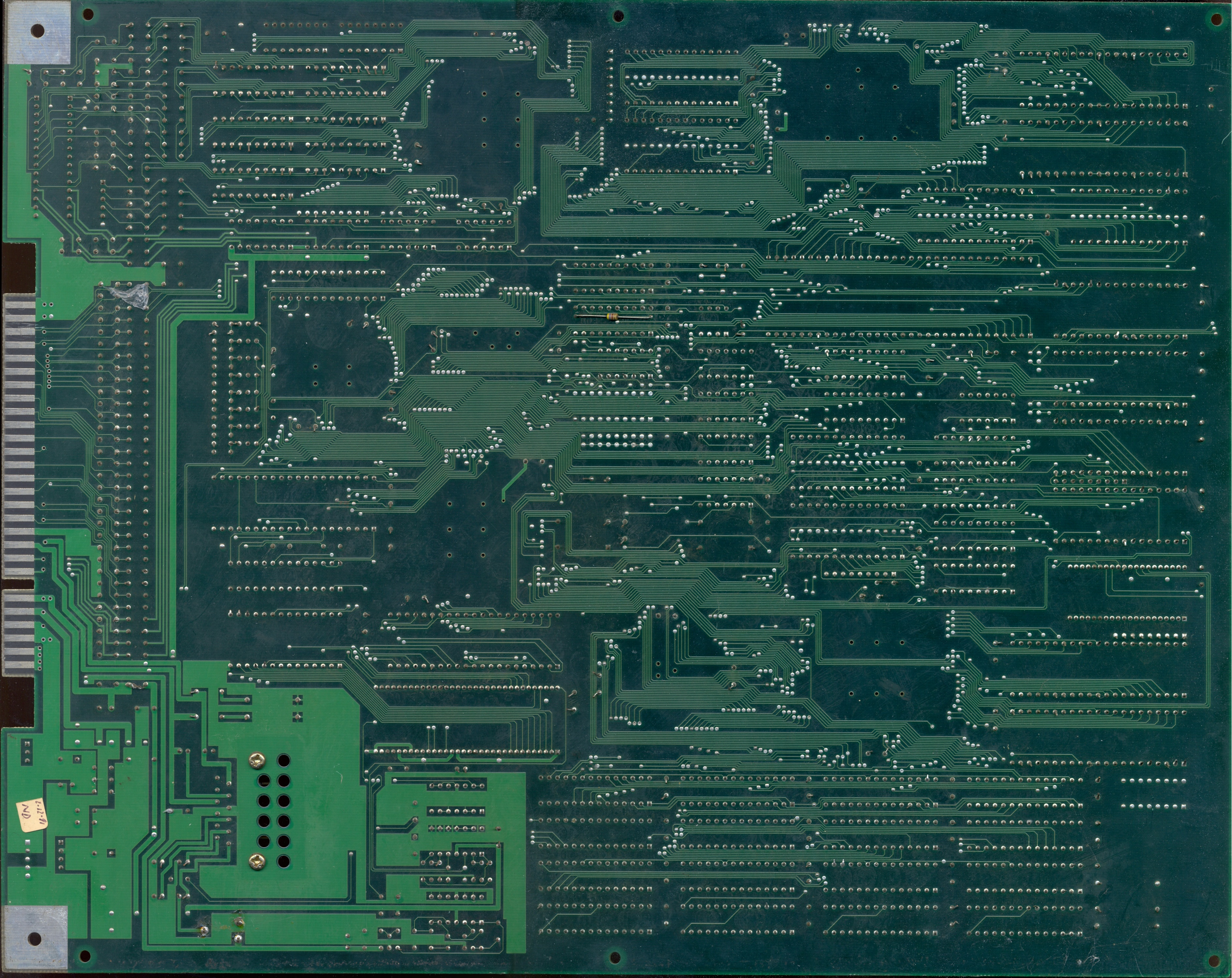

PCB solder side
-
