Flicky (128k Version, 315-5051, larger ROMs)
From Citylan
Jump to navigationJump to search
| dumper | Corrado Tomaselli |
| date | 05/12/2010 |
| emulator | MAME 0.181 - FB Alpha v0.2.97.26 |
| dev | MetalliC, Barry Harris |
| name | flickya on ProgettoEMMA flickya on Arcade Database flickyg on FB Neo |
| description | Flicky (128k Version, 315-5051, larger ROMs) [MAME] Flicky (128k Version, System 2, 315-5051, alt graphics) [FB Alpha] |
| year | 1984-05-24 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | 27128 | ic62,ic64,ic66 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
These 3 GFX EPROMs have been found on a 128K version of Flicky.
All 128K version PCBs have jumpers to set GFX EPROMs at 64 or 128.
They are in common on any revision of the 128K version of Flicky.
update 20161218: System11 redumped the game, confirming it as a good dump.
Files
-

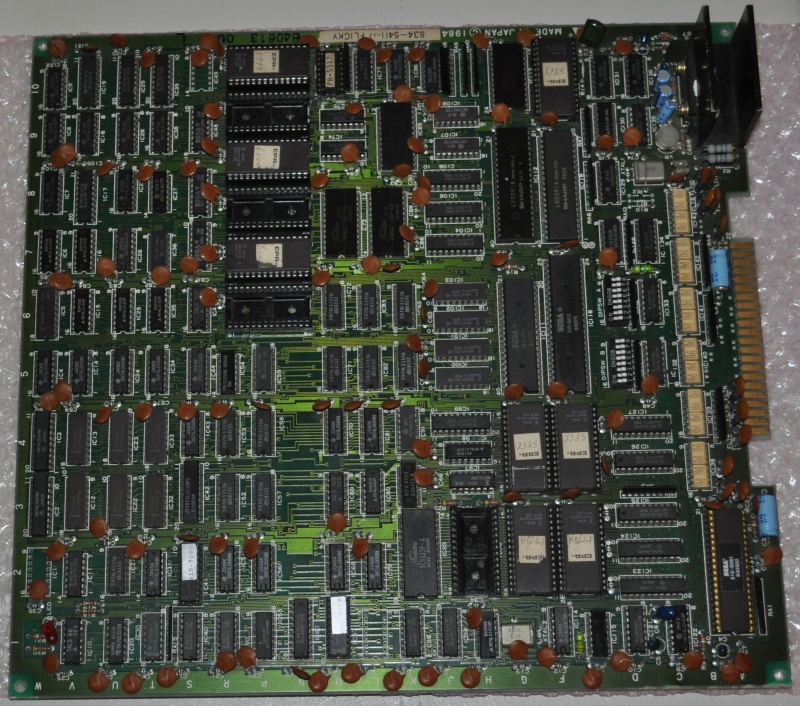

PCB component side
