Flashgal (set 1, Kyugo logo)

EMU Infos

dumper	Corrado Tomaselli
date	10/03/2017
emulator	MAME 0.184
dev	Osso

PCB Infos

name	flashgalk on Arcade Database
description	Flashgal (set 1, Kyugo logo)
year	1985
manufacturer	Kyugo / Sega

Technical references

CPUs

QTY	Type	clock	position	function
1x	Z8400AP5-Z80ACPU		top PCB 3e	8-bit Microprocessor - main
1x	LH0080A-Z80ACPU		top PCB 5k	8-bit Microprocessor - main
2x	AY-3-8910		top PCB 6d,6e	Programmable Sound Generator - sound
1x	audio amplifier		top PCB 3a	Audio Amplifier - sound
1x	oscillator	18.432	bottom PCB 6t

ROMs

QTY	Type	position	status
8x	M5L2764K	top PCB 2f,2h,2j,2k,4f,4h,4j,4k	dumped
1x	HN482732AG	bottom PCB 4a	dumped
3x	2764	bottom PCB 9h,10h,11h	dumped
6x	M5L27128K	bottom PCB 6a,7a,8a,9a,10a,11a	dumped
2x	TBP24S10N	top PCB 1f,1h	dumped
1x	TBP24S10N	top PCB 1j	dumped, see notes
2x	TBP18S030	top PCB 2c,5j	dumped

RAMs

QTY	Type	position
1x	SRM2016C-10	top PCB 2m
3x	SRM2016C-10	bottom PCB 3m,10m,11m
4x	HM6148P-8	bottom PCB 3j,3k,5k,5l
3x	SRM2114C3	bottom PCB 4r,7l,7m

PLDs

QTY	Type	position	status
1x	PAL12L6	top PCB 4m	dumped
1x	PAL12L6	top PCB 5n	dumped
1x	GAL16V8B	bottom PCB 1j	see notes

Others

1x 18x2 edge connector (top PCB)
1x 50 pins flat cable connector from top PCB to bottom PCB
1x trimmer (volume)(top PCB VR1)
2x 8 DIP switches banks (top PCB DPSW1,DPSW2)

Notes

top PCB is marked: "MADE IN JAPAN" on component side
bottom PCB is marked: "CVG-48C" and "1984" on component side
the PROM @1j was broken (detail pic 1), Corrado made a substitution for it with a GAL (detail pic 2). The project files are available at www.jammarcade.net

---

update 20180410: pics and better description

Files

•

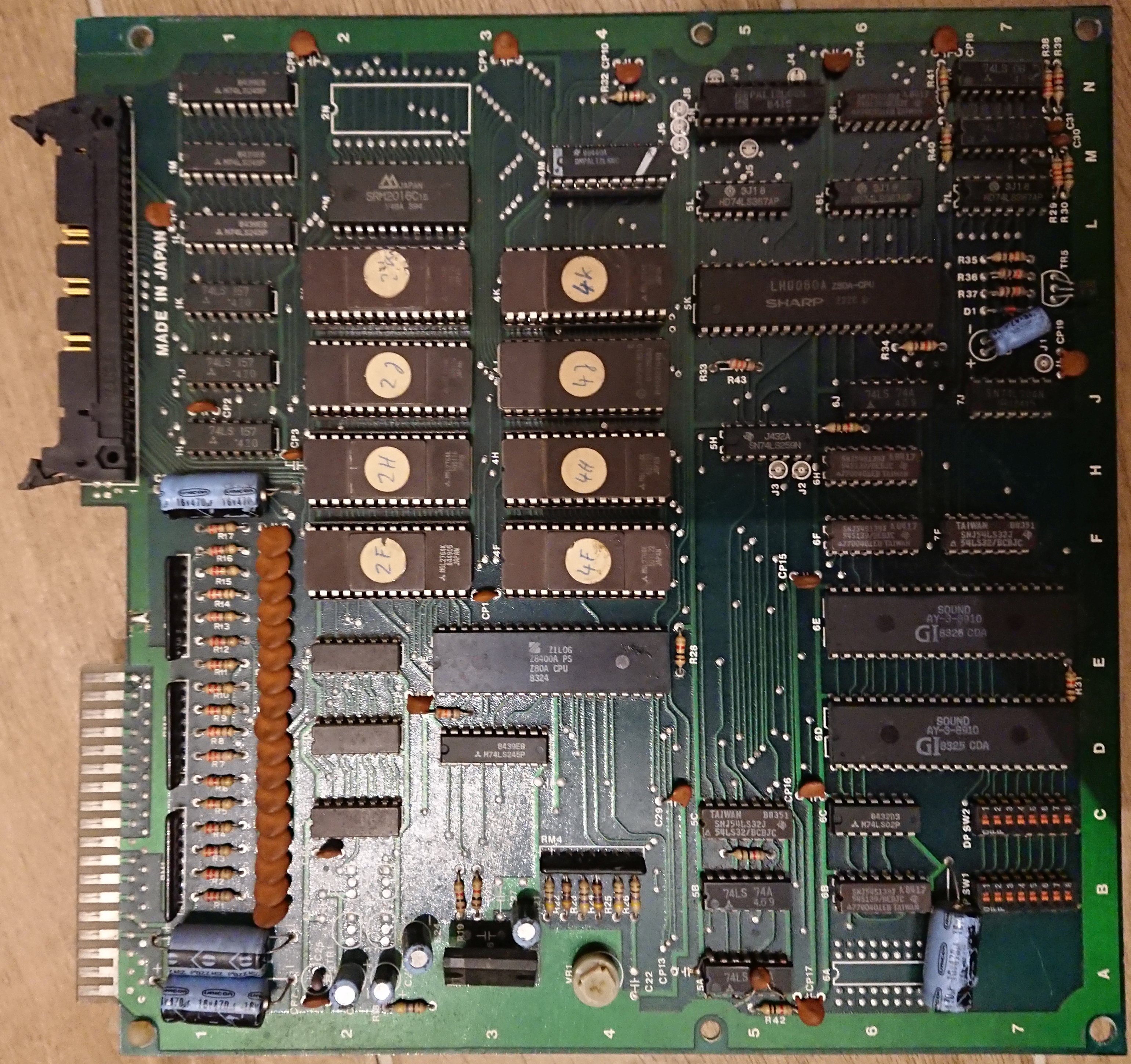

  top PCB component side

•

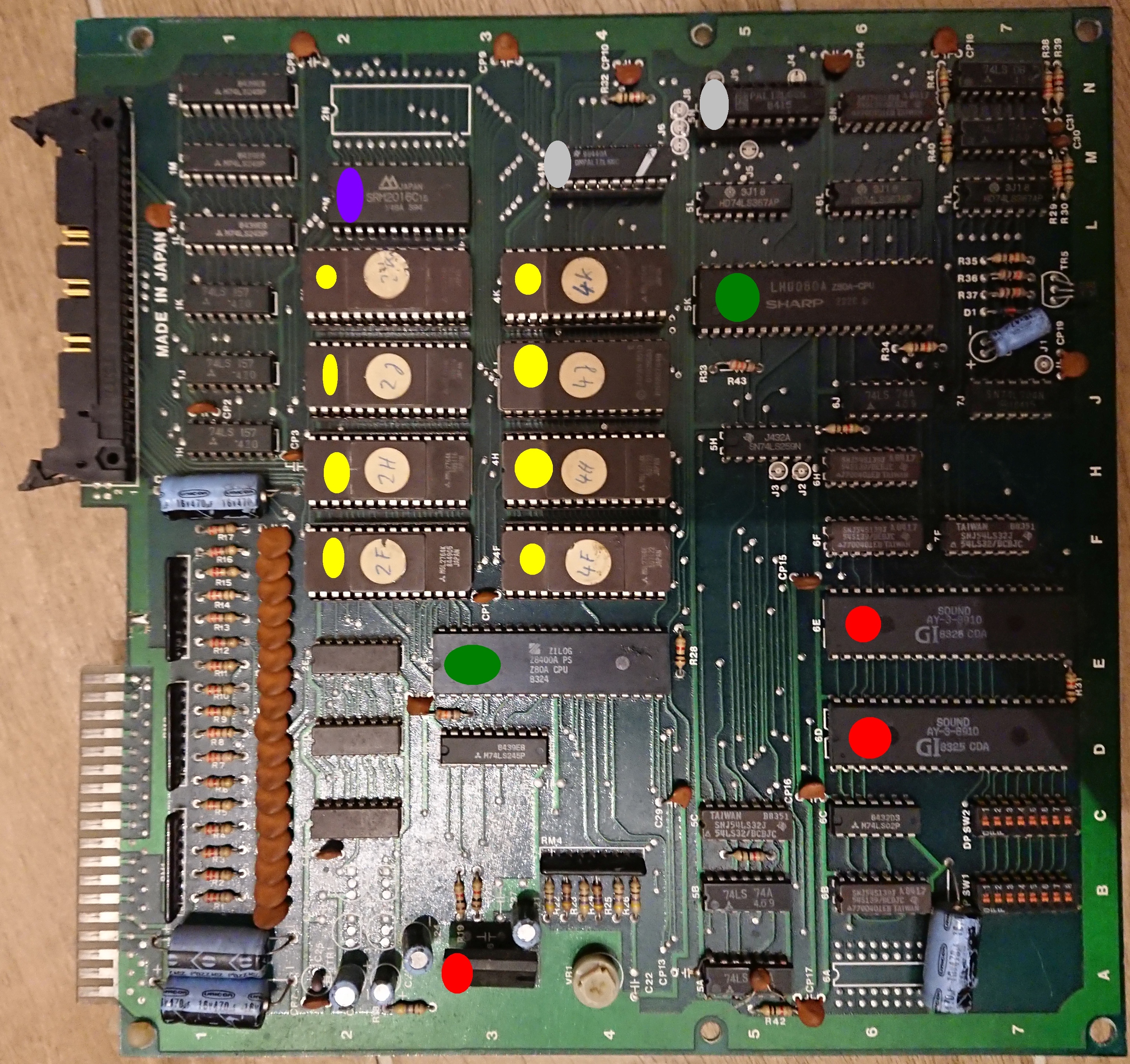

  top PCB component side marks

•

  bottom PCB component side

•

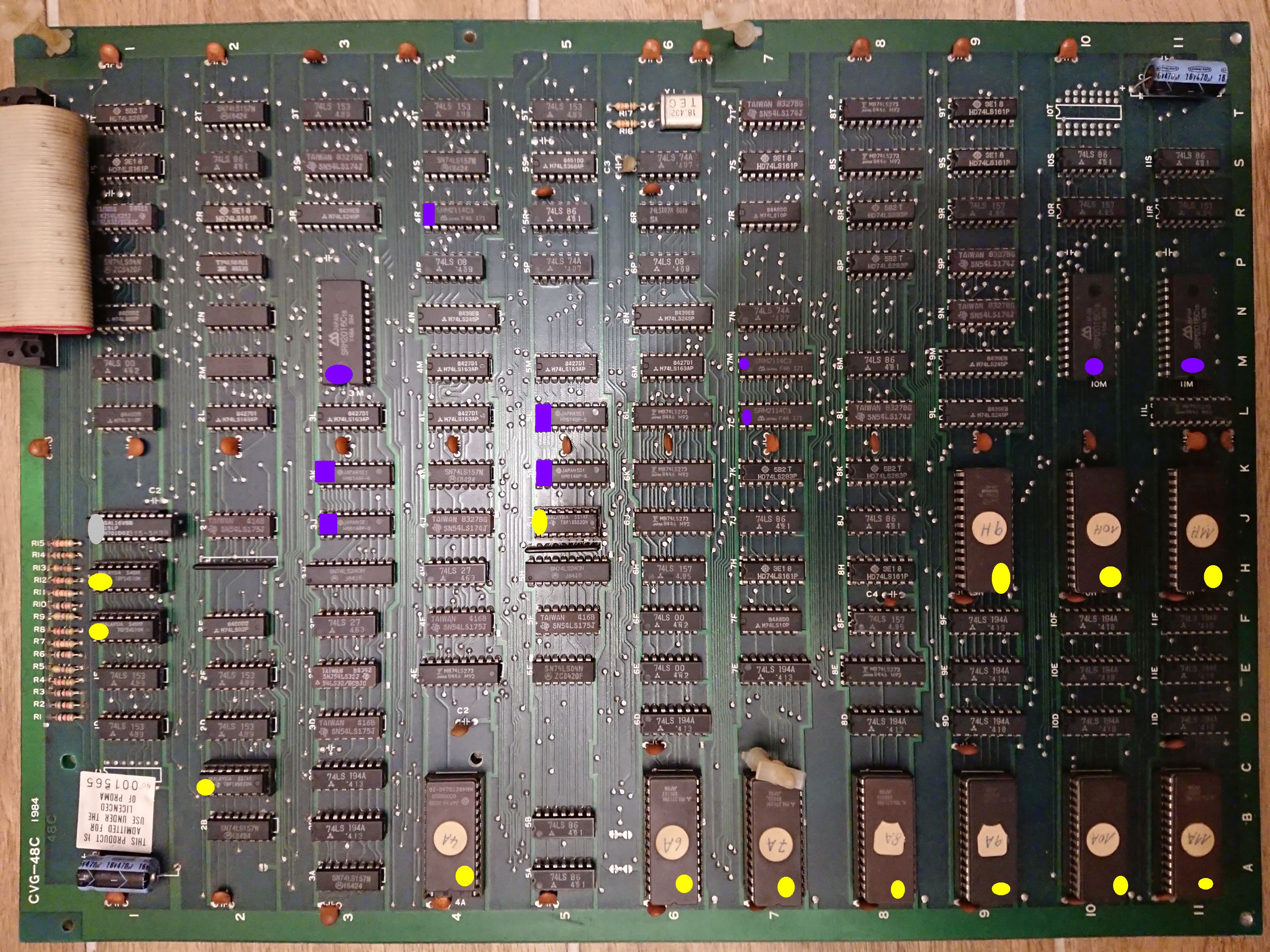

  bottom PCB component side marks

•

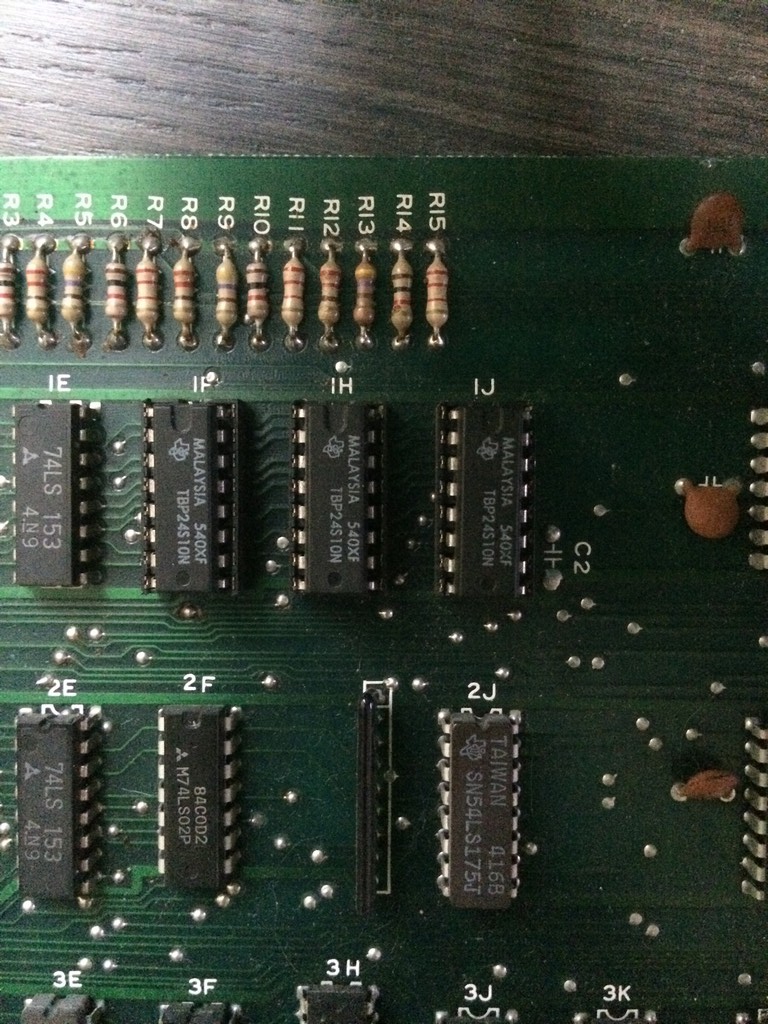

  bottom PCB component side detail 1

•

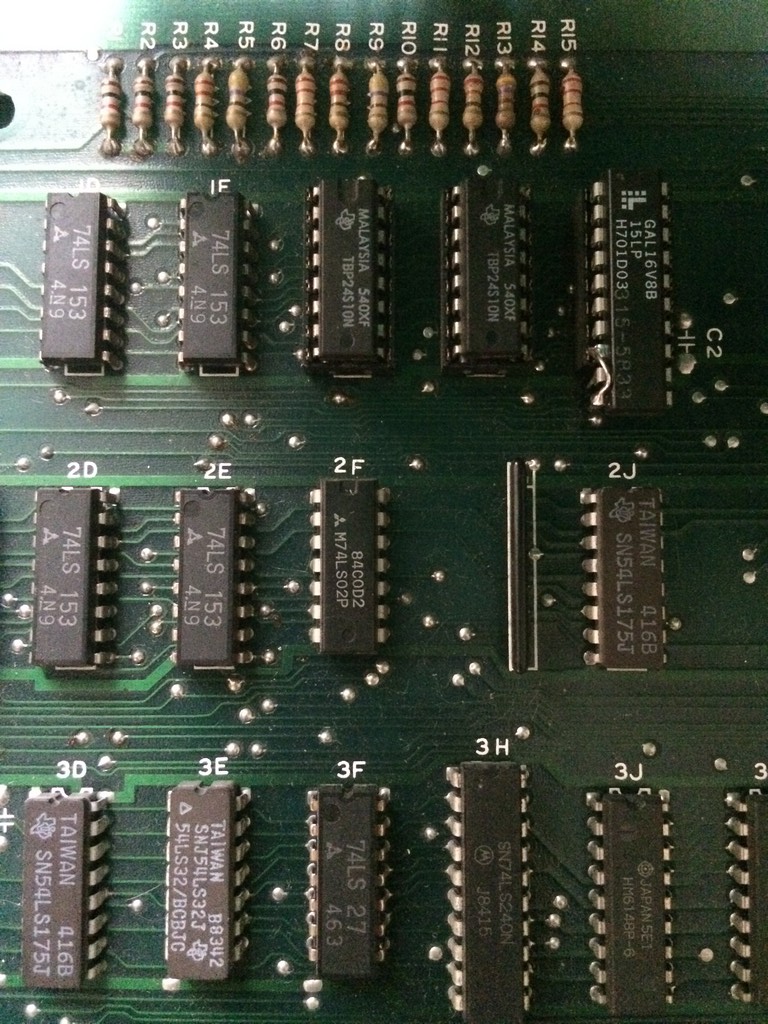

  bottom PCB component side detail 2
