Fighting Fantasy (bootleg with 68705)
From Citylan
Jump to navigationJump to search
dumper | f205v |
dump date | 28/03/2006 |
emulator | MAME 0.135u3 |
dev | f205v |
name | ffantasybl on ProgettoEMMA ffantasybl on Arcade Database |
description | Fighting Fantasy (bootleg with 68705) |
year | 1989 |
manufacturer |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | MC68000P10 | main board | 16/32-bit Microprocessor - main | |
1x | R6502P | main board | 8-bit Microprocessor - main | |
1x | YM3812 | main board | FM Operator Type-L II (OPL II) - sound | |
1x | YM2203 | main board | FM Operator Type-N (OPN) - sound | |
2x | YM3014 | main board | D/A Converter (DAC) - sound | |
1x | LM358 | main board | Dual Operational Amplifier - sound | |
1x | LM324 | main board | Quad Operational Amplifier - sound | |
1x | TDA2002 | main board | Audio Amplifier - sound | |
1x | MC68705U3 | roms board | 8-bit EPROM Microcomputer Unit - main, read protected, not dumped | |
1x | OKI M6295 | roms board | 4-Channel Mixing ADCPM Voice Synthesis LSI - main | |
1x | oscillator | 16.000MHz | main board | main |
1x | oscillator | 3.579545MHz | roms board | main |
ROMs
QTY | Type | position | status |
---|---|---|---|
8x | M27512 | main board 1,2,3,4,5,6,7,8 | dumped |
3x | TBP34S10 | main board | not dumped yet |
1x | N82S131N | main board | not dumped yet |
1x | N82S137N | main board | not dumped yet |
9x | M27512 | roms board 10,11,13,14,20,21,22,23,30 | dumped |
4x | M27256 | roms board 24,25,26,27 | dumped |
2x | TMS27C256 | roms board 28,29 | dumped |
RAMs
QTY | Type | position |
---|---|---|
14x | MCM2018AN | main board |
2x | DS2064 | main board |
4x | MCM2018AN | roms board |
2x | LC3664 | roms board |
PLDs
QTY | Type | position | status |
---|
Others
1x JAMMA edge connector
1x trimmer (volume)
2x 8x2 switches DIP
Notes
Working
Files
-

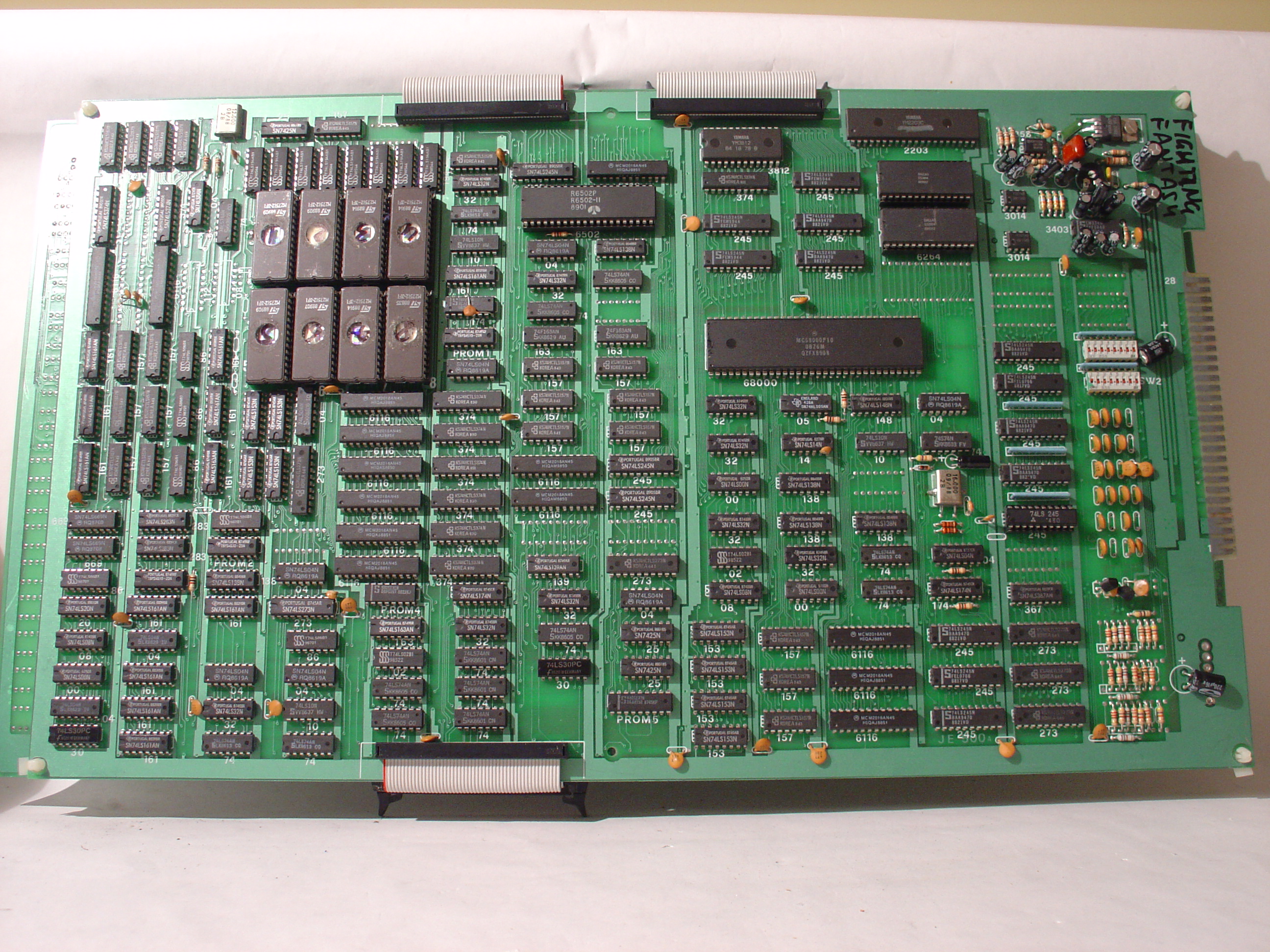

main PCB component side
-

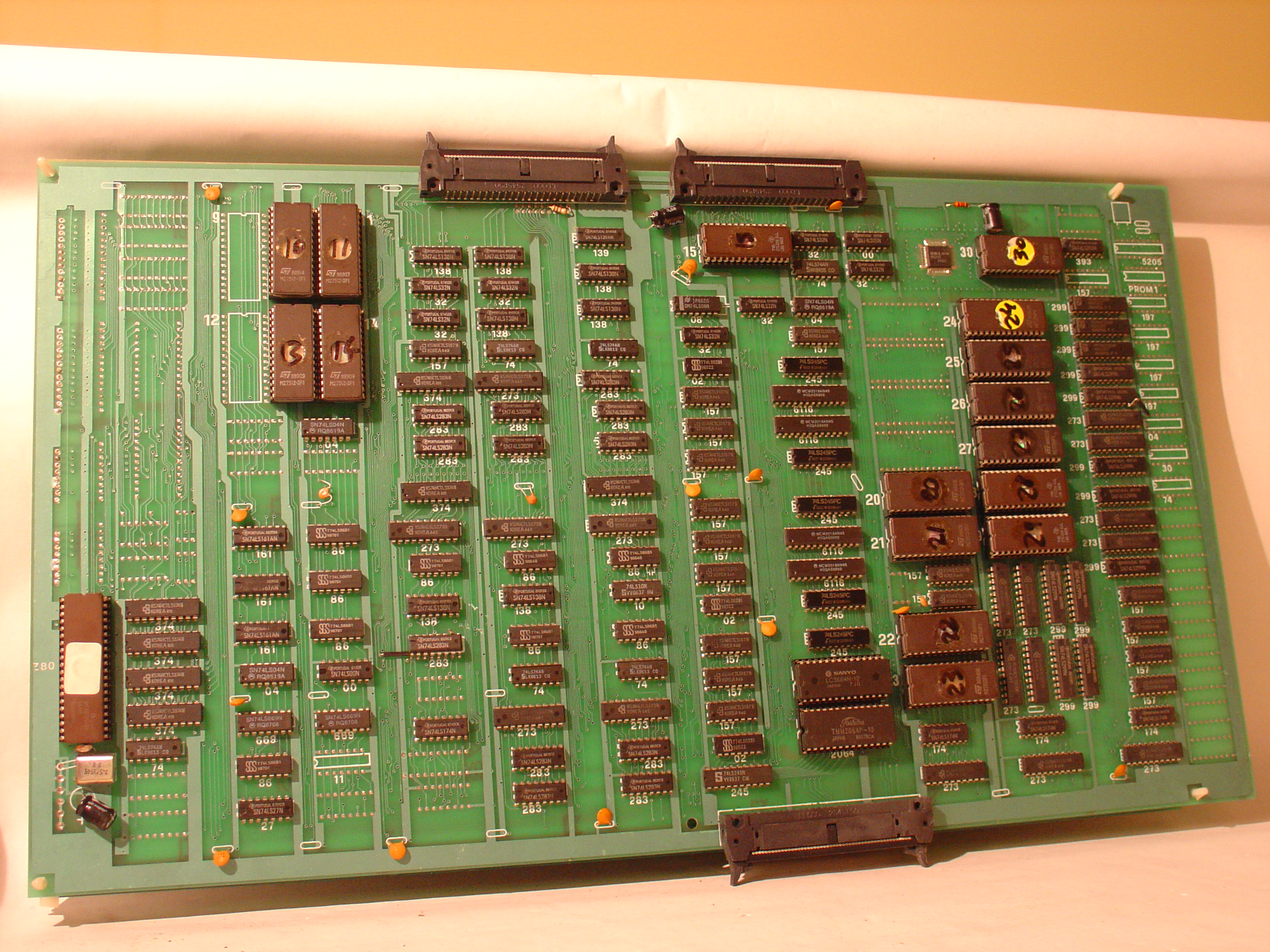

roms PCB component sideImage
-

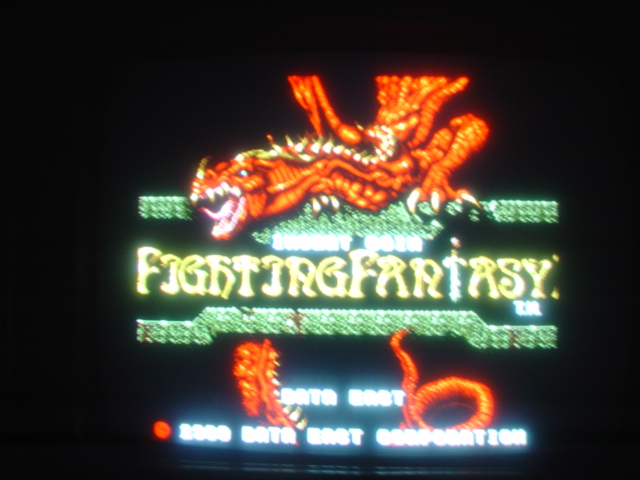

Title
-

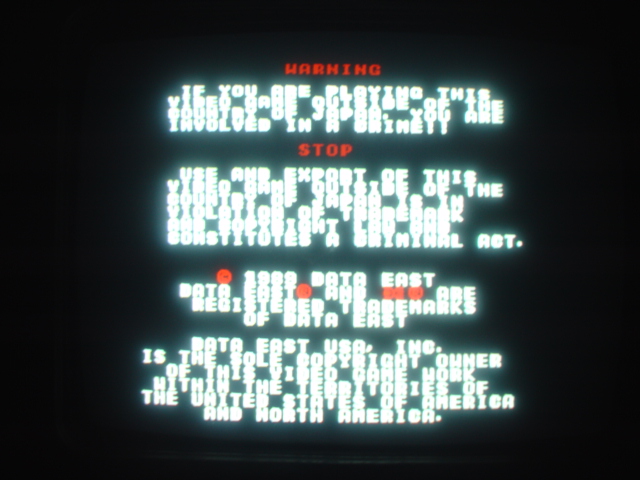

Disclaimer
-

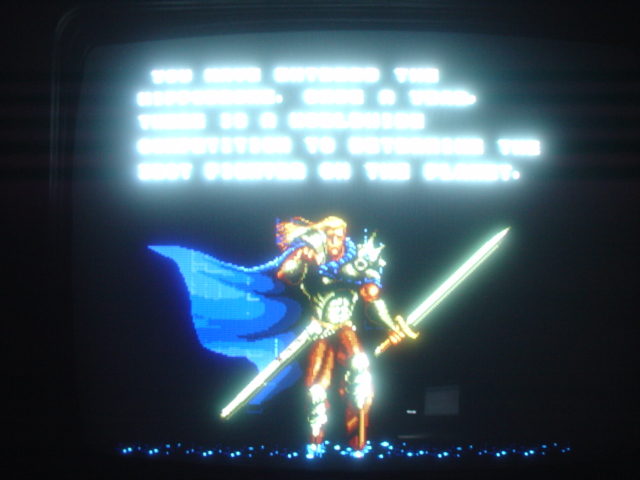

Attract mode
-

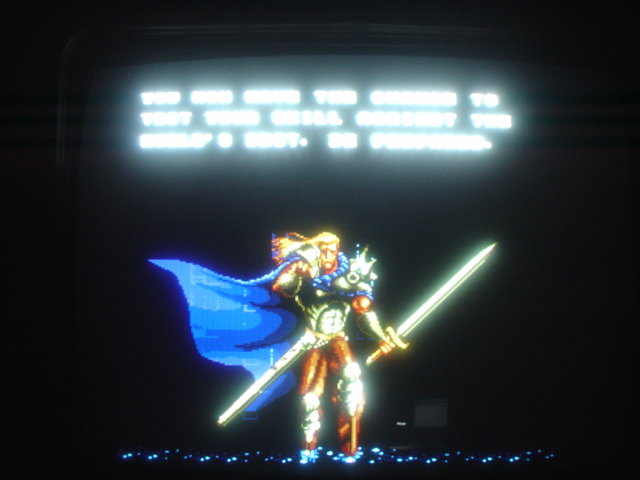

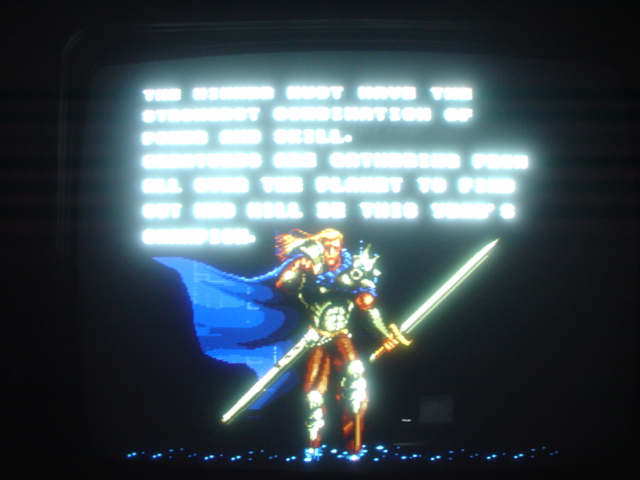

Intro 1
-
Intro 2
-

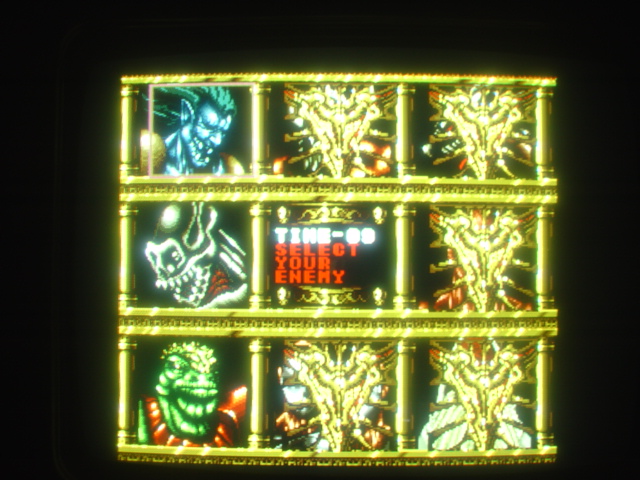

Select 1
-

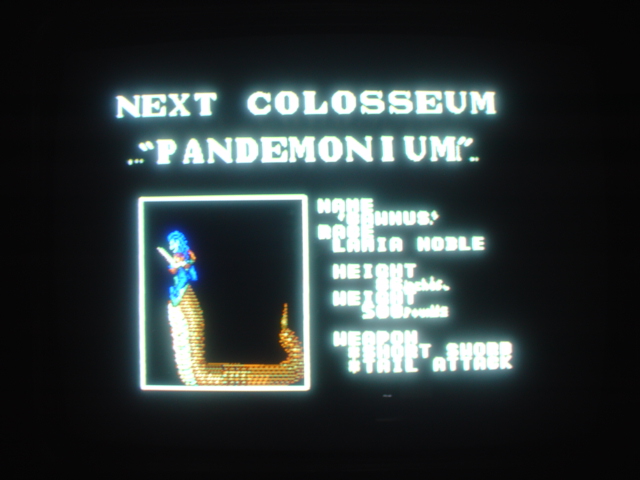

Select 2
-

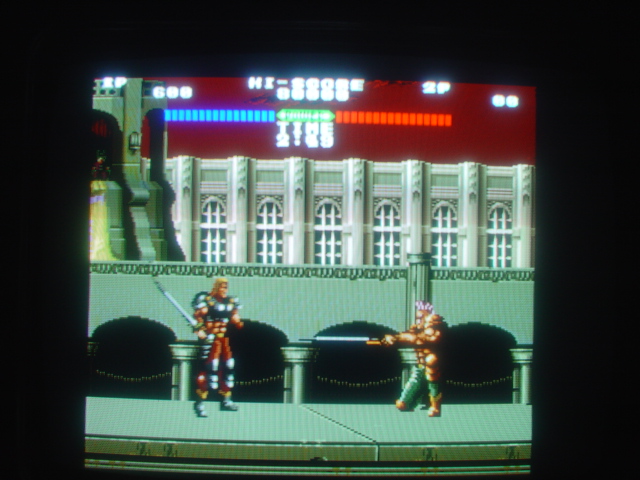

In game
-

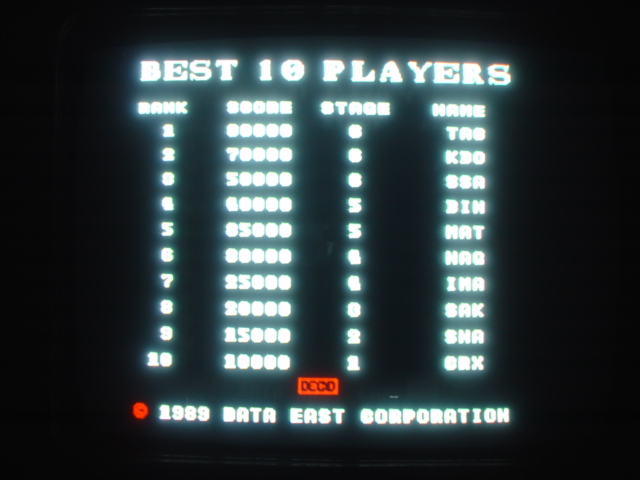

Hiscore
